Key Features
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital twin 16+1+2 phases VRM solution

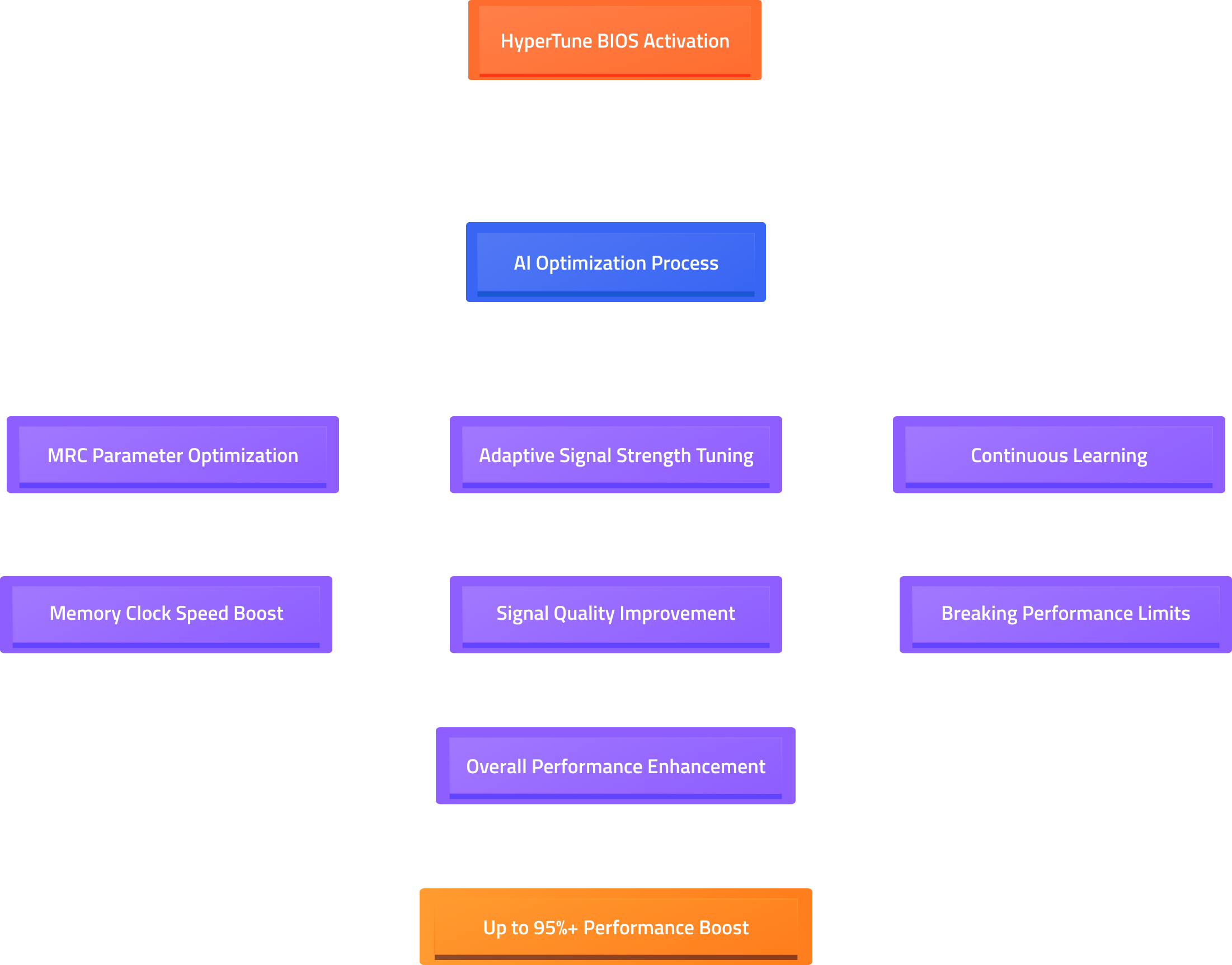

- D5 Bionic Corsa for Infinite Memory Performance

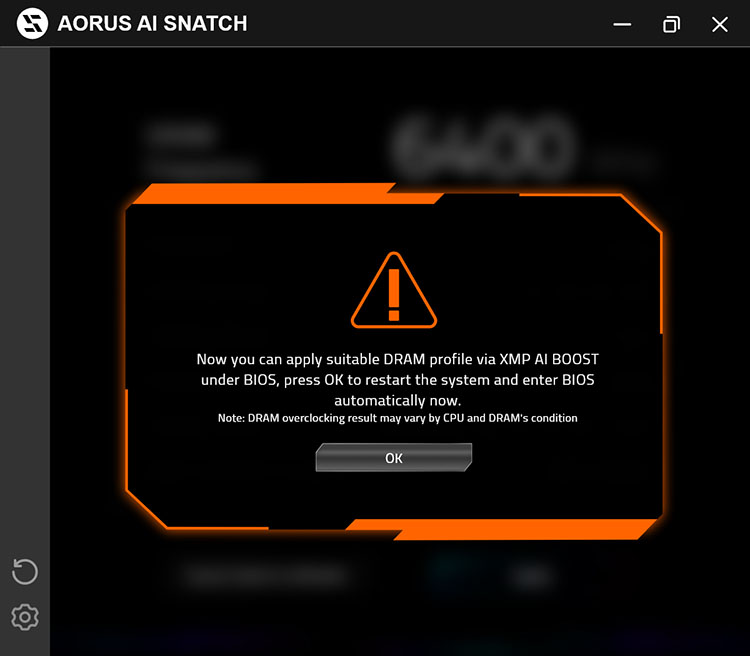

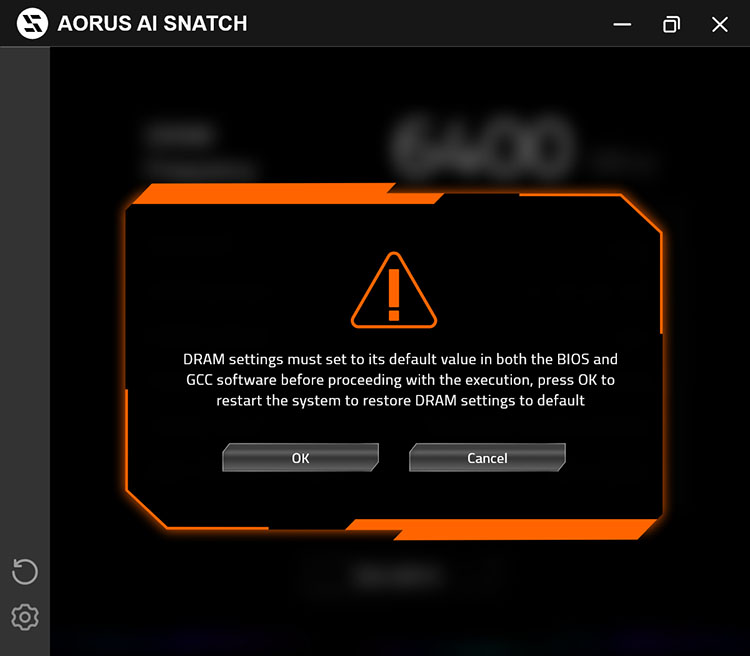

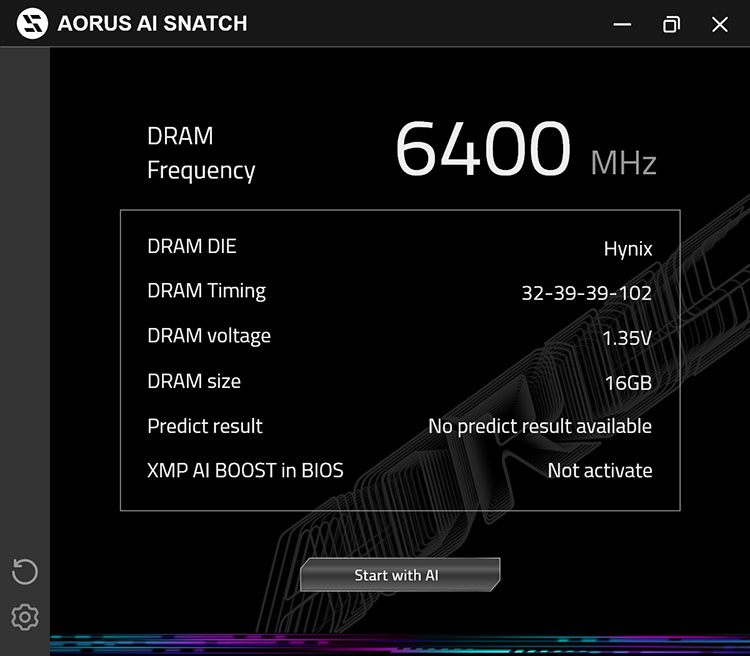

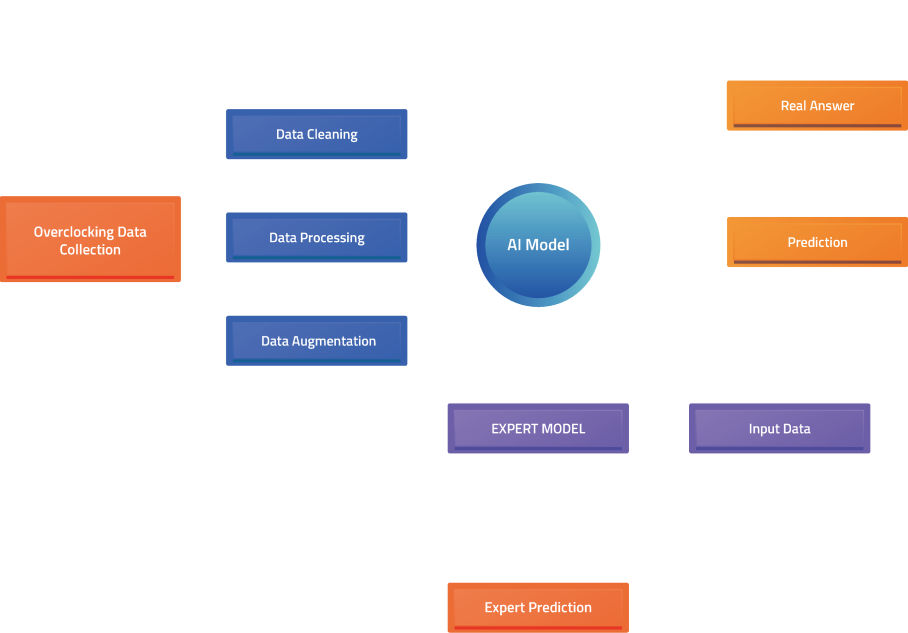

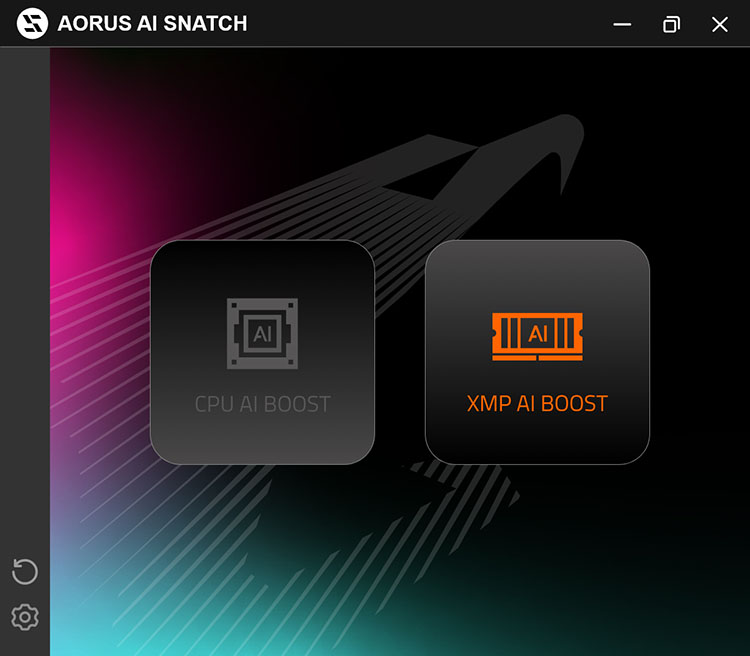

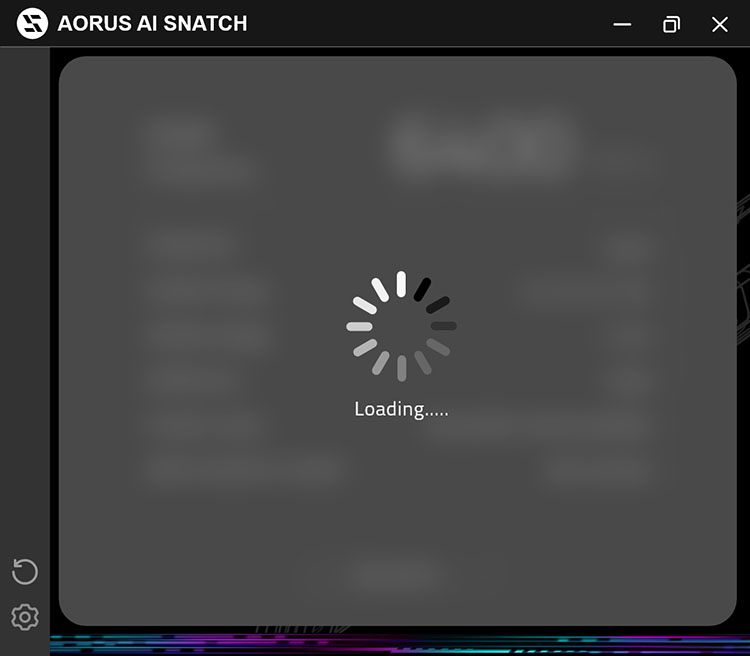

- AORUS AI SNATCH : Auto-Overclocking Software by AI models

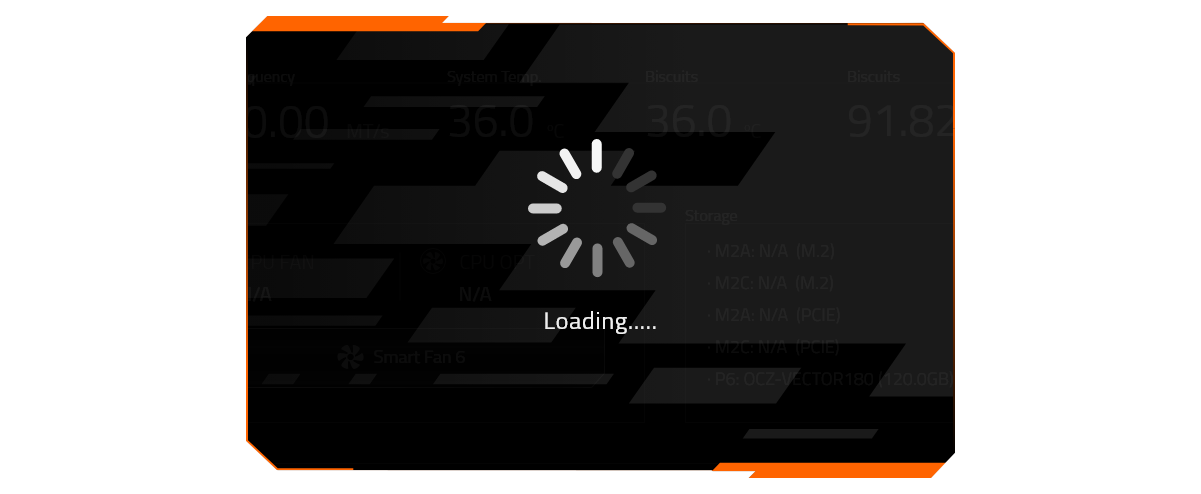

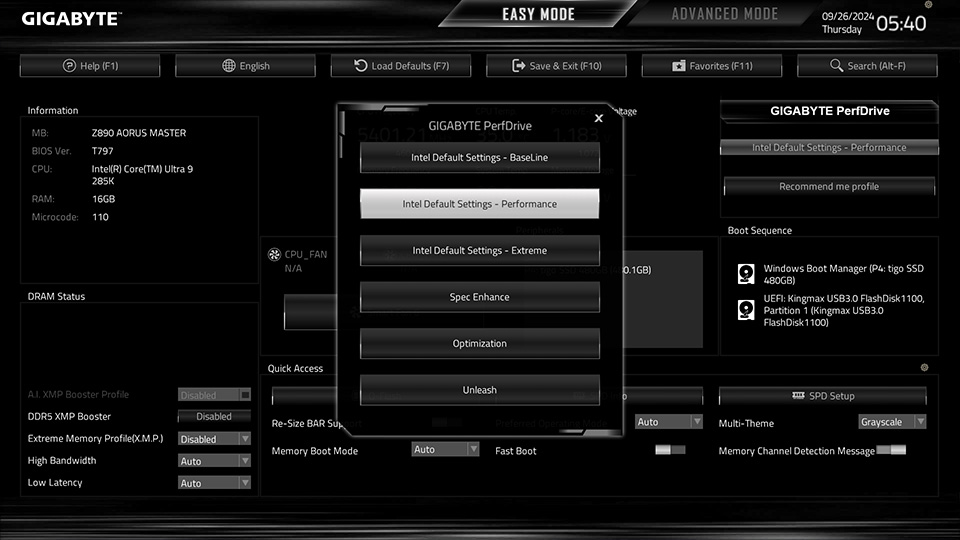

- AI Perfdrive : Provides optimal and customized BIOS preset profile for users

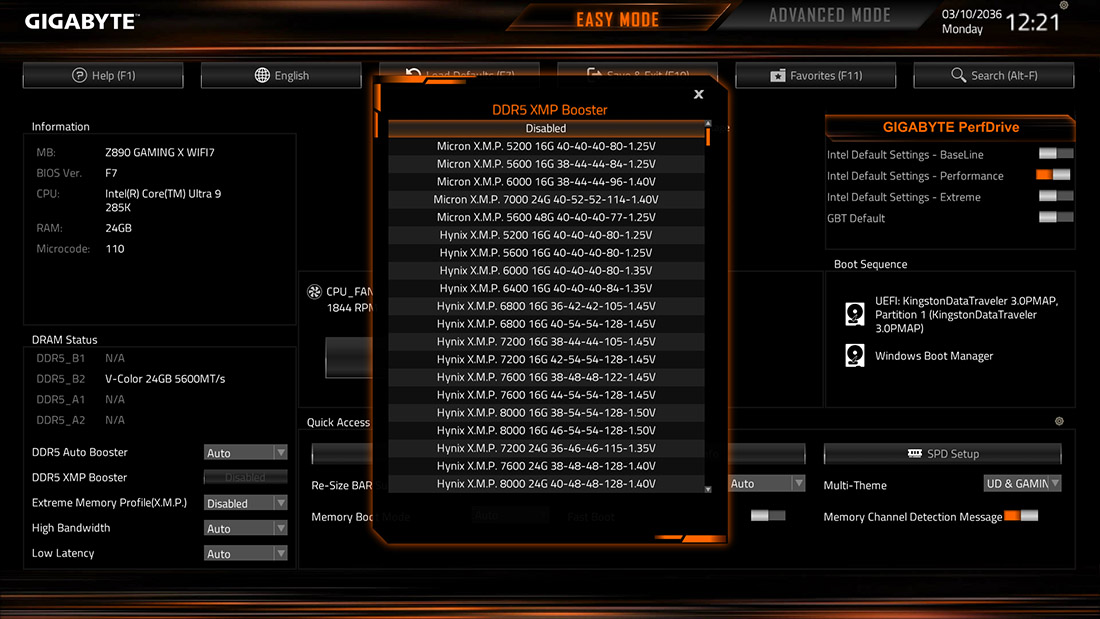

- Premium Compatibility : 4*DDR5 with XMP Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design

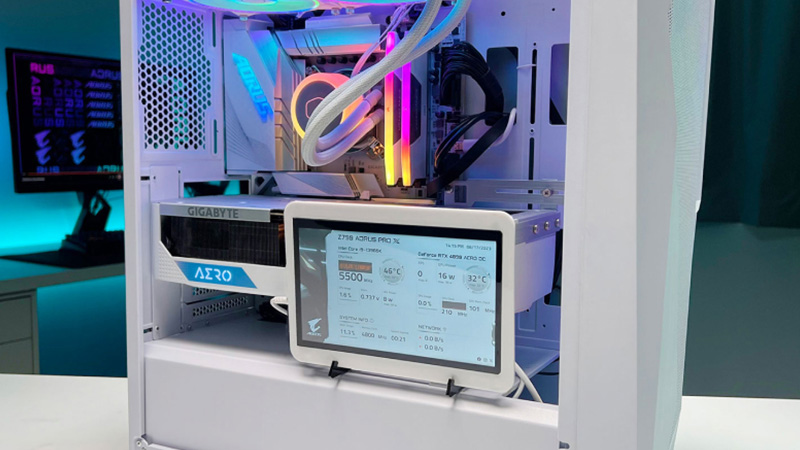

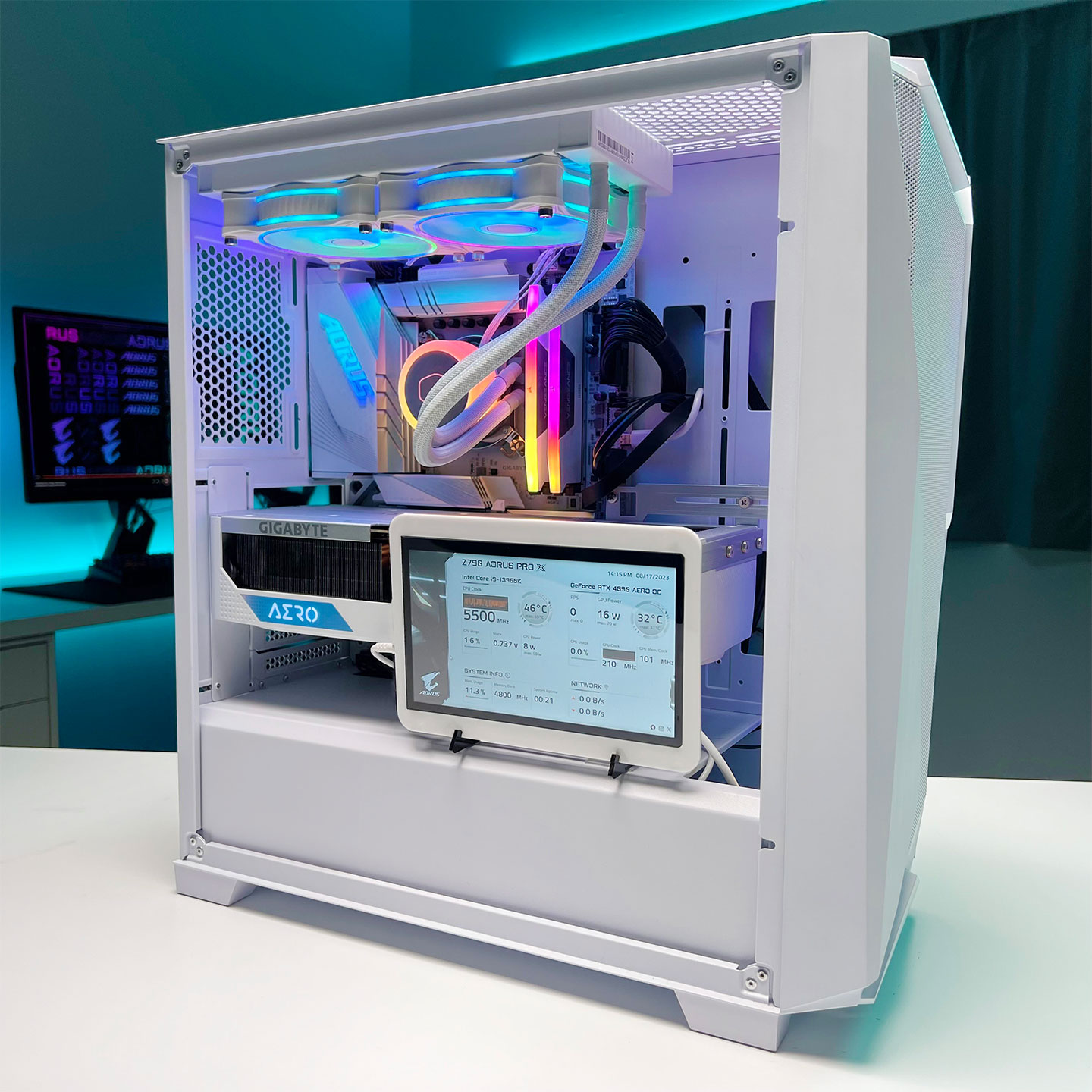

- Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup

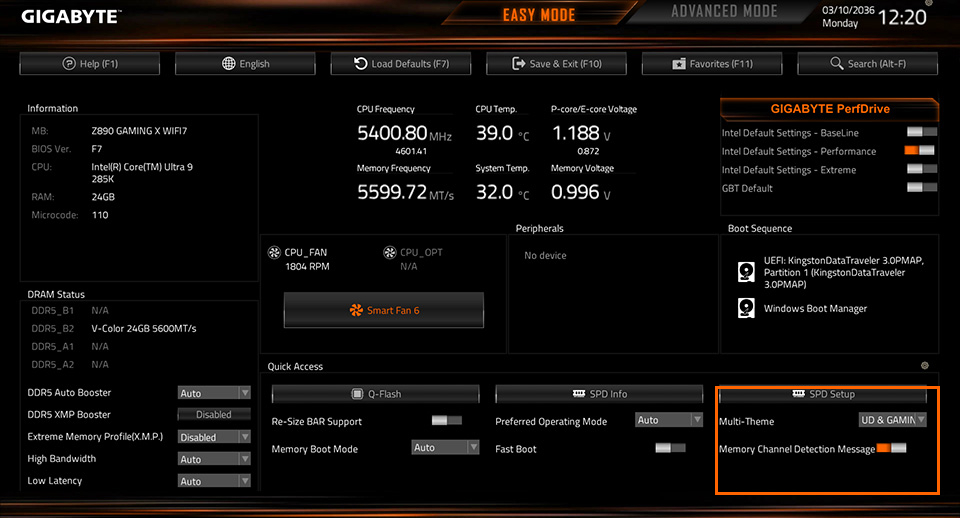

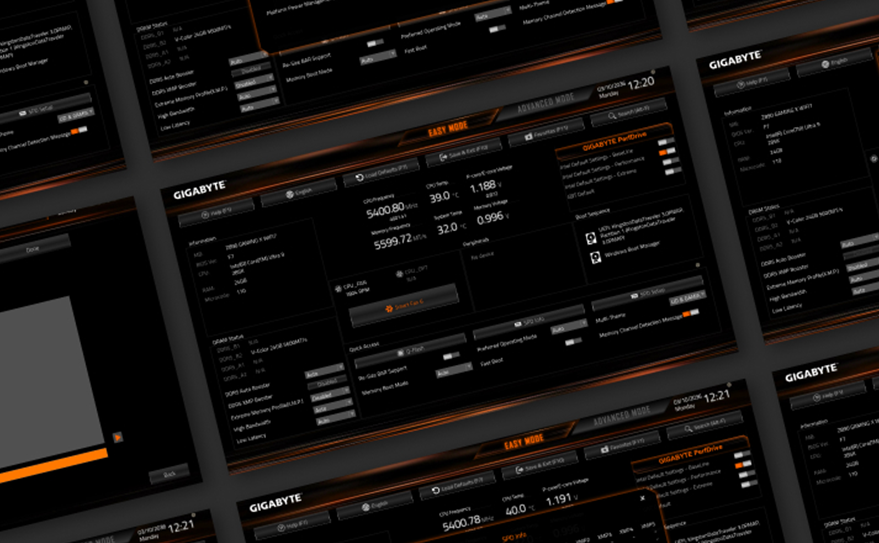

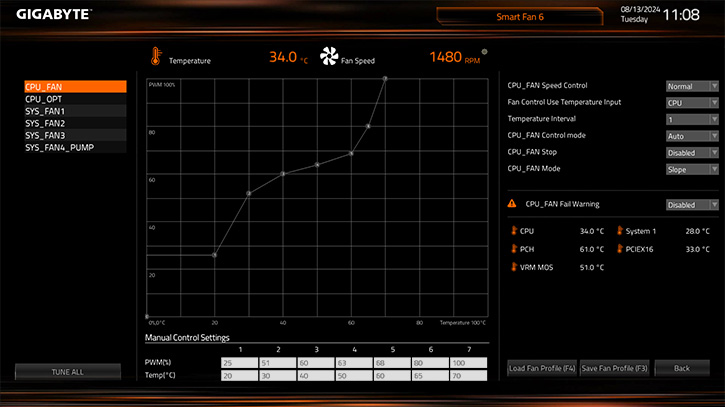

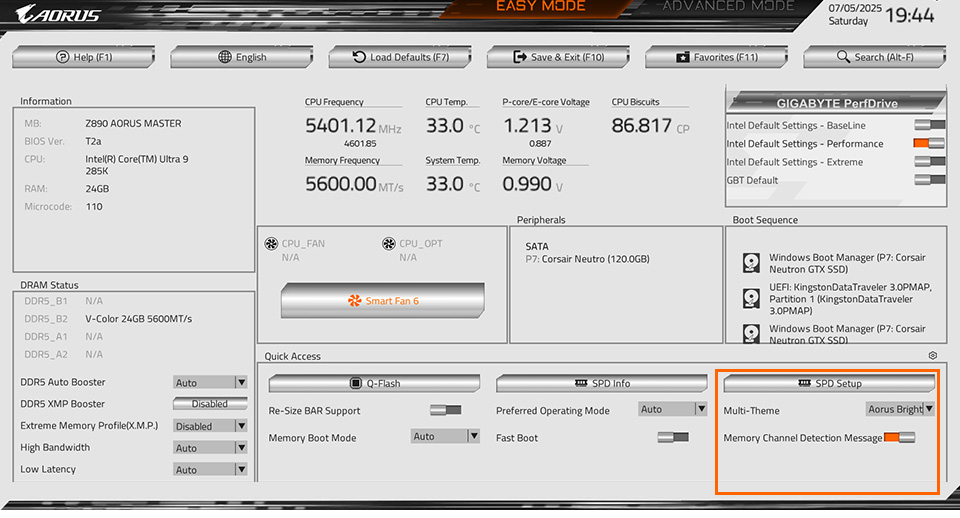

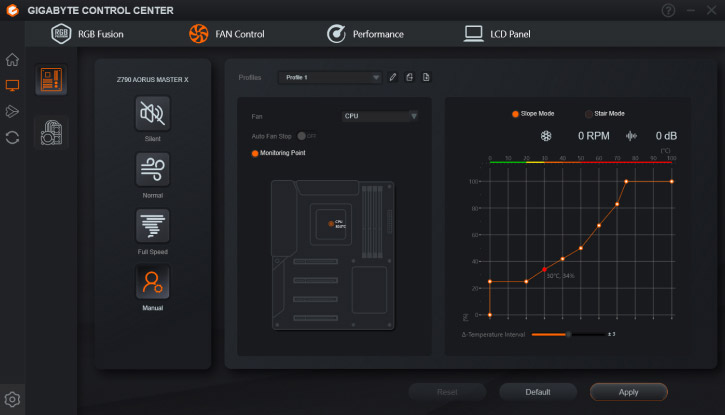

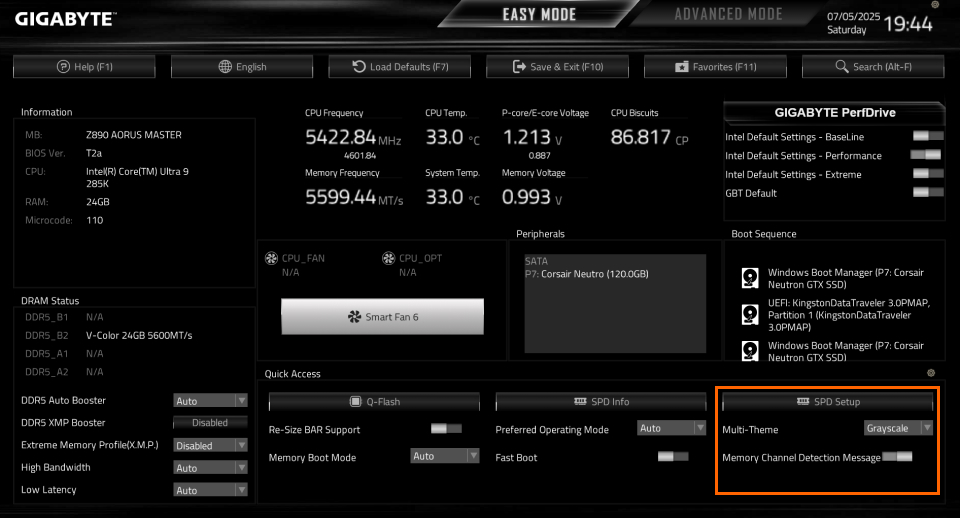

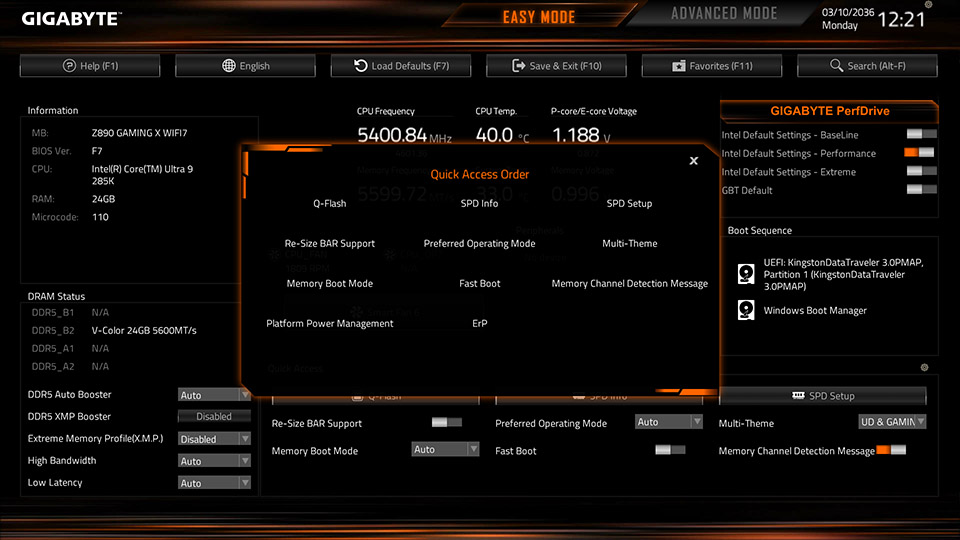

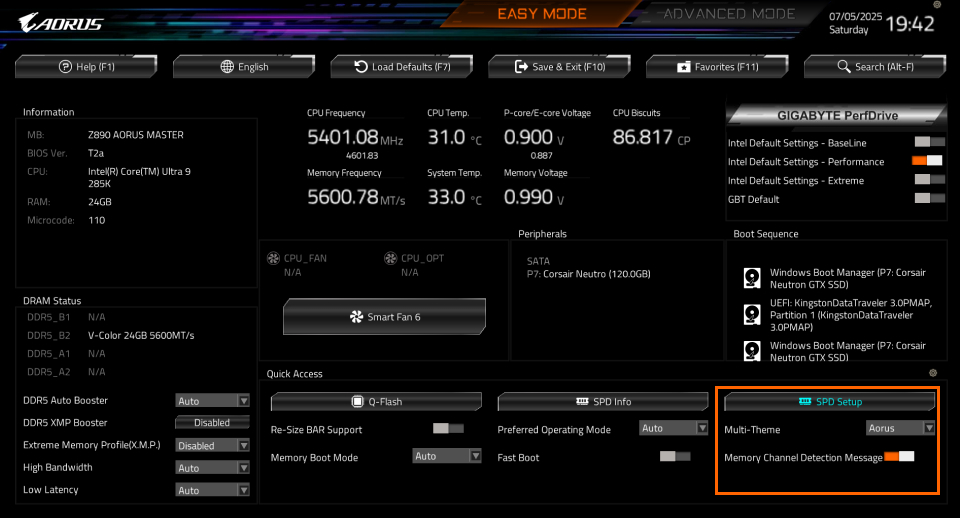

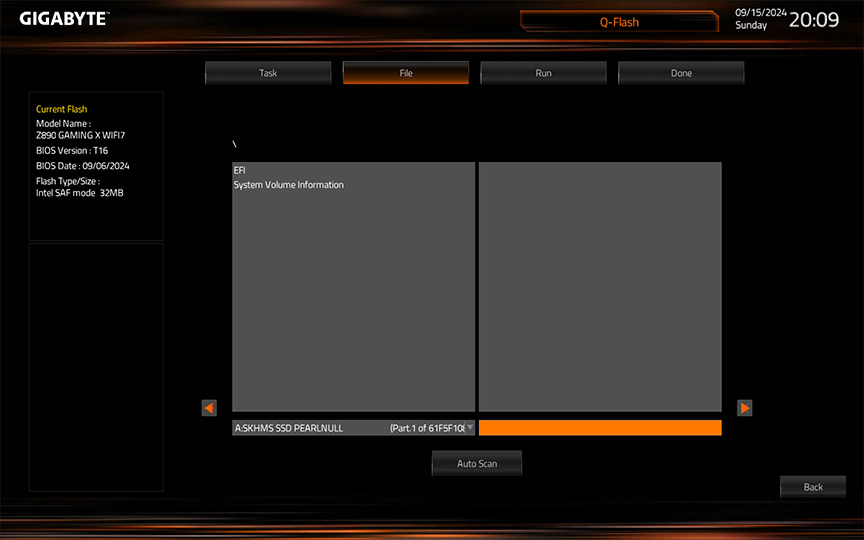

- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW

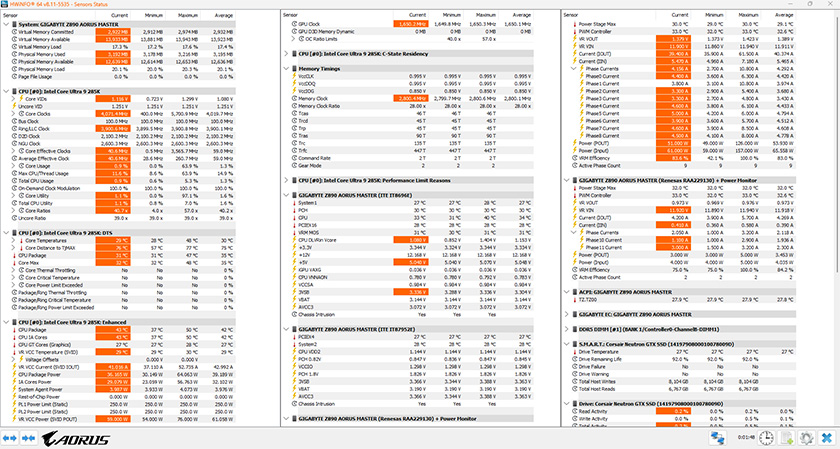

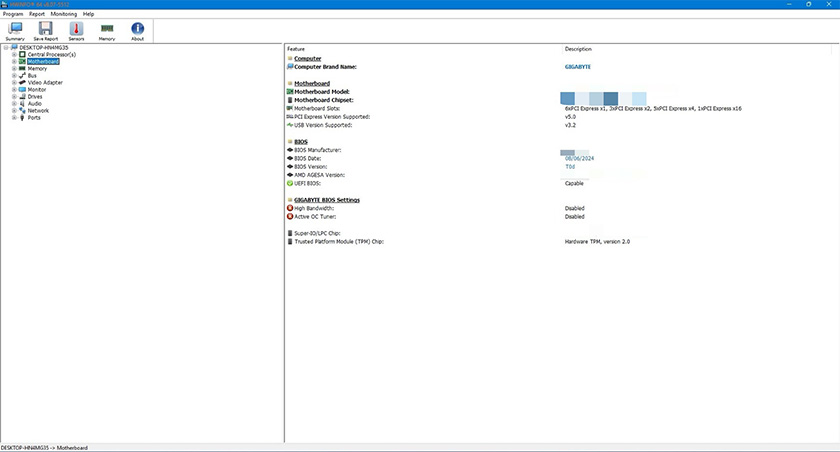

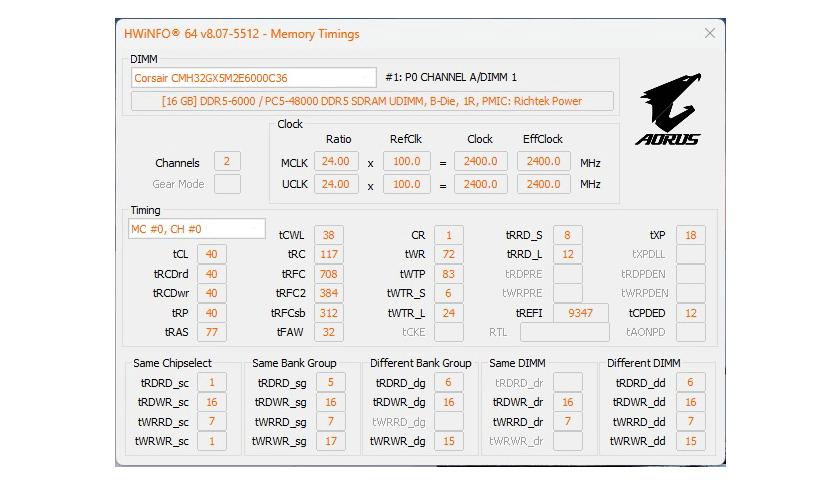

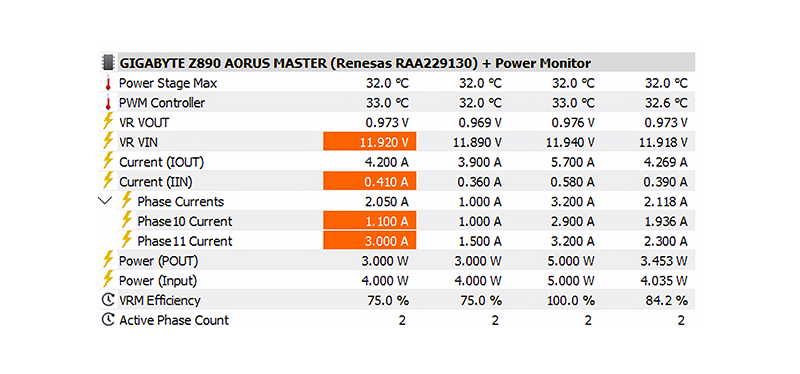

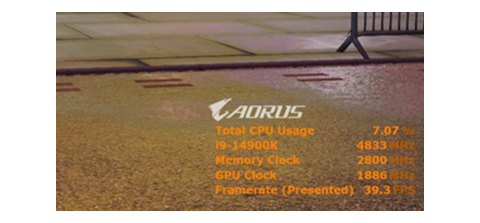

- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card

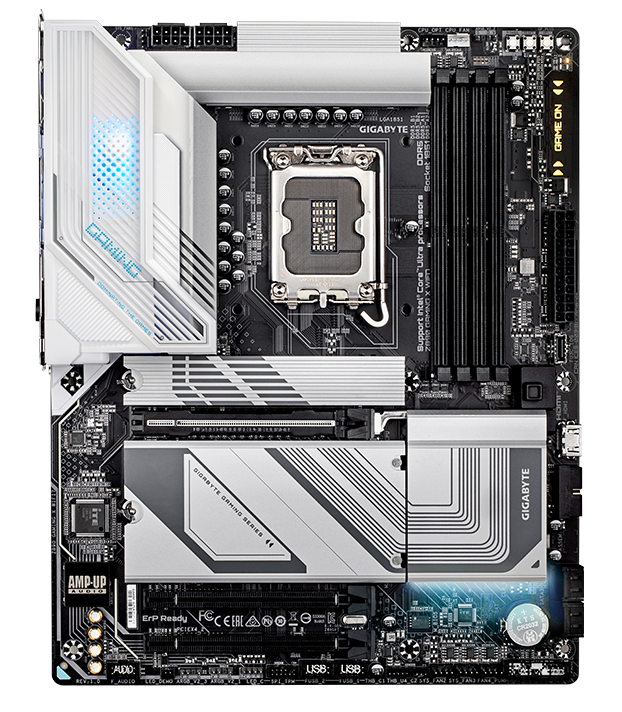

OVERVIEW
Performance
Thermal
Connectivity
DIY Friendly
-

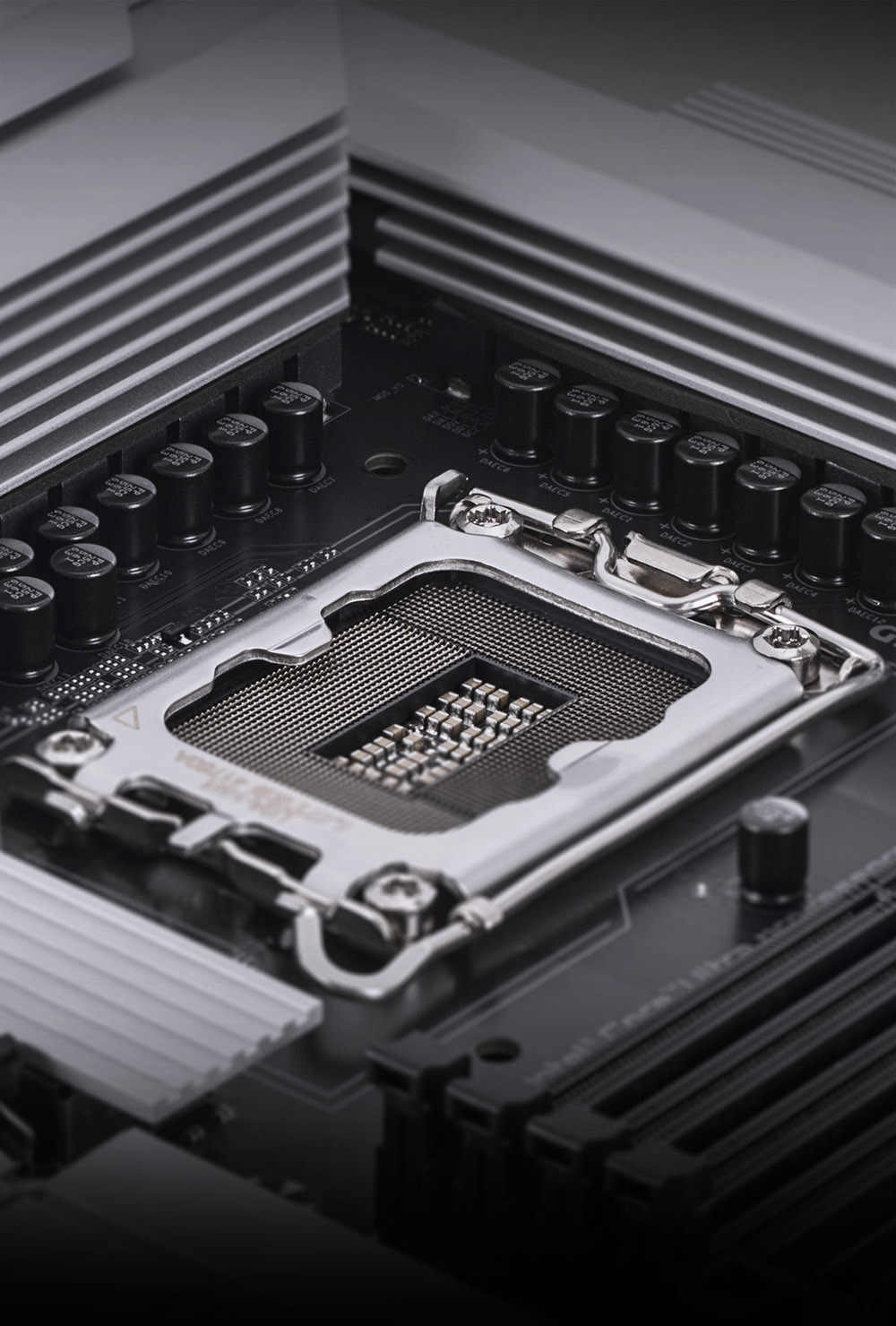

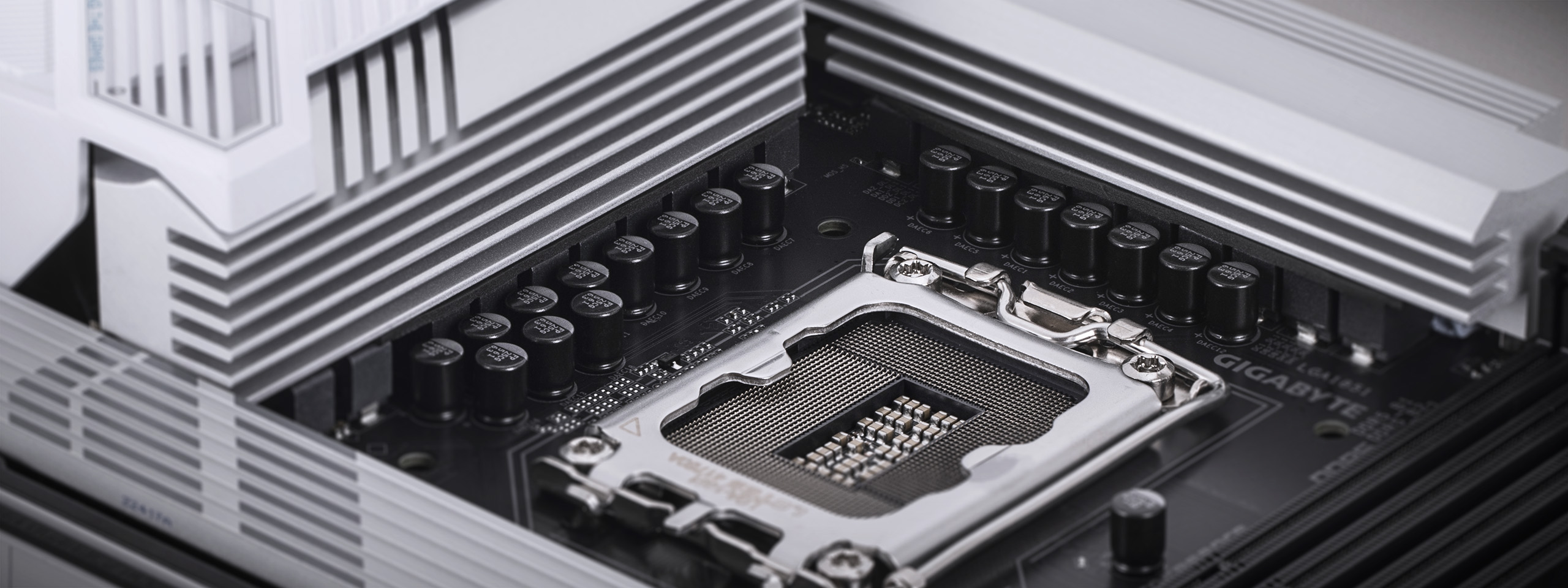

16*+1+2 Twin Digital VRM Design
- 60A DrMOS

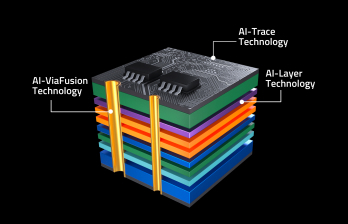

- 2X Copper PCB
- Premium Choke and Capacitor
*8+8 Phases parallel power design -
Intel® Core Ultra processors
(Series 2) Support -

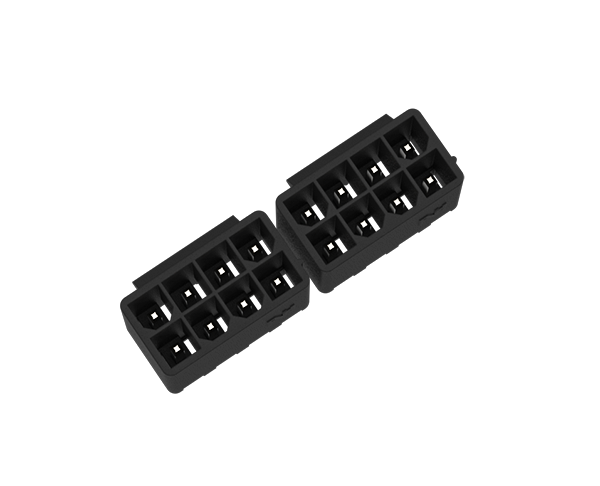

UD Power Connector
- 24 pin ATX Power Connector
- 8+8 pin CPU with UD Solid Pin
-
4 x DIMMs, Dual Channel DDR5
-
4 x M.2 Slots
- 1 x PCIe 5.0 M.2 Slot
- 3 x PCIe 4.0 M.2 Slots
-
Full-length PCIe slots
- 1 x PCIe 5.0 x16 with PCIe UD Slot X
- 2 x PCIe 4.0 x4 slots
-

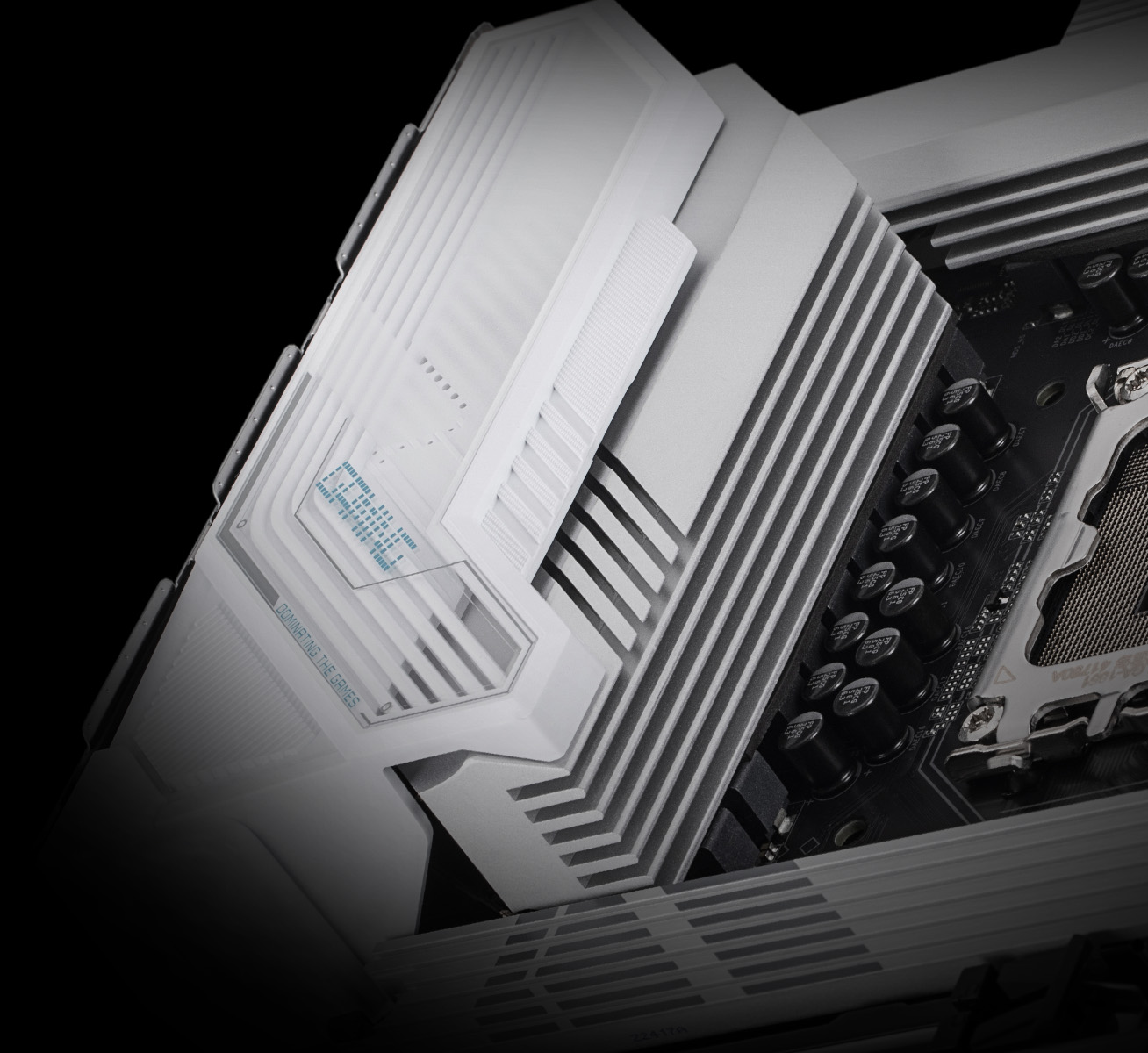

VRM Thermal Armor Advanced
- Superior Heatpipe
- 5 W/mk Thermal Pad

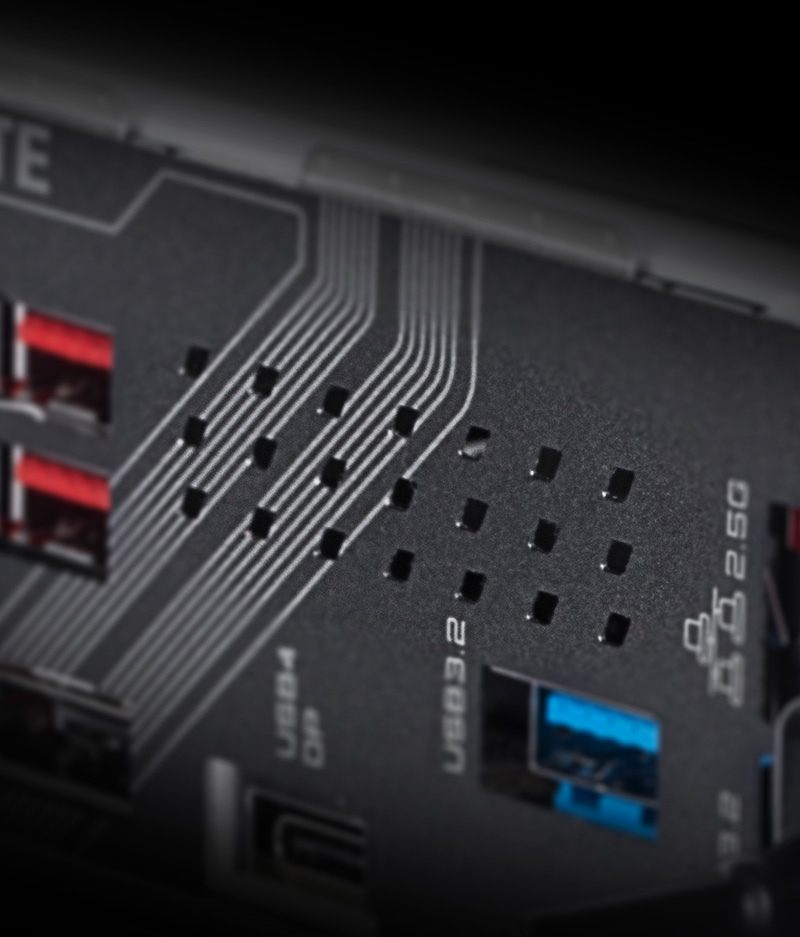

- Integrated IO Shield
-

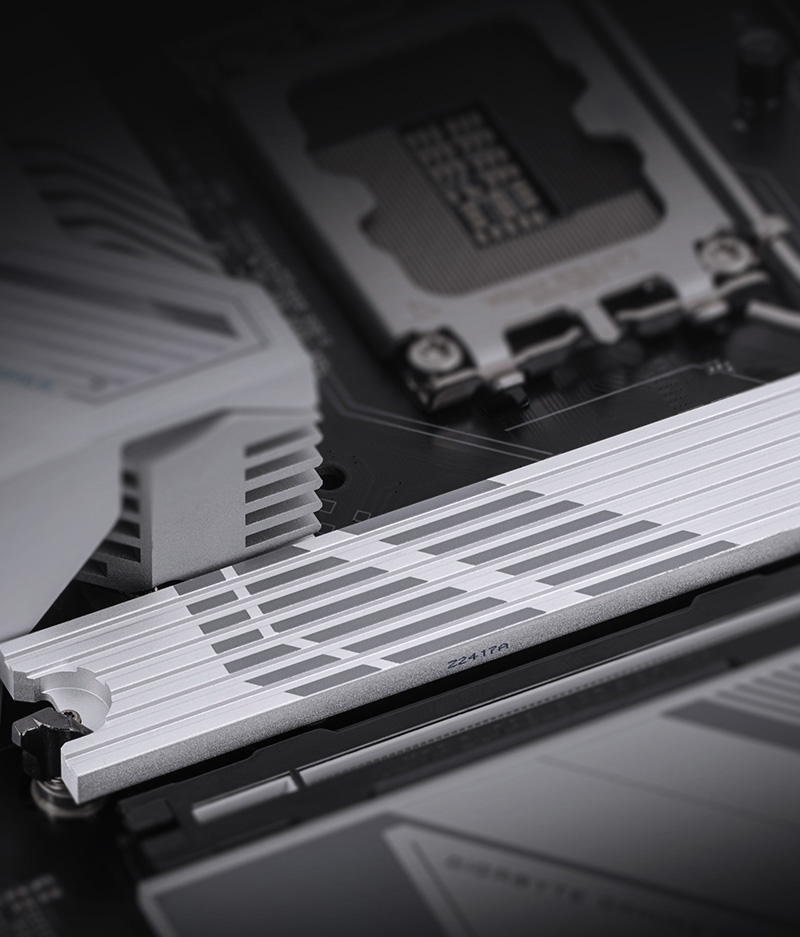

M.2 Thermal Guard
-

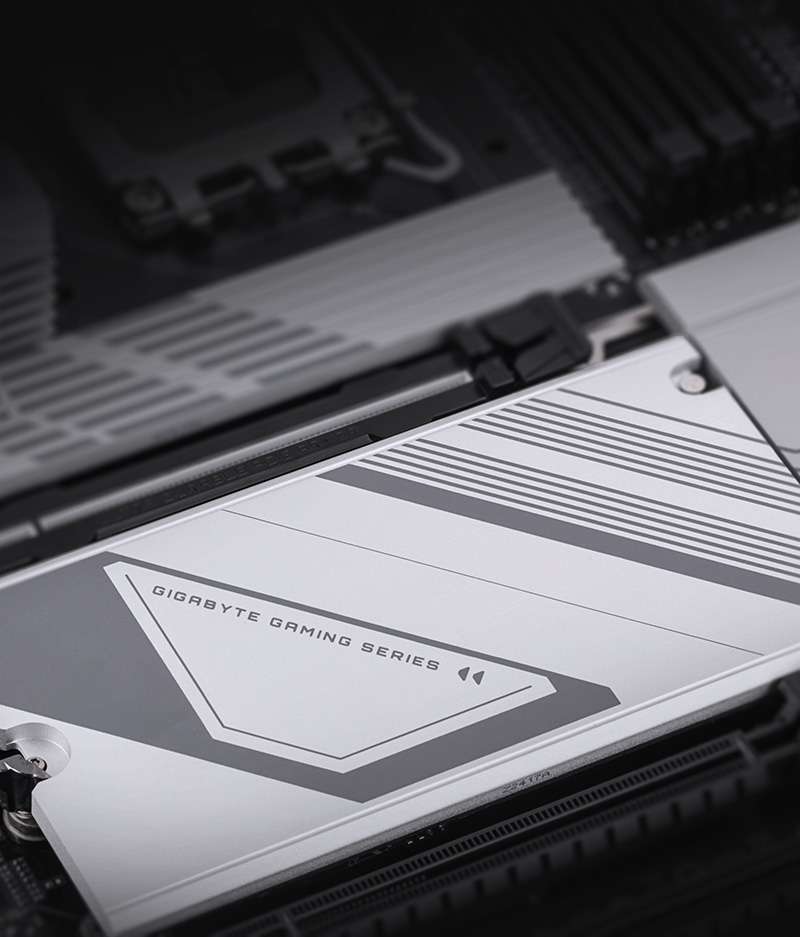

M.2 Thermal Guard Ext.
-

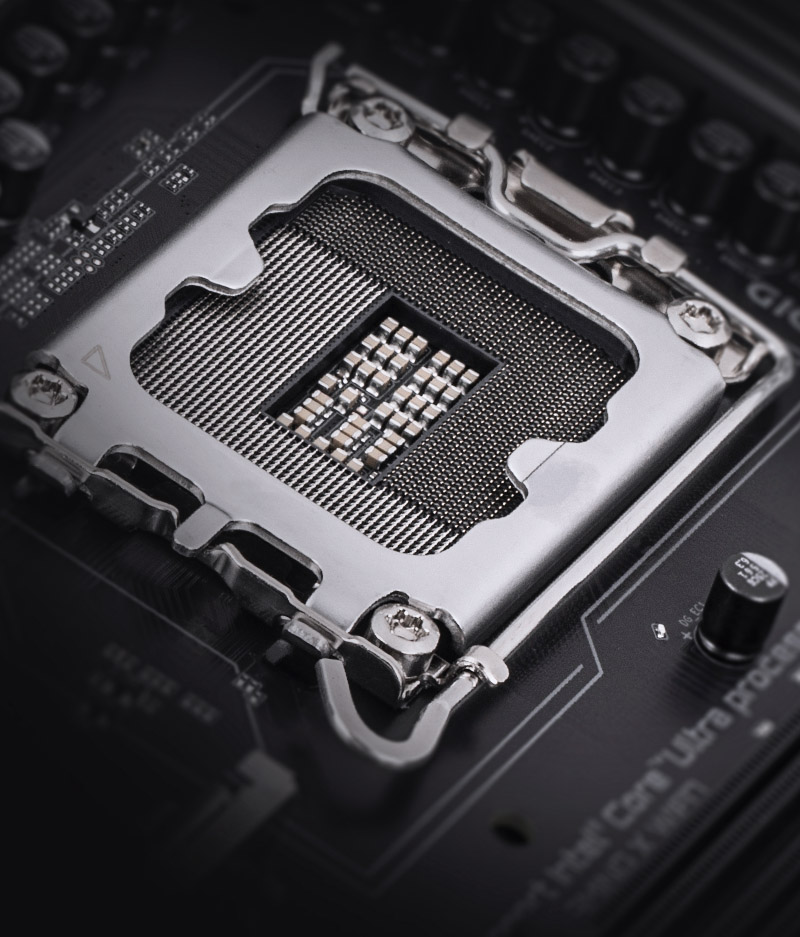

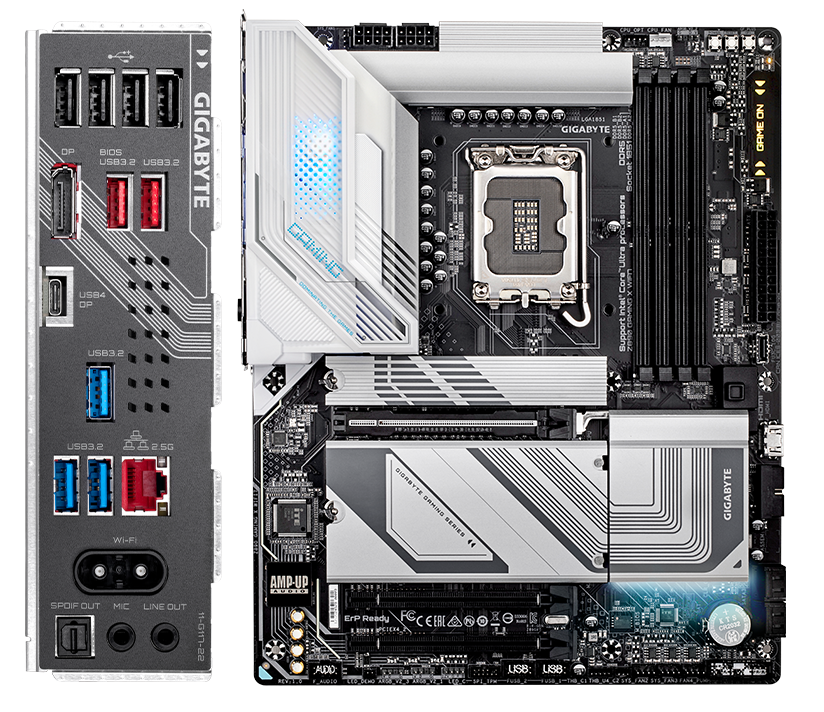

CPU socket with RL-ILM
-

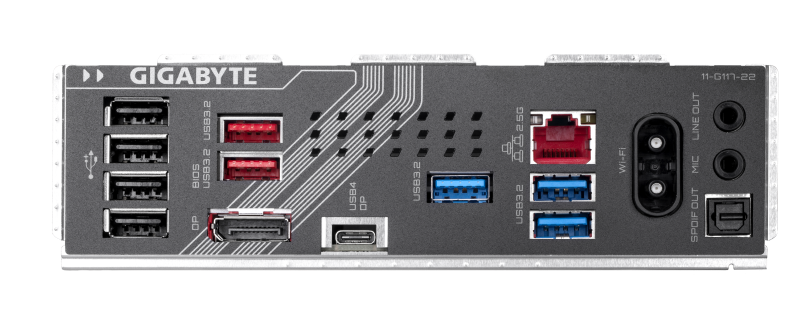

4 x USB 2.0
-
2 x USB 3.2 Gen 2
-
1 x DisplayPort
-
USB4 Type-C® with DP-Alt
-
3 x USB 3.2 Gen 1
-
2.5 GbE LAN
-

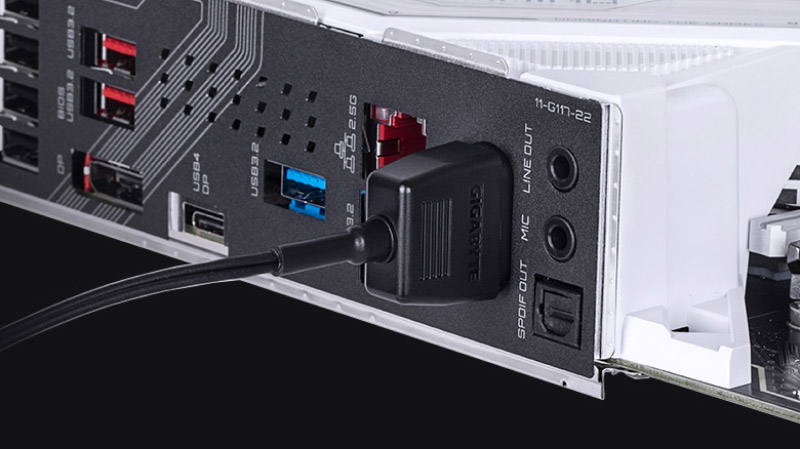

WIFI EZ-Plug
-

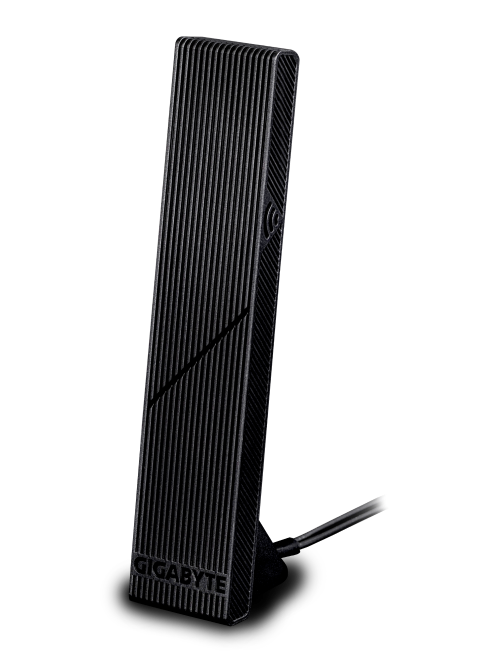

Wi-Fi 7 with Directional
Ultra-high gain Antenna -
1 x Front USB-C 10Gb/s
-
1 x Sensor Pannel Link (HDMI)
-
4 x SATA 6Gb/s
-

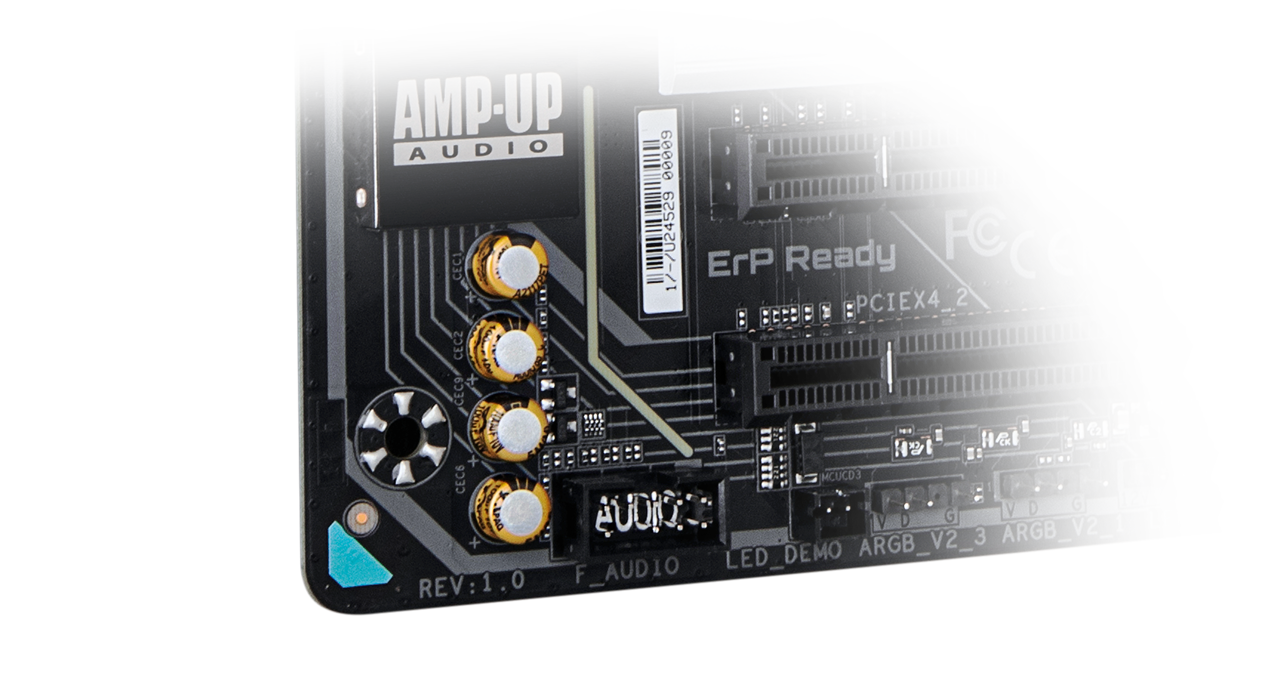

Hi-Fi Audio
- 8-CH HD Audio
- High-End Audio Capacitor
-
RGB FUSION
- 1 x RGB LED Header
- 3 x ARGB LED Headers
-
WIFI EZ-Plug
-
M.2 EZ-Latch Plus
M.2 EZ-Latch Click -
EZ-Latch Un-Install Angle
-
PCIe EZ-Latch Plus
-

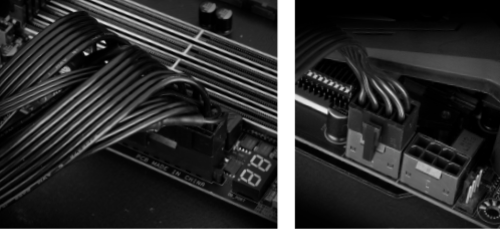

Q-FLASH PLUS Button
-

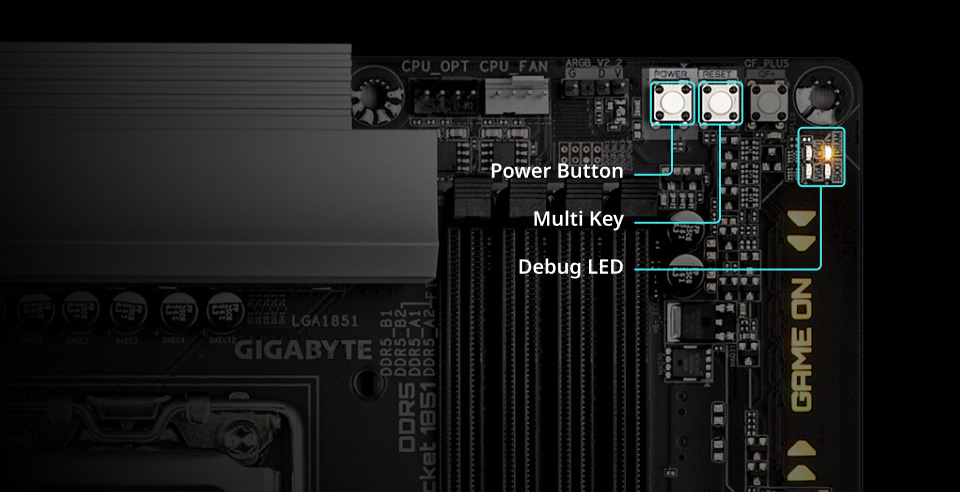

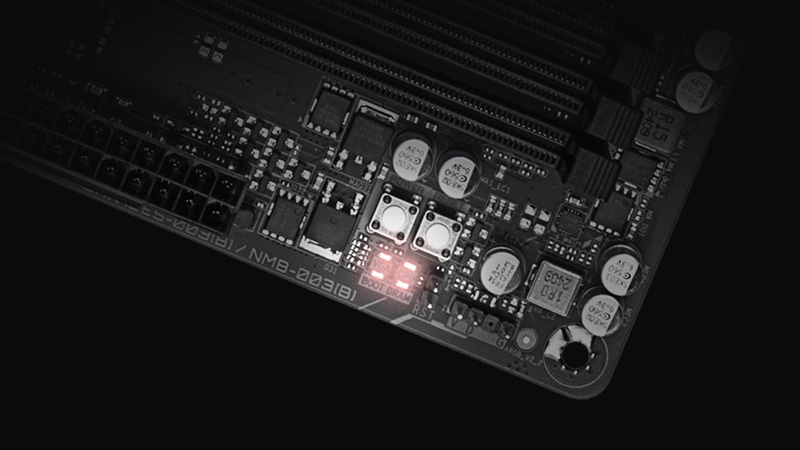

EZ-Debug Zone
- Multi-key
- Power Button

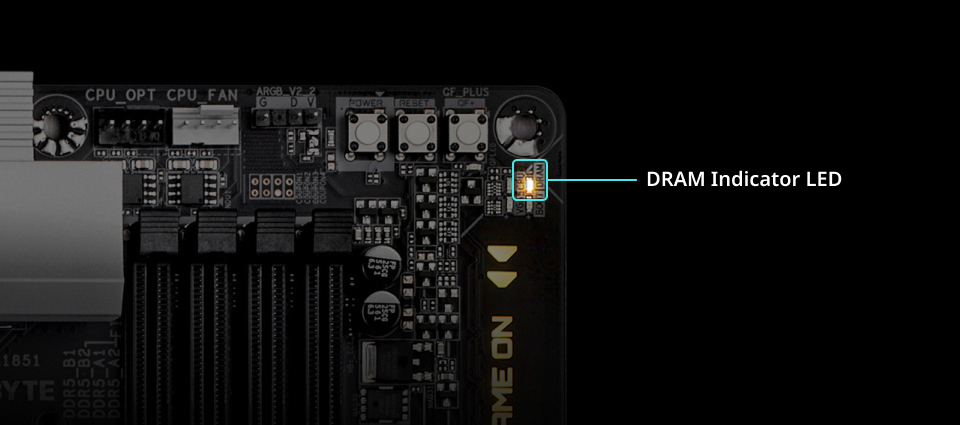

- Debug LEDs
