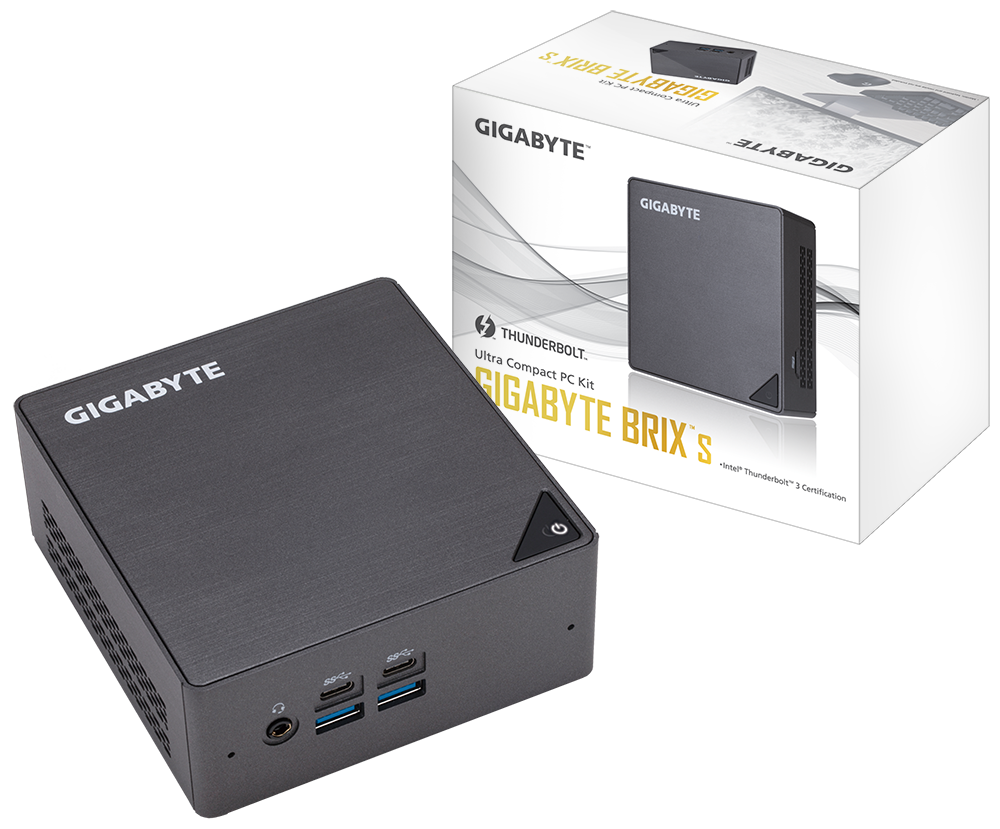

GB-BKi7HT2-7500 (rev. 1.0)

BRIX / Ultra Compact PC kit

  • Features Latest Intel® 7th generation Core Processors
  • Ultra compact PC design at only 0.6L (46.8 x 112.6 x 119.4mm)
  • Supports 2.5” HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
  • 1 x M.2 SSD (2280) slot
  • 2 x SO-DIMM DDR4 slots (2133 MHz)
  • Intel® IEEE 802.11ac, Dual Band Wi-Fi & Bluetooth 4.2 NGFF M.2 card
  • Intel® HD Graphics 620
  • 1 x Thunderbolt™ 3 port (USB 3.1 Type-C™ )
  • 4 x USB 3.0 (2 x USB Type-C™ )
  • 1 x USB 2.0
  • HDMI 2.0
  • HDMI plus Mini DisplayPort Outputs (Supports dual displays)
  • Intel Gigabit Lan
  • Dual array Microphone (supports Voice wake up & Cortana)
  • Headphone/Microphone Jack
  • VESA mounting Bracket (75 x 75mm + 100 x 100mm)

* Barebone products do not include the operating system.
* Product may vary based on local distribution.
* Wireless module inclusion may vary based on local distribution.
  • The Perfect Fit for Any Space
    為了重新檢視桌上型電腦的本質並全新定義其價值，技嘉科技的工程師們創新採用超迷你體積搭配高質感髮絲紋鋁合金的設計，不僅讓BRIX為簡約時尚和便利性做出最佳的註解，更讓其輕巧體積可以滿足家庭、商用和教育環境等廣泛應用的需求。此外BRIX提供多種搭配不同英特爾® Core處理器的機種供消費者選擇，不但滿足消費者不同預算的購機需求，更為全能高效迷你電腦做出完美的規範，讓它不只成為建構小型HTPC或多媒體系統的最佳選擇，更適用於家用、辦公室及教育等電腦使用環境，即使運用於戶外數位看板這一類的商業展示功能都相當出色。
    完美的超微型家用電腦
    • ．客廳
    • ．臥室
    • ．廚房
    • ．書房
    垂直市場應用
    • ．學校
    • ．大學電算中心
    • ．圖書館
    • ．公家機關政府單位
    • ．醫藥相關設備
    卓越的繪圖處理能力
    • ．執行最新的3D遊戲
    • ．多媒體剪輯
    • ．影片編修
    • ．3D設計
    提昇生產力的超效商用主機
    • ．工廠測試主機
    • ．銀行提款機
    • ．自動販賣機
    • ．保全系統
    • ．遊戲設備
    辦公室運用
    • ．會議室主機
    • ．工作站
    • ．共用辦公空間
    • ．文創中心
    即時迅速的數位資訊
    • ．購物中心數位看板
    • ．翻頁廣告看板
    • ．室內/戶外LED展示
    • ．記分板系統
  • Intel® 7th Generation Core™ Processors
    The new BRIX barebones raise the bar once again with the new Intel® 7th Gen Core™ processor family—delivering more responsive performance than ever before. This 7th Gen Core processor utilizes a power efficient microarchitecture, advanced process technology, and silicon optimizations to deliver faster performance than previous generation processors. By leveraging Turbo Boost 2.0 Technology, performance and power is dynamically controlled—for cores and graphics—boosting performance precisely when it is needed, and saving energy when it counts.



  • Intel® Thunderbolt™ 3 Controller, Opening a World of New Possibilities
    The new Thunderbolt™ 3 protocol, which also supports USB 3.1 over a Type-C™ connector on the back panel of the GIGABYTE BRIX T models, brings an unprecedented single-wire bandwidth of up to 40 Gb/s -- twice more than the previous generation of Thunderbolt! This incredible increase in bandwidth is also accompanied with support for different protocols such as DisplayPort 1.2, which is able to drive a 4K resolution display at 60 FPS, and USB 3.1, also backwards compatible with USB 3.0 and USB 2.0, opening up a world of new possibilities.












    Additionally, Thunderbolt 3 over USB Type-C has the ability to daisy-chain up to 6 devices, helping you to declutter your desktop and have a true one-cable solution.











    * Compatibility may vary according to system configuration and device specifications.



  • Join The Optane Revolution
    GIGABYTE BRIX Gaming VR unlimits the potential of your PC with Intel® Optane™ Memory. Optane memory accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This non-volatile memory transforms the everyday PC to a performance driven system.

  • Connecting the Future - USB Type-C™: The World's Next Universal Connector
    Reversible USB Type-C™ with USB 3.1
    The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.0 support for 5 Gb/s transfer speed.



    USB 3.0 and Network Connectivity
    GIGABYTE BRIX™ also includes a M.2 module offering IEEE 802.11ac Wi-Fi and the latest Bluetooth 4.2, providing connectivity for low power Bluetooth devices and peripherals, as well as allowing users to easily connect mobile devices.

  • SuperSpeed 4K HD Entertainment
    Supporting the Newest Standards in Multimedia
    GIGABYTE ensures users won’t be limited by the standards or connections on the BRIX, by including HDMI 2.0 and support for HDCP 2.2* users can rest assured that their device will be able to display content to its full potential. The BRIX supports native resolutions of 4K at 60Hz, presenting unrivaled visual clarity and stunning realism to owners of UHD displays.

    * HDMI port support HDMI 2.0 and HDCP 2.2.


    Multi-display productivity with HDMI 2.0 & DisplayPort++
    BRIX supports up to three independent displays through HDMI 2.0 and a DisplayPort ++ without the need for an additional graphics card. Support for three display is only possible with daisy-chain connections through Display Port++.

  • Graphics that Captivate
    在最新Intel® HD 繪圖核心的加持下，新款BRIX超微型電腦系統提供以上一代機種高10％的繪圖效能，讓玩家可以體驗更多細節，新一代Intel® HD繪圖提供HEVC 10-bit硬體加速，不管是播放4K超高畫質影片或進行影片剪輯，都提供比上一代產品更高效、更穩定的運算效果。
  • VESA Mount Support
    Bundled with a VESA bracket, the GIGABYTE BRIX™ can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.

  • Cortana with Voice DSP Design
    By using the microphone to talk to Cortana, your intelligent digital assistant helps you get things done, providing a personalized user experience. GIGABYTE BRIX also supports always listening under low power mode, in which Cortana will be triggered and woken up by certain key phrases, strengthening the usage scenario.

  • Enjoy Always Available Responsiveness With Intel® Ready Mode Technology
    Now there’s no waiting to resume activity on your PC. With Intel® Ready Mode Technology, your PC resumes to fully functional in an instant. It works by providing an alternative to traditional sleep-a quiet, low power state similar to the kind used by your cell phone and tablet...more

    With Intel® Ready Mode Technology You Can…



    Access Your Digital Files - From Anywhere, Anytime
    Get remote access to your PC through applications on your phone and tablet to download photos, video, large files and more, no matter where you are.    		   Get Help From Your Digital Assistant Just by Asking
    An always available PC complements Microsoft Windows® 10 enabled experiences Cortana*. When you need Cortana*, all you have to do is say "Hey Cortana," and your digital assistant is instantly at your service.    		   Keep Everything Up-to-Date With Automatic Syncing
    Set your Intel® Ready Mode Technology - equipped PC to sync and store photos and files across devices automatically when you arrive at home or the office. And application updates? They're automatic too, which means you'll always work with the latest versions of your favorite tools.
  • 2.5" Hard Drive Support
    Utilizing SATA III 6 Gb/s high speed data transfer technology, the GIGABYTE BRIXs supports the installation of one 2.5” SATA 6Gbps HDD or Solid State Drive (SSD) and one M.2 2280 SSD module. This allows for optimized storage configurations which combine fast M.2 performance with larger capacity 2.5” hard drive.
    *Feature may vary by model.







* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
