MZ31-AR0

已停產

Rev. 2.x Rev. 1.x Rev. 3.x

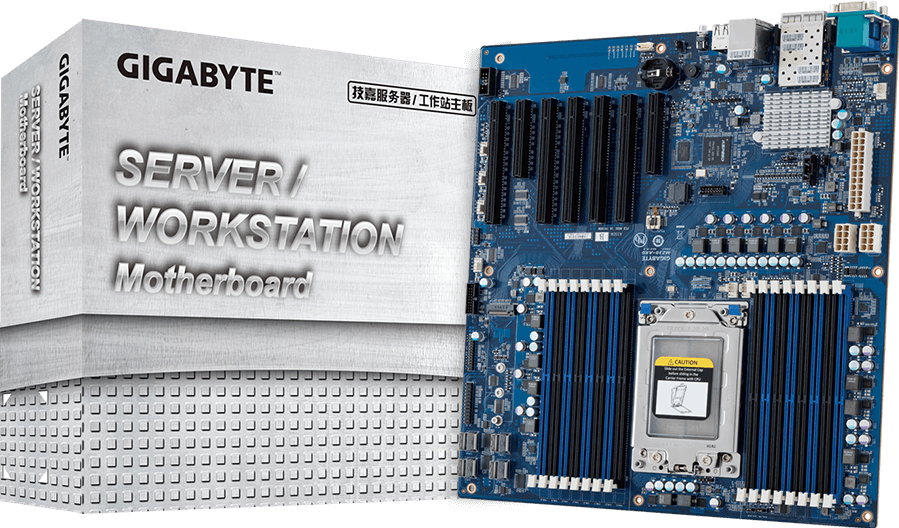

AMD EPYC™ UP Server Board

AMD EPYC™ 7002 and 7001 series processor family
8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
2 x SFP+ 10Gb/s LAN ports (Broadcom^® BCM 57810S)
1 x dedicated management port
4 x SlimSAS (with 16 x SATA 6Gb/s) ports
Ultra-Fast M.2 with PCIe Gen3 x4 interface
Up to 4 x PCIe Gen3 x16 slots and 3 x PCIe Gen3 x8 slots
Aspeed^® AST2500 remote management controller

* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。

SPECIFICATIONS

Board Size

E-ATX
305W x 330D (mm)

Processor Supported

AMD EPYC™ 7002 series processor family
Single processor, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W

Compatible with AMD EPYC™ 7001 series processor family

Socket

Socket SP3

Chipset Description

System on Chip

Memory Type

16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/ 2933 MHz

- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC

Integrated Network

2 x SFP+ 10Gb/s LAN ports (Broadcom^® BCM 57810S)
1 x 10/100/1000 management LAN

Integrated Video Controller

Integrated in Aspeed^® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Integrated Audio Controller

N/A

Integrated SAS Controller

N/A

Integrated SATA Controller

4 x SlimSAS, total 16 x SATA III 6Gb/s ports

Support RAID Function

N/A

Expansion Slot

Slot_7: 1 x PCIe x8 (Gen3 x8 bus) slot
Slot_6: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_5: 1 x PCIe x16 (Gen3 x8 bus) slot
Slot_4: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_3: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_2: 1 x PCIe x8 (Gen3 x8 bus) slot
Slot_1: 1 x PCIe x16 (Gen3 x16 bus) slot

1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280 cards

On-Board Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
4 x SlimSAS connectors
1 x M.2 slot
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
2 x LAN activity LED
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer

Rear I/O Connectors

2 x USB 3.0
2 x USB 2.0
1 x VGA
1 x COM_1
2 x SFP+
1 x MLAN
1 x ID button with LED

TPM

1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000

OS Driver Supported

For AMD EPYC™ 7002 series processor family

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later

Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.1.0 or later

For AMD EPYC™ 7001 series processor family

Windows Server 2012 R2 with Update
Windows Server 2016

Red Hat Enterprise Linux 7.4 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 11 SP4 (x64) or later
SUSE Linux Enterprise Server 12 SP3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later

Ubuntu 16.04 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.5 Update1 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later

Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later

Server Management

Aspeed^® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

PSU Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Bundle

1 x MZ31-AR0
1 x I/O shield
1 x Quick start guide
2 x SlimSAS to SATAIII 6Gb/s cables
Single Box dimensions: 409 x 355 x 78 mm
Carton dimension: 729 x 415 x 432 mm
Quantity: 10 x single box with one carton

Bulk Packaging Content

10 x MZ31-AR0
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm

Ordering Information

Retail: 9MZ31AR0MR-00-2*
Bulk: 9MZ31AR0NR-00-2*
Part Numbers:
- I/O shield: 12AIO-MZ31A0-00R
- SlimSAS to SATAIII 6Gb/s cable: 25CFM-600800-A4R
- Quick start guide: 25ME0-MZ3101-Q0H
- Fan-sink: 12SF2-01A067-00R ( in option)
