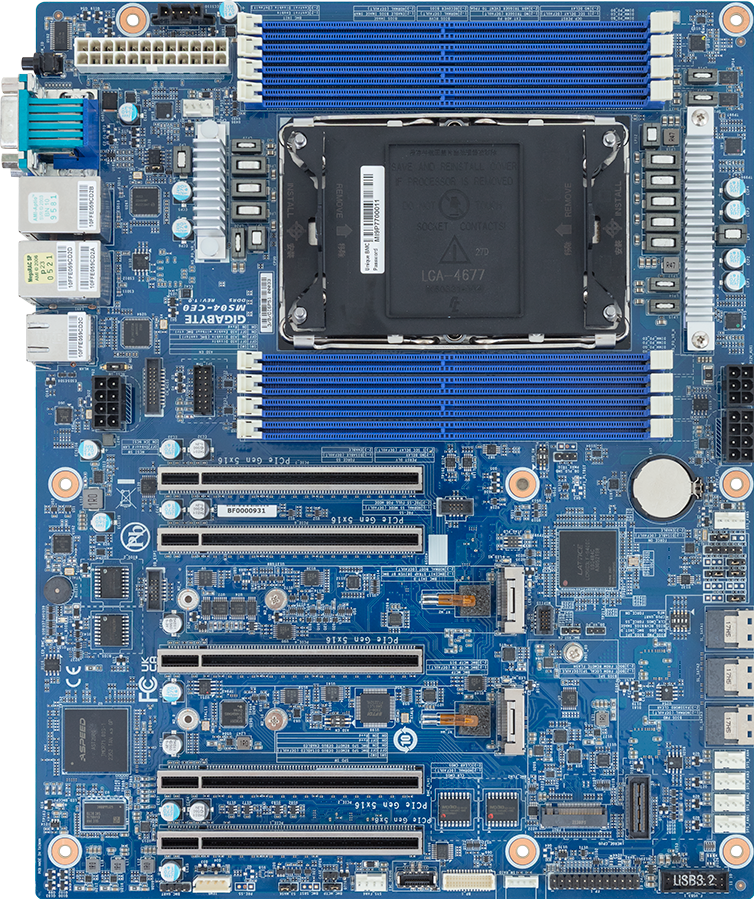

MS04-CE0

Rev. 1.x

Motherboard - Intel^® Xeon^® 6 Processors - ATX UP

Single Intel^® Xeon^® 6 Processors, LGA 4710
8-Channel DDR5 RDIMM / MCR DIMM, 8 x DIMMs
Dual ROM Architecture
2 x 1Gb/s LAN ports via Intel^® I210-AT
3 x SlimSAS connectors for 12 x SATA 6Gb/s
2 x M.2 slots with PCIe Gen5 x2 interface
5 x PCIe Gen5 x16 and x8 expansion slots

Get a Quote

加入比較表

Get a Quote

* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。

SPECIFICATIONS

Form Factor (WxD, mm)

ATX
304.8 x 244

Processor Supported

Intel^® Xeon^® 6 Processors
- Intel^® Xeon^® 6700E-Series Processors
- Intel^® Xeon^® 6700P-Series Processors (available Q1'25)
- Intel^® Xeon^® 6500P-Series Processors (available Q1'25)

Single processor, TDP up to 350W

Socket

1 x LGA 4710
Socket E2

Chipset Description

System on Chip

Memory Type

8 x DIMM slots
DDR5 memory supported
8-Channel memory architecture
MCR DIMM supported^[1]
RDIMM: Up to 6400 MT/s
MCR DIMM: Up to 8000 MT/s

^[1]MCR DIMMs are only supported with Intel^® Xeon^® 6 Processors with P-cores.

Integrated Network

2 x 1Gb/s LAN (2 x Intel^® I210-AT)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Integrated Video Controller

Integrated in Aspeed^® AST2600
- 1 x VGA port

Integrated Audio Controller

N/A

Storage Interface

SlimSAS:
3 x SlimSAS 4i for 12 x SATA 6Gb/s

M.2:
2 x M.2 (2280/22110), PCIe Gen5 x2

Support RAID Function

Onboard VROC key header

PCIe Expansion Slots

Slot_7: PCIe x16 (Gen5 x16)
Slot_6: PCIe x16 (Gen5 x16)
Slot_4: PCIe x16 (Gen5 x16)
Slot_2: PCIe x16 (Gen5 x16)
Slot_1: PCIe x16 (Gen5 x8)

On-Board Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
1 x CPU fan header
6 x System fan headers
1 x USB 3.2 Gen1 x2 header
2 x M.2 slots
3 x SlimSAS connectors
1 x VROC connector
1 x NCSI connector
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header
1 x PRoT connector (only enabled on RoT SKU)

Rear I/O Connectors

4 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
1 x COM port
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED

Security Modules

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

1 x PRoT connector (only enabled on RoT SKU)

OS Driver Supported

Please refer to OS compatibility table in support page

Server Management

Aspeed^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

PSU Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Bundle

1 x MS04-CE0
1 x I/O shield
1 x Quick start guide
2 x Carriers
1 x SlimSAS to 4 x SATA 6Gb/s cable (600mm)

Single Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton

Bulk Packaging Content

10 x MS04-CE0
10 x I/O shields
20 x Carriers

Carton dimensions: 600 x 473 x 495 mm

Ordering Information

Retail: 9MS04CE0MR-000-1*
Bulk: 9MS04CE0NR-000-1*

Part Numbers:

- I/O shield: 12AIO-MS04CE-00R
- SlimSAS to 4 x SATA cable (600mm): 25CFM-600700-A4R
