R272-Z30
Rack Server - AMD EPYC™ 7002/7001 - 2U UP 12+2-Bay SATA/SAS
- Single AMD EPYC™ 7002/7001 Series Processors
- 8-Channel DDR4 RDIMM/LRDIMM, 16 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 4 x 3.5"/2.5" SATA/SAS hot-swappable bays
- 8 x 3.5"/2.5" SATA/SAS hot-swappable bays (optional)
- 2 x 2.5" SATA/SAS hot-swappable bays on the rear side
- 2 x M.2 slots with PCIe Gen3 x4 interface
- 4 x LP PCIe Gen4 x16 and x8 slots
- 2 x LP PCIe Gen3 x16 and x8 slots
- 1 x OCP 2.0 Gen3 x16 mezzanine slot
- Dual 800W 80 PLUS Platinum redundant power supply
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
438 x 87.5 x 660
438 x 87.5 x 660
Motherboard
CPU
AMD EPYC™ 7002 Series Processors
AMD EPYC™ 7001 Series Processors
Single processor, 7nm technology
Up to 64 cores, 128 threads
cTDP up to 240W
Conditional supports 280W
AMD EPYC™ 7001 Series Processors
Single processor, 7nm technology
Up to 64 cores, 128 threads
cTDP up to 240W
Conditional supports 280W
Socket
1 x LGA 4094
Socket SP3
Socket SP3
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
LAN
Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
- 1 x VGA port
- 1 x VGA port
Storage
Front side:
4 x 3.5"/2.5" SATA/SAS hot-swappable bays
8 x 3.5"/2.5" SATA/SAS hot-swappable bays, from optional SAS HBA
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays
Front side default configuration supports:
4 x SATA drives
8 x SAS drives via optional SAS HBA
SAS card is required for SAS devices support
4 x SATA on the front side and 2 x SATA on the rear side are available in default setting.
4 x 3.5"/2.5" SATA/SAS hot-swappable bays
8 x 3.5"/2.5" SATA/SAS hot-swappable bays, from optional SAS HBA
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays
Front side default configuration supports:
4 x SATA drives
8 x SAS drives via optional SAS HBA
SAS card is required for SAS devices support
4 x SATA on the front side and 2 x SATA on the rear side are available in default setting.
SAS
Depends on SAS add-in cards
RAID
N/A
Expansion Slots
Slot_6: PCIe x16 (Gen4 x16) low-profile slot
Slot_5: PCIe x16 (Gen4 x8) low-profile slot
Slot_4: PCIe x16 (Gen4 x16) low-profile slot
Slot_3: PCIe x16 (Gen4 x16) low-profile slot
Slot_2: PCIe x8 (Gen3 x0 or x8) low-profile slot
Slot_1: PCIe x16 (Gen3 x16 or x8) low-profile slot, shared with slot_2
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4; Type2 P5 with NCSI supported)
2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Support 2242/2260/2280 cards
Slot_5: PCIe x16 (Gen4 x8) low-profile slot
Slot_4: PCIe x16 (Gen4 x16) low-profile slot
Slot_3: PCIe x16 (Gen4 x16) low-profile slot
Slot_2: PCIe x8 (Gen3 x0 or x8) low-profile slot
Slot_1: PCIe x16 (Gen3 x16 or x8) low-profile slot, shared with slot_2
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4; Type2 P5 with NCSI supported)
2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Support 2242/2260/2280 cards
Internal I/O
1 x TPM header
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

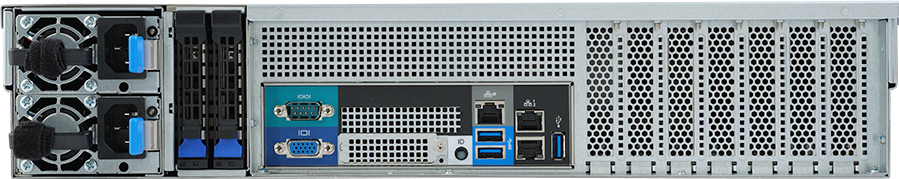

Rear I/O
3 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
Front side - CBP20C4: SATA 6Gb/s or SAS 12Gb/s
Rear side - CBP2021: SATA 6Gb/s or SAS 12Gb/s
Front side - CBP20C4: SATA 6Gb/s or SAS 12Gb/s
Rear side - CBP2021: SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
Dual 800W 80 PLUS Platinum Redundant power supply
AC Input:
- 100-240V~/ 10-4A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 4.5A
DC Output:
- Max 800W
+12V/ 66A
+12Vsb/ 2.5A
Note: Select 1200W power supply if using 280W CPU with full loading configuration.
AC Input:
- 100-240V~/ 10-4A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 4.5A
DC Output:
- Max 800W
+12V/ 66A
+12Vsb/ 2.5A
Note: Select 1200W power supply if using 280W CPU with full loading configuration.
System Management
Aspeed® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Citrix Hypervisor 8.1.0 or later
Red Hat Enterprise Linux 7.6 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP4 or later
SUSE Linux Enterprise Server 15 SP1 or later
Ubuntu 16.04.6 LTS or later
Ubuntu 18.04.3 LTS or later
Ubuntu 20.04 LTS or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Red Hat Enterprise Linux 7.6 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP4 or later
SUSE Linux Enterprise Server 15 SP1 or later
Ubuntu 16.04.6 LTS or later
Ubuntu 18.04.3 LTS or later
Ubuntu 20.04 LTS or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
System Fans
4 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
982 x 588 x 268 mm
Packaging Content
1 x R272-Z30
1 x CPU heatsink
1 x 2-Section Rail kit
1 x CPU heatsink
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR272Z30MR-00-1*
- Motherboard: 9MZ32AR0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20C4: 9CBP20C4NR-00
- Backplane board - CBP2021: 9CBP2021NR-00
- Fan module: 25ST2-883829-D0R
- Power supply: 25EP0-208004-L0S
Optional parts:
- 4 x U.2 kit: 6NR272Z3BSR-00
- Power cord 125V/15A (JP): 25CPA-018304-Q0R
- Fan duct for 280W CPU: 25HA8-R27231-S5R
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR272Z30SR-RMA-A100
- Motherboard: 9MZ32AR0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20C4: 9CBP20C4NR-00
- Backplane board - CBP2021: 9CBP2021NR-00
- Fan module: 25ST2-883829-D0R
- Power supply: 25EP0-208004-L0S
Optional parts:
- 4 x U.2 kit: 6NR272Z3BSR-00
- Power cord 125V/15A (JP): 25CPA-018304-Q0R
- Fan duct for 280W CPU: 25HA8-R27231-S5R
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR272Z30SR-RMA-A100
