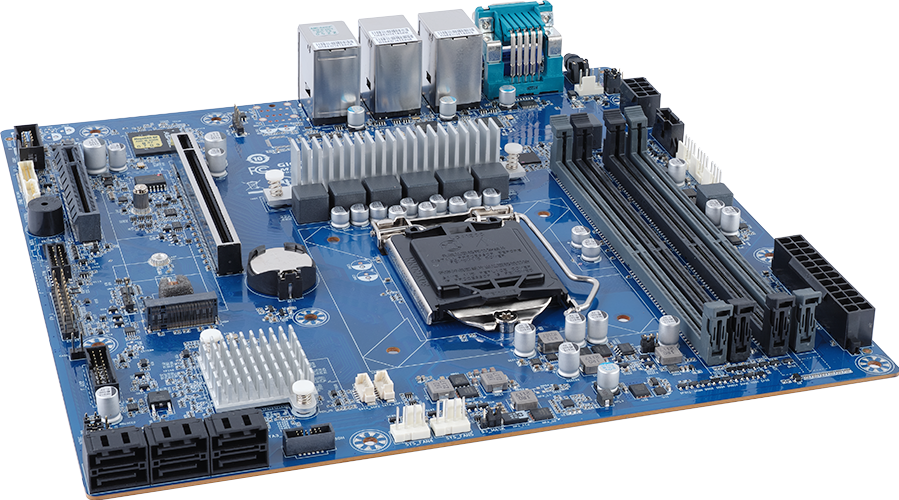

MX33-BS0

Rev. 1.x

Motherboard - Intel^® Xeon^® E-2300 - microATX UP

Single Intel^® Xeon^® E-2300 Processor
Intel^® C252 Chipset
Dual Channel UDIMM DDR4, 4 x DIMMs
2 x 1Gb/s LAN ports via Intel^® I210-AT
6 x SATA 6Gb/s ports
1 x M.2 slot with PCIe Gen3 x4 interface
2 x PCIe Gen4 x16 and x4 expansion slots

Get a Quote

加入比較表

Get a Quote

* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。

SPECIFICATIONS

Board Size

microATX
244W x 244D mm

Processor Supported

Intel^® Xeon^® E-2300 Processor
10th Gen Intel^® Pentium^® Processor
TDP up to 95W

Socket

1 x LGA 1200
Socket H5

Chipset Description

Intel^® C252

Memory Type

4 x DIMM slots
DDR4 memory supported only
Dual channel memory architecture
ECC UDIMM supported
Total capacity up to 128GB
Memory speed: 3200/2666 MT/s

Integrated Network

2 x 1Gb/s LAN ports (2 x Intel^® I210-AT)
1 x 10/100/1000 Mbps Management LAN

Integrated Video Controller

Integrated in Aspeed^® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Integrated Audio Controller

N/A

Storage Interface

PCH:
- 6 x SATA 6Gb/s ports

Support RAID Function

Intel^® SATA RAID 0/1/10/5

Expansion Slot

1 x PCIe x16 (Gen4 x16) slot, from CPU*
1 x PCIe x8 (Gen4 x4) slot, from CPU**

*Downgraded to Gen3 if installed with a Intel^® Pentium^® Processor.
**Not available if installed with a Intel^® Pentium^® Processor.

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from PCH
- Supports 2242/2280 cards

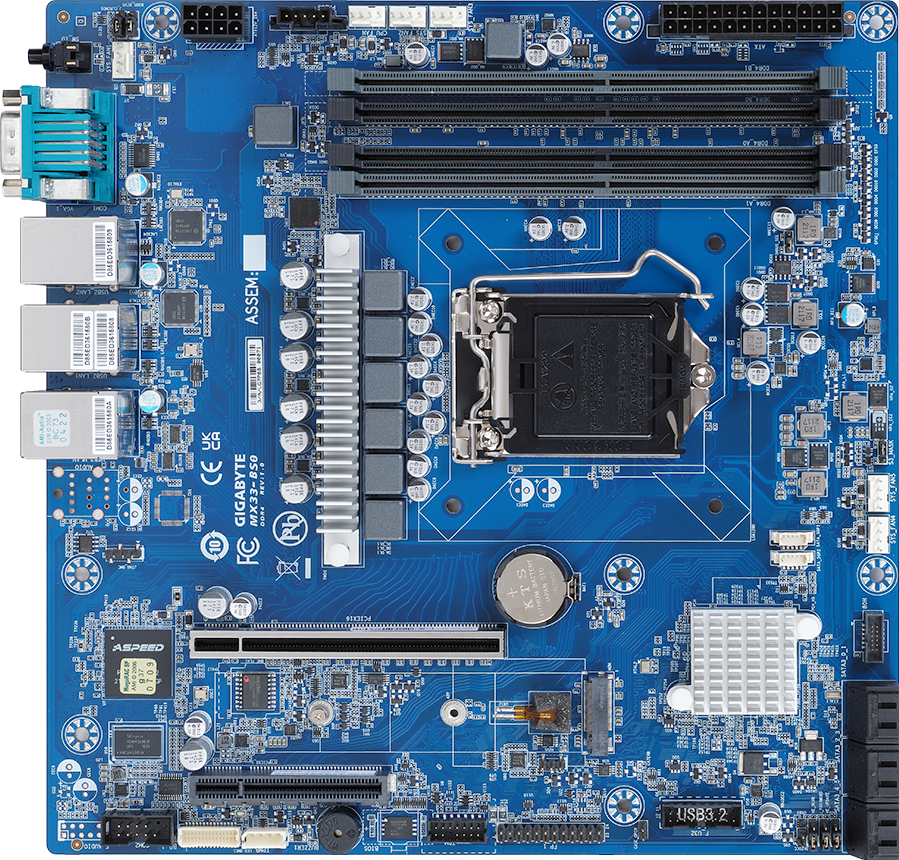

On-Board Connector

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x M.2 slot
6 x SATA connectors
1 x Front panel header
1 x Backplane board connector
1 x COM header
1 x PMBus header
1 x IPMB header
1 x TPM header

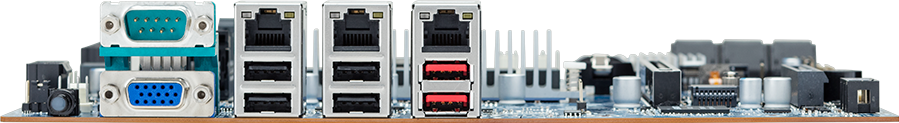

Rear I/O Connectors

2 x USB 3.2 Gen2x1
4 x USB 2.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

OS Driver Supported

Red Hat Enterprise Linux 6.9 (x64)
Red Hat Enterprise Linux 7.3 (x64)

SUSE Linux Enterprise Server 11.2 (x64)
SUSE Linux Enterprise Server 12.2 (x64)

Ubuntu 16.04.6 LTS (x64)
Ubuntu 18.04.2 LTS (x64)

VMware 6.5

Windows Server 2016 (x64)
Windows Server 2019 (x64)

Server Management

Aspeed^® AST2500 management controller
AMI MegaRAC SP-X Solution Web interface

Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

PSU Connector

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

Operating Properties

Operating temperature: 0°C to 40°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Bundle

1 x MX33-BS0
1 x I/O shield
1 x Quick start guide
4 x SATA 6Gb/s cables (500mm)

Single Box dimensions: 321 x 308.5 x 78.5 mm
Carton dimensions: 630 x 420 x 345 mm
Quantity: 10 x single boxes in one carton

Bulk Packaging Content

20 x MX33-BS0
20 x I/O shields

Carton dimensions: 609 x 581 x 362 mm

Ordering Information

Retail: 9MX33BS0MR-00-1*
Bulk: 9MX33BS0NR-00-1*

Part Numbers:

- I/O shield: 12AIO-MX23C0-10R
- SATA cable (500mm)(2 in 1 package): 12CF1-2SAT1B-01R
