MW34-SP0

已停產

Rev. 1.0 Rev. 1.1

12th Gen Intel® Core™ Workstation Board

12th Gen Intel^® Core™ Desktop Processor
Single processor, LGA 1700
Intel^® W680 Chipset
Dual Channel DDR4 3200MHz UDIMM, 4 DIMMs
1 x 2.5G LAN port (Intel^® I225)
1 x Dedicated Management Port
4 x M.2 slots with PCIe Gen4 x4 interface
8 x SATA 6Gb/s ports
2 x PCIe Gen5 x16 and x8 expansion slots
1 x PCIe Gen3 x4 expansion slot

* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。

SPECIFICATIONS

Board Size

ATX
305W x 244D mm

Processor Supported

12th Gen Intel^® Core™ Desktop Processor
Single processor

Socket

1 x LGA 1700

Chipset Description

Intel^® W680

Memory Type

4 x DIMM slots
Dual channel memory architecture
Supports 1.2V DDR4 3200 MHz memory
ECC UDIMM modules supported
Up to 128GB

NOTE: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0

Integrated Network

1 x 2.5GbE LAN port (Intel^® I225)
1 x 10/100/1000 Management LAN (Realtek^® RTL8211FD)

Integrated Video Controller

Integrated in Intel^® Processor:
- 1 x DisplayPort, supports DisplayPort 1.4a
- 1 x HDMI port, supports HDMI 2.0b

Integrated in ASPEED^® AST2600:
- 1 x VGA Port

Integrated Audio Controller

Realtek^® ALC897 controller
Supports 2/4/5.1/7.1 channel configurations
3 ports Audio Jack (Audio in/Audio out/Mic)

Integrated SAS Controller

N/A

Integrated SATA Controller

8 x SATA III 6Gb/s ports

Support RAID Function

Intel^® RAID 0/1/10/5

Expansion Slot

Slot_6: 1 x PCIe x16 (Gen5 x16 or Gen5 x8 bus) slot, from CPU
Slot_3: 1 x PCIe x16 (Gen5 x0 or Gen5 x8 bus) slot, from CPU, shared with slot_6
Slot_1: 1 x PCIe x4 (Gen3 x4 bus) slot, from PCH

1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU
- Supports 2280/22110 cards

3 x M.2 slots:
- M-key
- PCIe Gen4 x4, from PCH
- Supports 2280 cards

On-Board Connector

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
8 x SATA III 6Gb/s ports
1 x USB3.2 gen2x2 Type-C^® header
1 x USB3.2 gen1 header for 2 ports
1 x USB2.0 header for 2 ports
1 x Front panel header
1 x TPM header
1 x M.2 slot for Wi-Fi
1 x CPU fan header
6 x System fan headers

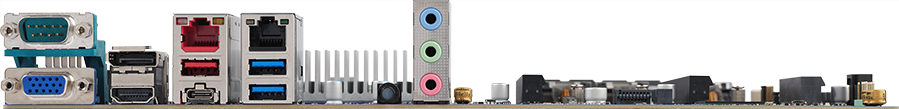

Rear I/O Connectors

1 x VGA
1 x COM
1 x HDMI
1 x DP
1 x USB 3.2 gen2x2 Type-C^®)
3 x USB 3.2 gen1 Type-A
1 x MLAN
1 x 2.5G LAN
1 x ID Button
1 x 3 in 1 Audio jack

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

OS Driver Supported

Windows 10 (64bit)
Windows 11 (64bit)

Server Management

ASPEED^® AST2600

PSU Connector

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Bundle

1 x MW34-SP0
1 x I/O shield
1 x Quick start guide
4 x SATA III 6Gb/s cables

Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton

Bulk Packaging Content

10 x MW34-SP0
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm

Ordering Information

Retail: 9MW34SP0MR-00-10*
Bulk: 9MW34SP0NR-00-10*

Part Numbers:
- I/O shield: 12AIO-MW34S0-00R
- SATA cable: 12CF1-2SAT01-31R

* 產品規格會依各國家地區出貨而有所變動，應以各地實際出貨狀況為準。誠摯建議與當地經銷商或零售商確認最新產品販售規格。
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
