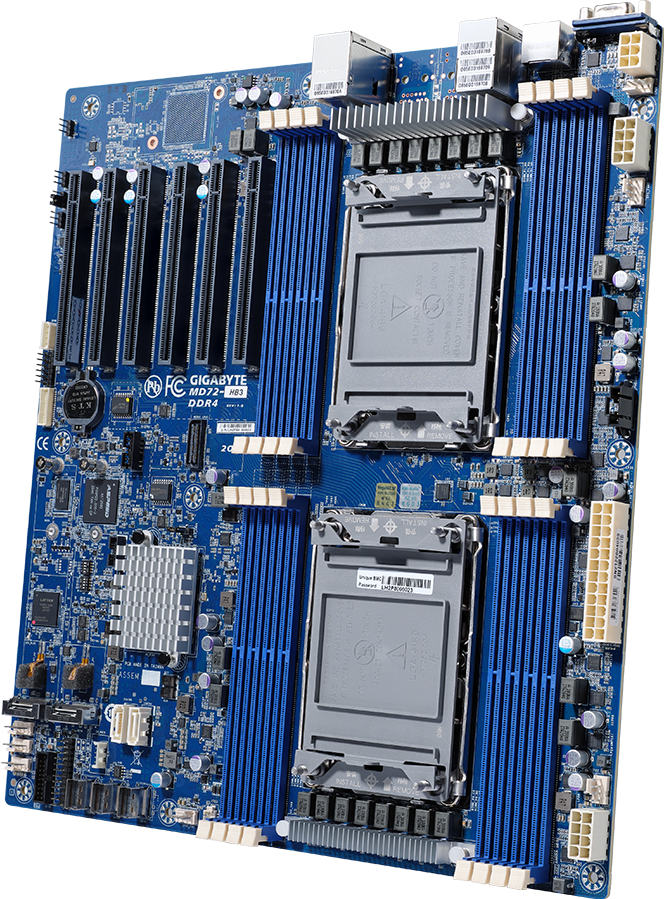

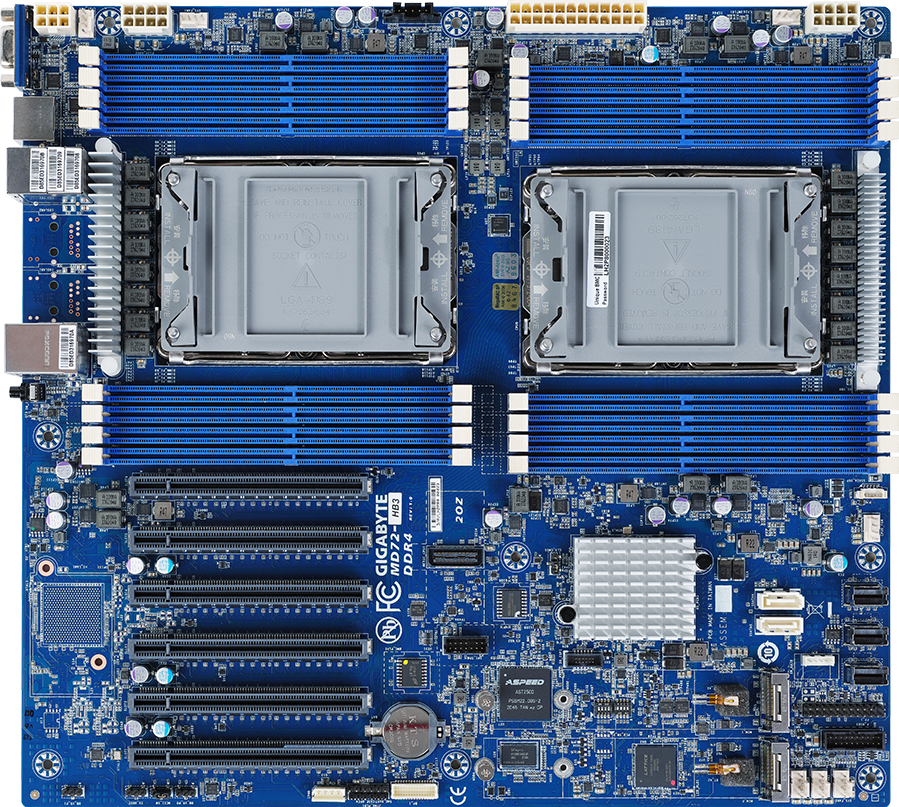

MD72-HB3
Motherboard - 3rd Gen Intel® Xeon® Scalable - E-ATX DP
- Dual 3rd Gen Intel® Xeon® Scalable Processors
- 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
- Supports Intel® Optane™ Persistent Memory 200 series
- Intel® C621A Chipset
- 2 x 1Gb/s LAN ports via Intel® I210-AT
- 3 x SlimSAS connectors for 12 x SATA 6Gb/s
- 2 x SATA 6Gb/s ports
- 2 x M.2 slots with PCIe Gen4 x4 interface
- 6 x PCIe Gen4 x16 expansion slots
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
SPECIFICATIONS
Board Size
E-ATX
305W x 330D mm
305W x 330D mm
Processor Supported
3rd Generation Intel® Xeon® Scalable Processors
Dual processor, 10nm technology
TDP up to 270W
Dual processor, 10nm technology
TDP up to 270W
Socket
2 x LGA 4189
Socket P+
Socket P+
Chipset Description
Intel® C621A
Memory Type
16 x DIMM slots
DDR4 memory supported only
8-channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: 3200/2933/2666 MT/s
DDR4 memory supported only
8-channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: 3200/2933/2666 MT/s
Integrated Network
2 x 1Gb/s LAN ports (Intel® I210-AT)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Integrated Video Controller
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Integrated Audio Controller
N/A
Storage Interface
PCH:
- 3 x SlimSAS connectors for 12 x SATA 6Gb/s
- 2 x SATA 6Gb/s ports
- 3 x SlimSAS connectors for 12 x SATA 6Gb/s
- 2 x SATA 6Gb/s ports
Support RAID Function
Intel® SATA RAID 0/1/10/5
Expansion Slot
Slot_6: PCIe x16 (Gen4 x16) slot, from CPU_0
Slot_5: PCIe x16 (Gen4 x16) slot, from CPU_1
Slot_4: PCIe x16 (Gen4 x16) slot, from CPU_1
Slot_3: PCIe x16 (Gen4 x16) slot, from CPU_0
Slot_2: PCIe x16 (Gen4 x16) slot, from CPU_0
Slot_1: PCIe x16 (Gen4 x16) slot, from CPU_1
2 x M.2 slots:
- M-key
- PCIe Gen4 x4, from CPU_0
- Support 2280/22110 cards
Slot_5: PCIe x16 (Gen4 x16) slot, from CPU_1
Slot_4: PCIe x16 (Gen4 x16) slot, from CPU_1
Slot_3: PCIe x16 (Gen4 x16) slot, from CPU_0
Slot_2: PCIe x16 (Gen4 x16) slot, from CPU_0
Slot_1: PCIe x16 (Gen4 x16) slot, from CPU_1
2 x M.2 slots:
- M-key
- PCIe Gen4 x4, from CPU_0
- Support 2280/22110 cards
On-Board Connector
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector for PCIe slots
2 x CPU fan headers
5 x System fan headers
1 x USB 3.2 Gen1 x2 header
2 x M.2 slots
3 x SlimSAS connectors
2 x SATA connectors
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector for PCIe slots
2 x CPU fan headers
5 x System fan headers
1 x USB 3.2 Gen1 x2 header
2 x M.2 slots
3 x SlimSAS connectors
2 x SATA connectors
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header
Rear I/O Connectors
2 x USB 3.2 Gen1
1 x VGA
1 x RJ45 serial port
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
1 x RJ45 serial port
2 x RJ45
1 x MLAN
1 x ID button with LED
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
OS Driver Supported
Windows Server 2016
Windows Server 2019 (x64)
Windows Server 2022 (x64)
Red Hat Enterprise Linux 7.9 or later
Red Hat Enterprise Linux 8.2 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.2.0 or later
Windows Server 2019 (x64)
Windows Server 2022 (x64)
Red Hat Enterprise Linux 7.9 or later
Red Hat Enterprise Linux 8.2 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.2.0 or later
Server Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
PSU Connector
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

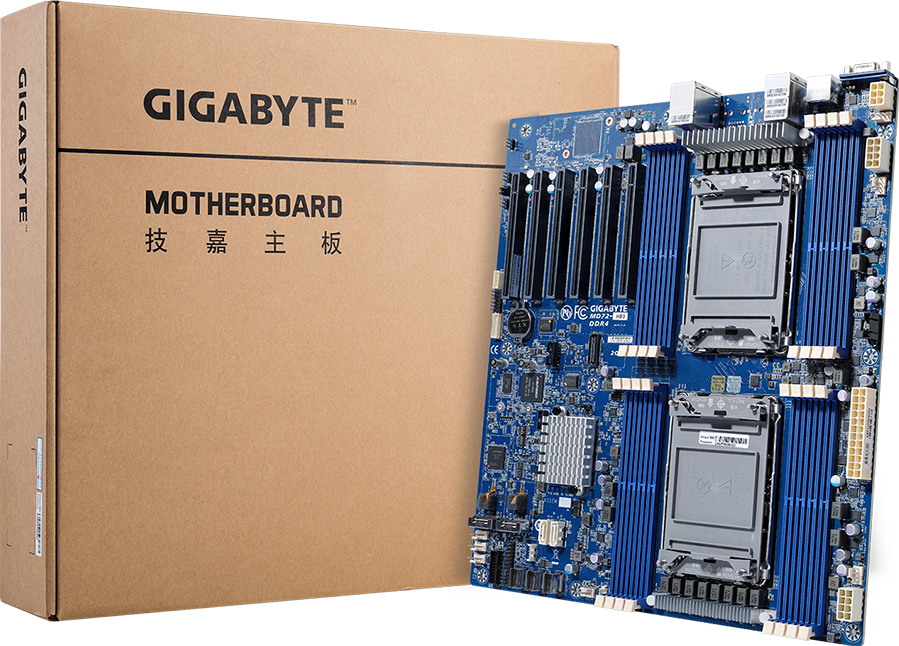

Packaging Bundle
1 x MD72-HB3
1 x I/O shield
1 x Quick start guide
1 x SlimSAS to 4 x SATA 6Gb/s cable (600mm)
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton
1 x I/O shield
1 x Quick start guide
1 x SlimSAS to 4 x SATA 6Gb/s cable (600mm)
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content
10 x MD72-HB3
10 x I/O shields
Carton dimensions: 600 x 473 x 517 mm
10 x I/O shields
Carton dimensions: 600 x 473 x 517 mm
Ordering Information
Retail: 9MD72HB3MR-00-1*
Bulk: 9MD72HB3NR-00-1*
Part Numbers:
- I/O shield: 12AIO-MD72HB-10R
- SlimSAS to 4 x SATA cable (600mm): 25CFM-600800-A4R
Optional parts:
- Fansink: 25ST4-353203-M1R
Bulk: 9MD72HB3NR-00-1*
Part Numbers:
- I/O shield: 12AIO-MD72HB-10R
- SlimSAS to 4 x SATA cable (600mm): 25CFM-600800-A4R
Optional parts:
- Fansink: 25ST4-353203-M1R
