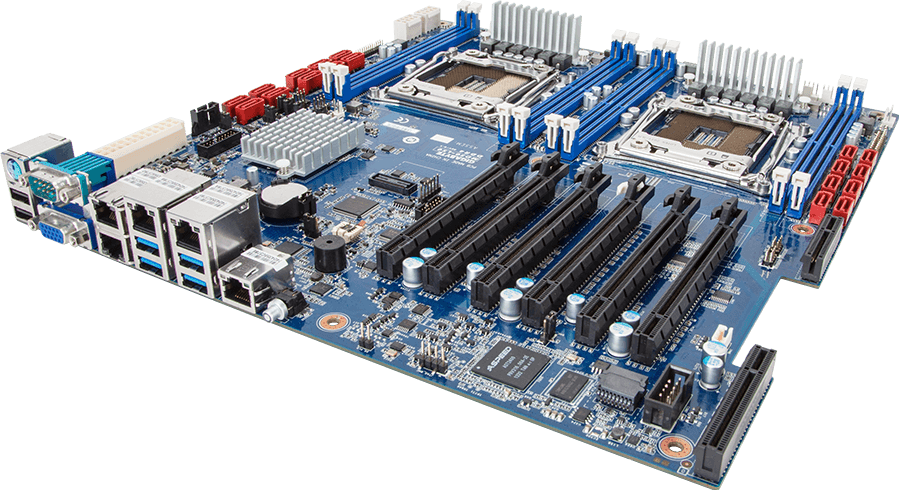

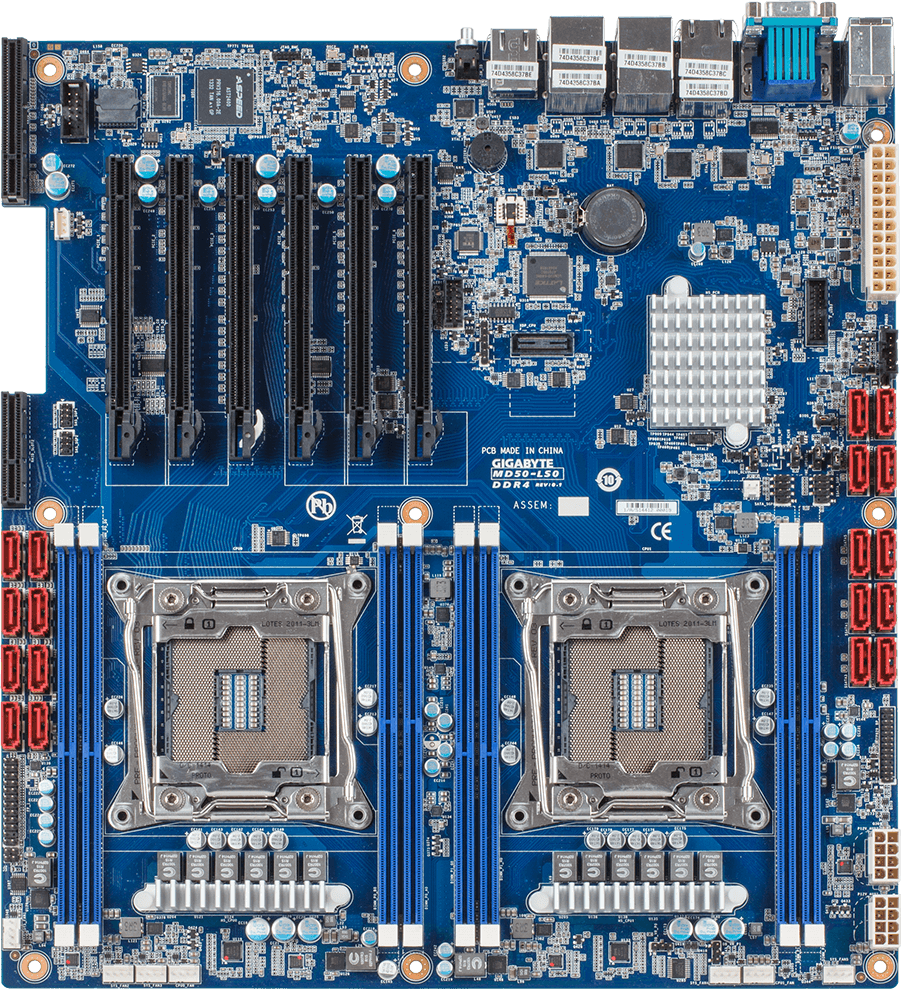

MD50-LS0

已停產

Rev. 1.1

Intel^® C612 chipset

Intel^® Xeon^® processor E5-2600 V3 / V4 product family
8 x RDIMM/LRDIMM ECC DDR4 DIMM slots
4 x GbE LAN ports (Intel^® I210)
10 x SATA III 6Gb/s
Up to 8 x SAS 6Gb/s
1 x USB 3.0 header
Aspeed^® AST2400 remote management controller

* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。

SPECIFICATIONS

Board Size

E-ATX / SSI EEB
305W x 330D (mm)

Processor Supported

Intel^® Xeon^® E5-2600 V3 processors
Intel^® Xeon^® E5-2600 V4 processors
NOTE: If only 1 CPU is installed, some PCIe and memory functions might be unavailable.

Socket

2 x LGA 2011-3
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard

Chipset Description

Intel^® C612

Memory Type

8 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz

Integrated Network

4 x GbE LAN ports (Intel^® I210)
1 x 10/100/1000 management LAN

Integrated Video Controller

Integrated in Aspeed^® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Integrated Audio Controller

Integrated SAS Controller

8 x SAS 6Gb/s ports (disabled, can be enabled with the CRA220-8 add-on card)

Integrated SATA Controller

9 x SATA III 6Gb/s ports
1 x SATA III 6Gb/s ports supporting SATA DOM

Support RAID Function

Intel^® SATA RAID 0/1/10/5

Expansion Slot

1 x PCIe x16 (Gen3 x16 bus) slot
3 x PCIe x16 (Gen3 x8 bus) slots
2 x PCIe x16 (Gen3 x4 bus) slots

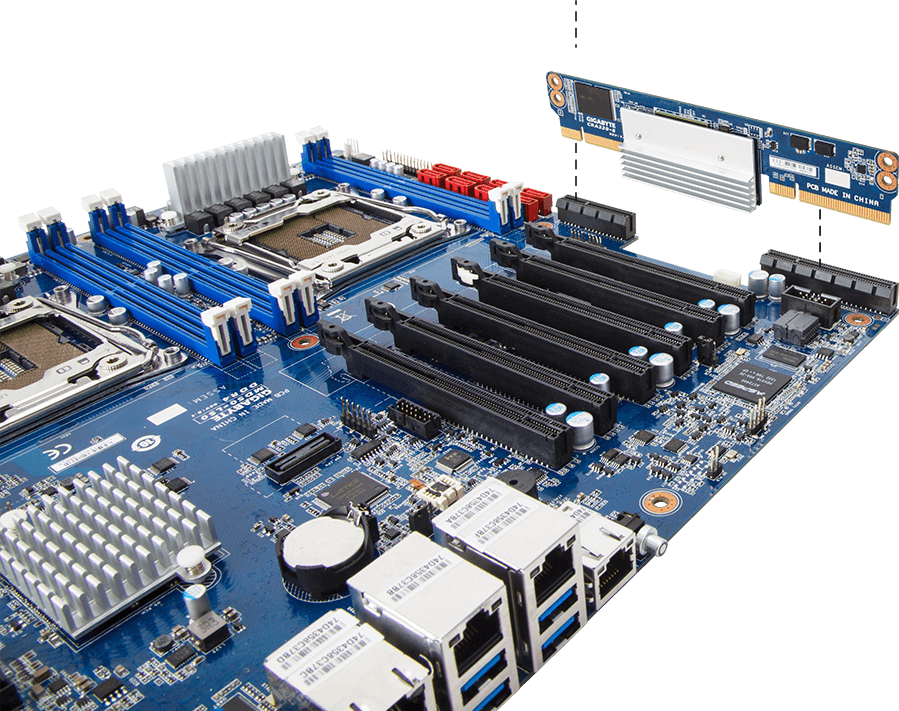

1 x PCIe mezzanine type T (Gen3 x8 bus) slot

On-Board Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
8 x SAS 6Gb/s ports
10 x SATA III 6Gb/s ports
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x Serial header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x JTAG PLD header
1 x BMC JTAG header
1 x Chassis intrusion header
2 x SAS SGPIO headers
2 x SATA SGPIO headers
1 x Software RAID jumper
1 x SATA DOM jumper
1 x BIOS password recovery jumper
1 x BIOS recovery jumper
1 x Clear CMOS jumper
1 x ME recovery jumper
1 x ME update jumper
1 x S3 mask jumper
1 x BMC FRB jumper
1 x PMBus connector
1 x IPMB connector

Rear I/O Connectors

4 x USB 3.0
2 x USB 2.0
1 x PS/2
1 x VGA
1 x Serial
5 x RJ45
1 x ID button with LED

TPM

1 x TPM header

OS Driver Supported

Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016

Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)

SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)

Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)

VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1

Server Management

Aspeed^® AST2400 management controller
Avocent^® MergePoint IPMI 2.0 web interface:

Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)

PSU Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Bundle

1 x MD50-LS0
1 x Driver CD
1 x I/O shield
1 x User manual
2 x SATA III 6Gb/s cables
Box dimensions: 409 x 355 x 78 mm

Bulk Packaging Content

10 x MD50-LS0
10 x I/O shields
Carton dimensions: 473 x 600 x 495 mm

Ordering Information

Retail: 9MD50LS0MR-00
Bulk: 9MD50LS0NR-00
