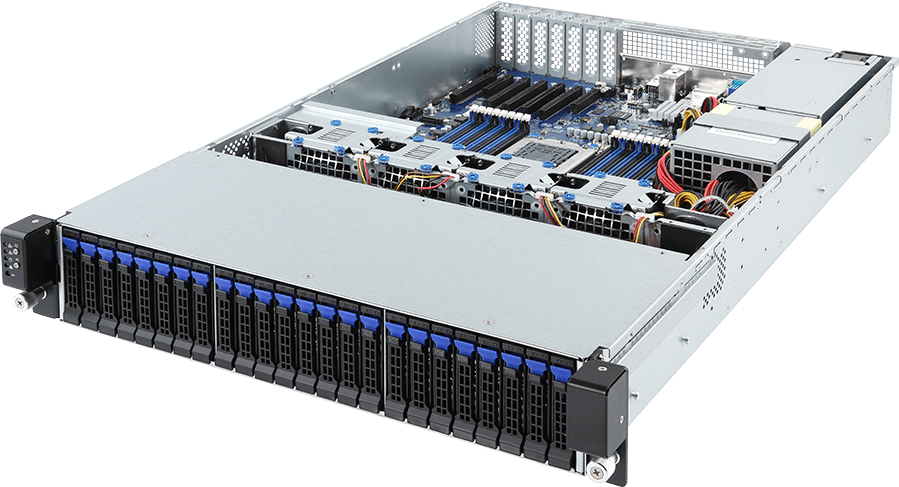

AMD EPYC™ 7003 UP Server System - 2U 16-Bay

AMD EPYC™ 7003 series processor family
8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
2 x SFP+ 10Gb/s LAN ports (Broadcom^® BCM 57810S)
1 x Dedicated management port
16 x 2.5" hot-swappable HDD/SSD bays
Ultra-Fast M.2 with PCIe Gen3 x4 interface
7 x low profile PCIe Gen3 expansion slots
Aspeed^® AST2500 remote management controller
800W 80 PLUS Platinum redundant PSU

* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。

SPECIFICATIONS

Dimensions (WxHxD, mm)

2U
430 x 87 x 710 mm

Motherboard

MZ31-AR0 Rev. 3.0

CPU

AMD EPYC™ 7003 series processor family
Single processor, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W

Fully support 280W

Compatible with AMD EPYC™ 7002 series processor family

Socket

Socket SP3

Chipset

System on Chip

Memory

16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/2933 MHz

- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC

LAN

2 x SFP+ 10Gb/s LAN ports (Broadcom^® BCM 57810S)
1 x 10/100/1000 management LAN

Video

Integrated in Aspeed^® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Audio

N/A

Storage

24 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
16 x 2.5" SATA/SAS drives available by default setting

Default hard drives location:
From left to right, HDD_0 to HDD_7 and HDD_12 to HDD_19

SAS card is required for SAS devices support

SAS

N/A

RAID

N/A

Peripheral Drives

N/A

Expansion Slots

Slot_7: 1 x PCIe x8 (Gen3 x8 bus) slot
Slot_6: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_5: 1 x PCIe x16 (Gen3 x8 bus) slot
Slot_4: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_3: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_2: 1 x PCIe x8 (Gen3 x8 bus) slot
Slot_1: 1 x PCIe x16 (Gen3 x16 bus) slot
All PCIe slots support low profile HBAs

1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2280/2260/2242 cards

Internal I/O

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
4 x SlimSAS connectors
1 x M.2 slot
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
2 x LAN activity LED
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer

Front I/O

1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs

Rear I/O

2 x USB 3.0
2 x USB 2.0
1 x VGA
1 x COM_1
2 x SFP+
1 x MLAN
1 x ID button with LED

Backplane Board

Backplane P/N: 9CBP20O1NR-00
Speed and bandwidth:
SAS 12Gb/s, SATA 6Gb/s

TPM

1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000

Power Supply

2 x 800W redundant PSUs
80 PLUS Platinum

AC Input:
- 100-240V~/ 10-4A, 50-60Hz

DC Input:
- 240Vdc/ 4.5A

DC Output:
- Max 800W
+ 12V/ 66A
+ 12Vsb/ 2.5A

System Management

Aspeed^® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later

System Fans

4 x 80x80x38mm (14,900rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

982 x 588 x 268 (mm)

Packaging Content

1 x R271-Z31 system
1 x CPU heatsink
1 x Quick Installation Guide
1 x Rail kit

Part Numbers

Rackmount: 6NR271Z31MR-00 Rev. B00
Motherboard: 9MZ31AR0MR-00 Rev. 3.0
CPU heatsink: 25ST1-15320E-J1R
Back plane board: 9CBP20O1NR-00
Fan module: 25ST2-883825-S0S
Power supply: 25EP0-208006-L0S
Power Supply PDB: 25EP5-218000-L0S
Rail Kit: 25HB2-3A6101-K0R
