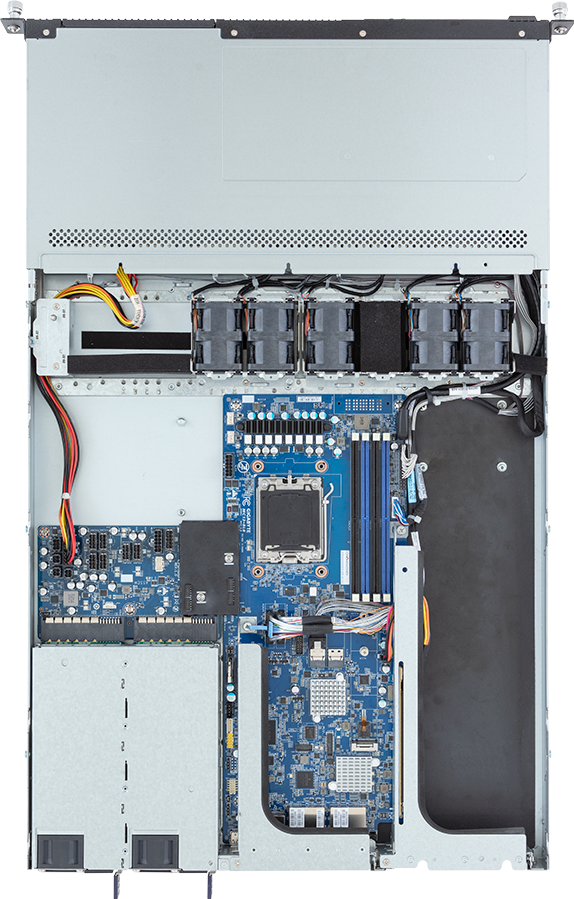

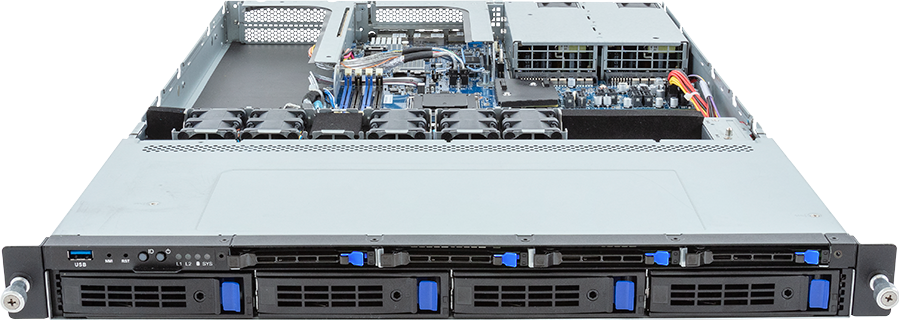

R133-C11- AAB1
Rack Server - AMD EPYC™ 4004 / Ryzen™ 7000 - 1U UP 1 x PCIe Gen5 GPU
- Supports 1 x Dual slot Gen5 GPU
- Single AMD EPYC™ 4004 / Ryzen™ 7000 Series Processors
- Dual Channel DDR5 ECC/Non-ECC UDIMM, 4 x DIMMs
- 2 x 10Gb/s LAN ports via Broadcom® BCM57416
- 2 x 1Gb/s LAN ports via Broadcom® BCM5720
- 4 x 3.5"/2.5" SATA hot-swappable bays
- 4 x 2.5" 7mm SATA hot-swappable bays
- 1 x M.2 slot with PCIe Gen4 x4 interface
- 1 x FHFL PCIe Gen5 x16 slot for GPUs
- 1 x FHHL PCIe Gen4 x4 slot
- 1+1 800W 80 PLUS Platinum redundant power supplies
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
SPECIFICATIONS
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 710
438 x 43.5 x 710
Motherboard
MC13-BL0
CPU
AMD EPYC™ 4004 Series Processors
AMD Ryzen™ 7000 Series Processors
Single processor, 5nm technology
TDP up to 170W
Note: Overclocking not supported due to thermal limitation.
AMD Ryzen™ 7000 Series Processors
Single processor, 5nm technology
TDP up to 170W
Note: Overclocking not supported due to thermal limitation.
Socket
1 x AM5
Chipset
AMD B650E
Memory
4 x DIMM slots
DDR5 memory supported only
Dual Channel memory architecture
DIMM up to 32GB supported
ECC UDIMM 1Rx8/2Rx8 supported
Non-ECC UDIMM 1Rx8/2Rx8/1Rx16 supported
Memory speed: Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC)
DDR5 memory supported only
Dual Channel memory architecture
DIMM up to 32GB supported
ECC UDIMM 1Rx8/2Rx8 supported
Non-ECC UDIMM 1Rx8/2Rx8/1Rx16 supported
Memory speed: Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC)
LAN
Rear side:
2 x 10Gb/s LAN ports (1 x Broadcom® BCM57416)
2 x 1Gb/s LAN ports (1 x Broadcom® BCM5720)
Support NCSI function (by switch)
1 x 10/100/1000 Mbps Management LAN
2 x 10Gb/s LAN ports (1 x Broadcom® BCM57416)
2 x 1Gb/s LAN ports (1 x Broadcom® BCM5720)
Support NCSI function (by switch)
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x Mini-DP
- 1 x Mini-DP
Storage
Front side:
4 x 3.5"/2.5" SATA hot-swappable bays
4 x 2.5" 7mm SATA hot-swappable bays
SATA supported only
4 x 3.5"/2.5" SATA hot-swappable bays
4 x 2.5" 7mm SATA hot-swappable bays
SATA supported only
SAS
N/A
RAID
RAID 0/1/10
Expansion Slots
PCIe Cable:
- 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU, for GPUs*
*Max 300W for GPUs
Riser Card CRSE016:
- 1 x PCIe x4 (Gen4 x4) FHHL slot, from CPU
1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from FCH
- Supports 2280/22110 cards
- 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU, for GPUs*
*Max 300W for GPUs
Riser Card CRSE016:
- 1 x PCIe x4 (Gen4 x4) FHHL slot, from CPU
1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from FCH
- Supports 2280/22110 cards
Internal I/O
1 x TPM header
Front I/O
1 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
2 x USB 3.2 Gen1
1 x Mini-DP
4 x RJ45
1 x MLAN
1 x ID button with LED
1 x Mini-DP
4 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
SATA 6Gb/s
SATA 6Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
1+1 800W 80 PLUS Platinum redundant power supplies
AC Input:
- 100-240V~/ 10-5A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 4A
DC Output:
- Max 800W
+12V/ 65A
+12Vsb/ 2.1A
AC Input:
- 100-240V~/ 10-5A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 4A
DC Output:
- Max 800W
+12V/ 65A
+12Vsb/ 2.1A
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
EPYC 4004 Series:
Ubuntu 22.04
Ubuntu 24.04
Windows Server 2022
Ryzen 7000 Series:
Windows 10 21H2
Windows 11
Ubuntu 22.04
Ubuntu 24.04
Windows Server 2022
Ryzen 7000 Series:
Windows 10 21H2
Windows 11
System Fans
2 x 40x40x56mm (29,700rpm)
3 x 40x40x56mm (32,000rpm)
3 x 40x40x56mm (32,000rpm)
Operating Properties
Operating temperature: 10°C to 30°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 16.8 kg
Gross Weight: 18.8 kg
Gross Weight: 18.8 kg
Packaging Dimensions
977 x 588 x 236 mm
Packaging Content
1 x R133-C11-AAB1
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x GPU power cable (2x PCIe 8pin, 700mm)
1 x 2-Section Rail kit
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x GPU power cable (2x PCIe 8pin, 700mm)
1 x 2-Section Rail kit
Part Numbers
- Barebone package (EPYC/Ryzen): 6NR133C11MR000ABB1*
- Barebone package (Ryzen): 6NR133C11MR000AAB1*
- Motherboard: 9MC13BL0NR-000
- 2-Section Rail kit: 25HB2-3A0203-K0R
- CPU heatsink: 25ST1-443300-S7R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP1010: 9CFP1010NR-00
- Backplane board - CBP1045: 9CBP1045NR-00
- Backplane board - CBP1047: 9CBP1047NR-00
- Fan module: 25ST2-405623-A0R/25ST2-40562H-A0R
- Riser card - CRSE016: 9CRSE01016NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (2x PCIe 8pin, 700mm): 25CRI-700004-G5R
- Power supply: 25EP0-208009-F3S
Optional parts:
- 3-Section Rail kit: 25HB2-A56120-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
- Barebone package (Ryzen): 6NR133C11MR000AAB1*
- Motherboard: 9MC13BL0NR-000
- 2-Section Rail kit: 25HB2-3A0203-K0R
- CPU heatsink: 25ST1-443300-S7R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP1010: 9CFP1010NR-00
- Backplane board - CBP1045: 9CBP1045NR-00
- Backplane board - CBP1047: 9CBP1047NR-00
- Fan module: 25ST2-405623-A0R/25ST2-40562H-A0R
- Riser card - CRSE016: 9CRSE01016NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (2x PCIe 8pin, 700mm): 25CRI-700004-G5R
- Power supply: 25EP0-208009-F3S
Optional parts:
- 3-Section Rail kit: 25HB2-A56120-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
