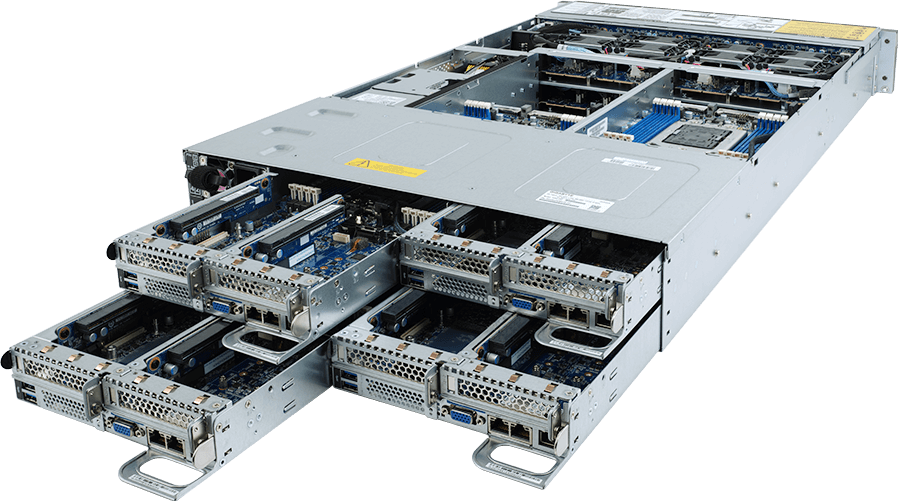

High Density Server - AMD EPYC™ 7003/7002 - 2U-4 Node DP 24-Bay Gen3 NVMe/SATA/SAS
- 2U 4-node rear access server system
- Dual AMD EPYC™ 7003/7002 Series Processors per node
- 8-Channel DDR4 RDIMM/LRDIMM, 64 x DIMMs
- 8 x 1Gb/s LAN ports via Intel® I350-AM2
- 1 x CMC port
- 12 x 2.5" Gen3 NVMe/SATA/SAS hot-swappable bays
- 12 x 2.5" SATA/SAS hot-swappable bays
- 8 x M.2 slots with PCIe Gen3 x4 interface
- 8 x LP PCIe Gen4 x16 slots
- 4 x OCP 2.0 Gen3 x16 mezzanine slots
- Dual 2200W 80 PLUS Platinum redundant power supply
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U 4-Node - Rear access
440 x 87.5 x 840
440 x 87.5 x 840
Motherboard
MZ62-HD0 Rev. 3.0
CPU
AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Dual processor per node, 7nm technology
Up to 64 cores, 128 threads per processor
TDP up to 200W
Note:
1) If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
2) Contact GIGABYTE sales rep or technical support for more details about supporting cTDP 240W CPU.
AMD EPYC™ 7002 Series Processors
Dual processor per node, 7nm technology
Up to 64 cores, 128 threads per processor
TDP up to 200W
Note:
1) If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
2) Contact GIGABYTE sales rep or technical support for more details about supporting cTDP 240W CPU.
Socket
Per Node:
2 x LGA 4094
Total:
8 x LGA 4094
Socket SP3
2 x LGA 4094
Total:
8 x LGA 4094
Socket SP3
Chipset
System on Chip
Memory
Per node:
16 x DIMM slots
Total:
64 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200 MT/s
16 x DIMM slots
Total:
64 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200 MT/s
LAN
Per node:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management port
Total:
8 x 1Gb/s LAN ports (4 x Intel® I350-AM2)
Support NCSI function
4 x 10/100/1000 Mbps Management ports
1 x CMC port
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management port
Total:
8 x 1Gb/s LAN ports (4 x Intel® I350-AM2)
Support NCSI function
4 x 10/100/1000 Mbps Management ports
1 x CMC port
Video
Integrated in Aspeed® AST2500
- 1 x VGA port per node
- 1 x VGA port per node
Storage
Per node:
3 x 2.5" Gen3 NVMe/SATA/SAS hot-swappable bays
3 x 2.5" SATA/SAS hot-swappable bays
Total:
12 x 2.5" Gen3 NVMe/SATA/SAS hot-swappable bays
12 x 2.5" SATA/SAS hot-swappable bays
3 x 2.5" Gen3 NVMe/SATA/SAS hot-swappable bays
3 x 2.5" SATA/SAS hot-swappable bays
Total:
12 x 2.5" Gen3 NVMe/SATA/SAS hot-swappable bays
12 x 2.5" SATA/SAS hot-swappable bays
SAS
Depends on SAS add-in cards
RAID
N/A
Expansion Slots
Per node:
2 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth, from CPU_0 (Type1, P1, P2, P3, P4 with NCSI supported)
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 155W if using M.2 device
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 155W if using M.2 device
Total:
8 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0
4 x OCP 2.0 mezzanine slots with PCIe Gen3 x16 bandwidth, from CPU_0 (Type1, P1, P2, P3, P4 with NCSI supported)
4 x M.2 slots:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 155W if using M.2 device
4 x M.2 slots:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 155W if using M.2 device
2 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth, from CPU_0 (Type1, P1, P2, P3, P4 with NCSI supported)
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 155W if using M.2 device
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 155W if using M.2 device
Total:
8 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0
4 x OCP 2.0 mezzanine slots with PCIe Gen3 x16 bandwidth, from CPU_0 (Type1, P1, P2, P3, P4 with NCSI supported)
4 x M.2 slots:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 155W if using M.2 device
4 x M.2 slots:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 155W if using M.2 device
Internal I/O
Per node:
2 x M.2 slots
1 x COM header
1 x TPM header
1 x BMC SGPIO header
1 x JTAG BMC header
1 x PLD header
1 x Clear CMOS jumper
1 x IPMB connector
2 x M.2 slots
1 x COM header
1 x TPM header
1 x BMC SGPIO header
1 x JTAG BMC header
1 x PLD header
1 x Clear CMOS jumper
1 x IPMB connector
Front I/O
Per node:
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
Total:
4 x Power buttons with LED
4 x ID buttons with LED
4 x Reset buttons
4 x System status LEDs
*1 x CMC status LED
*Only one CMC status LED per system.
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
Total:
4 x Power buttons with LED
4 x ID buttons with LED
4 x Reset buttons
4 x System status LEDs
*1 x CMC status LED
*Only one CMC status LED per system.
Rear I/O
Per node:
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
Total:
8 x USB 3.0
4 x VGA
8 x RJ45
4 x MLAN
*1 x CMC port
*Only one CMC port per system.
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
Total:
8 x USB 3.0
4 x VGA
8 x RJ45
4 x MLAN
*1 x CMC port
*Only one CMC port per system.
Backplane Board
Speed and bandwidth:
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
Dual 2200W 80 PLUS Platinum redundant power supply
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 12.6A
DC Output:
- Max 1200W/ 100-127V~
+ 12.12V/ 95.6A
+ 12Vsb/ 3.5A
- Max 2200W/ 200-240V~ or 240Vdc Input
+ 12.12V/ 178.1A
+ 12Vsb/ 3.5A
Note: System power supply requires C19 power cord.
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 12.6A
DC Output:
- Max 1200W/ 100-127V~
+ 12.12V/ 95.6A
+ 12Vsb/ 3.5A
- Max 2200W/ 200-240V~ or 240Vdc Input
+ 12.12V/ 178.1A
+ 12Vsb/ 3.5A
Note: System power supply requires C19 power cord.
System Management
Aspeed® AST2500 Baseboard Management Controller
Aspeed® AST2520A2-GP Chassis Management Controller
GIGABYTE Management Console web interface
Aspeed® AST2520A2-GP Chassis Management Controller
GIGABYTE Management Console web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
System Fans
8 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 47.63 kg
Gross Weight: 49.63 kg
Gross Weight: 49.63 kg
Packaging Dimensions
1180 x 779 x 300 mm
Packaging Content
1 x H262-Z66
8 x CPU heatsinks
1 x 3-Section Rail kit
8 x CPU heatsinks
1 x 3-Section Rail kit
Part Numbers
- Barebone package: 6NH262Z66MR-00-A*
- Motherboard: 9MZ62HD0NR-00
- 3-Section Rail kit: 25HB2-AN6103-K0R
- CPU heatsink: 25ST1-44320H-A0R/25ST1-44320I-A0R
- Backplane board - CFPH004: 9CFPH004NR-00
- Fan module: 25ST2-883828-D0R/25ST2-88382A-D0R
- Power supply: 25EP0-222003-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 250V/15A (US): 25CP1-018300-Q0R
- M.2 expansion card - CMTP04R: 9CMTP04RNR-00
- Ring topology kit: 6NH262Z65SR-00-100
- RMA packaging: 6NH262Z66SR-RMA-A100
- Motherboard: 9MZ62HD0NR-00
- 3-Section Rail kit: 25HB2-AN6103-K0R
- CPU heatsink: 25ST1-44320H-A0R/25ST1-44320I-A0R
- Backplane board - CFPH004: 9CFPH004NR-00
- Fan module: 25ST2-883828-D0R/25ST2-88382A-D0R
- Power supply: 25EP0-222003-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 250V/15A (US): 25CP1-018300-Q0R
- M.2 expansion card - CMTP04R: 9CMTP04RNR-00
- Ring topology kit: 6NH262Z65SR-00-100
- RMA packaging: 6NH262Z66SR-RMA-A100
* 產品規格會依各國家地區出貨而有所變動，應以各地實際出貨狀況為準。誠摯建議與當地經銷商或零售商確認最新產品販售規格。
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
SUPPORT
驅動程式
BIOS
工具程式
Firmware
QVL
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 64bit
晶片組
網路介面
BIOS
說明
版本
檔案大小
日期
1) Updated to AGESA RomePI 1.0.0.J.
2) Updated to AGESA MilanPI 1.0.0.D.
3) Included multiple security updates.
2) Updated to AGESA MilanPI 1.0.0.D.
3) Included multiple security updates.
Version : M20_R34
35.35 MB
Nov 04, 2024
1) Fixed PKfail Vulnerability.
2) Optimized BcpPro tool compatibility.
2) Optimized BcpPro tool compatibility.
Version : M17_R31
35.29 MB
Aug 26, 2024
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Warning:
更新BIOS有其潛在的風險，如果您使用目前版本的BIOS沒有問題，我們建議您不要任意更新BIOS。如需更新BIOS，請小心的執行，以避免不當的操作而造成系統毀損.
什麼是 BETA 版？
BETA版是正式推出前的試用版本。雖然該版本已經過測試，但可能還存在部份尚未發現、可能影響執行效能和功能的小問題。 請注意BETA版非正式的版本，並請密切注意正式版本的推出。
更新BIOS有其潛在的風險，如果您使用目前版本的BIOS沒有問題，我們建議您不要任意更新BIOS。如需更新BIOS，請小心的執行，以避免不當的操作而造成系統毀損.
什麼是 BETA 版？
BETA版是正式推出前的試用版本。雖然該版本已經過測試，但可能還存在部份尚未發現、可能影響執行效能和功能的小問題。 請注意BETA版非正式的版本，並請密切注意正式版本的推出。
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
工具程式
說明
版本
檔案大小
日期
GSM CLI
Version : 2.1.77
147.89 MB
Sep 27, 2024
作業系統: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
作業系統: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
作業系統: Linux,Windows Server 2016 64bit,Windows Server 2019
Firmware
說明
版本
檔案大小
日期
BMC Firmware with embedded GIGABYTE Management Console
(AST2500 AMI)
(AST2500 AMI)
Version : 12.61.21
105.38 MB
Apr 11, 2024
英語
CMC Firmware (AST2520)
Note: Please make sure the system CMC firmware version is 12.40.19 or later before updating BMC firmware
Note: Please make sure the system CMC firmware version is 12.40.19 or later before updating BMC firmware
Version : 12.41.36
83.16 MB
Nov 02, 2023
英語
使用手冊
說明
版本
檔案大小
日期
說明
版本
檔案大小
日期
RESOURCES
Success Case
Articles
Video
News
Others
Back to H262-Z66
