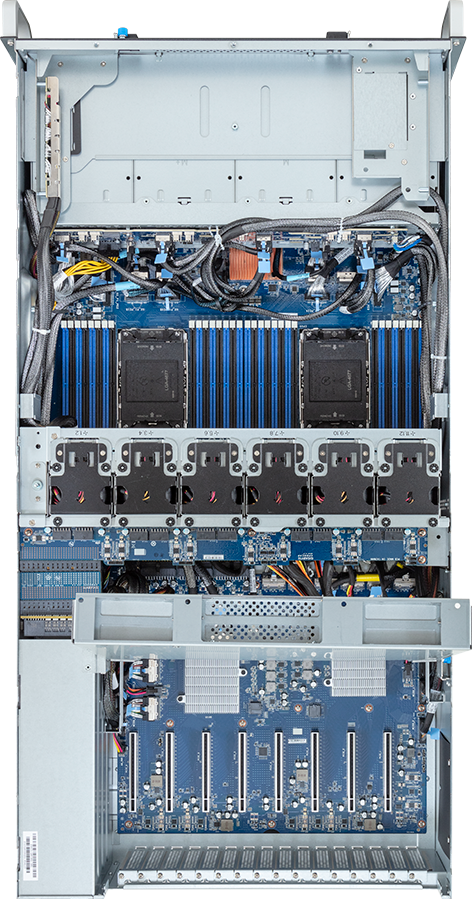

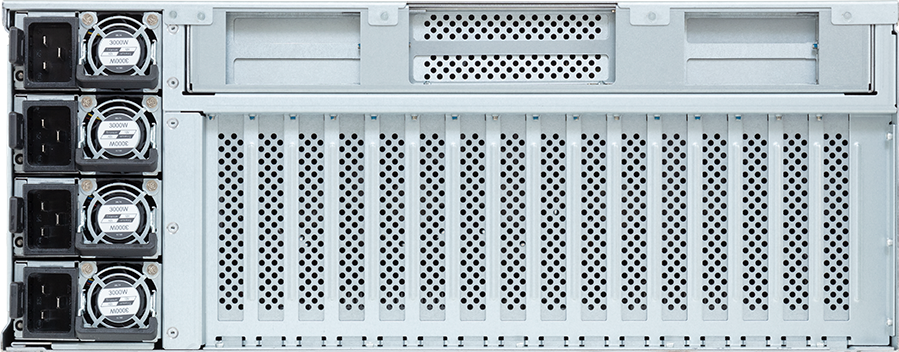

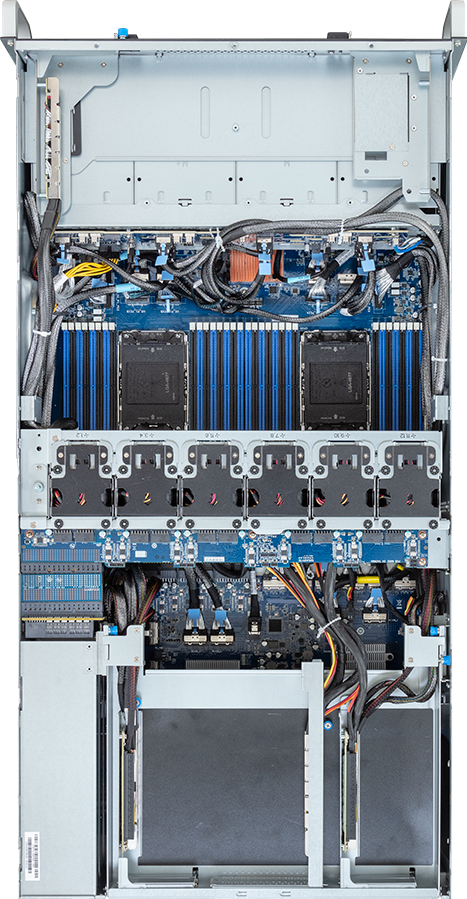

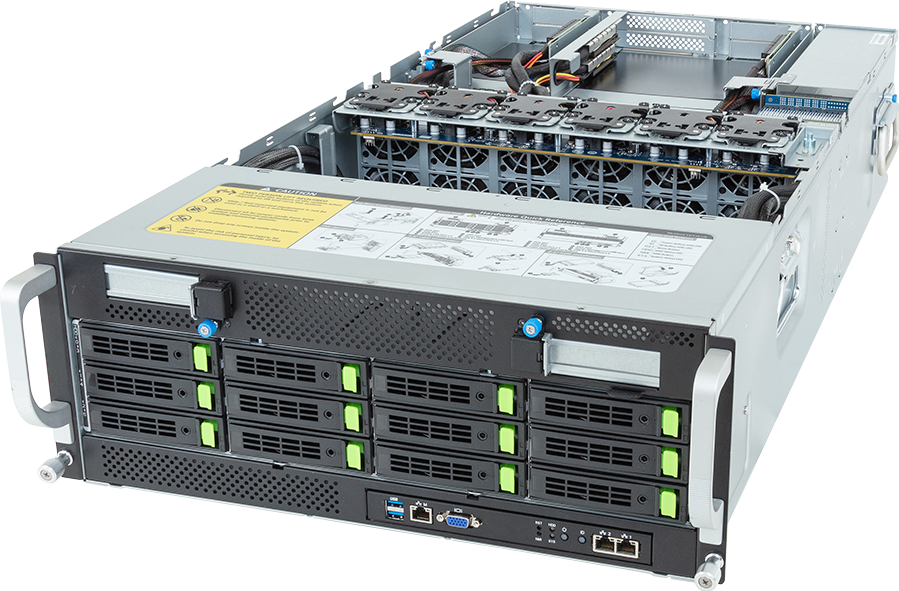

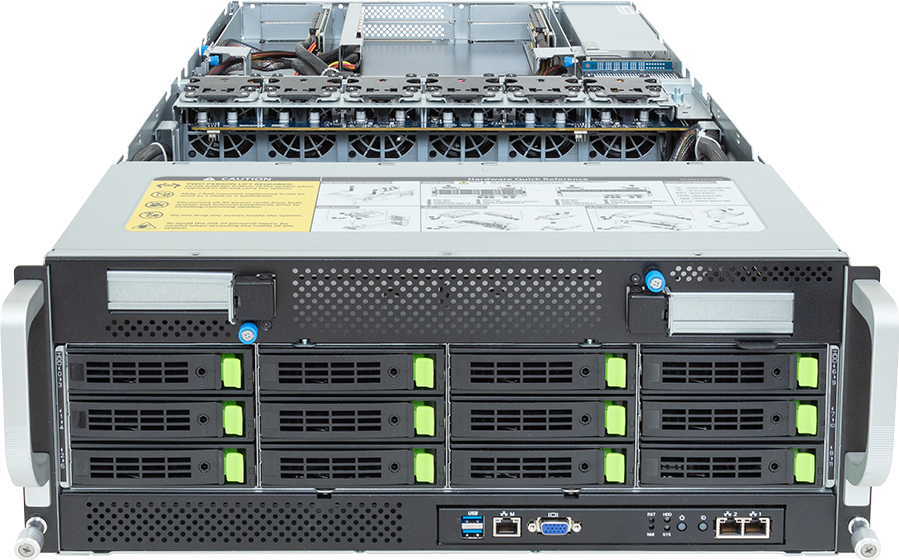

G493-SB4-AAP1
HPC/AI Server - 5th/4th Gen Intel® Xeon® Scalable - 4U DP NVIDIA OVX™ 8 x PCIe Gen5 GPUs
- NVIDIA-Certified Systems™ - OVX Servers
- Optimized for NVIDIA OVX™ L40S Server with 8 GPUs configuration
- Dual 5th/4th Gen Intel® Xeon® Scalable Processors
- Dual Intel® Xeon® CPU Max Series
- 8-Channel DDR5 RDIMM, 32 x DIMMs
- Dual ROM Architecture
- 2 x 10Gb/s LAN ports via Intel® X710-AT2
- 12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays
- 1 x M.2 slot with PCIe Gen3 x1 interface
- 8 x FHFL PCIe Gen5 x16 slots for GPUs
- 2 x FHHL PCIe Gen5 x16 slots
- 4 x LP PCIe Gen5 x16 slots
- 1 x LP PCIe Gen4 x16 slot on the front side
- 3+1 3000W 80 PLUS Titanium redundant power supplies
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
SPECIFICATIONS
Dimensions (WxHxD, mm)
4U
448 x 176 x 880
448 x 176 x 880
Motherboard
MSB3-G40
CPU
5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor, TDP up to 350W
- NVIDIA OVX Specifications: 2 x Intel® Xeon® Gold 8480+
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor, TDP up to 350W
- NVIDIA OVX Specifications: 2 x Intel® Xeon® Gold 8480+
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 4677
Socket E
Socket E
Chipset
Intel® C741
Memory
32 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
5th Gen Intel® Xeon®: Up to *5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel® Xeon® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
- NVIDIA OVX Specifications: Minimum 768GB DDR5 ECC (1 DIMM per slot)
*5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
5th Gen Intel® Xeon®: Up to *5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel® Xeon® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
- NVIDIA OVX Specifications: Minimum 768GB DDR5 ECC (1 DIMM per slot)
*5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.
LAN
Front side:
2 x 10Gb/s LAN ports (1 x Intel® X710-AT2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 10Gb/s LAN ports (1 x Intel® X710-AT2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Front side:
12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4* hot-swappable bays
- (2 x NVMe from CPU_0, 2 x NVMe from CPU_1, 4 x NVMe from PEX89144_0, 4 x NVMe from PEX89144_1)
- NVIDIA OVX Specifications: 1 x 1TB NVMe Host Boot Drive
- NVIDIA OVX Specifications: 2 x 4TB NVMe Host Storage
*SAS card is required to support SAS drives.
12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4* hot-swappable bays
- (2 x NVMe from CPU_0, 2 x NVMe from CPU_1, 4 x NVMe from PEX89144_0, 4 x NVMe from PEX89144_1)
- NVIDIA OVX Specifications: 1 x 1TB NVMe Host Boot Drive
- NVIDIA OVX Specifications: 2 x 4TB NVMe Host Storage
*SAS card is required to support SAS drives.
SAS
Require SAS add-in cards
RAID
Intel® SATA RAID 0/1/10/5
Support optional RAID add-in cards
Support optional RAID add-in cards
Expansion Slots
4 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_0, for GPUs
4 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_1, for GPUs
- NVIDIA OVX Specifications: 8 x NVIDIA L40S
1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0
1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1
- NVIDIA OVX Specifications: 1 x BlueField-3, B3220 (2x200Gb)
2 x PCIe x16 (Gen5 x16) low-profile slots, from PEX89144_0
2 x PCIe x16 (Gen5 x16) low-profile slots, from PEX89144_1
- NVIDIA OVX Specifications: 4 x ConnectX-7 (2x200Gb)
1 x PCIe x16 (Gen4 x16) low-profile slot on the front side, from CPU_1
Note: The system is only validated with a uniform GPU model.
1 x M.2 slot:
- M-key
- PCIe Gen3 x1, from PCH
- Supports 2280/22110 cards
4 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_1, for GPUs
- NVIDIA OVX Specifications: 8 x NVIDIA L40S
1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0
1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1
- NVIDIA OVX Specifications: 1 x BlueField-3, B3220 (2x200Gb)
2 x PCIe x16 (Gen5 x16) low-profile slots, from PEX89144_0
2 x PCIe x16 (Gen5 x16) low-profile slots, from PEX89144_1
- NVIDIA OVX Specifications: 4 x ConnectX-7 (2x200Gb)
1 x PCIe x16 (Gen4 x16) low-profile slot on the front side, from CPU_1
Note: The system is only validated with a uniform GPU model.
1 x M.2 slot:
- M-key
- PCIe Gen3 x1, from PCH
- Supports 2280/22110 cards
Internal I/O
1 x TPM header
1 x VROC connector
1 x VROC connector
Front I/O
2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
Rear I/O
N/A
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
3+1 3000W 80 PLUS Titanium redundant power supplies
AC Input:
- 100-127V~/ 14.5A, 50/60Hz
- 200-220V~/ 16A, 50/60Hz
- 220-240V~/ 16A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1097.4W/ 100-127V~
+12.2V/ 87A
+12Vsb/ 3A
- Max 2598W/ 200-220V~
+12.2V/ 210A
+12Vsb/ 3A
- Max 3037.2W/ 220-240V~ or 240Vdc Input
+12.2V/ 246A
+12Vsb/ 3A
Note: The system power supply requires C19 power cord.
AC Input:
- 100-127V~/ 14.5A, 50/60Hz
- 200-220V~/ 16A, 50/60Hz
- 220-240V~/ 16A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1097.4W/ 100-127V~
+12.2V/ 87A
+12Vsb/ 3A
- Max 2598W/ 200-220V~
+12.2V/ 210A
+12Vsb/ 3A
- Max 3037.2W/ 220-240V~ or 240Vdc Input
+12.2V/ 246A
+12Vsb/ 3A
Note: The system power supply requires C19 power cord.
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
12 x 60x60x38mm (23,000rpm)*
*Two fans share a single power connector.
*Two fans share a single power connector.
Operating Properties
Operating temperature: 10°C to 30°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1200 x 800 x 444 mm w/ pallet
Packaging Content
1 x G493-SB4-AAP1
2 x CPU fansinks
8 x GPU power cables (12VHPWR, 150mm)
6 x Carriers
1 x L-shape Rail kit
2 x CPU fansinks
8 x GPU power cables (12VHPWR, 150mm)
6 x Carriers
1 x L-shape Rail kit
Part Numbers
- Barebone package: 6NG493SB4DR000ABP1*
- Motherboard: 9MSB3G40NR-000
- L-shape Rail kit: 25HB2-A96100-K0R
- CPU fansink: 25ST1-363204-C1R
- Backplane board - CBP20C7: 9CBP20C7NR-00
- Fan module: 25ST2-663823-F1R
- PCIe switch board - CPBGA80: 9CPBGA80NR-00
- G-SCM board - CDCG120: 9CDCG120UR-00
- GPU power cable (12VHPWR, 150mm): 25CRI-150004-Y4R
- Power supply: 25EP0-23000C-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- Motherboard: 9MSB3G40NR-000
- L-shape Rail kit: 25HB2-A96100-K0R
- CPU fansink: 25ST1-363204-C1R
- Backplane board - CBP20C7: 9CBP20C7NR-00
- Fan module: 25ST2-663823-F1R
- PCIe switch board - CPBGA80: 9CPBGA80NR-00
- G-SCM board - CDCG120: 9CDCG120UR-00
- GPU power cable (12VHPWR, 150mm): 25CRI-150004-Y4R
- Power supply: 25EP0-23000C-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
* 產品規格會依各國家地區出貨而有所變動，應以各地實際出貨狀況為準。誠摯建議與當地經銷商或零售商確認最新產品販售規格。
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
SUPPORT
驅動程式
BIOS
工具程式
Firmware
OS
- All
- All
- Windows Server 2022
- Windows Server 2019
- Linux
晶片組
晶片組
版本
檔案大小
日期
Intel® Chipset Driver
Version : 10.1.19485.8386
3.81 MB
Jan 04, 2024
作業系統: Windows Server 2019,Windows Server 2022
網路介面
網路介面
版本
檔案大小
日期
Intel® LAN Driver
Version : 28.2.1
776.69 MB
Jan 04, 2024
作業系統: Windows Server 2019,Windows Server 2022
RAID
RAID
版本
檔案大小
日期
Intel® VROC
Intel® SATA RAID and Utility
Intel® SATA RAID and Utility
Version : 8.5.0.1593
99.21 MB
Jan 04, 2024
作業系統: Windows Server 2019,Windows Server 2022
公用程式
BIOS
說明
版本
檔案大小
日期
1. Updates RC 113.D55 (EagleStream uPLR3 BKC 2024 WW37).
2. Updates EMR Microcode:
EMR Production A*/R* Step:
m_87_c06f2_21000291.pdb
3. Updates SPR Microcode:
SPR Production E*/S* Step:
m_87_806f8_2b000620.pdb
SPR HBM Production B* Step:
m_10_806f8_2c0003e0.pdb
4. Includes security updates for
CVE-2024-21781, CVE-2024-21820,
CVE-2024-21829, CVE-2024-21850,
CVE-2024-21853, CVE-2024-21859,
CVE-2024-22185, CVE-2024-23599,
CVE-2024-23918, CVE-2024-23984,
CVE-2024-24968, CVE-2024-24985,
CVE-2024-25565, CVE-2024-25571,
CVE-2024-26021, CVE-2024-27457,
CVE-2024-28047, CVE-2024-30211,
CVE-2024-31068, CVE-2024-31155,
CVE-2024-31157, CVE-2024-33607,
CVE-2024-36242, CVE-2024-37020,
CVE-2024-39279.
Version : R16
30.15 MB
Jan 20, 2025
Include AMI SA50248 (CWE-119), and multiple feature updates.
Version : R12
29.56 MB
May 15, 2024
Include INTEL-TA-01036 (CVE-2023-45745/CVE-2023-47855); AMI SA50232 (CVE-2023-45236/CVE-2023-45237), and multiple feature updates.
Version : R09
29.63 MB
Apr 12, 2024
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Warning:
更新BIOS有其潛在的風險，如果您使用目前版本的BIOS沒有問題，我們建議您不要任意更新BIOS。如需更新BIOS，請小心的執行，以避免不當的操作而造成系統毀損.
什麼是 BETA 版？
BETA版是正式推出前的試用版本。雖然該版本已經過測試，但可能還存在部份尚未發現、可能影響執行效能和功能的小問題。 請注意BETA版非正式的版本，並請密切注意正式版本的推出。
更新BIOS有其潛在的風險，如果您使用目前版本的BIOS沒有問題，我們建議您不要任意更新BIOS。如需更新BIOS，請小心的執行，以避免不當的操作而造成系統毀損.
什麼是 BETA 版？
BETA版是正式推出前的試用版本。雖然該版本已經過測試，但可能還存在部份尚未發現、可能影響執行效能和功能的小問題。 請注意BETA版非正式的版本，並請密切注意正式版本的推出。
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
工具程式
說明
版本
檔案大小
日期
GSM CLI
Version : 2.1.78
147.79 MB
Dec 12, 2024
作業系統: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
作業系統: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
作業系統: Linux,Windows Server 2016 64bit,Windows Server 2019
說明
版本
檔案大小
日期
作業系統支援列表
Version : R12
0.22 MB
Jul 15, 2024
4th Generation Intel® Xeon® Scalable Processors
5th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
5th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
RESOURCES
Back to G493-SB4-AAP1
