G492-PD0

已停產

Rev. 100

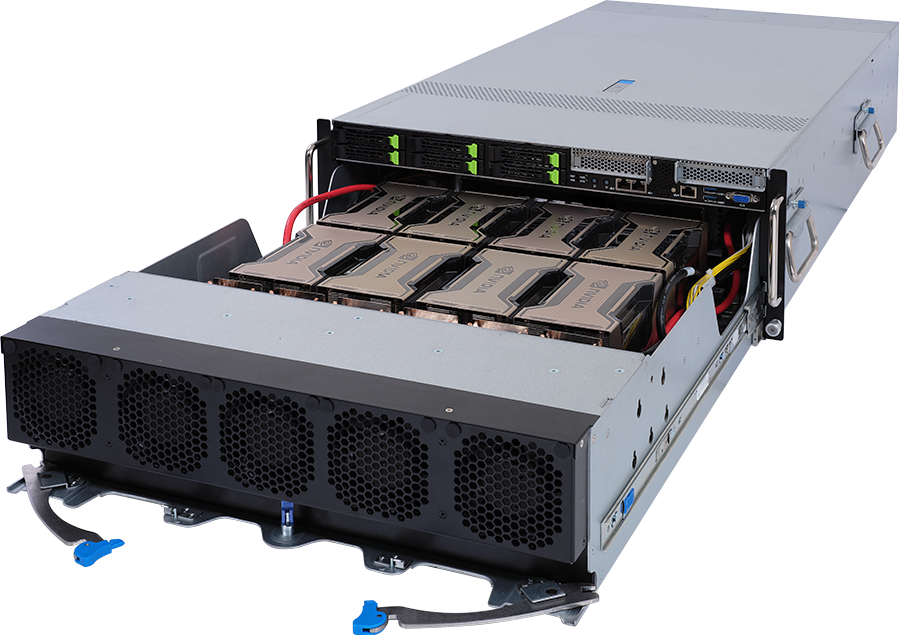

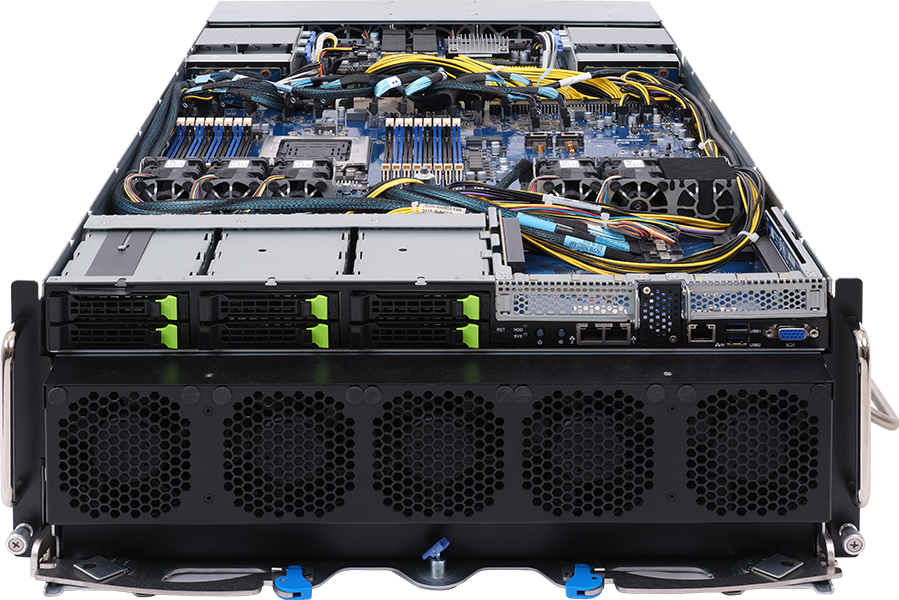

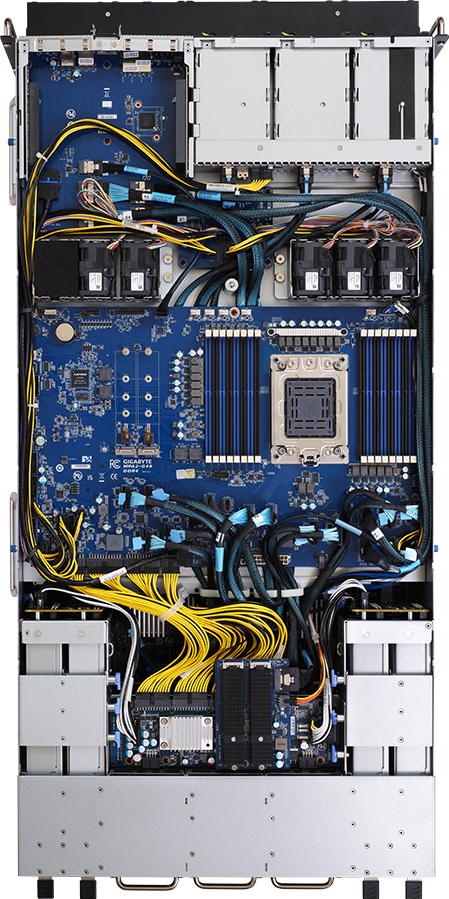

HPC/AI Arm Server - Ampere^® Altra^® Max - 4U UP HGX™ A100 8-GPU

Hardware-level root of trust support
Supports NVIDIA HGX™ A100 with 8 x SXM4 GPUs
Supports NVIDIA^® NVLink^® and NVSwitch™ technology
Up to 600GB/s GPU to GPU interconnection
Ampere^® Altra^® Processor
Ampere^® Altra^® Max Processor
Single processor, 7nm technology
8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
2 x 1Gb/s LAN ports (Intel^® I350-AM2)
1 x Dedicated management port
6 x 2.5" Gen4 NVMe hot-swappable bays
4 x M.2 slots with PCIe Gen4 x4 interface
10 x LP PCIe Gen4 x16 slots
3+1 3000W 80 PLUS Platinum redundant power supplies

* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。

SPECIFICATIONS

Dimensions (WxHxD, mm)

4U
447 x 175.2 x 900

Motherboard

MPA2-G40

CPU

Ampere^® Altra^® Processor
Ampere^® Altra^® Max Processor
Single processor, 7nm technology
Up to 128-core per processor, TDP 250W

Socket

1 x LGA 4926

Chipset

System on Chip

Memory

16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 256GB supported
LRDIMM modules up to 256GB supported
Up to 4TB of memory capacity supported per processor
Memory speed: Up to 3200 MHz

NOTE: Only supports configurations with 1, 2, 4, 6, 8, 12, or 16 DIMMs

LAN

Front side:
2 x 1GbE LAN ports (1 x Intel^® I350-AM2)
1 x 10/100/1000 Mbps management LAN

Video

Integrated in Aspeed^® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Storage

Front side:
6 x 2.5" Gen4 NVMe hot-swappable bays, from PEX88096

SAS

N/A

RAID

N/A

Expansion Slots

Supports NVIDIA HGX™ A100 with 8 x SXM4 GPUs

8 x PCIe x16 (Gen4 x16) low-profile slots, from PEX88096

Riser Card CRSG01D:
1 x PCIe x16 (Gen4 x16) low-profile slot on front side, from PEX88096

Riser Card CRSG01E:
1 x PCIe x16 (Gen4 x16) low-profile slot on front side, from PEX88096

2 x M.2 slots:
- M-key
- PCIe Gen4 x4, from CPU
- Supports 2242/2260/2280/22110 cards

2 x M.2 slots (CMTP063):
- M-key
- PCIe Gen4 x4, from PEX88096
- Supports 2280/22110 cards

Internal I/O

1 x TPM header
1 x Front panel header

Front I/O

2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x HDD access LED

Rear I/O

N/A

Backplane Board

Speed and bandwidth:
PCIe Gen4 x4

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Power Supply

3+1 3000W 80 PLUS Platinum redundant power supplies

AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-240V~/ 15.8A, 50-60Hz

DC Input:
- 240Vdc/ 14A

DC Output:
- Max 1200W/ 100-127V~
+ 54V/ 95.6A
+ 12Vsb/ 3.5A
- Max 3000W/ 200-240V~
+ 54V/ 178.1A
+ 12Vsb/ 3.5A

NOTE: The system power supply requires C19 power cord

System Management

Aspeed^® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Ubuntu 20.04.1 LTS (aarch64), kernel version 5.8.045

System Fans

11 x 80x80x80mm (17,000rpm)
4 x 40x40x28mm (25,000rpm)
5 x 40x40x56mm (31,000rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

1176 x 782 x 822 mm

Packaging Content

1 x G492-PD0
1 x CPU heatsink
1 x L-shape Rail kit

Part Numbers

- Barebone package: 6NG492PD0MR-00-1*
- Motherboard: 9MPA2G40NR-00
- L-shape Rail kit: 25HB2-A96101-K0R
- CPU heatsink: 25ST1-45320B-A3R
- GPU fan duct: 25HA8-G49205-S5R
- Backplane board - CBPG060: 9CBPG060NR-00
- Fan module: 25ST2-808036-S1R
- Fan module: 25ST2-808037-S1R
- Fan module: 25ST2-44282D-D0R
- Fan module: 25ST2-405629-N2R
- M.2 bridge card - CMTP063: 9CMTP063NR-00
- PCIe bridge card - CPBG040: 9CPBG040NR-00
- PCIe extension board - CPBG704: 9CPBG704NR-00
- Riser card - CRSG01D: 9CRSG01DNR-00
- Riser card - CRSG01E: 9CRSG01ENR-00
- Power supply: 25EP0-230003-D0S

* 產品規格會依各國家地區出貨而有所變動，應以各地實際出貨狀況為準。誠摯建議與當地經銷商或零售商確認最新產品販售規格。
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
