G294-S42- AAP2

即將推出

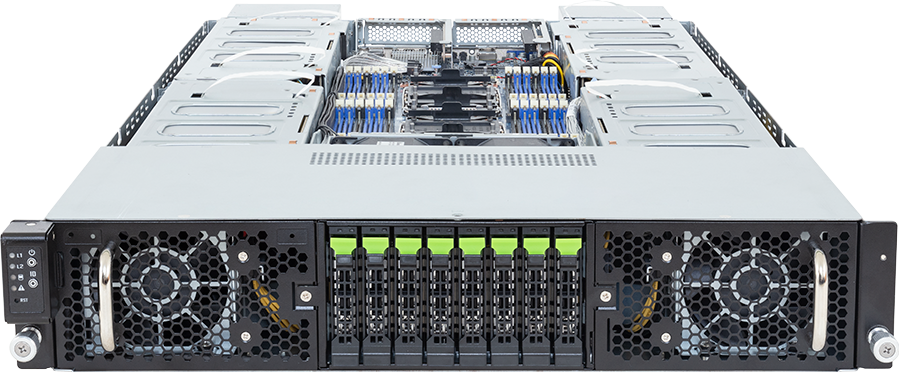

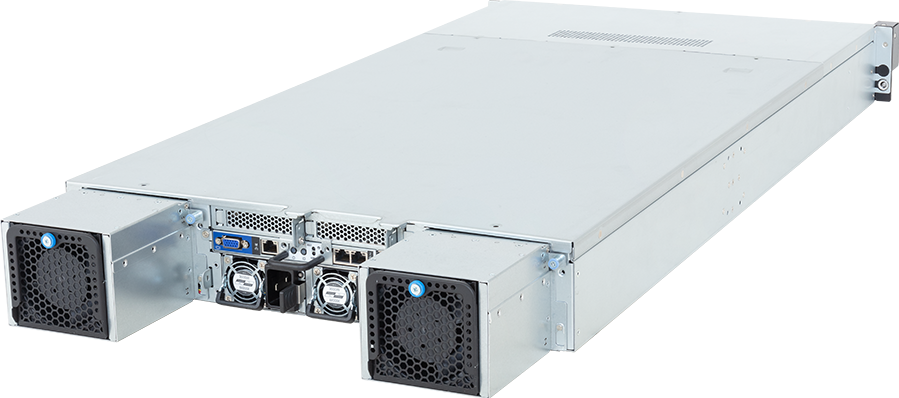

HPC/AI Server - Intel^® Xeon^® 6 Processors - 2U DP 8 x PCIe Gen5 GPUs (with PCIe switches)

# 人工智慧平台 # 人工智慧訓練伺服器 # 人工智慧推論伺服器 # 視覺特效演算 # 高效能運算伺服器

Supports up to 8 x Dual slot Gen5 GPUs
Supports NVIDIA H200 NVL
Dual Intel^® Xeon^® 6 Processors, LGA 4710
8-Channel DDR5 RDIMM / MRDIMM, 24 x DIMMs
Dual ROM Architecture
2 x 10Gb/s LAN ports via Intel^® X710-AT2
8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
8 x FHFL PCIe Gen5 x16 slots for GPUs
2 x LP PCIe Gen5 x16 slots
Dual 3000W 80 PLUS Titanium redundant power supply

Get a Quote

加入比較表

Get a Quote

* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。

SPECIFICATIONS

Dimensions (WxHxD, mm)

2U
448 x 87.5 x 850

Motherboard

MS44-G20

CPU

Intel^® Xeon^® 6 Processors
- Intel^® Xeon^® 6700E-Series Processors
- Intel^® Xeon^® 6700P-Series Processors (available Q1'25)
- Intel^® Xeon^® 6500P-Series Processors (available Q1'25)

Dual processor, TDP up to 225W (TBD)

^[Note]If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

2 x LGA 4710
Socket E2

Chipset

System on Chip

Memory

24 x DIMM slots^[1]
DDR5 memory supported
8-Channel memory architecture
MRDIMM supported^[2]
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MRDIMM: Up to 8000 MT/s

^[1]Intel^® Xeon^® 6700E-Series Processors only support up to 16 x DIMM slots.

^[2]MRDIMMs are only supported with Intel^® Xeon^® 6 Processors with P-cores and in a 1DPC configuration.

LAN

Rear:
2 x 10Gb/s LAN (1 x Intel^® X710-AT2)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video

Integrated in Aspeed^® AST2600
- 1 x VGA port

Storage

Front hot-swap:
8 x 2.5" Gen5 NVMe/SATA/SAS-4^[1]
- (4 x NVMe from CPU_0, 4 x NVMe from CPU_1)
- (SATA from CPU_0)

^[1]SAS card is required to support SAS drives.

SAS

Require SAS add-in cards

RAID

Require RAID add-in cards
Onboard VROC key headers

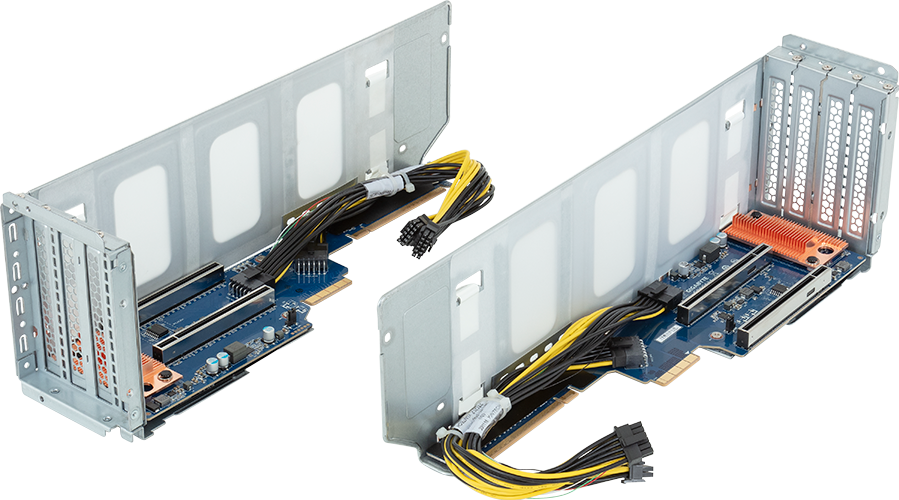

PCIe Expansion Slots

Riser Card CRCG620 x 2:
- 4 x FHFL x16 (Gen5 x16), from PEX89048, for GPUs

Riser Card CRCG621 x 2:
- 4 x FHFL x16 (Gen5 x16), from PEX89048, for GPUs

Riser Card CRSG01F x 2:
- 1 x LP x16 (Gen5 x16), from CPU_0
- 1 x LP x16 (Gen5 x16), from CPU_1

^[Note]The system supports 4 x NVIDIA H200 NVL GPUs at 25°C ambient, arranged as two sets of 2 GPUs with a 2-way NVLink bridge. Please contact our sales representatives for more details.

^[Note]Maximum GPU dimensions (LxWxH): 285 x 111.5 x 39.5mm.

^[Note]The system is only validated with a uniform GPU model.

Front I/O

1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

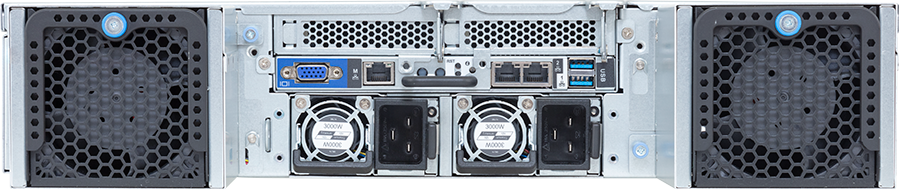

Rear I/O

2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED

Backplane Board

Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

Security Modules

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

1 x PRoT connector (only enabled on RoT SKU)

Power Supply

Dual 3000W 80 PLUS Titanium redundant power supply^[1]

^[1]The system power supply requires C19 power cord.

System Management

Aspeed^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Please refer to OS compatibility table in support page

System Fans

8 x 80x80x80mm (16,500rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

1133 x 724 x 261 mm

Packaging Content

1 x G294-S42-AAP2
2 x CPU heatsinks
4 x GPU power cables (12VHPWR, 250mm)
4 x GPU power cables (12VHPWR, 280mm)
4 x Carriers
1 x L-shape Rail kit

Part Numbers

- Barebone package: 6NG294S42DR000AAP2*
- Motherboard: 9MS44G20UR-000*
- L-shape Rail kit: 25HB2-A86102-K0R

Optional parts:

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
