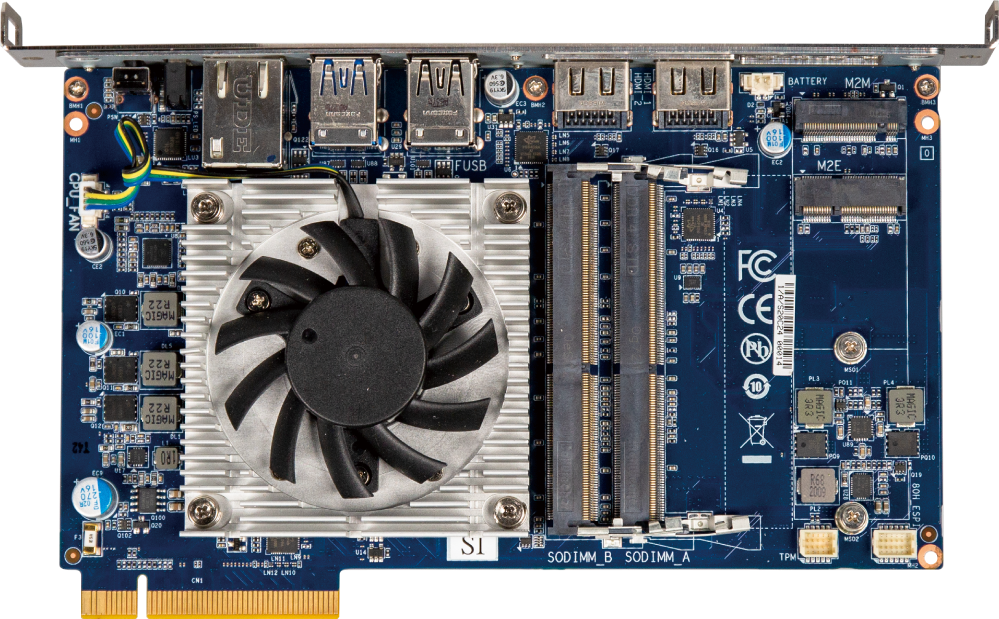

SDM-1115G4L

Intel® Smart Display Module with Intel® 11th Generation Core™ i3-1115G4 Processor

Intel® Core™ i3-1115G4 Processor

Dual Channel DDR4, 2 x SO-DIMMs

1 x GbE LAN Port

3 x USB 3.2 Gen 1

1 x USB 2.0

Environment : Operation 0~55°C

Long life time support

Support 4K/60Hz, HDCP v2.2

(For more product information, please contact us at sales@gigaipc.com)

Get a Quote

加入比較表

Get a Quote

11th Generation Intel® Core™ Processors

Intel's blazing fast, feature packed processor family with built-in security is ready to take your productivity, and creativity to the next level. And, by enabling new exciting Windows 10 features, the 11th generation Intel Core processors empower you to unleash your imagination and explore the possibilities.
HDMI™-The Next Generation Multimedia Interface

HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
SuperSpeed USB 3.0

With superfast transfer rates of up to 5 Gbps, users are able to experience a theoretical 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices.
M.2 Onboard Connector

Providing users PCI-Express connectivity for SSD devices. Delivering up to 10 Gbps data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA and even SATA Revision 3 6Gbps storage devices.

* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。

SPECIFICATIONS

Board Size

SDM-Large
175W x 100D(mm)

Operating Properties

Operating temperature: 0°C to 55°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)

Processor Supported

Intel® Core™ i3-1115G4 Processor
10nm SuperFin, 2 cores, 4 threads, up to 4.10 GHz
TDP 28W

Socket

1 x FCBGA1449

Memory Type

2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 3200 MHz memory modules

Integrated Network

1 x GbE LAN Port (Intel® I219V)

Integrated Video Controller

Integrated Graphics Processor - Intel® UHD Graphics:
1 x HDMI 2.0 (SDM), supporting a maximum resolution of 4096x2160 @60Hz
1 x Display Port (SDM), supporting a maximum resolution of 4096x2160 @60Hz
2 x HDMI 2.0 (Rear), supporting a maximum resolution of 4096x2160 @60Hz

(4 independent display outputs)

Integrated Audio Controller

Intel® Integrated Audio

Expansion Slot

1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key

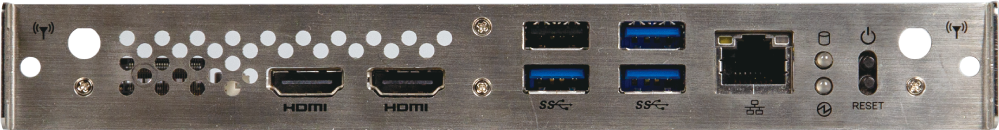

Rear I/O Connectors

2 x HDMI
1 x RJ45 LAN Port
3 x USB 3.2 Gen 1
1 x USB 2.0
1 x PWR LED
1 x HDD LED
2 x External Antenna Holes (Optional)
1 x Reset button
1 x Power button

TPM

1 x TPM header

OS Driver Supported

Windows® 10 (x64)

Packaging Bundle

Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs

Including:
Screw Kit with #0 ZIPLOCK BAG SCREW-BIND M3.0*L5.0 NI x 2pcs (P/N: 25KSD-130053-S0R)

Ordering Information

9MTGU3ALMR-SI (Box packing)
