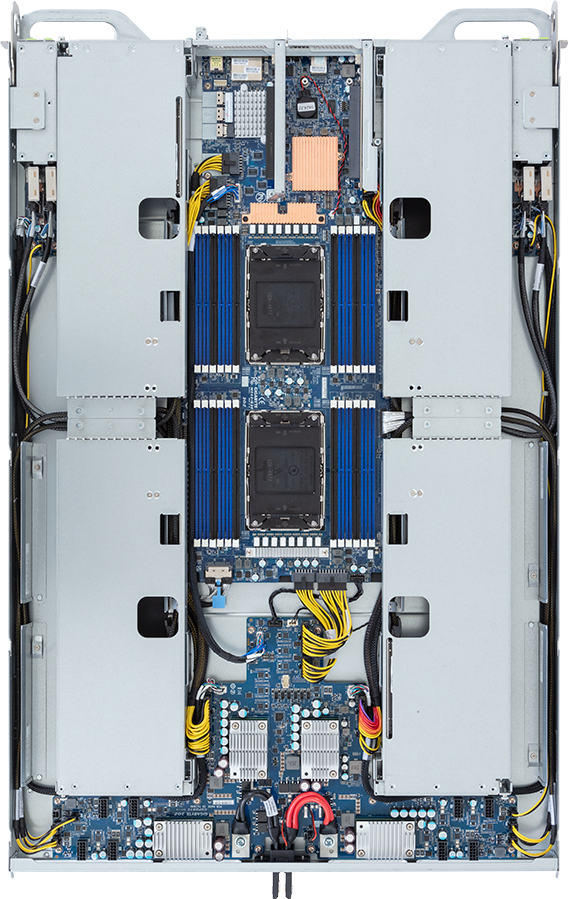

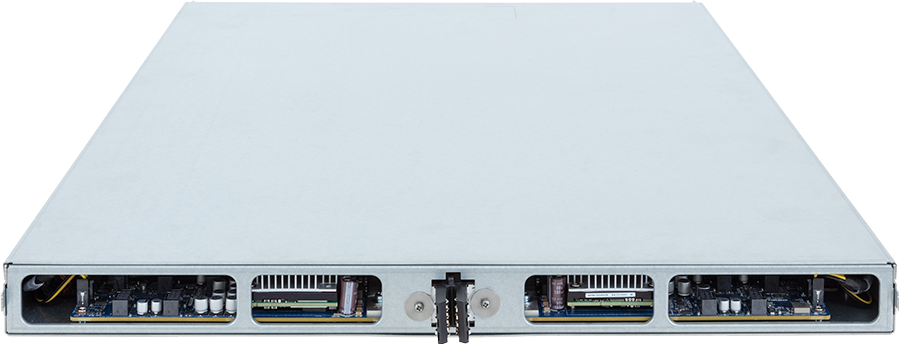

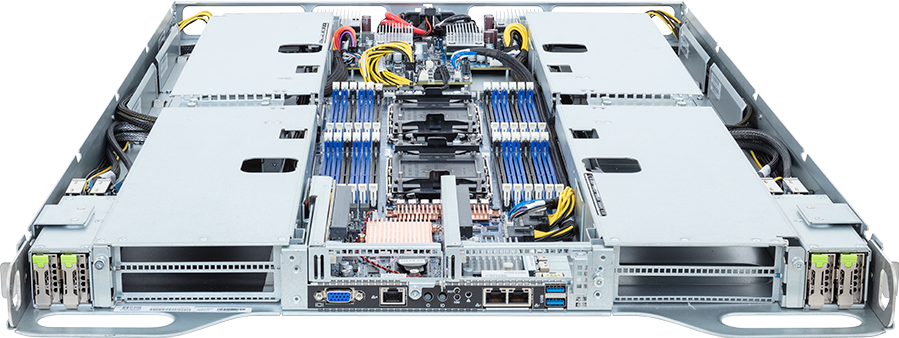

TO15-S40-IA01

ORv3 GPU Server - 5th/4th Gen Intel^® Xeon^® Scalable - 1OU DP 4 x PCIe Gen5 GPUs Immersion

Immersion Ready Server
Supports up to 4 x Dual slot Gen5 GPUs
Dual 5th/4th Gen Intel^® Xeon^® Scalable Processors
Dual Intel^® Xeon^® CPU Max Series
8-Channel DDR5 RDIMM, 24 x DIMMs
Dual ROM Architecture
2 x 10Gb/s LAN ports via Intel^® X710-AT2
4 x 15mm E1.S NVMe hot-swap bays
2 x M.2 slots with SATA interface (optional)
4 x FHFL PCIe Gen5 x16 slots or 8 x FHFL PCIe Gen5 x8 slots for GPUs
2 x LP PCIe Gen5 x16 slots
48V DC Bus Bar power solution

Get a Quote

* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。

SPECIFICATIONS

Dimensions (WxHxD, mm)

1OU
537 x 45 x 805.7

Open Rack Version

ORv3

Motherboard

MS43-G20

CPU

5th Generation Intel^® Xeon^® Scalable Processors
4th Generation Intel^® Xeon^® Scalable Processors
Intel^® Xeon^® CPU Max Series

Dual processor, TDP up to 350W

^[Note]If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Memory

24 x DIMM slots
DDR5 memory supported
8-Channel memory per processor

5th Gen Intel^® Xeon^®:
RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)

4th Gen Intel^® Xeon^®:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

Intel^® Xeon^® Max Series:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

LAN

Top:
2 x 10Gb/s LAN (1 x Intel^® X710-AT2)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Storage

Top hot-swap:
4 x 15mm E1.S NVMe
- (2 x NVMe from CPU_0, 2 x NVMe from CPU_1)

Optional internal M.2 (COMTP61):
2 x M.2 (2280/22110), SATA, from CPU_1

SAS

N/A

RAID

N/A

PCIe Expansion Slots

Riser Card CORC206 x 2:

- 1 x FHFL x16 (Gen5 x16) or 2 x FHFL x16 (Gen5 x8), from CPU_0, for GPUs
- 1 x FHFL x16 (Gen5 x16) or 2 x FHFL x16 (Gen5 x8), from CPU_1, for GPUs

Riser Card CORC207 x 2:

- 1 x FHFL x16 (Gen5 x16) or 2 x FHFL x16 (Gen5 x8), from CPU_0, for GPUs
- 1 x FHFL x16 (Gen5 x16) or 2 x FHFL x16 (Gen5 x8), from CPU_1, for GPUs

Riser Card CRSG01F x 2:
- 1 x LP x16 (Gen5 x16), from CPU_0
- 1 x LP x16 (Gen5 x16), from CPU_1

Top I/O

2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED

System Management

Aspeed^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Please refer to OS compatibility table in support page

Additional certifications:
Windows Server 2022

System Fans

N/A

Packaging Dimensions

1095 x 709 x 235 mm

Packaging Content

1 x TO15-S40-IA01
2 x CPU heatsinks
4 x GPU power cables (12VHPWR, 550mm)
6 x Carriers

Part Numbers

- Barebone package (5th/4th Gen): 6NTO15S40DR000IB01*
- Barebone package (4th Gen): 6NTO15S40DR000IA01*
- Motherboard: 9MS43G20UR-000*
- CPU heatsink: 25ST1-25320R-C1R/25ST1-25320S-C1R
- Riser card - CORC206: 9CORC206NR-00*
- Riser card - CORC207: 9CORC207NR-00*
- Riser card - CRSG01F: 9CRSG01FNR-00*
- EDSFF Base board - COBP720: COBP720NR-00*
- EDSFF Bypass card - CSPP010: 9CSPP010NR-00*
- GPU power cable (12VHPWR, 550mm): 25CRI-55030B-Y4R

Optional parts:

- M.2 expansion card - COMTP61: 9COMTP61NR-00
- RMA packaging: 6NTO15S40SR-RMA-I100

No. of Bus Bars

1 x 48V Bus Bar
