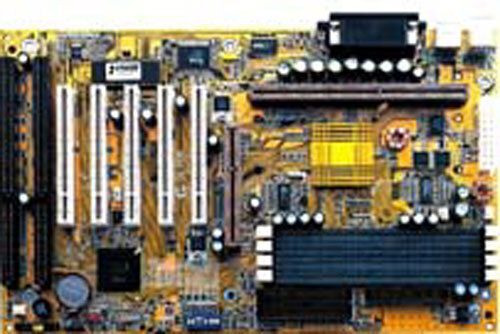

GA-6BXE

產品規格支援與下載銷售據點

產品規格

  • 中央處理器(CPU)
    1. Slot 1 Socket for future Processor support
    2. 66/75*/83*/100/112*/124*/133* MHz Main Clock
    3. Auto Detect CPU Voltage
    4. Clock multiplier 3.0/3.5 ...... / 5.5
  • 晶片組
    1. Intel 82440 BX AGPset
    2. iTE 8671 I/Oset (1Mb/S)
    3. Winbond 83782 Health Chip
  • 記憶體
    1. CPU Built-in 256KB/512KB L2 cache System Memory
    2. 4 x 100MHz 168-pin 3.3v DIMM sockets support
    3. Supports 8/16/32/64/128/256 MB DIMM Module
    4. Supports EDO RAM, SDRAM (Support ECC, 72 bit)
    5. Supports 8MB to 1GB DRAM Size
  • 擴充槽
    1. 5 x PCI 32-bit slots, PCI 2.2 compliant
    2. 2 x ISA 16-bit slots
    3. 1 x AGP (1x & 2x Mode,66/133MHz) slot
  • I/O控制器
    1. 1x floppy port (360KB-2.88MB)
    2. 2x serial ports (16550 high-speed)
    3. 1x parallel port (EPP/ECP)
    4. PS/2 Keyboard
    5. PS/2 Mouse
    6. 2x USB
  • BIOS
    1. 2 Mbit (256KB) FLASH RAM
    2. Award BIOS with Enhanced ACPI Feature for PC98/Win98
    3. Compliance, Green,PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    4. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    5. AC Recovery ON/OFF Control function
    6. Auto-detect & Report System Health Status
  • PCB規格
    1. ATX , 4 layer PCB (31.0*19.2cm)
  • Driver
    1. Intel LDCMR, SIV utility
    2. Ultr DMA/33 Bus Master IDE Driver (Triones & Intel)
    3. Intel PIIX4e Patch Utility for Windows 95
  • 附加特色
    1. Supports Wake On LAN Header (WOL)
    2. Supports Creative SB-LINK connector for Sound Blaster AWE64D PCI Sound
    3. Supports 3 Fan Detection Connectors
    4. Poly fuse for keyboard overcurrent protection
    5. Case Open Detection
  • 電源
    1. ATX Power connector
    2. Power On by Keyboard, PS/2 Mouse, LAN, RTC Alarm, Modem Ring & Switch
    3. Power Off by WindowsR 98 Shut down & Soft-Power Switch
    4. AC Recovery On/Off Control by BIOS
    5. Stop CPU Fan during entering suspend mode
    6. 3 Level ACPI LED Support
  • 中央處理器(CPU)
    1. Slot 1 Socket for future Processor support
    2. 66/75*/83*/100/112*/124*/133* MHz Main Clock
    3. Auto Detect CPU Voltage
    4. Clock multiplier 3.0/3.5 ...... / 5.5
  • 晶片組
    1. Intel 82440 BX AGPset
    2. iTE 8671 I/Oset (1Mb/S)
    3. Winbond 83782 Health Chip
  • 記憶體
    1. CPU Built-in 256KB/512KB L2 cache System Memory
    2. 4 x 100MHz 168-pin 3.3v DIMM sockets support
    3. Supports 8/16/32/64/128/256 MB DIMM Module
    4. Supports EDO RAM, SDRAM (Support ECC, 72 bit)
    5. Supports 8MB to 1GB DRAM Size
  • 擴充槽
    1. 5 x PCI 32-bit slots, PCI 2.2 compliant
    2. 2 x ISA 16-bit slots
    3. 1 x AGP (1x & 2x Mode,66/133MHz) slot
  • I/O控制器
    1. 1x floppy port (360KB-2.88MB)
    2. 2x serial ports (16550 high-speed)
    3. 1x parallel port (EPP/ECP)
    4. PS/2 Keyboard
    5. PS/2 Mouse
    6. 2x USB
  • BIOS
    1. 2 Mbit (256KB) FLASH RAM
    2. Award BIOS with Enhanced ACPI Feature for PC98/Win98
    3. Compliance, Green,PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    4. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    5. AC Recovery ON/OFF Control function
    6. Auto-detect & Report System Health Status
  • PCB規格
    1. ATX , 4 layer PCB (31.0*19.2cm)
  • Driver
    1. Intel LDCMR, SIV utility
    2. Ultr DMA/33 Bus Master IDE Driver (Triones & Intel)
    3. Intel PIIX4e Patch Utility for Windows 95
  • 附加特色
    1. Supports Wake On LAN Header (WOL)
    2. Supports Creative SB-LINK connector for Sound Blaster AWE64D PCI Sound
    3. Supports 3 Fan Detection Connectors
    4. Poly fuse for keyboard overcurrent protection
    5. Case Open Detection
  • 電源
    1. ATX Power connector
    2. Power On by Keyboard, PS/2 Mouse, LAN, RTC Alarm, Modem Ring & Switch
    3. Power Off by WindowsR 98 Shut down & Soft-Power Switch
    4. AC Recovery On/Off Control by BIOS
    5. Stop CPU Fan during entering suspend mode
    6. 3 Level ACPI LED Support

* HDMI、HDMI High-Definition Multimedia Interface、HDMI 商業外觀及 HDMI 識別標章等詞彙均為 HDMI Licensing Administrator, Inc. 的商標或註冊商標。
* 產品規格會依各國家地區出貨而有所變動，應以各地實際出貨狀況為準。誠摯建議與當地經銷商或零售商確認最新產品販售規格。
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
