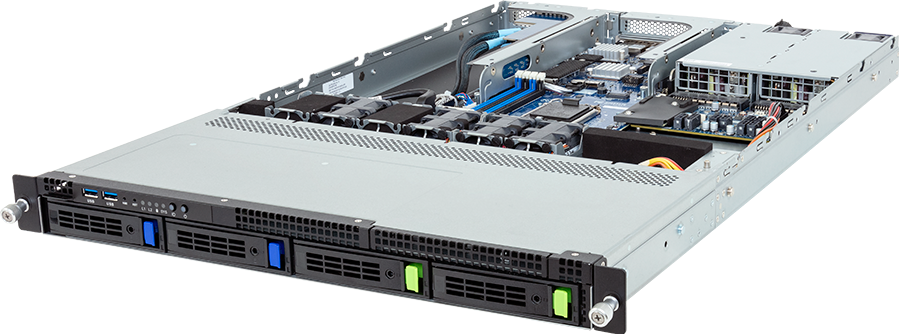

R133-X10-AAA2

Rack Server - Intel^® Xeon^® E-2400 - 1U UP 4-Bay Gen4 NVMe/SATA

# 邊緣運算伺服器 # 私有雲/混和雲伺服器

Single Intel^® Xeon^® E-2400 Processors
Single Intel^® Pentium^® Gold G7400 / G7400T Processor
Dual Channel DDR5 ECC UDIMM, 4 x DIMMs
2 x 1Gb/s LAN ports via Intel^® I210-AT
2 x 3.5"/2.5" Gen4 NVMe/SATA bays
2 x 3.5"/2.5" SATA hot-swappable bays
1 x M.2 slot with PCIe Gen4 x4 interface
1 x FHHL PCIe Gen4 x4 slot
1+1 550W 80 PLUS Platinum redundant power supplies

Get a Quote

加入比較表

Get a Quote

* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。

SPECIFICATIONS

Dimensions (WxHxD, mm)

1U
438 x 43.5 x 710

Motherboard

MX14-BL1

CPU

Intel^® Xeon^® E-2400 Processors
Intel^® Pentium^® Gold G7400 / G7400T Processor
Single processor, TDP up to 95W

Socket

1 x LGA 1700

Chipset

Intel^® C262

Memory

4 x DIMM slots
DDR5 memory supported only
Dual Channel memory architecture
DIMM up to 32GB supported
ECC UDIMM supported only
Memory speed: Up to 4400 MT/s (1DPC), 4000 MT/s (2DPC/1R), 3600 MT/s (2DPC/2R)

LAN

Rear side:
2 x 1Gb/s LAN ports (2 x Intel^® I210-AT)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video

Integrated in Aspeed^® AST2600
- 1 x Mini-DP

Storage

Front side:
2 x 3.5"/2.5" Gen4 NVMe*/SATA bays
2 x 3.5"/2.5" SATA hot-swappable bays

*Hot-swap is not supported on NVMe drives.

SAS

N/A

RAID

Intel^® SATA RAID 0/1/10/5

Expansion Slots

Riser Card CRCE021:
- 1 x PCIe x16 (Gen5 x8) FHFL slot, from CPU, occupied for NVMe support
- 1 x PCIe x16 (Gen5 x8) FHFL slot, from CPU, disabled

Riser Card CRSE016:
- 1 x PCIe x4 (Gen4 x4) FHHL slot, from PCH

1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU
- Supports 2280/22110 cards

Internal I/O

1 x TPM header

Front I/O

2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

Rear I/O

2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID button with LED

Backplane Board

Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s

TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

Power Supply

1+1 550W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-240V~/ 8-4A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 2.75A

DC Output:
- Max 550W
+12V/ 44A
+12Vsb/ 2.1A

System Management

Aspeed^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced Power Capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Please refer to OS compatibility table in support page

System Fans

2 x 40x40x56mm (29,700rpm)
2 x 40x40x56mm (32,000rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

977 x 588 x 236 mm

Packaging Content

1 x R133-X10-AAA2
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR133X10MR000AAA2*
- Motherboard: 9MX14BL1NR-000
- 2-Section Rail kit (CMA not supported): 25HB2-3A0203-K0R
- CPU heatsink: 25ST1-12311H-A7R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP1010: 9CFP1010NR-00
- Backplane board - CBP1047: 9CBP1047NR-00
- Fan module: 25ST2-405622-A0R
- Fan module: 25ST2-40562H-A0R
- Riser card - CRCE021: 9CRCE021NR-00
- Riser card - CRSE016: 9CRSE016NR-00
- NVMe card - CNV3080: 9CNV3080NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-205505-F3S

Optional parts:

- 3-Section Rail kit (Supports CMA): 25HB2-A56120-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
