H263-V11-LAW1
HPC/AI Arm Server - NVIDIA GH200 Grace Hopper Superchip - 2U 4-Node 16-Bay Gen5 NVMe DLC
- Direct liquid cooling solution
- CPU+GPU design for giant-scale AI and HPC
- 2U 4-node rear access server system
- NVIDIA GH200 Grace Hopper Superchip
- 900GB/s NVIDIA® NVLink®-C2C Interconnect
- Up to 480GB CPU LPDDR5X ECC memory per module
- Up to 96GB GPU HBM3 per module
- Compatible with NVIDIA BlueField®-3 DPUs
- 8 x 10Gb/s LAN ports via Intel® X550-AT2
- 1 x CMC port
- 16 x 2.5" Gen5 NVMe hot-swappable bays
- 8 x M.2 slots with PCIe Gen5 x4 interface
- 4 x FHHL PCIe Gen5 x16 slots
- 4 x OCP 3.0 Gen5 x16 slots
- Triple 3000W 80 PLUS Titanium redundant power supply
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U 4-Node - Rear access
440 x 87.5 x 850
440 x 87.5 x 850
Motherboard
MV13-HD0
Superchip

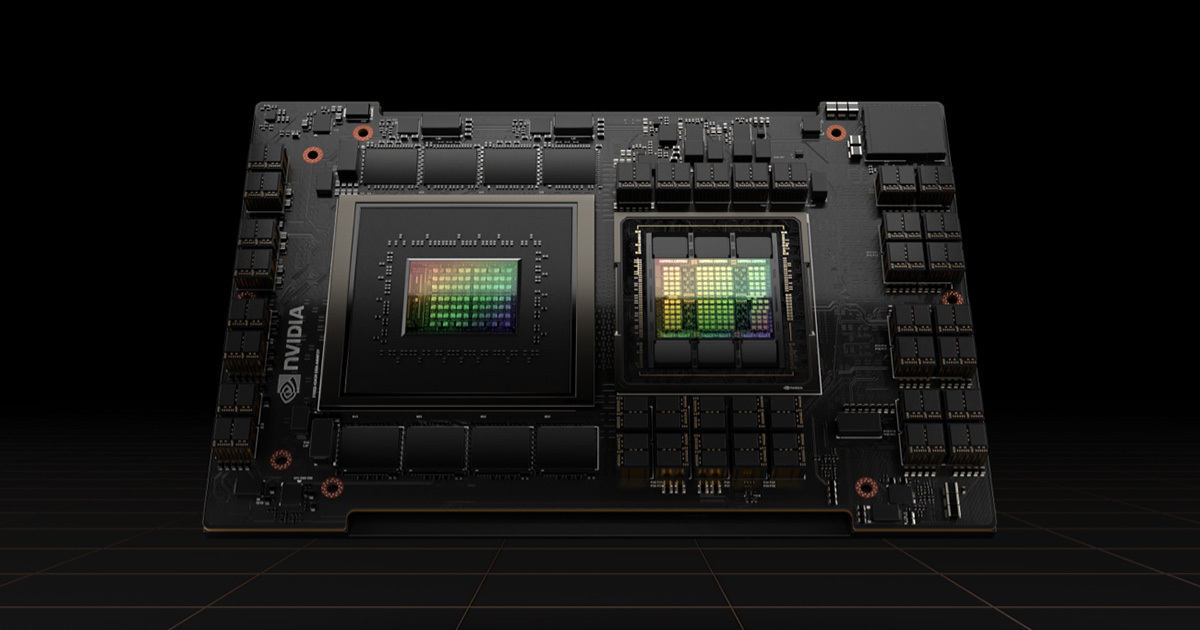

NVIDIA GH200 Grace Hopper Superchip:
- 1 x NVIDIA Grace™ CPU
- 1 x NVIDIA Hopper™ GPU
- Connected with NVIDIA® NVLink®-C2C
- TDP up to 1000W (CPU + GPU + memory)
- 1 x NVIDIA Grace™ CPU
- 1 x NVIDIA Hopper™ GPU
- Connected with NVIDIA® NVLink®-C2C
- TDP up to 1000W (CPU + GPU + memory)
Memory
Per node:
NVIDIA Grace CPU:
- Up to 480GB of LPDDR5X memory with ECC
- Memory bandwidth up to 512GB/s
NVIDIA Hopper GPU:
- Up to 96GB HBM3
- Memory bandwidth up to 4TB/s
NVIDIA Grace CPU:
- Up to 480GB of LPDDR5X memory with ECC
- Memory bandwidth up to 512GB/s
NVIDIA Hopper GPU:
- Up to 96GB HBM3
- Memory bandwidth up to 4TB/s
LAN
Per node:
2 x 10Gb/s LAN ports (1 x Intel® X550-AT2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Total:
8 x 10Gb/s LAN ports (4 x Intel® X550-AT2)
Support NCSI function
4 x 10/100/1000 Mbps Management LAN
1 x CMC port
2 x 10Gb/s LAN ports (1 x Intel® X550-AT2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Total:
8 x 10Gb/s LAN ports (4 x Intel® X550-AT2)
Support NCSI function
4 x 10/100/1000 Mbps Management LAN
1 x CMC port
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Management chip on CMC board:
Integrated in Aspeed® AST2520A2-GP
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Management chip on CMC board:
Integrated in Aspeed® AST2520A2-GP
Storage
Per node:
4 x 2.5" Gen5 NVMe hot-swappable bays, from PEX89048
Total:
16 x 2.5" Gen5 NVMe hot-swappable bays, from CPU
4 x 2.5" Gen5 NVMe hot-swappable bays, from PEX89048
Total:
16 x 2.5" Gen5 NVMe hot-swappable bays, from CPU
SAS
N/A
RAID
N/A
Expansion Slots
Per node:
PCIe Cable:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU
Supports NCSI function
2 x M.2 slots:
- M-key
- PCIe Gen5 x4, from PEX89048
- Support 2280/22110 cards
Total:
PCIe Cable x 4:
- 4 x PCIe x16 (Gen5 x16) FHHL slots, from CPU
4 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth, from CPU
Support NCSI function
8 x M.2 slots:
- M-key
- PCIe Gen5 x4, from PEX89048
- Supports 2280/22110 cards
PCIe Cable:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU
Supports NCSI function
2 x M.2 slots:
- M-key
- PCIe Gen5 x4, from PEX89048
- Support 2280/22110 cards
Total:
PCIe Cable x 4:
- 4 x PCIe x16 (Gen5 x16) FHHL slots, from CPU
4 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth, from CPU
Support NCSI function
8 x M.2 slots:
- M-key
- PCIe Gen5 x4, from PEX89048
- Supports 2280/22110 cards
Internal I/O
Per node:
1 x TPM header
1 x TPM header
Front I/O
Per node:
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
Total:
4 x Power buttons with LED
4 x ID buttons with LED
4 x Reset buttons
4 x System status LEDs
*1 x CMC status LED
*1 x CMC reset button
*Only one CMC status LED and reset button per system.
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
Total:
4 x Power buttons with LED
4 x ID buttons with LED
4 x Reset buttons
4 x System status LEDs
*1 x CMC status LED
*1 x CMC reset button
*Only one CMC status LED and reset button per system.
Rear I/O
Per node:
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED
Total:
8 x USB 3.2 Gen1
4 x Mini-DP
8 x RJ45
4 x MLAN
1 x ID LED
*1 x CMC port
*Only one CMC port per system.
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED
Total:
8 x USB 3.2 Gen1
4 x Mini-DP
8 x RJ45
4 x MLAN
1 x ID LED
*1 x CMC port
*Only one CMC port per system.
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4
PCIe Gen5 x4
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012
- Optional TPM2.0 kit: CTM012
Power Supply
Triple 3000W 80 PLUS Titanium redundant power supply
AC Input:
- 100-127V~/ 16A, 50/60Hz
- 200-207V~/ 16A, 50/60Hz
- 208-240V~/ 16A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1200W/ 100-127V~
+12.2V/ 98.36A
+12.2Vsb/ 3A
- Max 2600W/ 200-207V~
+12.2V/ 213A
+12.2Vsb/ 3A
- Max 3000W/ 208-240V~ or 240Vdc Input
+12.2V/ 245.9A
+12.2Vsb/ 3A
Note: The system power supply requires C19 power cord.
AC Input:
- 100-127V~/ 16A, 50/60Hz
- 200-207V~/ 16A, 50/60Hz
- 208-240V~/ 16A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1200W/ 100-127V~
+12.2V/ 98.36A
+12.2Vsb/ 3A
- Max 2600W/ 200-207V~
+12.2V/ 213A
+12.2Vsb/ 3A
- Max 3000W/ 208-240V~ or 240Vdc Input
+12.2V/ 245.9A
+12.2Vsb/ 3A
Note: The system power supply requires C19 power cord.
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
4 x 80x80x80mm (16,500rpm)
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Note:
1) The ambient temperature and relative humidity of the environment depend on the inlet supply water temperature and the coolant flow rate.
2) If the relative humidity surpasses 60%, maintain the inlet water temperature between 40°C and 45°C to prevent condensation and ensure optimal system performance.
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Note:
1) The ambient temperature and relative humidity of the environment depend on the inlet supply water temperature and the coolant flow rate.
2) If the relative humidity surpasses 60%, maintain the inlet water temperature between 40°C and 45°C to prevent condensation and ensure optimal system performance.
Packaging Dimensions
1176 x 709 x 322 mm
Packaging Content
1 x H263-V11-LAW1
4 x Superchip cold plate loops
1 x Mini-DP to D-Sub cable
1 x 3-Section Rail kit
4 x Superchip cold plate loops
1 x Mini-DP to D-Sub cable
1 x 3-Section Rail kit
Part Numbers
- Barebone package: 6NH263V11DR000LAW1*
- Motherboard: 9MV13HD0NR-000
- 3-Section Rail kit: 25HB2-A66125-K0R
- Superchip cold plate loop: 25ST7-3000Z7-C4R
- Front panel board - CFPH004: 9CFPH004NR-00
- Backplane board - CBPH7O1: 9CBPH7O1NR-00
- Fan module: 25ST2-888020-S1R
- M.2 riser card - CMTP0A2: 9CMTP0A2NR-00
- LAN board - CLBH010: 9CLBH010NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-23000L-L0S
Optional parts:
- GIGABYTE Superchip cold plate loop: 25H26-3V10000-E29X (QPA:4)
- GIGABYTE 2U4N Manifold: 25H27-3Z80000-E07X (1 set per rack)
- Motherboard: 9MV13HD0NR-000
- 3-Section Rail kit: 25HB2-A66125-K0R
- Superchip cold plate loop: 25ST7-3000Z7-C4R
- Front panel board - CFPH004: 9CFPH004NR-00
- Backplane board - CBPH7O1: 9CBPH7O1NR-00
- Fan module: 25ST2-888020-S1R
- M.2 riser card - CMTP0A2: 9CMTP0A2NR-00
- LAN board - CLBH010: 9CLBH010NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-23000L-L0S
Optional parts:
- GIGABYTE Superchip cold plate loop: 25H26-3V10000-E29X (QPA:4)
- GIGABYTE 2U4N Manifold: 25H27-3Z80000-E07X (1 set per rack)
* 產品規格會依各國家地區出貨而有所變動，應以各地實際出貨狀況為準。誠摯建議與當地經銷商或零售商確認最新產品販售規格。
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
SUPPORT
BIOS
Firmware
OS
BIOS
說明
版本
檔案大小
日期
1. Removed Mellanox CX7 duplicate MAC in boot option
2. Added SMBIOS Type39 PSU detected
3. Modified Redfish BiosAttribute item
2. Added SMBIOS Type39 PSU detected
3. Modified Redfish BiosAttribute item
Version : F18
18.09 MB
Nov 11, 2024
1) Fixed PKfail Vulnerability.
2) Updated to NVIDIA Firmware 02.02.02.
3) Multiple feature updates and bug fixes.
2) Updated to NVIDIA Firmware 02.02.02.
3) Multiple feature updates and bug fixes.
Version : F15
17.91 MB
Aug 23, 2024
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Warning:
更新BIOS有其潛在的風險，如果您使用目前版本的BIOS沒有問題，我們建議您不要任意更新BIOS。如需更新BIOS，請小心的執行，以避免不當的操作而造成系統毀損.
什麼是 BETA 版？
BETA版是正式推出前的試用版本。雖然該版本已經過測試，但可能還存在部份尚未發現、可能影響執行效能和功能的小問題。 請注意BETA版非正式的版本，並請密切注意正式版本的推出。
更新BIOS有其潛在的風險，如果您使用目前版本的BIOS沒有問題，我們建議您不要任意更新BIOS。如需更新BIOS，請小心的執行，以避免不當的操作而造成系統毀損.
什麼是 BETA 版？
BETA版是正式推出前的試用版本。雖然該版本已經過測試，但可能還存在部份尚未發現、可能影響執行效能和功能的小問題。 請注意BETA版非正式的版本，並請密切注意正式版本的推出。
Firmware
說明
版本
檔案大小
日期
BMC firmware with embedded GIGABYTE Management Console
(AST2600)
For NVIDIA Grace/ Grace Hopper platform
For NVIDIA Grace/ Grace Hopper platform
Version : 13.99.09
114.4 MB
Mar 29, 2024
