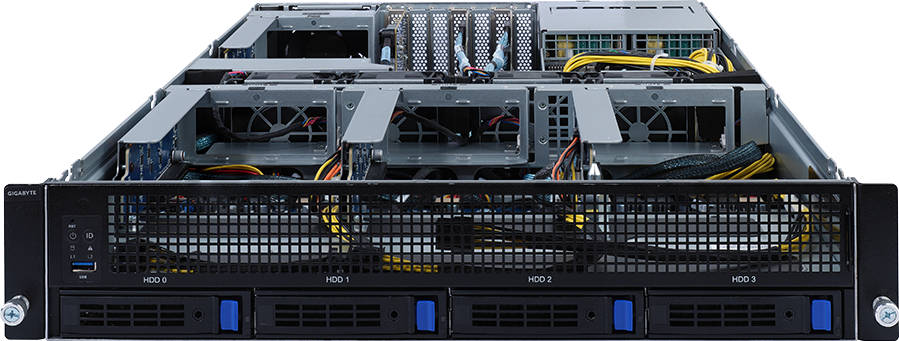

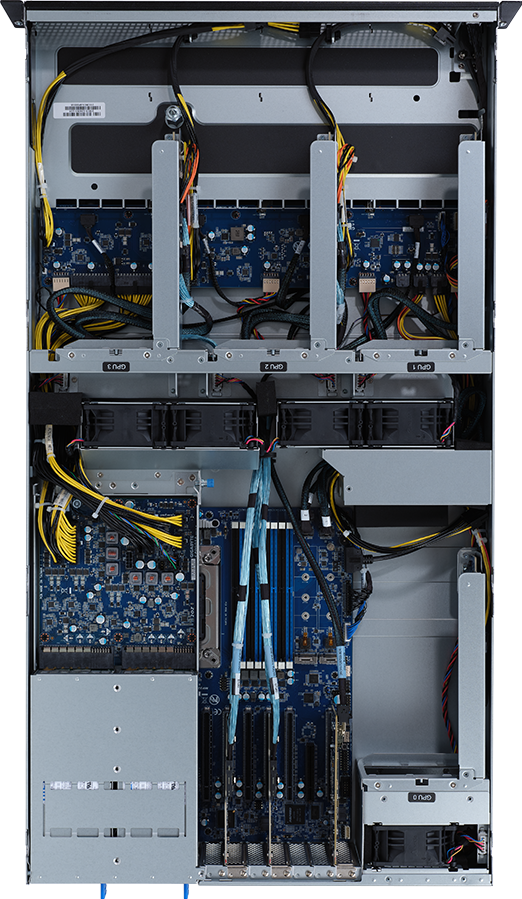

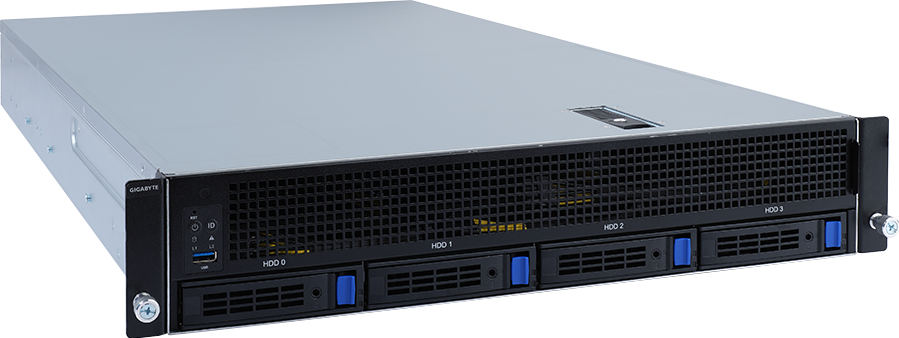

G242-P33
HPC/AI Arm Server - Ampere® Altra® Max - 2U UP 4 x PCIe Gen4 GPUs
- NVIDIA-Certified Systems™ - Edge Systems
- Hardware-level root of trust support
- Up to 4 x NVIDIA ® H100 PCIe Gen4 GPU cards
- Ampere® Altra® Max or Altra® Processors
- Single processor, 7nm technology
- 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
- 2 x 1Gb/s LAN ports (Intel® I350-AM2)
- 1 x Dedicated management port
- 4 x 3.5"/2.5" SATA hot-swappable bays
- 2 x M.2 slots with PCIe Gen4 x4 interface
- 4 x FHFL PCIe Gen4 x16 slots for GPUs
- 3 x LP PCIe Gen4 x8 slots on rear side
- Dual 1600W (240V) 80 PLUS Platinum power supply
* Burada sağlanan tüm materyaller yalnızca referans içindir. GIGABYTE ürün teknik özelliklerinde ve ürün ile ilgili bilgilerde haber vermeden önce değişiklik yapma hakkını saklı tutar.
* Belirtilen performans, ara yüz özelliklerini belirleyen yonga seti üreticilerinden veya kurumlarından alınan maksimum teorik ara yüz değerlerine dayanır. Gerçek performans sistem üzerinde kullanılan bileşenlere göre değişkenlik gösterebilir.
* Tüm ticari markalar ve logolar, kendi sahiplerinin mülkiyetindedir.
* Standart PC mimarisi sınırlamaları nedeniyle, bellek miktarının bir kısmı sistem kullanımı için ayrılır ve gerçek bellek boyutu olması gerekenden daha az gösterilir.
* Belirtilen performans, ara yüz özelliklerini belirleyen yonga seti üreticilerinden veya kurumlarından alınan maksimum teorik ara yüz değerlerine dayanır. Gerçek performans sistem üzerinde kullanılan bileşenlere göre değişkenlik gösterebilir.
* Tüm ticari markalar ve logolar, kendi sahiplerinin mülkiyetindedir.
* Standart PC mimarisi sınırlamaları nedeniyle, bellek miktarının bir kısmı sistem kullanımı için ayrılır ve gerçek bellek boyutu olması gerekenden daha az gösterilir.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
438 x 87.5 x 820
438 x 87.5 x 820
Motherboard
MP32-AR2
CPU
Ampere® Altra® Max or Altra® Processors
Single processor, 7nm technology
Up to 128-core per processor, TDP 250W
Single processor, 7nm technology
Up to 128-core per processor, TDP 250W
Socket
1 x LGA 4926
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 256GB supported
LRDIMM modules up to 256GB supported
Up to 4TB of memory capacity supported per processor
Memory speed: Up to 3200 MHz
NOTE: Only supports configurations with 1, 2, 4, 6, 8, 12, or 16 DIMMs
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 256GB supported
LRDIMM modules up to 256GB supported
Up to 4TB of memory capacity supported per processor
Memory speed: Up to 3200 MHz
NOTE: Only supports configurations with 1, 2, 4, 6, 8, 12, or 16 DIMMs
LAN
Rear side:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 Mbps management LAN
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 Mbps management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage
Front side:
4 x 3.5"/2.5" SATA hot-swappable bays, from CST3180 (ASM1164) SATA HBA
SATA device supported only
4 x 3.5"/2.5" SATA hot-swappable bays, from CST3180 (ASM1164) SATA HBA
SATA device supported only
SAS
N/A
RAID
N/A
Expansion Slots
Riser Card CRSG01B x 4:
- 4 x PCIe x16 (Gen4 x16) FHFL slots, for GPUs
- *Compatible with NVIDIA H100 80GB PCIe GPUs at ambient 30°C
Total 3 x PCIe Gen4 low-profile slots on rear side
Slot_7: Disabled
Slot_6: 1 x PCIe x16 (Gen4 x16) slot, occupied by CRSG02F
Slot_5: 1 x PCIe x16 (Gen4 x8) slot
Slot_4: 1 x PCIe x16 (Gen4 x16) slot, occupied by CRSG02F
Slot_3: 1 x PCIe x16 (Gen4 x8) slot
Slot_2: 1 x PCIe x8 (Gen4 x8) slot
Slot_1: 1 x PCIe x16 (Gen4 x8) slot, occupied by CST3180 (ASM1164) SATA HBA
2 x M.2 slots:
- M-key
- PCIe Gen4 x4
- Supports 2242/2260/2280/22110 cards
*Please refer to optional parts for H100 power cables. 3x360mm+1x490mm configuration is recommended.
- 4 x PCIe x16 (Gen4 x16) FHFL slots, for GPUs
- *Compatible with NVIDIA H100 80GB PCIe GPUs at ambient 30°C
Total 3 x PCIe Gen4 low-profile slots on rear side
Slot_7: Disabled
Slot_6: 1 x PCIe x16 (Gen4 x16) slot, occupied by CRSG02F
Slot_5: 1 x PCIe x16 (Gen4 x8) slot
Slot_4: 1 x PCIe x16 (Gen4 x16) slot, occupied by CRSG02F
Slot_3: 1 x PCIe x16 (Gen4 x8) slot
Slot_2: 1 x PCIe x8 (Gen4 x8) slot
Slot_1: 1 x PCIe x16 (Gen4 x8) slot, occupied by CST3180 (ASM1164) SATA HBA
2 x M.2 slots:
- M-key
- PCIe Gen4 x4
- Supports 2242/2260/2280/22110 cards
*Please refer to optional parts for H100 power cables. 3x360mm+1x490mm configuration is recommended.
Internal I/O
2 x M.2 slots
1 x USB 3.0 header
1 x USB 2.0 header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x Buzzer
1 x USB 3.0 header
1 x USB 2.0 header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x Buzzer
Front I/O
1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs

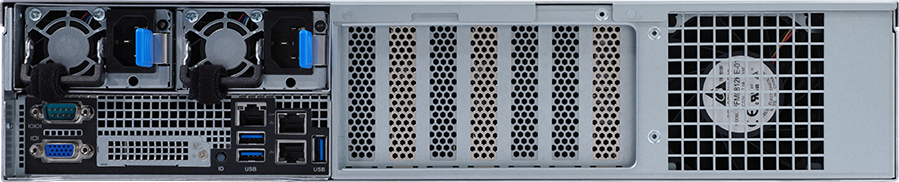

Rear I/O
3 x USB 3.0
1 x VGA
1 x Debug port
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
1 x Debug port
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
SATA 6Gb/s
SATA 6Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
Dual 1600W 80 PLUS Platinum power supply (-100)
AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz
DC Input:
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-120V~
+ 12V/ 81.5A
+ 12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+ 12V/ 133A
+ 12Vsb/ 2.5A
Dual 1600W 80 PLUS Titanium power supply (-1T0)
AC Input:
- 100-240V~/ 12-9.5A, 50-60Hz
DC Input:
- 240Vdc/ 9.5A
DC Output:
- Max 1000W/ 100-120V~
+ 12.2V/ 82A
+ 12Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc Input
+ 12.2V/ 131.2A
+ 12Vsb/ 3A
AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz
DC Input:
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-120V~
+ 12V/ 81.5A
+ 12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+ 12V/ 133A
+ 12Vsb/ 2.5A
Dual 1600W 80 PLUS Titanium power supply (-1T0)
AC Input:
- 100-240V~/ 12-9.5A, 50-60Hz
DC Input:
- 240Vdc/ 9.5A
DC Output:
- Max 1000W/ 100-120V~
+ 12.2V/ 82A
+ 12Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc Input
+ 12.2V/ 131.2A
+ 12Vsb/ 3A
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Red Hat Enterprise Linux 8.3 (aarch64) or later
Red Hat Enterprise Linux 8.5 (aarch64) or later
CentOS 8.3-2011 (aarch64) or later
CentOS-8.4.2105 (aarch64) or later
CentOS-8.5.2111 (aarch64) or later
SUSE Linux Enterprise Server 15 SP2 (aarch64) or later
SUSE Linux Enterprise Server 15 SP3 (aarch64) or later
Ubuntu 18.04.5 LTS (aarch64) or later
Ubuntu 20.04.1 LTS (aarch64) or later
Fedora Server 33-1.2 (aarch64) or later
Fedora Server 35-1.2 (aarch64) or later
OracleLinux R8 U2
OracleLinux R8 U5
Debian 10.9 (Buster)
Debian 11.1
Red Hat Enterprise Linux 8.5 (aarch64) or later
CentOS 8.3-2011 (aarch64) or later
CentOS-8.4.2105 (aarch64) or later
CentOS-8.5.2111 (aarch64) or later
SUSE Linux Enterprise Server 15 SP2 (aarch64) or later
SUSE Linux Enterprise Server 15 SP3 (aarch64) or later
Ubuntu 18.04.5 LTS (aarch64) or later
Ubuntu 20.04.1 LTS (aarch64) or later
Fedora Server 33-1.2 (aarch64) or later
Fedora Server 35-1.2 (aarch64) or later
OracleLinux R8 U2
OracleLinux R8 U5
Debian 10.9 (Buster)
Debian 11.1
System Fans
5 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1077 x 679 x 300 mm
Packaging Content
1 x G242-P33
1 x CPU heatsink
1 x 2-Section Rail kit
1 x CPU heatsink
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NG242P33MR-00-1*
- Motherboard: 9MP32AR2NR-00
- 2-Section Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-2534Z0-C1R
- Front panel board - CFP1000: 9CFP1000NR-00
- Backplane board - CBPG041: 9CBPG041NR-00
- Fan module: 25ST2-88382A-D0R
- Fan duct for CPU: 25HA8-G24232-S5R
- PCIe Riser card - CRSG02F: 9CRSG02FNR-00
- GPU Riser card - CRSG01B: 9CRSG01BNR-00
- PCIe type SATA HBA Card - CST3180: 9CST3180NR-00
- Power supply (-100): 25EP0-216008-L0S
- Power supply (-1T0): 25EP0-21600E-L0S
Optional parts:
- Power cable (2x4P to 12+4P, 360mm): 25CRI-360102-Y4R
- Power cable (2x4P to 12+4P, 490mm): 25CRI-490102-Y4R
- Motherboard: 9MP32AR2NR-00
- 2-Section Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-2534Z0-C1R
- Front panel board - CFP1000: 9CFP1000NR-00
- Backplane board - CBPG041: 9CBPG041NR-00
- Fan module: 25ST2-88382A-D0R
- Fan duct for CPU: 25HA8-G24232-S5R
- PCIe Riser card - CRSG02F: 9CRSG02FNR-00
- GPU Riser card - CRSG01B: 9CRSG01BNR-00
- PCIe type SATA HBA Card - CST3180: 9CST3180NR-00
- Power supply (-100): 25EP0-216008-L0S
- Power supply (-1T0): 25EP0-21600E-L0S
Optional parts:
- Power cable (2x4P to 12+4P, 360mm): 25CRI-360102-Y4R
- Power cable (2x4P to 12+4P, 490mm): 25CRI-490102-Y4R
* Burada sağlanan tüm materyaller yalnızca referans içindir. GIGABYTE ürün teknik özelliklerinde ve ürün ile ilgili bilgilerde haber vermeden önce değişiklik yapma hakkını saklı tutar.
* Belirtilen performans, ara yüz özelliklerini belirleyen yonga seti üreticilerinden veya kurumlarından alınan maksimum teorik ara yüz değerlerine dayanır. Gerçek performans sistem üzerinde kullanılan bileşenlere göre değişkenlik gösterebilir.
* Tüm ticari markalar ve logolar, kendi sahiplerinin mülkiyetindedir.
* Standart PC mimarisi sınırlamaları nedeniyle, bellek miktarının bir kısmı sistem kullanımı için ayrılır ve gerçek bellek boyutu olması gerekenden daha az gösterilir.
* Belirtilen performans, ara yüz özelliklerini belirleyen yonga seti üreticilerinden veya kurumlarından alınan maksimum teorik ara yüz değerlerine dayanır. Gerçek performans sistem üzerinde kullanılan bileşenlere göre değişkenlik gösterebilir.
* Tüm ticari markalar ve logolar, kendi sahiplerinin mülkiyetindedir.
* Standart PC mimarisi sınırlamaları nedeniyle, bellek miktarının bir kısmı sistem kullanımı için ayrılır ve gerçek bellek boyutu olması gerekenden daha az gösterilir.
SUPPORT
BIOS
Uygulama
Firmware
QVL
BIOS
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- Ubuntu
- Linux CentOS
- Linux
Uygulama
Açıklama
Version
Size
Tarih
GSM CLI
Version : 2.1.77
147.89 MB
Sep 27, 2024
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Ubuntu Server for ARM 22.04.1 LTS
(Including installation guide)
Ubuntu Server for ARM 22.04.1 LTS
(Including installation guide)
Version : 2.5
226.76 MB
Oct 14, 2022
OS: Ubuntu
Firmware
Açıklama
Version
Size
Tarih
BMC Firmware with embedded GIGABYTE Management Console
(AST2500 AMI for ARM platform)
(AST2500 AMI for ARM platform)
Version : 12.61.06
105.37 MB
Feb 29, 2024
English
Kullanma Kılavuzu
Açıklama
Version
Size
Tarih
Açıklama
Version
Size
Tarih
RESOURCES
Success Case
Articles
Success Case | June 06, 2023
CSR and ESG in Action: GIGABYTE Helps NCKU Train Award-Winning Supercomputing Team
GIGABYTE Technology is not only a leading brand in high-performance server solutions—it is also an active force for good when it comes to CSR and ESG activities. Case in point: in 2020, GIGABYTE provided four G482-Z50 servers to Taiwan’s Cheng Kung University. The servers were used to train a team of talented students, who went on to take first place in that year’s APAC HPC-AI Competition in Singapore. The parallel computing performance of the servers’ processors, the seamless connectivity between the servers, and the servers’ unrivalled reliability are the reasons why GIGABYTE servers are ideal for educating the next generation of supercomputing experts. GIGABYTE is happy to give back to society and contribute to human advancement through high tech solutions.
Success Case | May 25, 2023
GIGABYTE’s ARM Server Boosts Development of Smart Traffic Solution by 200%
A team of scientists at NTU has adopted GIGABYTE’s G242-P32 server and the Arm HPC Developer Kit to incubate a “high-precision traffic flow model”—a smart traffic solution that can be used to test autonomous vehicles and identify accident-prone road sections for immediate redress. The ARM-based solution gives the project a 200% boost in efficiency, thanks to the cloud-native processor architecture that “speaks” the same coding language as the roadside sensors, the high number of CPU cores that excel at parallel computing, the synergy with GPUs that enable heterogeneous computing, and the ISO certifications which make the resulting model easily deployable for automakers and government regulators alike.
Tech Guide | May 31, 2022
What is Private Cloud, and is it Right for You?
In the era of cloud computing, just about everyone has heard of the terms “private cloud” and “public cloud”. Chances are, you are using one or both of them in your everyday life—but how much do you really know about them? If you had the chance, could you build a private cloud for yourself or your organization? GIGABYTE Technology, an industry leader in server solutions used by global cloud service providers, is pleased to present our latest Tech Guide. We will examine the difference between private and public clouds, introduce the private cloud’s advantages and limitations, and then introduce GIGABYTE products that may help you build and operate a private cloud of your own.
Tech Guide | March 16, 2022
What is Big Data, and How Can You Benefit from It?
You may be familiar with the term, “big data”, but how firm is your grasp of the concept? Have you heard of the “5 V’s” of big data? Can you recite the “Three Fundamental Steps” of how to use big data? Most importantly, do you know how to reap the benefits through the use of the right tools? GIGABYTE Technology, an industry leader in high-performance server solutions, is pleased to present our latest Tech Guide. We will walk you through the basics of big data, explain why it boasts unlimited potential, and finally delve into the GIGABYTE products that will help you ride high on the most exciting wave to sweep over the IT sector.
Tech Guide | February 11, 2022
The Advantages of ARM: From Smartphones to Supercomputers and Beyond
Processors based on the ARM architecture, an alternative to the mainstream x86 architecture, is gradually making the leap from mobile devices to servers and data centers. In this Tech Guide, GIGABYTE Technology, an industry leader in high-performance server solutions, recounts how ARM was developed. We also explain the various benefits of ARM processors and recommend ARM servers for different sectors and applications.
Tech Guide | January 11, 2022
Cluster Computing: An Advanced Form of Distributed Computing
Cluster computing is a form of distributed computing that is similar to parallel or grid computing, but categorized in a class of its own because of its many advantages, such as high availability, load balancing, and HPC. GIGABYTE Technology, an industry leader in high-performance servers, presents this tech guide to help you learn about cluster computing. We also recommend GIGABYTE servers that can help you benefit from cluster computing.
Tech Guide | January 10, 2022
Setting the Record Straight: What is HPC? A Tech Guide by GIGABYTE
The term HPC, which stands for high performance computing, gets thrown around a lot nowadays, as server solutions become more and more ubiquitous. It is running the risk of becoming a catchall phrase: anything that is “HPC” must be the right choice for your computing needs. You may be wondering: what exactly are the benefits of HPC, and is HPC right for you? GIGABYTE Technology, an industry leader in high-performance servers, presents this tech guide to help you understand what HPC means on both a theoretical and a practical level. In doing so, we hope to help you evaluate if HPC is right for you, while demonstrating what GIGABYTE has to offer in the field of HPC.
Video
Video | October 17, 2023
Explore AmpereOne servers by GIGABYTE with Ampere's Jeff Wittich
At Computex 2023 we had one of our important partners, Ampere Computing, stop by our booth to discover the future with the new ...
Video | October 17, 2023
Dive into GIGABYTE's ARM servers with the AmpereOne platform
Akira Hoshino, Head of Product Planning at Giga Computing, discusses how and what GIGABYTE has developed for Ampere ...
News
News | September 21, 2022
GIGABYTE Shares Sessions at GTC and Shows Support for Arm CPU and NVIDIA GPU Validation
News | May 30, 2022
GIGABYTE Joins ISC High Performance 2022 to Promote Emerging Enterprise Technologies, Including Accelerated Computing
News | May 24, 2022
GIGABYTE Joins Computex to Promote Emerging Enterprise Technologies including Accelerated Computing
New Technologies for Fast-approaching Data Centers
News | March 23, 2022
GIGABYTE Hosts Sessions at NVIDIA GTC and Expands Support to Include the NVIDIA H100 Tensor Core GPU
News | January 05, 2022
GIGABYTE Creates INDUSTRY as an Enterprise Solution Technology Hub for CES
Latest Server Products and Innovations in One Place
Others
Back to G242-P33
