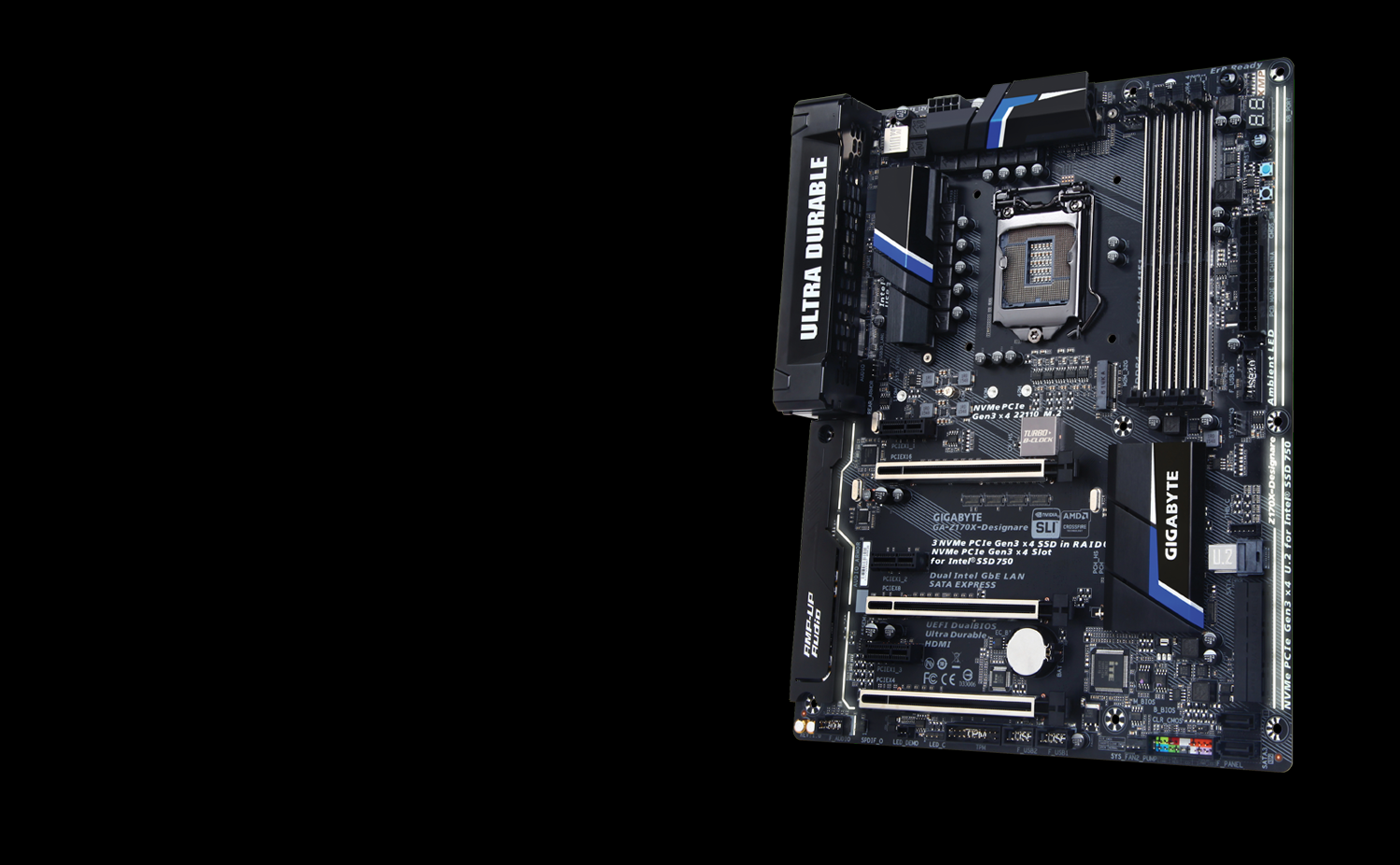

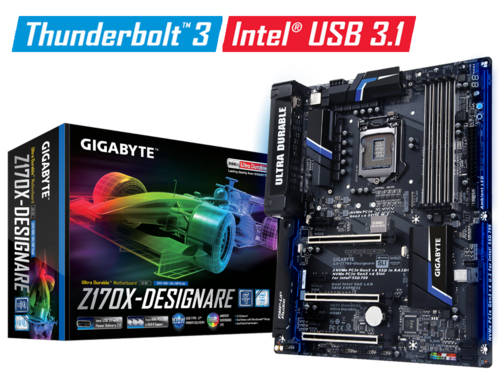

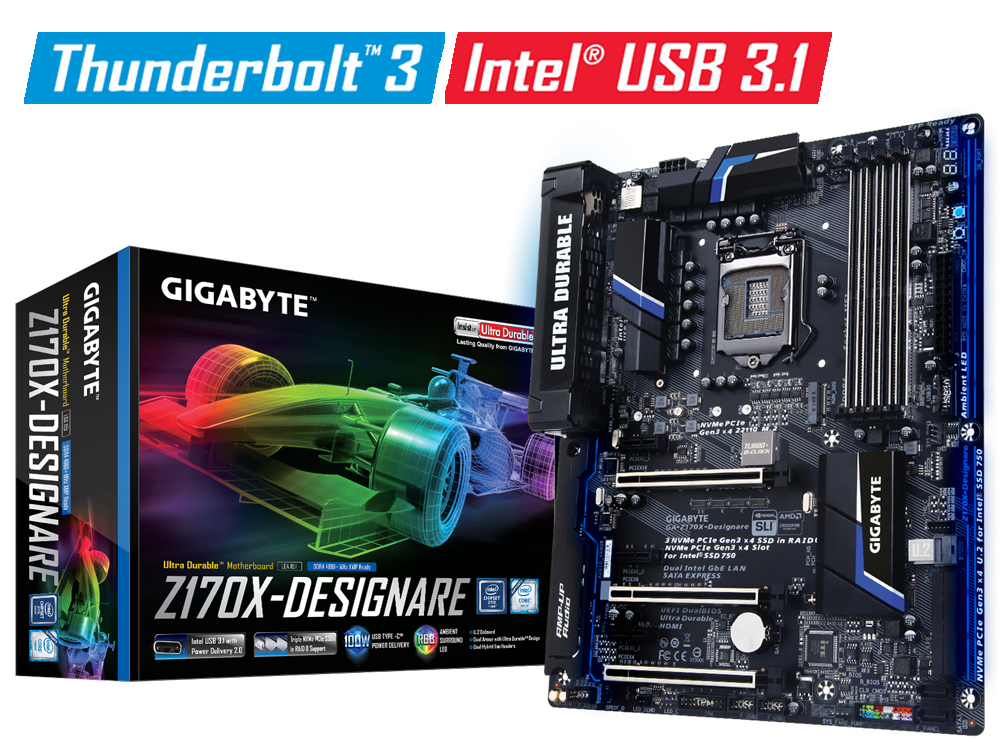

GA-Z170X-Designare (rev. 1.0)
Intel® Z170 Chipset
1/4
- Supports 7th/ 6th Generation Intel® Core™ Processors
- Dual Channel, Non-ECC Unbuffered DDR4, 4 DIMMs
- Intel® USB 3.1 with 2 USB Type-C™ & PD 2.0 100W Support
- 2-Way SLI™ & CrossFire™ Multi-Graphics Support
- NVMe PCIe Gen3 x4 22110 M.2 Interface & U.2 Interface for Intel® SSD 750
- Best Support for 3 Intel® SSD 750 Devices in RAID 0
- 2 SATA Express Connectors for Up to 16Gb/s Data Transfer
- Dual Intel® GbE LAN with cFosSpeed Internet Accelerator Software
- 115dB SNR HD Audio with Built-in Rear Audio Amplifier
- Ambient Surround LED with RGB Multi-Color Choices
- Ultra Durable Metal Shielding over PCIe and DDR Slots
- Ultra Durable Anti-Sulfur Resistors for Longer Lifespan
- Ultra Durable Anti-Rust Rear I/O Connectors
- Dual Hybrid Fan Headers with Precise PWM / Voltage Control for Water Pump & Fan
- GIGABYTE UEFI DualBIOS™ Technology
- APP Center Including EasyTune™ and Cloud Station™ Utilities
- Rear Panel Mini DisplayPort-In for Future Feature Upgrade
-
Next Generation 40 Gb/s Thunderbolt™ 3Thunderbolt™ 3 – The fastest 40Gb/s single-wire connection
Intel® Thunderbolt™ 3 Certified MotherboardPowered by Intel's own Thunderbolt controller the new Thunderbolt™ 3 protocol, which is available over a USB Type-C™ connector on the back I/O of the GIGABYTE Z170X-Designare, brings an unprecedented single-wire bandwidth of up to 40 Gb/s -- twice more than the previous generation of Thunderbolt! This incredible increase in bandwidth is also accompanied with support for different protocols such as DisplayPort 1.2 and USB 3.1, which is backwards compatible with USB 3.0 and USB 2.0, opening up a world of new possibilities.
To upgrade the Z170X-Designare, go to : Free Upgrade to Thunderbolt™ 3

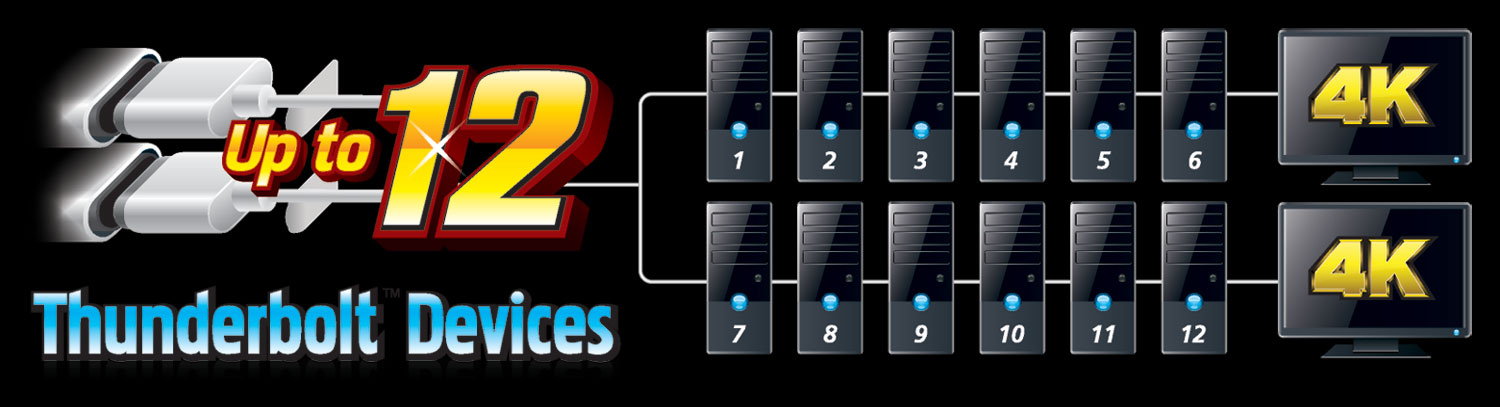

Daisy-chain Multiple DevicesSupport for DisplayPort 1.2 makes Thunderbolt™ 3 a must have for any enthusiast. The Z170X-Designare is able to support two displays in 4K resolution at 60 FPS or one display in 5K resolution. In addition, Thunderbolt™ 3 over USB Type-C™ has revolutionary industry-first features such as Power Delivery 2.0, and the ability to daisy-chain up to 12 devices thanks to the Z170X-Designare’s dual USB Type-C™ ports.
Compatibility may vary according to system configuration and device specifications.
NVIDIA® / AMD® / Intel®
Graphics Support for
Thunderbolt™ 3*
Graphics Support for
Thunderbolt™ 3*
GIGABYTE implementing Thunderbolt™ 3 allows users to utilize all facets of this technology. GIGABYTE’s unique design of incorporating a video input port, via Mini DisplayPort, allows users to take full advantage of their discrete NVIDIA or AMD Graphics Cards. By merging the performance of these discrete cards with Thunderbolt™ 3 users can now leverage the fast data transfer speeds and latest gaming technologies into a single Thunderbolt™ (USB Type-C™) cable.
Note: Product features may vary by model. Photo for reference only.

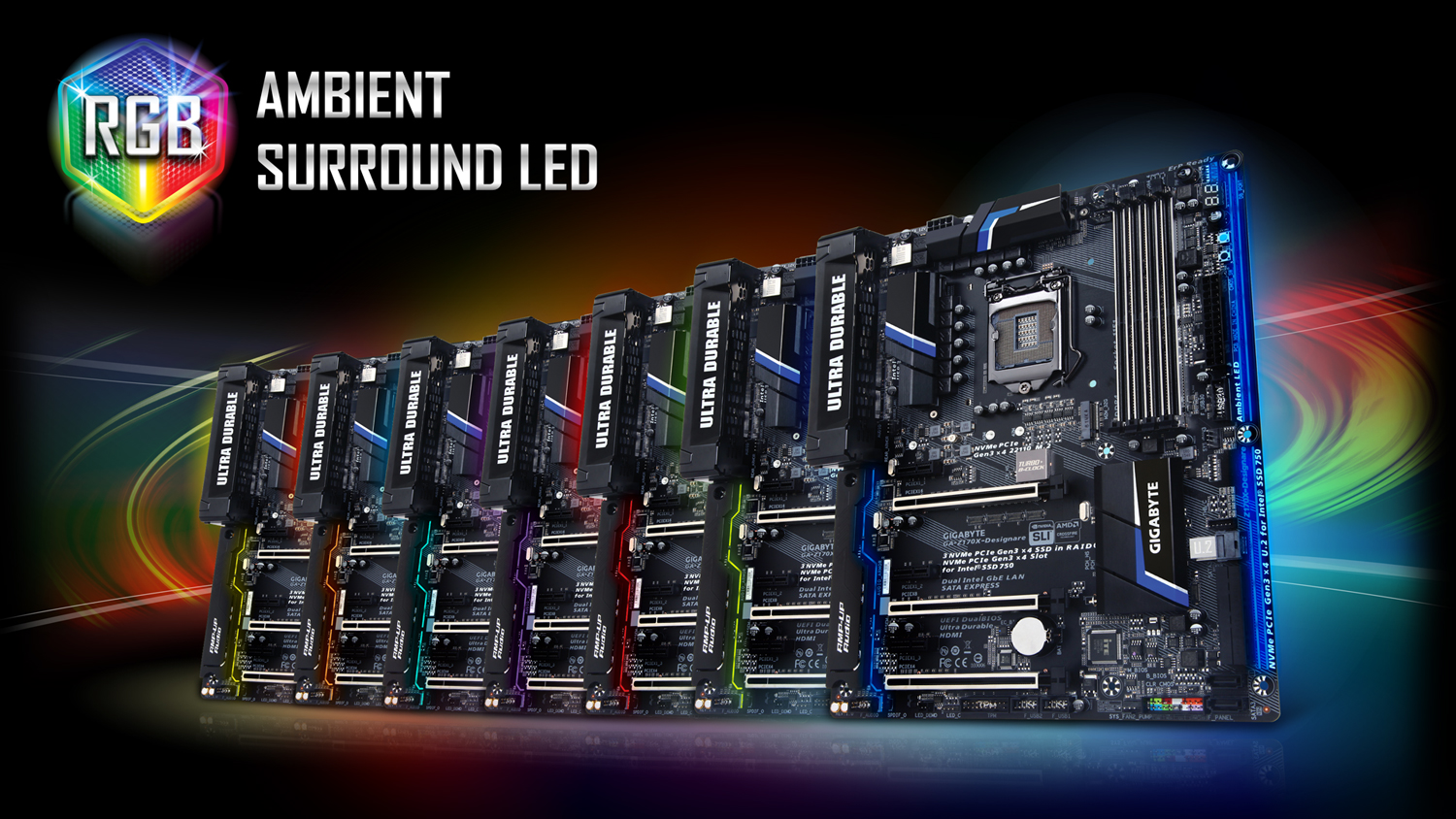

Ambient Surround LED
Set the Color that Matches Your Style
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned Ambient LED application, the user has complete control over the LEDs which surround the motherboard.
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned Ambient LED application, the user has complete control over the LEDs which surround the motherboard.

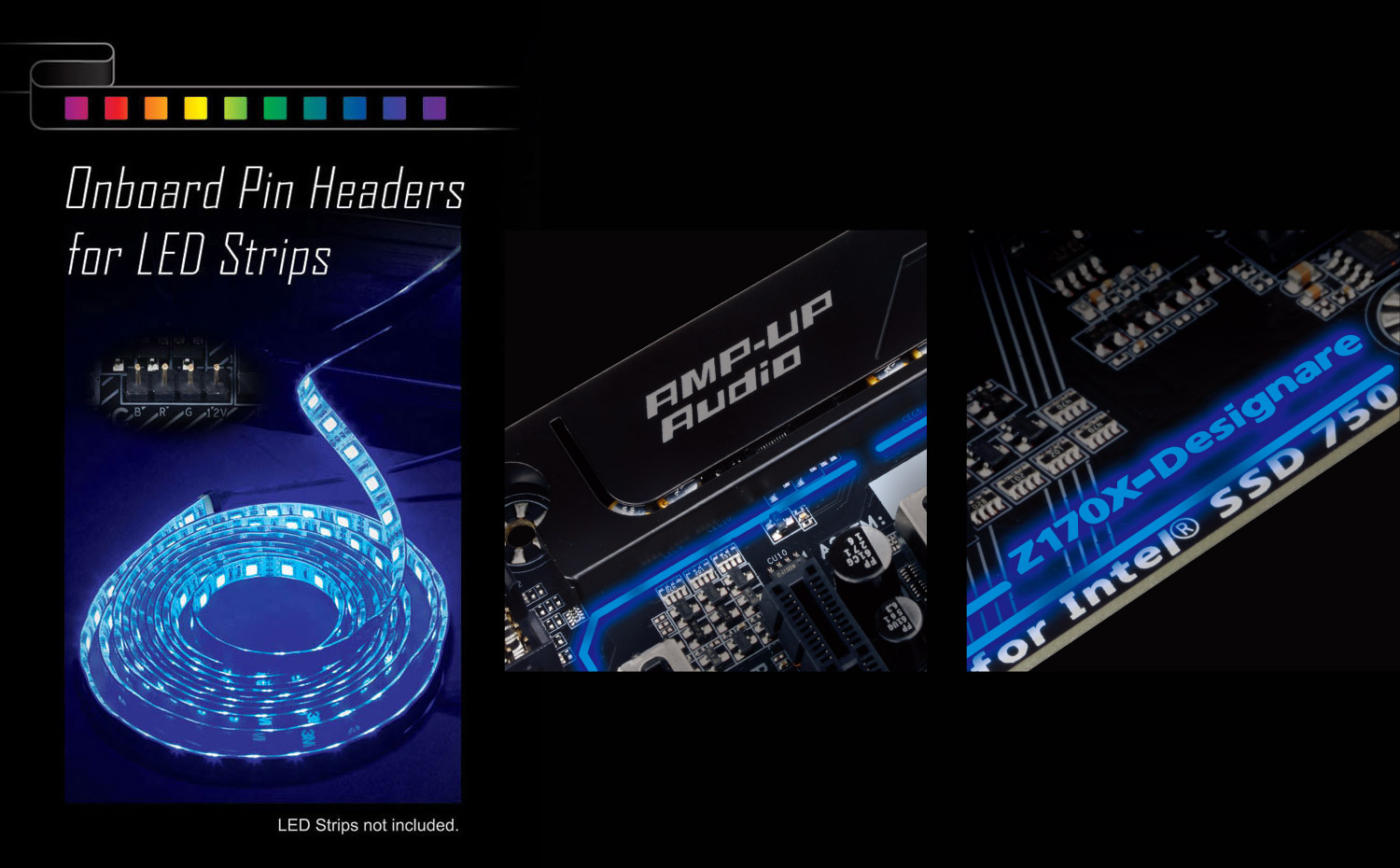

Light Up Your Case to Match your Motherboard
With an onboard Pin Header for aftermarket LED Strips, users now have the ability to sync the lighting in their computer case with the lighting on their motherboard. By using the Ambient LED Application, included in GIGABYTE APP Center, users are also able to specify the lighting modes available and ensure that everything is illuminating their system in harmony.
Immersive VR
Gaming Experience
Gaming Experience
> VR requires 30% more performance than Full HD
graphics for a steady 60FPS or greater.
> Only Gaming PCs can provide the best VR experience.
> Only Gaming PCs can provide the best VR experience.
To create a seamless VR experience GIGABYTE Motherboards offer the best features to make your virtual reality feel like your actual reality.
With technologies such as Thunderbolt™ 3 to transfer data and video, NVMe support via M.2 or U.2, and a one piece metal shielding to brace for heavier discrete graphics cards its obvious that GIGABYTE has the tools you need to start your journey in VR. To set the mood GIGABYTE Motherboards include Ambient Surround LED to put you in the center of action.
With technologies such as Thunderbolt™ 3 to transfer data and video, NVMe support via M.2 or U.2, and a one piece metal shielding to brace for heavier discrete graphics cards its obvious that GIGABYTE has the tools you need to start your journey in VR. To set the mood GIGABYTE Motherboards include Ambient Surround LED to put you in the center of action.
Recommended configuration for VR Gaming PC
- Graphics Card: NVIDIA GTX 970 / AMD R9 290 or greater,
Compatible HDMI 1.3 video output
- CPU: Intel i5-6600K equivalent or greater
- Motherboard: GIGABYTE X99/Z170/H170/B150 motherboards
- Memory: 8GB RAM or greater
- USB Ports:3x USB 3.0 ports plus 1x USB 2.0 port or greater
- OS: Windows 7 SPI 64-bit or newer
- CPU: Intel i5-6600K equivalent or greater
- Motherboard: GIGABYTE X99/Z170/H170/B150 motherboards
- Memory: 8GB RAM or greater
- USB Ports:3x USB 3.0 ports plus 1x USB 2.0 port or greater
- OS: Windows 7 SPI 64-bit or newer
Any copyrighted images or trademarks displayed are the property of their respective owners and are shown for reference purposes only. Reference herein does not constitute or imply affiliation or endorsement of Gigabyte products by the respective trademark owners. VR Gaming photo for reference only.
NVIDIA® QUADRO® Professional
Graphics Supports
NVIDIA® QUADRO® 3D Workstation Professional Graphics Solutions designed and built specifically for artists, designers, and engineers, NVIDIA Quadro GPUs power more than 100 professional applications across a broad range of industries. Professionals trust them to enable their best work using applications such as Adobe® Creative Cloud, Avid Media Composer, Autodesk Suites, Dassault Systemes, CATIA and SOLIDWORKS, Siemens NX, PTC Creo, and many more.
2-Way SLI™ / CrossFire™ Multi-Graphics
Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
GIGABYTE Design By spacing the graphics cards in multi-graphics configurations, users are now able to obtain maximum airflow between cards.
PURE SPEED, MORE POWER
Exclusively on GIGABYTE Powered Motherboards
Intel® USB 3.1
+
Power Delivery 2.0
The Intel® USB 3.1 controller utilizes four PCIe Gen3 Lanes, offering up to 32 Gb/s total bandwidth, for uncompromised transfer speeds of up to 10 Gb/s per USB 3.1. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.
Bandwidth design for the controller
*Max. bandwidth allocated for the controller may vary by model.
*Max. bandwidth allocated for the controller may vary by model.

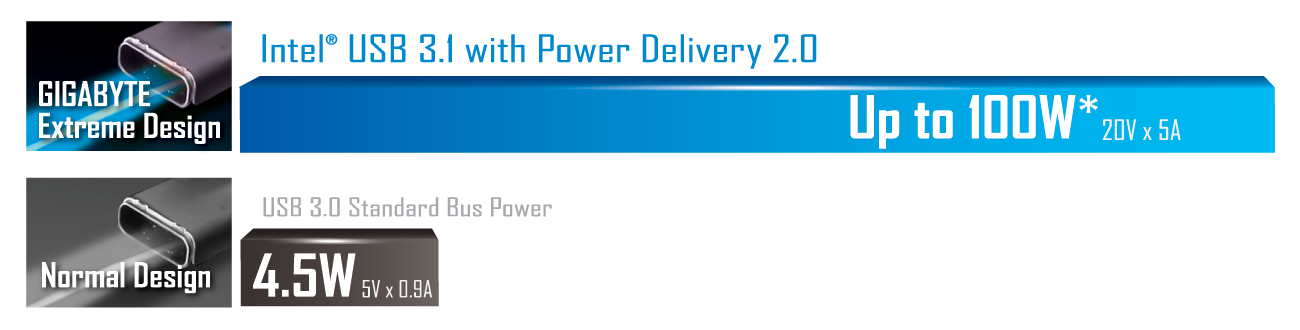

100W USB Type-C™
Power and Charge From USB Type-C With Power Delivery 2.0 Support
Redesigned to take full advantage of all the features that USB Type-C can support, GIGABYTE’s new Z170 motherboards with Intel’s USB 3.1 controller not only supports USB 2.0, 3.0, and 3.1, but also completely
supports Power Delivery 2.0. This means users are able to get up to 100 watts through their Intel powered USB Type-C port. This opens the door for users looking to clean up their cable cutter and power or recharge their devices through this universal connector, the Type-C Port.

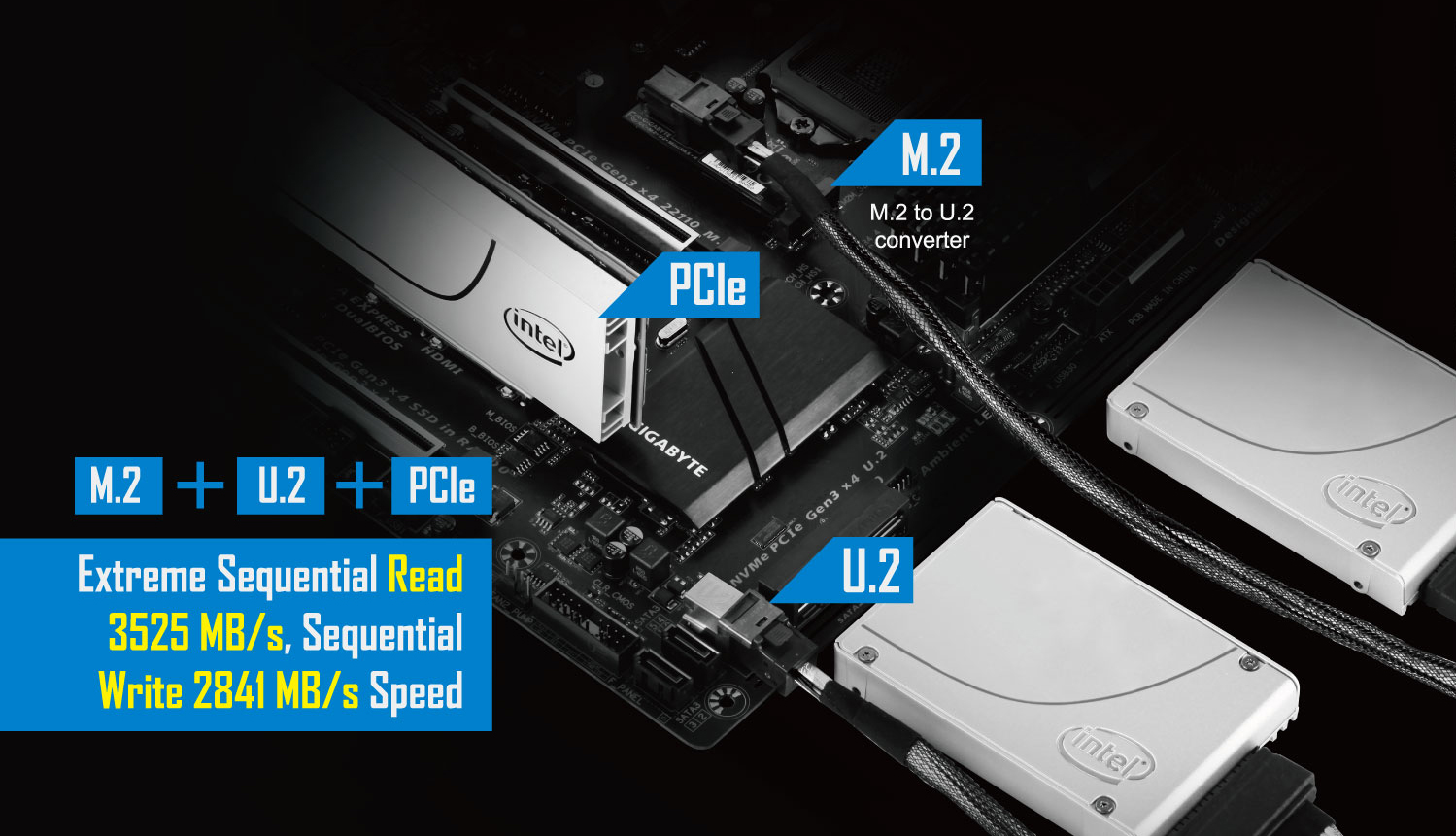

Triple NVMe PCIe SSDs in RAID 0 Support
Extreme Performance with Gen3 x4 NVMe PCIe SSDs
GIGABYTE’s Z170 motherboards offers the industry’s best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. GIGABYTE’s unique design supports up to three Intel® 750 Series NVMe PCIe SSDs which can be configured in RAID for record speeds of up to 3525 MB/s (Sequential Read), making GIGABYTE the obvious choice for the ultimate PC.
Photo for reference only. SSDs and cables are not included.

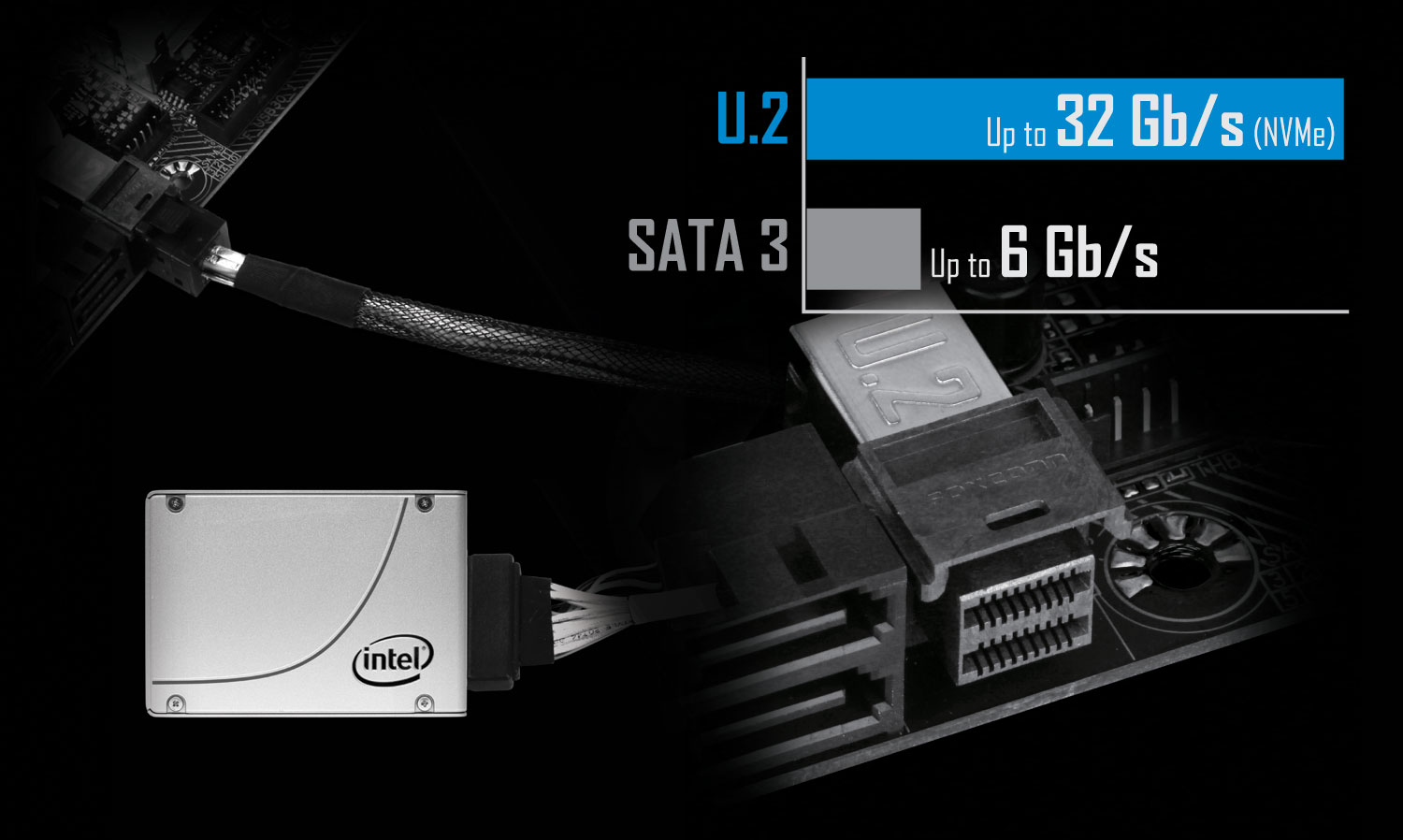

U.2 Onboard (NVMe PCIe Gen3 x4)
NVMe Performance for PCIe SSDs
The new Intel 750 series SSDs offer an incredible increase in performance over SATA drives. Using the NVMe protocol which takes advantage of the fast bandwidth of PCIe Gen3 x4 lanes (32 Gb/s), the drives are a clear advantage for users looking to boot their OS faster, load their games in a flash and access large files without waiting. By implementing the U.2 port onboard to support the 2.5” Intel 750 Series drive, GIGABYTE ensures that the users can benefit from the best performance.
Photo for reference only. SSDs and cables are not included.
Fast Onboard Storage with NVMe
PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)
GIGABYTE’s M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.
Photo for reference only. M.2 SSDs and cables not included.
Dual Hybrid Fan Headers
Precise PWM and Voltage Control for Water pumps or Fans
Many of today’s modern computers feature water cooling to ensure that the CPU or graphics cards stay cool and quiet while they are put under heavy load. In order to provide the best support for water cooling solutions, GIGABYTE has equipped its X99/Z170 motherboards with an additional water pump power header. This allows the user to have full control over two water pumps or fans. An additional benefit of these headers with GIGABYTE’s motherboards is the option to choose between voltage calibration or PWM modes.
Photo for reference only. Water pumps and accessories not included.

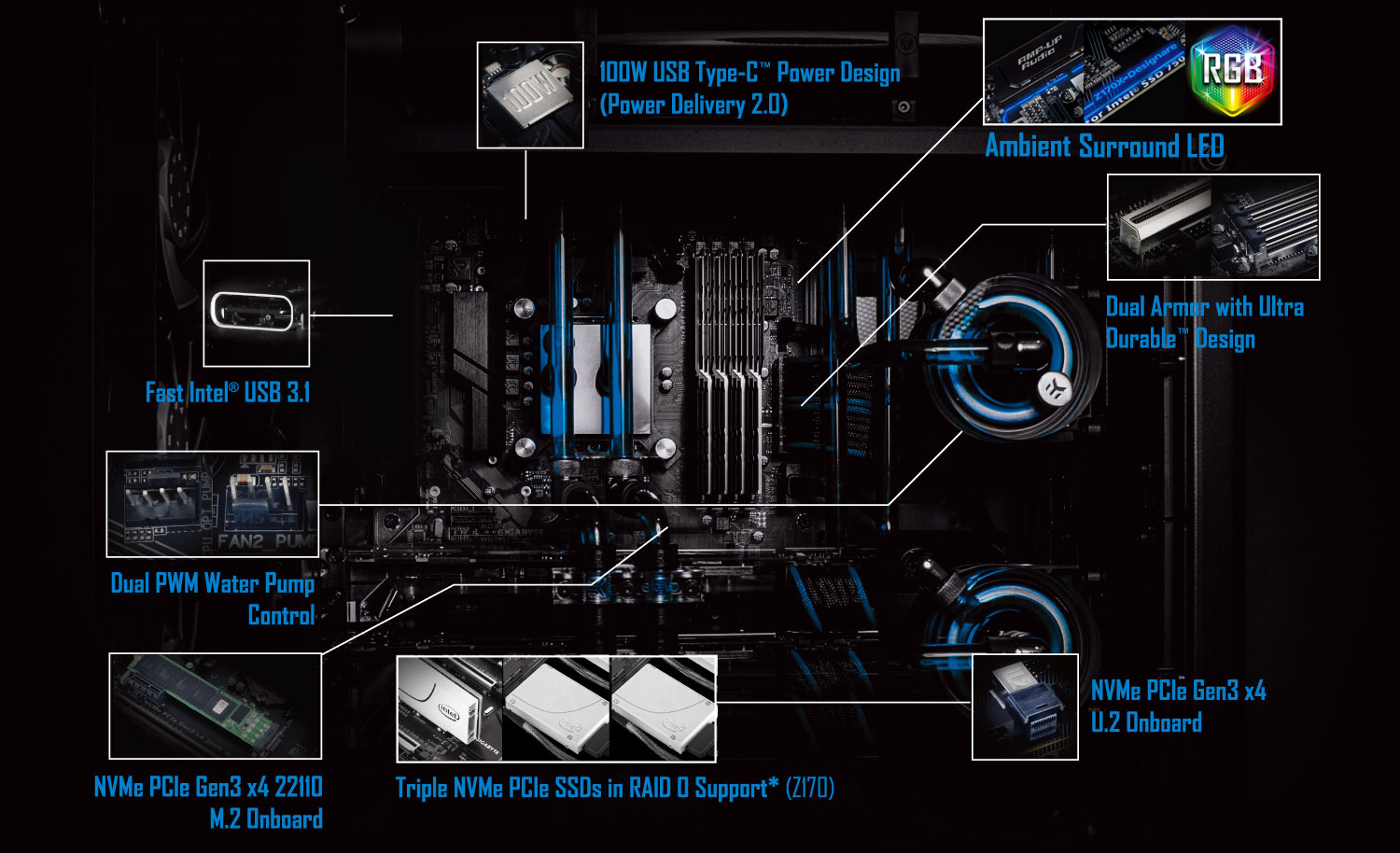

Customization Features and Water Cooling Support
Product features may vary by model. Photo for reference only. Water pumps, SSDs, and accessories not included.
Support for DDR4 XMP Up to 4000MHz and Beyond*
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 4000MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.
What is XMP?
DDR4 memory modules are available at a stock frequency of 2133MHz, but as frequency tweaking requires a considerable amount of effort and knowledge, memory vendors encode XMP profiles which can automatically modify the timings of the supported memory modules to work with your CPU and to achieve increased performance.
* XMP Profile support may vary depending on memory module. Please visit www.gigabyte.com to see the complete validated memory support list.
* XMP Profile support may vary depending on memory module. Please visit www.gigabyte.com to see the complete validated memory support list.
Turbo B-Clock
Built-in Advanced Performance Tuning IC
Thanks to the onboard Turbo B-Clock Tuning IC, GIGABYTE Z170X-Designare motherboards enable overclockers to have the ability to change their BCLK frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 500MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.
*Turbo B-Clock overclocking range may vary according to CPU capabilities.
*Turbo B-Clock overclocking range may vary according to CPU capabilities.
GIGABYTE Patented Double Locking Bracket
Ultra Durable™ PCIe Armor
Enhanced Strength PCIe Design, Support for Heavy Graphics Cards For Extreme / VR Gaming Station
Dual Armor DIMM and PCIe Metal Shielding
Never worry about your heavy graphics card damaging your motherboard again. GIGABYTE’s proprietary Ultra Durable PCIe Metal Shielding reinforces the PCIe connector to prevent slot damage due to heavy graphics card. The DIMM and PCIe metal shield also provides extra strength for when you forget to release the lock while replacing your component, adding a fool proof option which can save your PC’s life.
Ultra Durable™ Memory Armor
GIGABYTE’s exclusive one piece stainless steel shielding design prevents against PCB distortion and twist (Plate bending) in addition to preventing any possible ESD interference.
Product features may vary by model.Photo for reference only.
Anti-Sulfur
Resistor Design
Resistor Design
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
Product features may vary by model.
Anti-sulfur product: An alloy layer has been
added to protect the silver layer and prevents
the sulfurization reaction from taking place.
added to protect the silver layer and prevents
the sulfurization reaction from taking place.
Without the anti-sulfur layer: The electrode terminals
lack a protective layer, which means that oxygen or other environmental elements can penetrate the Ni (Nickel) layer causing a sulfurization reaction and degrade the ability for the electrode to conduct electricity properly.
lack a protective layer, which means that oxygen or other environmental elements can penetrate the Ni (Nickel) layer causing a sulfurization reaction and degrade the ability for the electrode to conduct electricity properly.
Dual Intel® GbE LAN with cFosSpeed
The Dual Intel® Gigabit LAN with cFosSpeed features advanced technologies to help deliver better network responsiveness in crowded LAN environments and allows optimization and improved network performance for specific applications, making it a popular choice amongst gamers.
High Definition Audio Design
The Realtek ALC1150 is a high-performance multi-channel high definition audio codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.High Quality audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

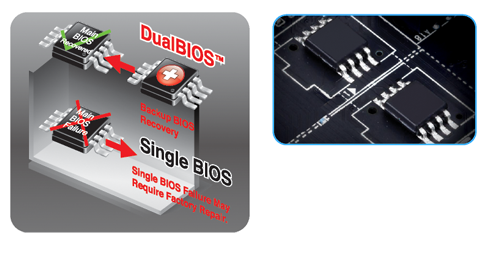

GIGABYTE Patented DualBIOS™ (UEFI) Design
GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', Protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.
Long Lifespan Durable Black™ Solid Caps
GIGABYTE motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on GIGABYTE motherboards.

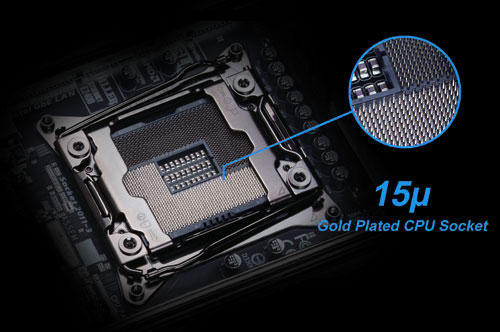

15μ Gold Plated CPU Socket Design
GIGABYTE motherboards come equipped with a 15 micron thick gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.
Easy to Install "G Connector" Design
The tiny cables of the front panel connectors can be hard to manipulate as space is restricted and indicators being tiny. With the G Connector, you can connect all the FP cables at once, simplifying the process of building your next PC and saving you some frustrations.
ESD Protection for USB and LAN
GIGABYTE motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port is paired with a dedicated protection filter that can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
