1. Supports Intel® Core 2™ multi-core and upcoming 45nm processors
  2. Support for 1600 MHz FSB.
  3. Dual DDR3 1600 memory with Intel® XMP , featuring faster speeds and performance tuning.
  4. High quality CPU power module with Ferrite Core Chokes, Lower RDS (on) MOSFETs and Lower ESR Solid Capacitors.
  5. Re-engineered Thermal Design featuring All Copper Silent-Pipe and Crazy Cool.
  6. Japanese manufactured SMD All Solid Capacitor motherboard design.
  7. Supports CrossFire™ with Dual PCI-E 2.0 x16 graphics for extreme gaming performance.
  8. Features SATA 3Gb/s with Quad eSATA 2 interface .
  9. ALC889A with DTS Connect enables high quality Full Rate Lossless Audio and support for both Blu-ray and HD DVD.
  10. Quad BIOS for an extended level of protection.
  11. Quad-Triple Phase Power Design for ultimate system stability.
  12. Dual Gigabit Ethernet LAN with Teaming functionality.
  13. Certified for Microsoft Vista® systems.
* Please refer "Memory Support List" for memory support information.
  • Introduction

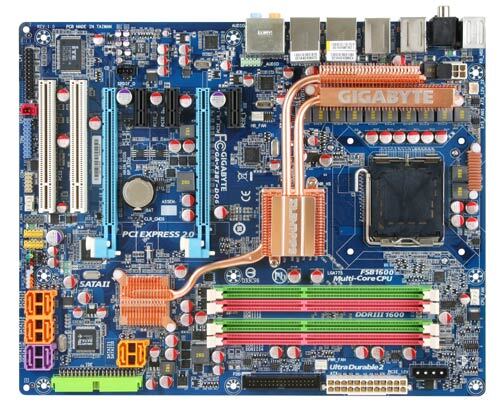

    Designed for enthusiasts with extreme over-clocking and blistering gaming performance in mind, the GIGABYTE GA-X38T-DQ6 is based on the killer combination of the newest Intel X38 chipset plus support for the latest multi-core processors up to FSB 1600MHz, including the Intel 45nm processors. GA-X38T-DQ6 supports DDR3 memory, a critical component for running next generation applications such as high-definition video and 3D visualizationIn addition, GA-X38T-DQ6 is CrossFire™ enabled with true dual PCI-E 2.0 x16 connectivity for the ultimate in extreme  gaming performance. Built tough to provide maximum stability, durability and performance for even the most hard-core gamers, the GA-X38T-DQ6 delivers several advanced GIGABYTE innovations including the Ultra Durable 2 design, featuring top quality electronic components which provide optimized power savings, ultra cooling and extended system durability.
  • Ultra Durable 2 -Designed with Top Quality Highly Efficient Components

    Ultra Durable 2

    Ultra Cooling - Low RDS(on) MOSFET Design
    Low RDS(on) MOSFETs specially designed to produce lower switching resistance for faster electric current charging and discharging.
    Ultra Cooling

    Low Power Loss - Ferrite Core Choke Design
    Ferrite core chokes comprised of a compound of iron oxide and other metal elements whose properties hold energy much longer than common iron core at high frequency.
    Low Power Loss






    Longer Life - All-Solid Capacitor Design
    Solid capacitors contain a solid organic polymer, while electrolytic capacitors use a common liquid electrolyte, hence, the terms solid capacitor versus electrolytic capacitors.
    Longer Life
  • پردازنده های 45 نانومتری Core 2 چند هسته ای اینتل
    مادربرد GA-EP41T-UD3L از آخرین پردازنده های اینتل با بیشترین میزان راندمان پشتیبانی می کند که ارائه دهنده بهینه ترین مصرف انرژی در بین پردازنده های حال حاضر هستند. با طراحی بر پایه ریز معماری اینتل، پردازنده های چند هسته ای اینتل با چهار هسته و دو کش L2 مشترک ارائه دهنده بیشترین میزان کارایی نسبت به میزان انرژی که مصرف می کنند هستند و یک گزینه مناسب برای کاربرانی به شمار می روند که به برنامه های چند رسانه ای و محیط های چند منظوره علاقه دارند. این پردازنده های جدید در مجموع راندمان بالا و مصرف انرژی بسیار کمی نسبت به دیگر مدل ها دارند.
  • Intel® X38 Express Chipset
    The Intel® X38 Express Chipsets support the latest multi-core processors with FSB 1600MHz, including the upcoming 45nm processors, with its record breaking performance and greater energy efficiency. Intel® X38 chipset, with optimized system memory capabilities, chipset over-speed protection removed for maximum overclocking, providing faster boot and application load times and additional power savings. Intel® X38 chipset also offer options for both DDR2 and DDR3 memory support, providing scalable options for users wanting to take advantage of higher memory performance with less power consumption to run next generation applications such as high-definition video and 3D visualization.
  • Qualified for Windows® 7
    The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
  • کوچک تر، سریع تر و کم مصرف تر
    مادربرد GA-G41M-Combo با پردازنده های 45 نانومتری اینتل ترکیب شده است و ارائه دهنده بهترین پیکره بندی برای انجام کارهای چند منظوره، چند رسانه ای و بازی های ویدئویی سنگین است. مادربردهای جدید گیگابایت که بر پایه چیپ ست Eaglelake تولید می شوند از جدیدترین نسل پردازنده های 45 نانومتری چند هسته ای اینتل پشتیبانی می کنند.
  • Windows Vista Premium Logo Certified
    Windows Vista Premium promises to deliver a streamlined computing experience designed to fundamentally change how users view, find and organize their digital information. With GIGABYTE AM2+/ AM2 solutions enabling support for Vista Premium, GIGABYTE offers a fresh and unique desktop experience that will be more informative, intuitive and completely new....more
  • Dual Channel DDR3 1800 ‏(O.C.)‏
    Experience maximum system performance with next generation DDR3 1800 (O.C.) memory technology, featuring higher bandwidth and increasing performance with lower power consumption.
  • PCI-E 2.0 Interface
    PCI-E 2.0 doubles the bus standard's bandwidth from 2.5 Gbit/s to 5 Gbit/s, meaning a x32 connector can transfer data at up to 16 GB/s in each direction. PCIE 2.0 also features improvements to the point-to-point data transfer protocol and its software architecture.
  • SATA 3Gb/s storage interface
    در این نوع رابط SATA پهنای باند درگاه دو برابر شده و از 1.5Gb/s به 3Gb/s افزایش یافته است. در رابط SATA 3Gb/s پهنای باند افزایش پیدا کرده است و می توان چند ابزار را همزمان به آن متصل کرد در حالی که بیشترین کارایی را داشته باشند. همچنین میزان کش در پیکره بندی یک ابزار بیشتر خواهد بود.
  • IEEE1394 motherboard
    This motherboard with IEEE1394 FireWire interface from Texas Instruments (TI). With the transfer speed up to 400Mb/s, the new generation IEEE1394 interface further enhances PC connectivity with consumer electronics audio/video.
  • ALC889A with DTS Connect Enables a Superior Audio Experience



    Excellent Audio Performance
    High-performance DAC (Digital-Analog Converter) with 106 dB Signal-to-Noise ratio playback quality, designed especially for Windows Vista Premium PCs.




    Blu-ray Full Rate Audio Support
    The ALC889A enables high quality Full Rate Lossless Audio for content protected media and support Blu-ray formats for an exhilarating home theater entertainment experience.

    7.1+2 Channel High Definition Output
    The ALC889A provides support for 7.1 sound playback, plus 2 channels of independent stereo output (multiple streaming) through the front panel stereo outputs.
  • Multi-display support with ATI CrossFireX
    مادربرد H55M-D2H از فن آوری ATI CrossFireX پشتیبانی می کند و ارائه دهنده توان گرافیکی بالایی برای علاقه مندان به بازی های کامپیوتری است. این مادربرد این توانایی را دارد که نرخ فریم بالایی را ارئه کند در حالی که کیفیت تصاویر کاهش پیدا نکند. (H55M-D2H فقط از ATI CrossFireX نرم افزاری پشتیبانی می کند)
    (H55M-D2H support software ATI CrossFireX only)
  • Intel® Matrix Storage Technology
    Intel® Matrix Storage Technology, can deliver up to 80% faster storage performance with PCs equipped with two hard drives using RAID 0 data striping. Using RAID 1 data mirroring can protect against a hard drive failure by mirroring all data among two hard drives. In addition RAID 5 offers the fault-tolerant capability to automatically back up your most important files, while also providing faster disk access and adding storage capacity.
  • Doubles the bandwidth
    The GA-X48-DS4 with Teaming functionality enabled allows the 2 single connections to act as a single connection for twice the bandwidth, improving overall throughput with lower CPU utilization.

    Network fault tolerance
    Prevents network downtime by transferring the workload from a failed port to a working port.
  • اتصال LAN گیگابیت
    رابط شبکه گیگابیت ارائه دهنده یک اتصال LAN پر سرعت با سرعت انتقال داده برابر با 1000Mb/s است که یک نسل جدید در پهنای باند اتصال ها به شمار می رود. اتصال LAN گیگابیت یک گزینه مناسب برای اتصال اینترنتی یکپارچه مثل محتویات صوتی و تصویری جریانی به شمار می رود.
  • RoHS compliant
    As a member of the global community to look after the environment, Gigabyte complies with the European Union's Restriction of use of certain Hazardous Substances (RoHS) directive which limits the use of lead, mercury, cadmium and other hazardous substances in electronic products. From components and material selection to production processes, make up of accessories, packaging/color boxes etc; GIGABYTE has carefully examined and designed this product to be 100% RoHS compliant. GIGABYTE will continue to develop RoHS compliant PC components and commit valuable resources to promoting and advancing RoHS directive goals and objectives.
  • Quad BIOS
    Quad BIOS is a feature unique to GIGABYTE that includes DualBIOS™ and Express BIOS Rescue Technology. This combination delivers a safety assurance mechanism that sports a total of 4 copies of BIOS distributed between the Flash ROM, hard-disk and driver CD. This feature helps to reduce the affects of virus attacks or firmware damage and provides multi-layer BIOS protection that assures greater PC platform stability. How does Quad BIOS work?
  • Quad Cooling
    This revolutionary cooling design combines Crazy Cool and Silent-Pipe technology that includes heat sinks covering MOSFET modules, the north bridge and the south bridge. Additionally, the Crazy Cool enhances heat dissipation of the rear side of CPU and north bridge of the motherboard. Quad Cooling allows users to enjoy longer component lifetime through lower temperatures and absolute silence combined with the ultimate thermal performance on chipsets, CPU power components and the PCB.
  • Quad e-SATA2
    Four sets of external SATA ports based on the Serial ATA 3Gb/s storage specification allow effortless sharing and transfer of entertainment content and digital media on external devices. Designed for external SATA devices, Quad eSATA 2 delivers enhanced scalability and double the bus bandwidth for high-speed data retrieval and saving On-The-Go.
  • Quad Triple Phase
    An exclusive feature found only on GIGABYTE motherboards, this unique design incorporates Virtual 12 Power Phases to deliver steadier power and immediate current support for the CPU during heavy work loads or over-clocking. Additionally, Quad-Triple Phase helps to improve component lifespan system stability by delivering lower component temperature.
  • Quad-Core Optimized
    GIGABYTE has implemented optimized Quad-Core FSB routing and a Quad-Triple phase power design to ensure the highest levels of performance and stability from Quad-Core processors. With 4 cores and 2 shared L2 caches, Quad-Core processors provide the industry's best capability-per-watt solutions, delivering significant performance boosts and extended energy efficiency, making them the ideal choice for multi-media enthusiasts and intensive multi-tasking environments.
  • Silent-Pipe
    The revolutionary Silent-Pipe Technology compliant GIGABYTE motherboards featuring 0dB soundless heat-pipe thermal cooling solution,enhances heat dissipation efficiency from the critical Chipsets and CPU power components...more
  • CrossFire™
    With support for CrossFire™, GIGABYTE pushes the envelope once again by delivering highly optimized performance and flexibility demanded by power users and extreme gaming enthusiasts. Designed to provide unmatched multi-GPU support with dual PCI Express connectivity, the GA-X38T-DQ6 allows users to take advantage of the ultra smooth 3D rendering, blazing-fast frame rates and enhanced visual quality possible with a dual graphics card solution.
  • Speed
    The Speed compliant motherboards of GIGABYTE S-series provide intelligent over-clocking and over-voltage software settings through both hardware and software design...more
  • Smart
    The Smart featured motherboards of GIGABYTE S-series provide GIGABYTE proprietary innovative software such as Download Center, @BIOS, Q-Flash, Xpress Install, Boot menu, and Smart Fan. BIOS and driver management now becomes much easier and user friendly through GIGABYTE Smart features!...more
  • Safe
    Safe is the key feature of GIGABYTE S-series motherboards with the following elements: Excellent hardware design reinforced BIOS protection through GIGABYTE Virtual Dual BIOS Technology and GIGABYTE BIOS Setting Recovery Technology. Unique system software such as Xpress Recovery 2, PC Health Monitor, HDD S.M.A.R.T., and C.O.M. further strengthen the stability and reliability of your PC!...more

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* کلیه موارد ارایه شده در این صفحه تنها مربوط به نوع مرجع می باشد. گیگابایت حق تغییر یا تجدید نظر محتویات را در هر لحظه و بدون اطلاع قبلی دارد.
* کارایی ارایه شده بر اساس مقادیر حداکثر نظری رابط است که توسط فروشنده چیپ ست یا سازمان هایی که مشخصات رابط را تعیین کردند، ارائه شده است. کارایی واقعی ممکن است بنا بر پیکربندی سیستم متفاوت باشد.
* کلیه لوگو ها و آرم های ثبت شده تحت مالکیت مالکین مربوطه آن ها قرار دارد.
* با توجه به معماری استاندارد رایانه های شخصی، مقدار مشخصی از حافظه جهت استفاده درونی سیستم درنظر گرفته می شود و طبیعتا مقدار واقعی حافظه سیستم کم تر از مقدار اظهار شده خواهد بود.
