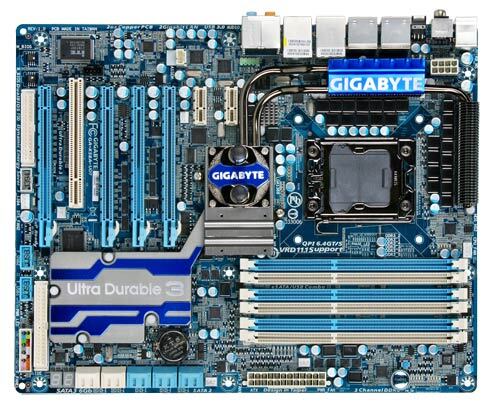

GA-X58A-UD7 (rev. 1.0)

"Gigabyte puts "durable" in the name of the motherboard and has designed its systems for higher efficiency to keep temperatures down. At 24 phases, the Gigabyte X58A-UD7 had the highest efficiency at overclocked current levels of 100A and above"
"The best overclocking board, the Gigabyte X58A-UD5 turned out to be more stable with our processor at the highest speed measured, allowing for a 4.426GHz clock with air cooling. Overall, this board had a good showing in the transient testing, one of the highest efficiencies over the whole useful range, and gave the best overclocking results, so it is the clear winner of this test." To see issue 9 of the overclocker,
please visit: (page 12-33): THE OVERCLOCKER MAG

GIGABYTE's entire line of X58-based motherboards are ready to support the new generation of Intel 32nm 6-core processors, delivering the very best platform for multitasking, multimedia and high performance gaming.

The GIGABYTE AMD 800A series motherboards support the latest generation SuperSpeed USB 3.0 technology made possible through an onboard NEC uPD720200 host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. The onboard NEC SuperSpeed USB 3.0 technology also provides new power management features that include increased maximum bus power and device current draw to better accommodate power-hungry devices.

Yet another onboard feature of GIGABYTE motherboards are Marvell's SE9128 chips for high-speed SATA Revision 3.0 compatibility, delivering superfast 6Gbps link speeds for twice the data transfer rates of SATA Revision 2.0 (3 Gbps). When used in RAID 0 (Stripe) mode, GIGABYTE motherboards offer even faster data transfer rates of up to 4x the speed of current SATA interfaces.

* SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.
* SATA3 SSDs are not recommended for use in RAID 0 mode on Marvell SE9128 ports.

GIGABYTE独自の「3倍USB電源」技術は、USBデバイスが必要とする電源を約3倍速で供給する技術です。独自で設計したUSB電源設計が電圧範囲におけるアウトプットを調整し、低抵抗の専用ヒューズが電圧降下の値を低く保つため、より安定的に電力をデバイスに送ることができます。

GIGABYTE Dynamic Energy Saver™ 2 incorporates a host of intelligent features that use a proprietary hardware and software design to considerably enhance PC system energy efficiency, Reduce power consumption and deliver optimized auto-phase-switching for the CPU, Memory, Chipset, VGA, HDD, and fans with a simple click of button.

GIGABYTE Cloud OCは完全に新しいアプリケーションであり、インターネットブラウザ搭載のデバイスによりLAN、無線LANまたはBluetooth経由でシステムをオーバークロックできます。...詳細はこちら

GIGABYTE Hotkey OCは、GIGABYTEのEasyTune6アプリケーションで保存されるプロファイルを利用し、オーバークロックができる機能です。キーボードで簡単にあらかじめ保存した設定に変えることができる便利な機能です。...詳細はこちら

AutoGreen技術は、あなたのブルートゥース携帯電話で自動的にPCのパワーを節約する機能です。
注意: GIGABYTE マザーボードはBluetooth^® レシーバーが含まれていません。別途 Bluetooth レシーバーが必要です。

Accelerating system performance is made easy with the user friendly GIGABYTE eXtreme Hard Drive (X.H.D). GIGABYTE eXtreme Hard Drive (X.H.D) provides a quick and easy way to boost your hard drive performance simply by adding another hard drive.

Intel^® Core™ i7 Processors feature triple channel DDR3 support
Intel Core™ i7 processors feature the memory controller integrated directly into the processor die, rather than as part of the Northbridge as in previous generations, allowing for faster memory performance. Core™ i7 processors also provide additional memory support including.

Replacing the role of FSB
Intel uses the QPI to connect internal components of Core™ i7 processors , and to connect the CPU itself to the Northbridge and banks of memory.

QPI delivers:
Up to 25.6GB/sec of bandwidth between Core™ i7 processors and the rest of the system,providing exactly double the bandwidth of 1600 Hz FSB

Dynamically reroutes power to improve performance For situations when all cores are not needed for a particular workload, Intel Turbo Boost Technology powers down the idle cores and dynamically reroutes the power to the active cores, boosting their performance without wasting power. This allows the active cores to achieve significant overclocks.

GA-X58A-UD7 motherboard now features the revolutionary new GIGABYTE Hybrid Silent-Pipe 2, a fusion thermal solution that combines GIGABYTE's proprietary screen cooling technology, external heat sink and liquid cooling with chipset water block to deliver maximum thermal performance.

• Unique Screen Cooling thermal design effectively reduces the temperature around the CPU zone, and removes the heat between NB and SB area.
• Liquid Cooling system featuring special waterblock design with an enlarged dissipating surface area for enhanced heat dissipation and optimum flow-rate.
• High-Precision die forming technology utilized to increase the thermal conductivity of the material that makes up the heat sink.
• High performance Copper Heat Pipe with sintered process designed for ultra efficient thermal conductivity.
• External Heat Sink design utilizing a convection slot at the back of the chassis to increase thermal dissipation.

Flexible graphics capabilities - Up to 3 VGA cards are supported for either 3 way CrossFireX™ or 3 way SLI™ action, delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

GIGABYTE Quick Boost provides 3 levels of CPU performance enhancement; a simple click on the desired level delivers quick and effortless overclocking for novice and experienced users alike.

CPUとメモリーを簡単にオーバークロックできるユーティリティソフト。ソフトウエア上でのオーバークロックのため、BIOSより安全にオーバークロックが行えます。また、装備したビデオカードのコアクロックとメモリークロックを変更することも可能です。

DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.

High Velocity 2X Bandwidth Boost

GIGABYTE Hardware Overvoltage Control ICs featuring more voltage control options than before for the CPU North Bridge and memory. The overvoltage controllers also provide hardware linear real-time voltage control, which means there is no delay compared to the GPIO controller in past implementations. In addition, GIGABYTE's Hardware Overvoltage Controller ICs also allow for much finer voltage control, allowing power users to adjust voltage in as little increments as 20mV for better overclocking performance.

Debug LEDEmbedded post code LED display simplifies motherboard signals and indicates system status

4 sets of OV-Alert LEDs indicate the overvoltage level of the CPU, Memory, North Bridge and South Bridge to prevent component damage.

OC-Alert LED indicates the level of CPU overclock from low to high.

Two sets of Temperature Alert LEDs indicate the current temperature level of the CPU and North Bridge

Dolby Home Theater places listeners in the middle of the action, giving their PCs a powerful set of tools to deliver a cinema-style experience in vivid surround sound.

• Delivers vivid surround sound for music, movies, and games, using two to eight speakers or any set of headphones
• Designed to automatically deliver the best possible listening experience

ErP（エネルギーに関連する商品全般を対象に環境配慮設計を義務付けるもの）で新しく設立されたヨーロッパ連合の環境規制法規です。ErPは電化製品の消費電力の効率性の向上環境への配慮を目的として設立されました。GIGABYTEのマザーボード製品は高性能システムと同時に省エネを実現したマザーボードです。

GIGABYTE Ultra Durable motherboards are equipped with solid capacitors developed by leading Japanese manufacturers. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games...more


* 50000 hours of work time is calculated at 85℃ ambient temperature.

パソコンが電源オフ状態でもUSB機器に電源を供給することができます。また、充電時間が最大で40％短縮することもできます（弊社調べ）...詳細はこちら
*携帯電話の機種によっては、クイック充電を有効にするためには、PCがS4/S5モードに入る前に携帯電話をPCに接続する必要があります。 充電時間は機種によって異なります。
