• World's Most Advanced Visual Computing Accelerator

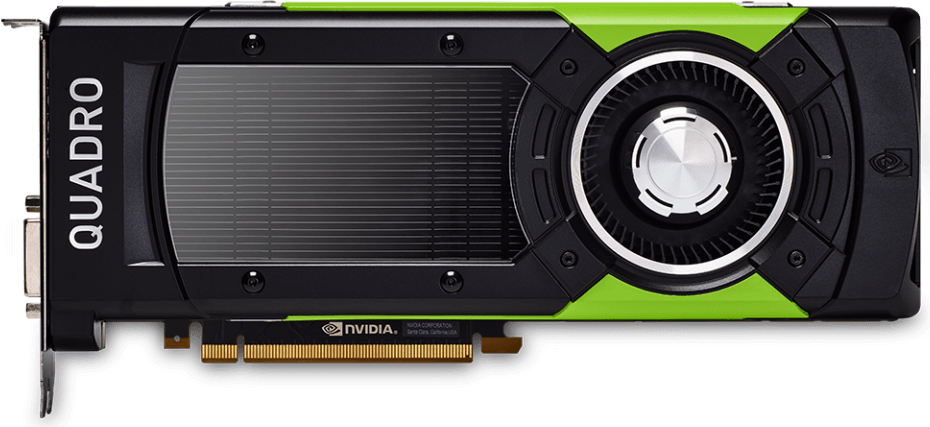

    The NVIDIA Quadro GP100, powered by Pascal GPU architecture, is equipped with the most advanced visualization and simulation capabilities to meet the needs of the most demanding professional workflows.

    A single GP100 with 3584 CUDA cores has incredible horsepower to render photorealistic design concepts interactively, create extremely detailed 3D models, run intensive CAE simulations to validate designs, and evaluate design prototypes in immersive VR. You can even connect two GP100 boards with NVIDIA NVLink™ technology to scale performance with an amazing 32 GB of combined HBM2 ultra-high bandwidth memory.

    The GP100 is an excellent choice for developers who want to tap into the power of NVLink and Unified Memory to maximize their application performance. Additionally, its fast FP16 performance makes it an ideal desktop workstation solution for developers working on the latest Deep Learning/AI algorithms and frameworks.

    Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists. This gives you the peace of mind to focus on doing your best work. Whether you're developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.



  • 3D Graphics Architecture
    • Scalable geometry architecture
    • Hardware tessellation engine
    • NVIDIA GigaThread engine with dual copy engines
    • Shader Model 5.1 (OpenGL 4.5 and DirectX 12)
    • Up to 32K x 32K texture and render processing
    • Transparent multisampling and super sampling
    • 16x angle independent anisotropic filtering
    • 32-bit per-component floating point texture filtering and blending
    • 64x full scene antialiasing (FSAA)/128x FSAA in SLI Mode
    • Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
    • Dedicated H.264 & HEVC Encoder
    • Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)
    • NVIDIA GPU Boost 3.0 (Automatically improves GPU engine throughput to maximize application performance)

  • NVIDIA CUDA Parallel Processing Architecture
    • Pascal SM Architecture (streaming multi-processor design that delivers greater processing efficiency)
    • Dynamic Parallelism (GPU dynamically spawns new threads without going back to the CPU)
    • Mixed-precision (16-, 32- and 64-bit) computing
    • API support includes: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
    • Error correction codes (ECC) on graphics memory
    • 64 KB of RAM (dedicated shared memory per SM)
  • Advanced Display Features
    • Support for any combination of four connected displays
    • Four DisplayPort 1.4 outputs supporting resolutions such as 3840 x 2160 at 120Hz and 5120 x 2880 at 60Hz
    • DVI-D Dual Link output (up to 2560 x 1600 at 60Hz and 1920 x 1200 at 120Hz), internal 400 MHz DAC DVI-D output (analog display up to 2048 x 1536 at 85Hz)
    • DisplayPort to VGA, DisplayPort to DVI (single-link and dual-link) and DisplayPort to HDMI adapters optionally available (resolution support based on dongle specifications)
    • HDR support over DisplayPort 1.4 (SMPTE 2084/2086, BT. 2020) (4K at 60Hz 10b/12b HEVC Decode, 4K at 60Hz 10b HEVC Encode)
    • HDCP 2.2 support over DisplayPort, DVI and HDMI connectors
    • 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications and connection)
    • NVIDIA 3D Vision technology, 3D DLP, Interleaved, and other 3D stereo format support
    • Full OpenGL quad buffered stereo support
    • Underscan/overscan compensation and hardware scaling
    • NVIDIA NVIEW multi-display technology
    • Support for large-scale, ultra-high resolution visualization using the NVIDIA SVS platform which includes NVIDIA MOSAIC, NVIDIA Quadro Sync II and NVIDIA Warp/Blend technologies




  • DisplayPort and HDMI Digital Audio
    • Support for the following audio modes: Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
    • Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, and 192 KHz
    • Word sizes of 16-bit, 20-bit, and 24-bit
    1. This feature requires implementation by software applications and is not a stand-alone utility. Please contact quadrohelp@nvidia.com for details on availability.
