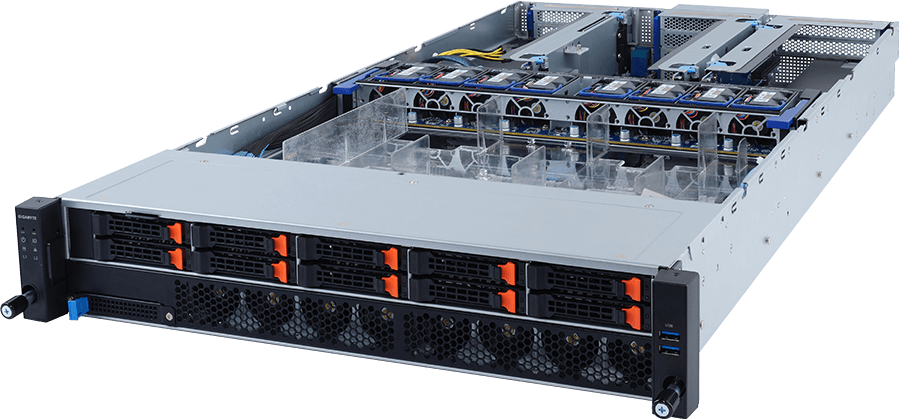

R292-4S0

4-Way Rack Server - 3rd Gen Intel® Xeon® Scalable - 2U QP 4 x PCIe Gen3 GPUs
  • Supports up to 4 x Dual slot Gen3 GPUs
  • Quad 3rd Gen Intel® Xeon® Scalable Processors
  • 6-Channel DDR4 RDIMM/LRDIMM, 48 x DIMMs
  • Supports Intel® Optane™ Persistent Memory 200 series
  • 2 x 10Gb/s LAN ports via Intel® X710-AT2
  • 10 x 2.5" Gen3 NVMe/SAS/SATA hot-swappable bays
  • 1 x M.2 slot with PCIe Gen3 x2 interface
  • 6 x FHFL PCIe Gen3 x16 slots
  • 1 x OCP 3.0 Gen3 x16 slot on the front side
  • Dual 3200W 80 PLUS Platinum redundant power supply
Get a Quote
* Semua bahan yang tersedia disini adalah hanya untuk referensi. GIGABYTE berhak merubah atau merevisi isi sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
* Semua logo dan merek dagang adalah hak cipta dari masing-masing pemegangnya.
* Sehubungan dengan rancangan standar PC, sebagian jumlah memori dicadangkan untuk penggunaan sistem sehingga ukuran memori yang sesungguhnya lebih kecil dari yang disebutkan.

SPECIFICATIONS

Dimensions (WxHxD, mm)
2U
438 x 87.5 x 858
Motherboard
MRQ2-4S0
CPU
3rd Generation Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum 8300 Processors
Intel® Xeon® Gold 6300 Processors
6 UPI Links per processor
Quad processor, TDP up to 165W
Socket
4 x LGA 4189
Socket P5
Chipset
Intel® C621A
Memory
Total 48 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
Supports Intel® Optane™ Persistent Memory 200 series
1.2V modules: 3200 (1DPC)/2933 (2DPC) MT/s
LAN
Rear side:
2 x 10Gb/s LAN ports (1 x Intel® X710-AT2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
- 1 x VGA port
Storage
Front side:
10 x 2.5" Gen3 NVMe/SAS/SATA hot-swappable bays

SAS card is required for SAS devices support
SATA
Supported
SAS
Depends on SAS add-in cards
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
Supports 4 x FHFL Dual slot GPUs or 6 x FHFL PCIe HBAs

Riser Card CRS202A:
- 2 x PCIe x16 (Gen3 x16) FHFL slots, from CPU_0 and CPU_1

Riser Card CRS2040:
- 2 x PCIe x16 (Gen3 x16) FHFL slots, from CPU_0 and CPU_3

Riser Card CRS2029:
- 2 x PCIe x16 (Gen3 x16) FHFL slots, from CPU_2 and CPU_3

1 x OCP 3.0 slot with PCIe Gen3 x16 bandwidth (Supports OCP 3.0 SFF standard), from CPU_1

1 x M.2 slot:
- M-key
- PCIe Gen3 x2, from PCH
- Supports 2280 cards
Internal I/O
1 x TPM header
1 x VROC connector
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
2 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
Power Supply
Dual 3200W 80 PLUS Platinum redundant power supply

AC Input:
- 100-127V~/ 14A, 50/60Hz
- 200-208V~/ 16A, 50/60Hz
- 214-234V~/ 16A, 50/60Hz
- 240V~/ 16A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 16A

DC Output:
- Max 1106W/ 100-127V~
+12.3V/ 87A
+12Vsb/ 3A
- Max 2434W/ 200-208V~
+12.3V/ 195A
+12Vsb/ 3A
- Max 2828W/ 214-234V~
+12.3V/ 227A
+12Vsb/ 3A
- Max 3234W/ 240V~ or 240Vdc Input
+12.3V/ 260A
+12Vsb/ 3A

Note: The system power supply requires C19 power cord.
Note: 1+1 3000W redundant supported if without GPU card installed.
System Management
Aspeed® AST2500 Baseboard Management Controller
Avocent® MergePoint IPMI 2.0 web interface:

  • Network settings
  • Network security settings
  • Hardware information
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Fan profiles
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (HTML5)
OS Compatibility
System Fans
16 x 40x40x56mm (29,000rpm)
1 x 80x80x38mm (16,300rpm)
Operating Properties
*Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

*Please contact GIGABYTE technical support for optimized temperature if installed with 4 x GPUs.
Packaging Dimensions
1177 x 670 x 291 mm
Packaging Content
1 x R292-4S0
4 x CPU heatsinks
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR2924S0MR-00-1*
- Motherboard: 9MRQ24S0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-243104-C1R
- M.2 heatsink: 12SP2-080027-00R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP10A5: 9CBP10A5NR-00
- Fan module: 25ST2-405624-A0R
- Fan module: 25ST2-405625-A0R
- Fan module: 25ST2-405626-A0R
- Fan module: 25ST2-405627-A0R
- Fan module: 25ST2-883827-D0R
- Riser card - CRS202A: 9CRS202ANR-00
- Riser card - CRS2040: 9CRS2040NR-00
- Riser card - CRS2029: 9CRS2029NR-00
- Power supply: 25EP0-232002-D0S

Optional parts:

- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
