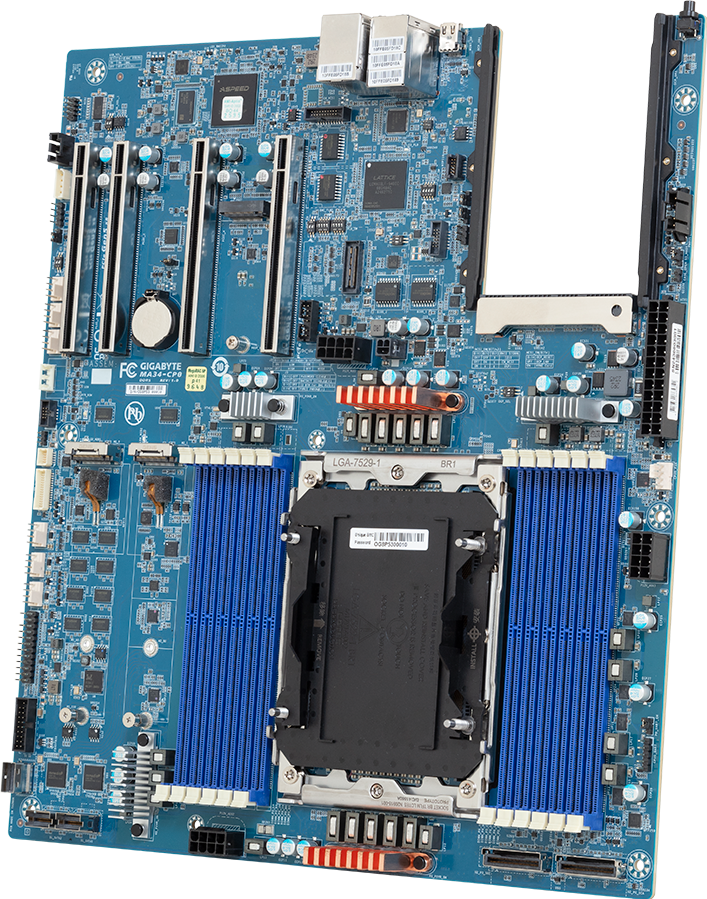

MA34-CP0
Motherboard - Intel® Xeon® 6 Processors - E-ATX UP
- Single Intel® Xeon® 6 Processors, LGA 7529
- 12-Channel DDR5 RDIMM / MRDIMM, 12 x DIMMs
- Dual ROM Architecture
- 2 x 1Gb/s LAN ports via Intel® I210-AT
- 2 x MCIO 8i connectors with PCIe Gen5 x8 interface
- 3 x SlimSAS connectors for 12 x SATA 6Gb/s
- 2 x M.2 slots with PCIe Gen5 x2 interface
- 4 x PCIe Gen5 x16 and x8 expansion slots
- 1 x OCP NIC 3.0 PCIe Gen5 x16 slot
* Les informations ici proposées le sont pour référence uniquement. GIGABYTE se réserve le droit de modifier ce contenu à tout moment et sans préavis.
* Marques et logos appartiennent aux détenteurs respectifs de leurs droits.
* L'architecture de grand nombre de PC affectera directement la capacité mémoire, en effet, une certaine quantité de RAM sera affectée au système, la quantité totale affichée pourra alors varier de celle insérée sur votre carte mère
* Marques et logos appartiennent aux détenteurs respectifs de leurs droits.
* L'architecture de grand nombre de PC affectera directement la capacité mémoire, en effet, une certaine quantité de RAM sera affectée au système, la quantité totale affichée pourra alors varier de celle insérée sur votre carte mère
SPECIFICATIONS
Form Factor (WxD, mm)
E-ATX
304.8 x 335.2
304.8 x 335.2
CPU
Intel® Xeon® 6 Processors
- Intel® Xeon® 6900 Series Processors
Single processor, TDP up to 500W
- Intel® Xeon® 6900 Series Processors
Single processor, TDP up to 500W
Socket
1 x LGA 7529
Socket BR
Socket BR
Chipset
System on Chip
Memory
12 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
MRDIMM supported [1]
RDIMM: Up to 6400 MT/s
MRDIMM: Up to 8800 MT/s
[1] MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores.
DDR5 memory supported
12-Channel memory architecture
MRDIMM supported [1]
RDIMM: Up to 6400 MT/s
MRDIMM: Up to 8800 MT/s
[1] MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores.
LAN
2 x 1Gb/s LAN (2 x Intel® I210-AT)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x Mini-DP
- 1 x Mini-DP
Audio
N/A
Storage Interface
MCIO:
2 x MCIO 8i for 4 x Gen5 NVMe
SlimSAS:
3 x SlimSAS 4i for 12 x SATA 6Gb/s
M.2:
1 x M.2 (2280/22110), PCIe Gen5 x2
1 x M.2 (2280/22110), PCIe Gen5 x2
2 x MCIO 8i for 4 x Gen5 NVMe
SlimSAS:
3 x SlimSAS 4i for 12 x SATA 6Gb/s
M.2:
1 x M.2 (2280/22110), PCIe Gen5 x2
1 x M.2 (2280/22110), PCIe Gen5 x2
RAID
Onboard VROC key header
PCIe Expansion Slots
Slot_6: PCIe x16 (Gen5 x16)
Slot_4: PCIe x16 (Gen5 x16)
Slot_2: PCIe x16 (Gen5 x16 or x8), shared with Slot_1
Slot_1: PCIe x16 (Gen5 x8)
1 x OCP NIC 3.0 slot (Gen5 x16)
- Supports NCSI function
2 x MCIO 8i (Gen5 x8)
Slot_4: PCIe x16 (Gen5 x16)
Slot_2: PCIe x16 (Gen5 x16 or x8), shared with Slot_1
Slot_1: PCIe x16 (Gen5 x8)
1 x OCP NIC 3.0 slot (Gen5 x16)
- Supports NCSI function
2 x MCIO 8i (Gen5 x8)
Internal I/O
1 x 24-pin ATX main power connector
3 x 8-pin ATX 12V power connectors
1 x 4-pin 12V standby power connector
1 x CPU fan header
6 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x USB 2.0 header for BMC
2 x M.2 slots
2 x MCIO 8i connectors
3 x SlimSAS connectors
1 x VROC connector
1 x NCSI connector
1 x Front panel header
1 x Backplane board header
1 x COM header
1 x PMBus header
1 x IPMB header
1 x TPM header
1 x PRoT connector (only enabled on RoT SKU)
3 x 8-pin ATX 12V power connectors
1 x 4-pin 12V standby power connector
1 x CPU fan header
6 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x USB 2.0 header for BMC
2 x M.2 slots
2 x MCIO 8i connectors
3 x SlimSAS connectors
1 x VROC connector
1 x NCSI connector
1 x Front panel header
1 x Backplane board header
1 x COM header
1 x PMBus header
1 x IPMB header
1 x TPM header
1 x PRoT connector (only enabled on RoT SKU)
Rear I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012
1 x PRoT connector (only enabled on RoT SKU)
- Optional TPM2.0 kit: CTM012
1 x PRoT connector (only enabled on RoT SKU)
OS Supported
Please refer to OS compatibility table in support page
Board Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
PSU Connectors
1 x 24-pin ATX main power connector
3 x 8-pin ATX 12V power connectors
1 x 4-pin 12V standby power connector
3 x 8-pin ATX 12V power connectors
1 x 4-pin 12V standby power connector
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x MA34-CP0
1 x I/O shield
1 x Quick start guide
1 x Carrier
1 x SlimSAS to 4 x SATA 6Gb/s cable (600mm)
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton
1 x I/O shield
1 x Quick start guide
1 x Carrier
1 x SlimSAS to 4 x SATA 6Gb/s cable (600mm)
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content
10 x MA34-CP0
10 x I/O shields
30 x Carriers
Carton dimensions: 600 x 473 x 517 mm
10 x I/O shields
30 x Carriers
Carton dimensions: 600 x 473 x 517 mm
Reference Numbers
Retail: 9MA34CP0MR-000-1*
Bulk: 9MA34CP0NR-000-1*
Part Numbers:
- I/O shield: 12AIO-MA34CP-00R
- SlimSAS to 4 x SATA cable (600mm): 25CFM-600700-A4R
Bulk: 9MA34CP0NR-000-1*
Part Numbers:
- I/O shield: 12AIO-MA34CP-00R
- SlimSAS to 4 x SATA cable (600mm): 25CFM-600700-A4R
