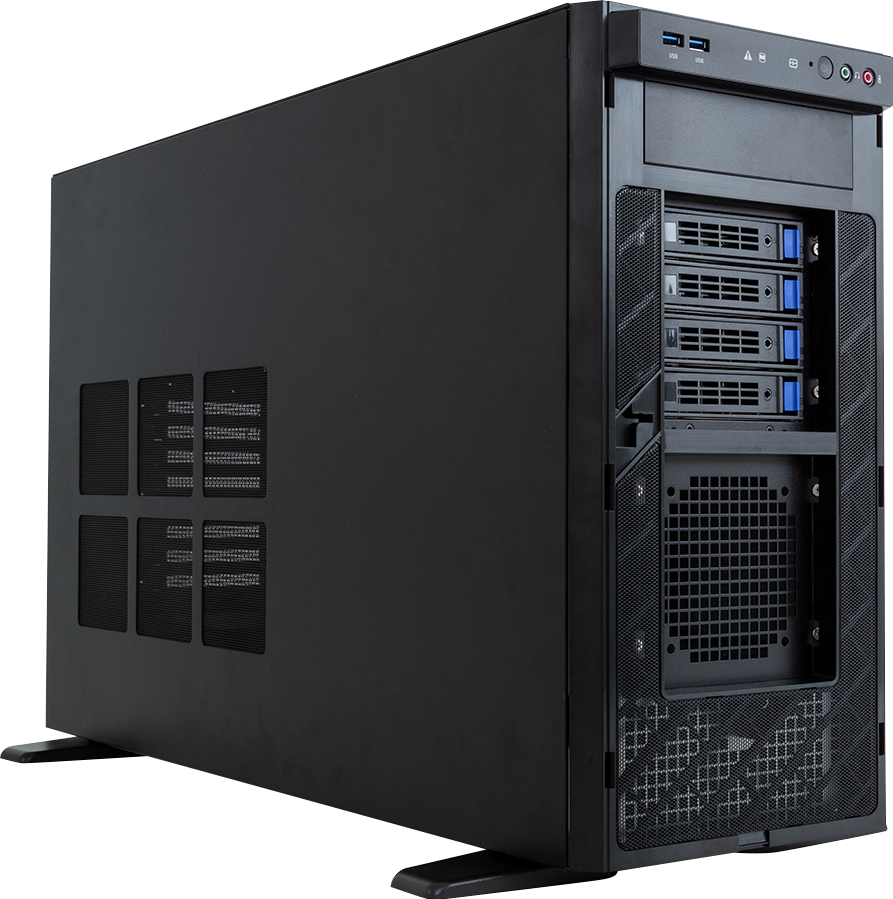

W753-W50-AA01
GPU Workstation - Intel® Xeon® W-2500/2400 - UP 2 x PCIe Gen5 GPUs
- Supports up to 2 x Dual slot Gen5 GPUs
- Single Intel® Xeon® W-2500/2400 Processors
- 4-Channel DDR5 RDIMM/3DS-RDIMM, 8 x DIMMs
- Intel® W790 Chipset
- 2 x 2.5Gb/s LAN ports via Intel® I226-LM
- 3 x M.2 slots with PCIe Gen4 x4 interface
- Up to 8 x 3.5"/2.5" SATA bays
- 4 x PCIe Gen5 x16 slots
- 1 x PCIe Gen3 x4 slot
- Single 1200W ATX 80 PLUS Platinum power supply
* Les informations ici proposées le sont pour référence uniquement. GIGABYTE se réserve le droit de modifier ce contenu à tout moment et sans préavis.
* Marques et logos appartiennent aux détenteurs respectifs de leurs droits.
* L'architecture de grand nombre de PC affectera directement la capacité mémoire, en effet, une certaine quantité de RAM sera affectée au système, la quantité totale affichée pourra alors varier de celle insérée sur votre carte mère
* Marques et logos appartiennent aux détenteurs respectifs de leurs droits.
* L'architecture de grand nombre de PC affectera directement la capacité mémoire, en effet, une certaine quantité de RAM sera affectée au système, la quantité totale affichée pourra alors varier de celle insérée sur votre carte mère
SPECIFICATIONS
Dimensions (WxHxD, mm)
Pedestal
218 x 455 x 726.3
218 x 455 x 726.3

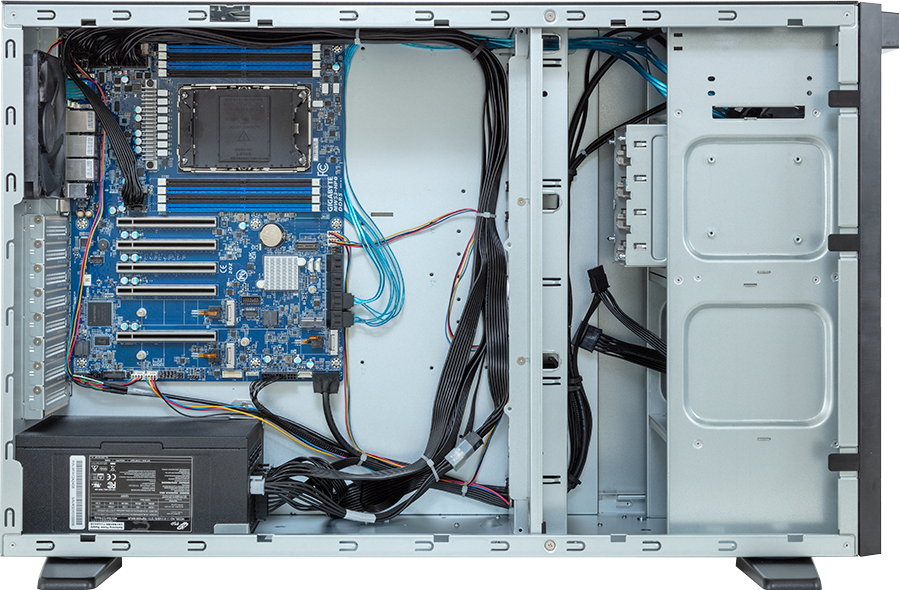

Motherboard
MW53-HP0
CPU
Intel® Xeon® W-2500 Processors
Intel® Xeon® W-2400 Processors
Single processor, TDP up to 250W
Intel® Xeon® W-2400 Processors
Single processor, TDP up to 250W
Socket
1 x LGA 4677
Socket E
Socket E
Chipset
Intel® W790
Memory
8 x DIMM slots
DDR5 memory supported only
4-channel memory architecture
RDIMM up to 64GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Note: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0.
DDR5 memory supported only
4-channel memory architecture
RDIMM up to 64GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Note: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0.
LAN
2 x 2.5Gb/s LAN ports (2 x Intel® I226-LM)
1 x 10/100/1000 Mbps Management LAN
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x VGA port
- 1 x VGA port
Audio
Realtek® ALC897 HD Audio Codec
Supports 2/4/5.1/7.1 channel configurations
Rear 3 x Audio jacks (Audio in/Audio out/Mic)
Front 2 x Audio jacks (Audio out/Mic)
Supports 2/4/5.1/7.1 channel configurations
Rear 3 x Audio jacks (Audio in/Audio out/Mic)
Front 2 x Audio jacks (Audio out/Mic)
Storage
4 x 3.5"/2.5" SATA bays
Optional 4 x 3.5"/2.5" SATA bays
Note: Storage card is required to support NVMe and SAS drives.
Optional 4 x 3.5"/2.5" SATA bays
Note: Storage card is required to support NVMe and SAS drives.
RAID
Intel® SATA RAID 0/1/10/5
Peripheral Drives
5.25" space reserved for ODD device
Expansion Slots
Slot_7: PCIe x16 (Gen5 x16) slot, from CPU
Slot_6: PCIe x16 (Gen5 x16) slot, from CPU
Slot_5: PCIe x16 (Gen5 x16) slot, from CPU
Slot_4: PCIe x16 (Gen5 x16) slot, from CPU
Slot_2: PCIe x16 (Gen3 x4) slot, from PCH
3 x M.2 slots for storage:
- M-key
- PCIe Gen4 x4, from PCH
- Support 2280 cards
Slot_6: PCIe x16 (Gen5 x16) slot, from CPU
Slot_5: PCIe x16 (Gen5 x16) slot, from CPU
Slot_4: PCIe x16 (Gen5 x16) slot, from CPU
Slot_2: PCIe x16 (Gen3 x4) slot, from PCH
3 x M.2 slots for storage:
- M-key
- PCIe Gen4 x4, from PCH
- Support 2280 cards
Internal I/O
1 x TPM header
1 x VROC connector
1 x VROC connector

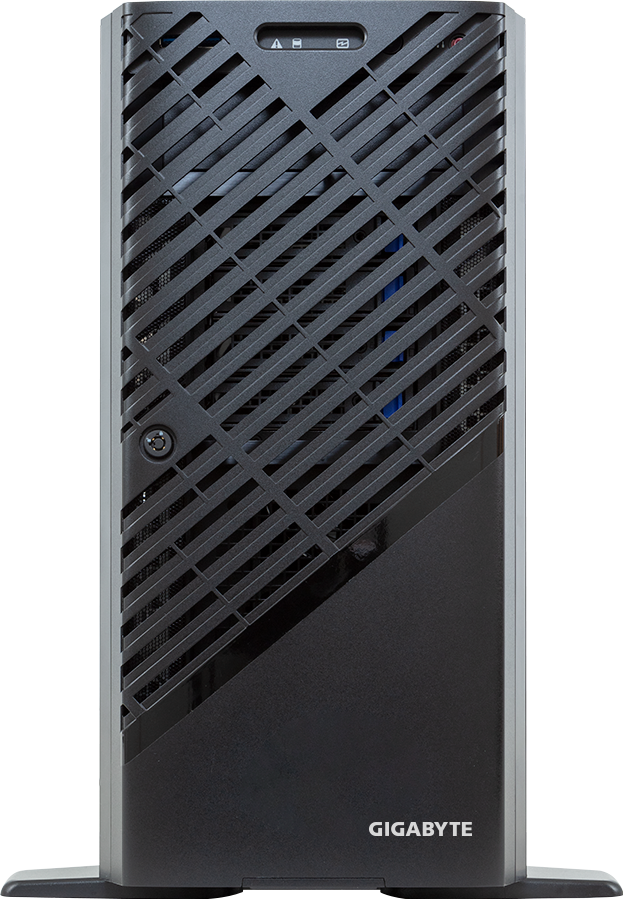

Front I/O
2 x USB 3.2 Gen1 (Type-A)
2 x Audio jacks (Audio out/Mic)
1 x Power button with LED
1 x Reset button
1 x Power LED
1 x Storage activity LED
1 x System status LED
2 x Audio jacks (Audio out/Mic)
1 x Power button with LED
1 x Reset button
1 x Power LED
1 x Storage activity LED
1 x System status LED

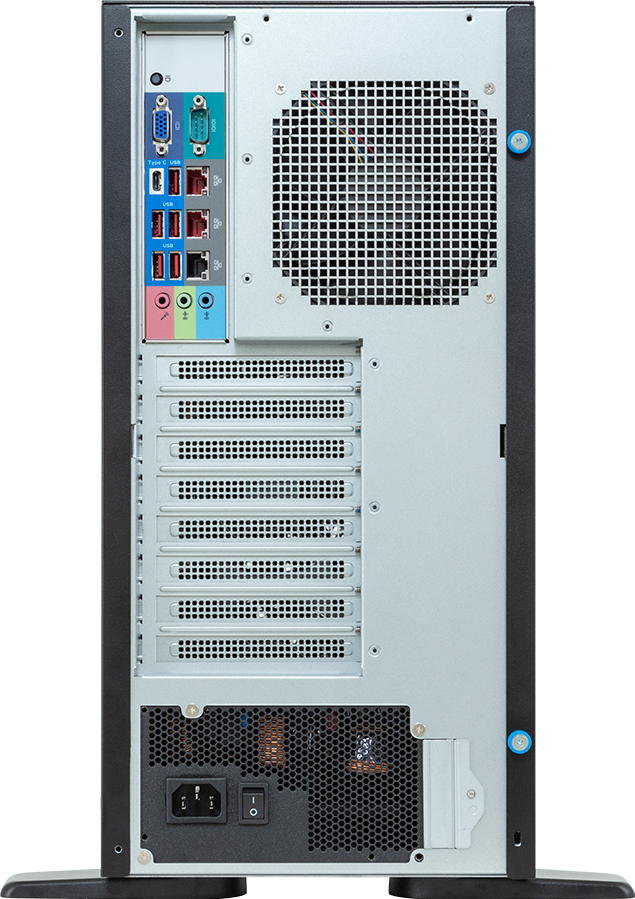

Rear I/O
1 x USB 3.2 Gen2x2 (Type-C)
5 x USB 3.2 Gen2x1 (Type-A)
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
3 x Audio jacks
1 x ID button with LED
5 x USB 3.2 Gen2x1 (Type-A)
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
3 x Audio jacks
1 x ID button with LED
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
Single 1200W ATX 80 PLUS Platinum power supply
AC Input:
- 110-240V~/ 14-9A, 50-60Hz
- 200-240V~/ 9A, 50-60Hz (Only for China and Korea)
DC Output:
- Max 1200W
+12V/ 100A
+5V/ 20A
+3.3V/ 20A
+5Vsb/ 2.5A
AC Input:
- 110-240V~/ 14-9A, 50-60Hz
- 200-240V~/ 9A, 50-60Hz (Only for China and Korea)
DC Output:
- Max 1200W
+12V/ 100A
+5V/ 20A
+3.3V/ 20A
+5Vsb/ 2.5A
System Management
ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
CentOS Stream 9 (x64)
Debian 11.5.0
Red Hat Enterprise Linux 9.0 (x64)
Ubuntu 22.04 LTS (x64)
Windows 11 Enterprise (x64)
Debian 11.5.0
Red Hat Enterprise Linux 9.0 (x64)
Ubuntu 22.04 LTS (x64)
Windows 11 Enterprise (x64)
System Fans
Middle fan: 3 x 120x120x38mm (4,000rpm)
Rear fan: 1 x 120x120x25mm (2,800rpm)
Rear fan: 1 x 120x120x25mm (2,800rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1045 x 588 x 403 mm
Packaging Content
1 x W753-W50-AA01
1 x CPU fansink
1 x Carrier
1 x Quick installation guide
1 x CPU fansink
1 x Carrier
1 x Quick installation guide
Part Numbers
- Barebone package (Refresh): 6NW753W50MR000AB01*
- Barebone package: 6NW753W50MR000AA01*
- Motherboard: 9MW53HP0NR-000
- I/O shield: 12AIO-MW53HP-10R
- CPU fansink: 25ST0-0Z9221-A3R
- Carrier: 12KRC-0I4677-10R
- M.2 heatsink: 12SP2-080027-00R
- Middle fan: 25ST2-113824-S1R
- Rear fan: 25ST2-112522-S1R
- Power supply: 25EP0-21200C-F3S
Optional parts:
- Rail kit for W7x3 series ((A)+(B)+(C)+(D)):
(A) 25HB2-A66126-K0R (Slide Rail), Q'ty: 1 set
(B) 25HB4-W77304-C0R (Rack Ear Right), Q'ty: 1 set
(C) 25HB4-W77305-C0R (Rack Ear Left), Q'ty: 1 set
(D) 25HB7-W77300-C0R (Top Cover for Assembly), Q'ty: 1 set
- Barebone package: 6NW753W50MR000AA01*
- Motherboard: 9MW53HP0NR-000
- I/O shield: 12AIO-MW53HP-10R
- CPU fansink: 25ST0-0Z9221-A3R
- Carrier: 12KRC-0I4677-10R
- M.2 heatsink: 12SP2-080027-00R
- Middle fan: 25ST2-113824-S1R
- Rear fan: 25ST2-112522-S1R
- Power supply: 25EP0-21200C-F3S
Optional parts:
- Rail kit for W7x3 series ((A)+(B)+(C)+(D)):
(A) 25HB2-A66126-K0R (Slide Rail), Q'ty: 1 set
(B) 25HB4-W77304-C0R (Rack Ear Right), Q'ty: 1 set
(C) 25HB4-W77305-C0R (Rack Ear Left), Q'ty: 1 set
(D) 25HB7-W77300-C0R (Top Cover for Assembly), Q'ty: 1 set
