-- GIGABYTE -- Ultra Durable 3 Motherboards

Quality Components Make Quality Motherboards

DDR3 2200+ / DDR2 1366+ Support
The World's Fastest DDR3 / DDR2 Motherboard

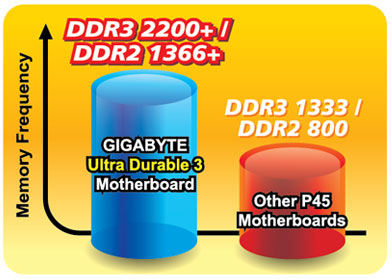

Delivering native support for DDR3 up to 2200+ and DDR2 up to 1366+ MHz, GIGABYTE Ultra Durable 3 series motherboards allow users to reach higher memory frequency at lower voltage; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease.

	Traditional Motherboard	GIGABYTE Ultra Durable 3 Motherboard
Highest DDR2 Freq	1200	1366+
Voltage Increased	2.3V ~ 2.5V	2.3V ~ 2.54V*
Super PI 8M test	Fail	Pass

*Note :
1. Increasing memory voltage might cause damage to memory modules
2. Frequency supported may vary by different memory modules

Configurations:		Test Application:
CPU : Intel Core 2 Quad Extreme QX6800		Super PI 8M test loop
Memory : Team Group INC Xtreem DDR2-1300 1GB x 4
VGA : NX73G-128D-RH

2X Lower Impedance

Impedance Ω Lower is better

Lower

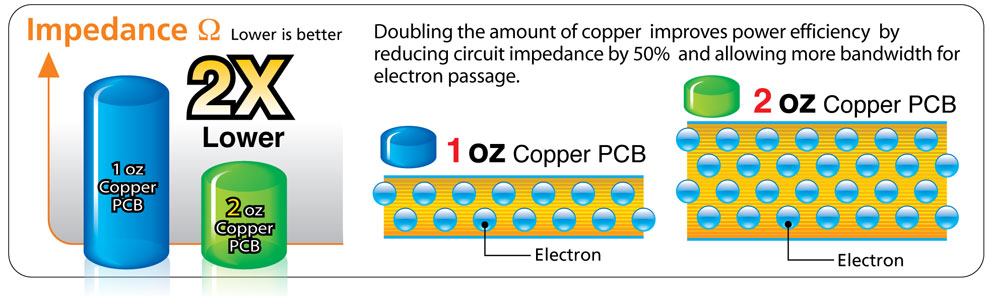

Doubling the amount of copper improves power efficiency by reducing circuit impedance by 50% and allowing more bandwidth for electron passage.

2 OZ Copper PCB

1 OZ Copper PCB

Electron

In addition, doubling the amount of copper lowers the PCB impedance by 50%. Impedance is a measure of how much the circuit impedes the flow of current. The less the flow of current is impeded, the less amount of energy is wasted. For GIGABYTE Ultra Durable 3 motherboards, this means total PCB electrical waste is reduced by 50%, which also means less heat is generated. 2 ounces of copper also provides improved signal quality, providing better system stability and allowing greater margins for overclocking.

Lower EMI

A good PCB circuit layout is the key of controlling EMI emission. Through GIGABYTE strong engineering design team and Ultra Durable 3 design featuring 2 ounces of copper for ground layer, improves signal integrity and lowering EMI emission through a very effective ground plane.

* Electromagnetic interference (or EMI) is an unwanted disturbance signals that affects surrounding electronic devices.

Quick Boost

Quick and Effortless Overclocking with One Click

GIGABYTE Quick Boost provides 3 levels of CPU performance enhancement; a simple click on the desired level delivers quick and effortless overclocking for novice and experienced users alike.

Designed with user-friendliness in mind, GIGABYTE Quick Boost allows CPU performance to optimize automatically according to different hardware combination with hardware profiles test approved by GIGABYTE engineers

How To Use

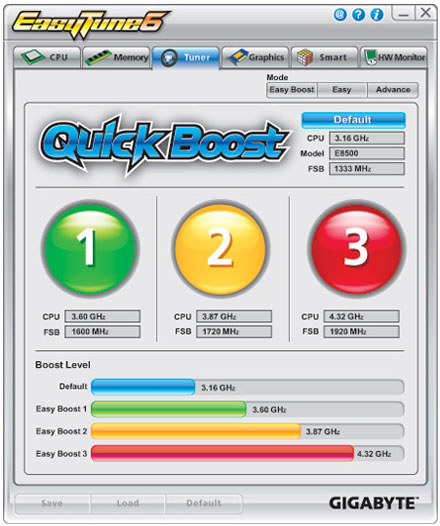

Displays processor's default readings
• CPU : Default frequency
• Model : Processor model number
• FSB : Default Front Side Bus frequency

Click on the button to select different levels of CPU performance boost

Displays CPU frequency to be adjust at different levels

Click on "Default" button to reset the Processor back to its default values
