Quality Components Make Quality Motherboards


|
|
|



Hardware Overvoltage Control  IC
• Provides more voltage control options than
   before (CPU, NB, memory)
• HW linear real time voltage control, no delay
   compare to GPIO control like before
• Finer steps control, 20 mV min

GIGABYTE Hardware Overvoltage Control ICs featuring more voltage control options than before for the CPU North Bridge and memory. The overvoltage controllers also provide hardware linear real-time voltage control, which means there is no delay compared to the GPIO controller in past implementations. In addition, GIGABYTE's Hardware Overvoltage Controller ICs also allow for much finer voltage control, allowing power users to adjust voltage in as little increments as 20mV for better overclocking performance.



Hardware Overvoltage IC

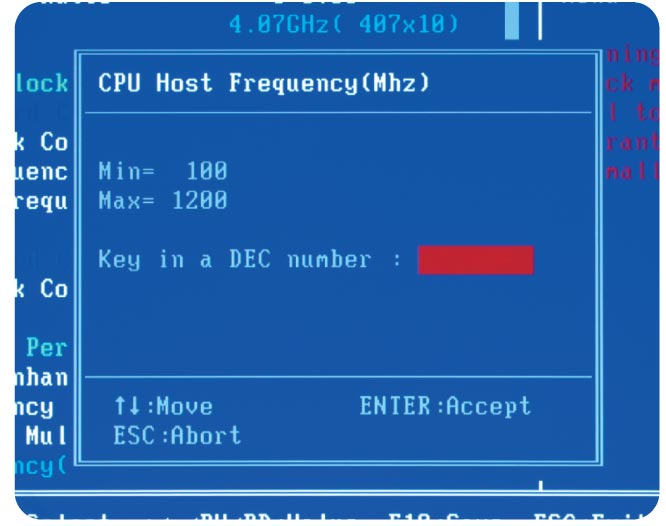

  Up to 1200MHz CPU Freq Stepping

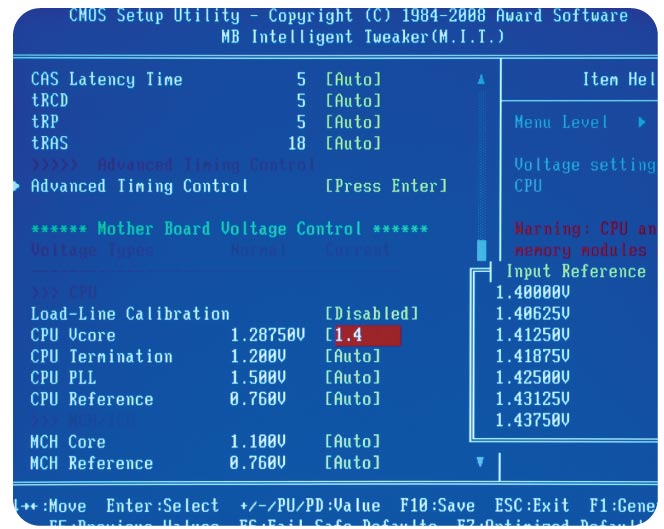

  Minimum 20mV Over Voltage Increments

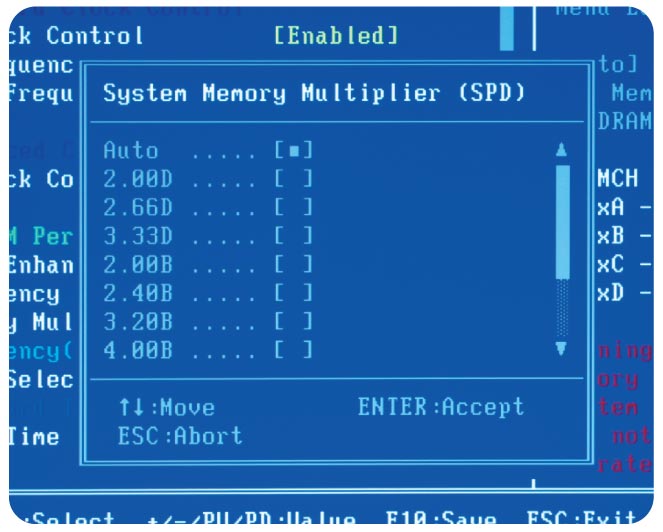

  Memory Multipliers at different
boot strap

  Advance Memory Timing
Controls
