GA-Z97X-Gaming G1 WIFI-BK (rev. 1.0)
Intel® Z97 Chipset
![](/FileUpload/Global/Other/2/Photo/3826.png)
- Extended server level 168 hour durability Test
- Supports 4th and 5th Generation Intel® Core™ processors
- Onboard Creative Sound Core3D™ quad-core audio processor
- AMP-UP Audio technology with exclusive Upgradable OP-AMP
- Audio Noise Guard with LED path lighting
- Dual DAC-UP USB ports
- Gold plated display and audio ports
- High end Nichicon audio capacitors
- Killer™ E2200 and Intel gaming networking
- Bluetooth 4.0+867Mbps 11AC dual band WIFI card
- Extreme gaming 4-way graphics support
- SATA Express support for 10 Gb/s data transfer

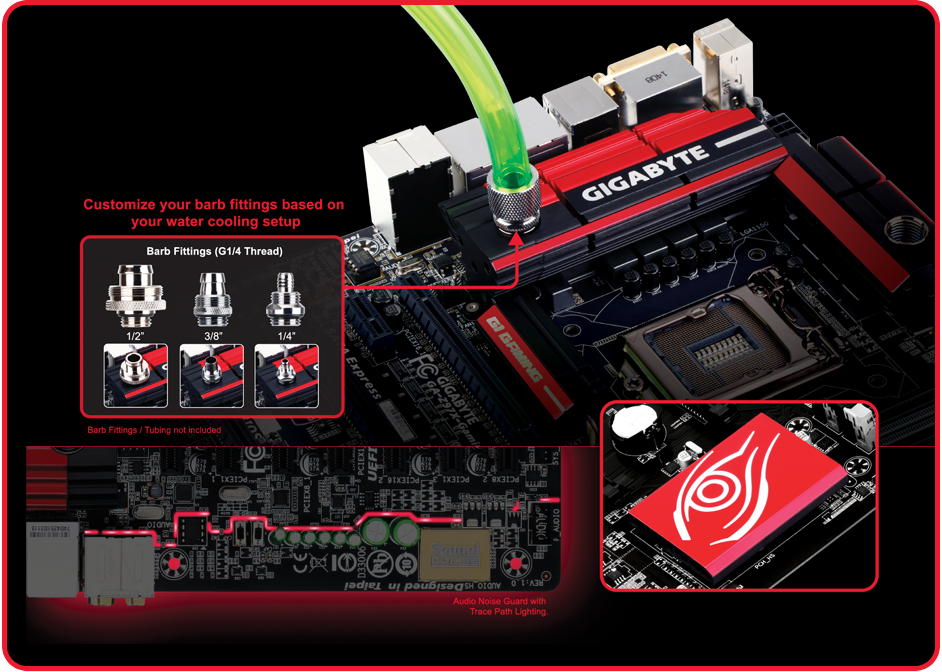

- Water block thermal design with G1/4 threaded fittings
- Long lifespan Durable Black Solid caps
- APP Center including EasyTune™ and Cloud Station™ utilities
- GIGABYTE UEFI DualBIOS™
-
Ultra Durable BLACK EDITION
Extended server level 168 hour Durability Test
GIGABYTE Black Edition motherboards undergo an extra 168 hours (7 days) of stress testing before shipment to ensure premium quality for our customers.
During the168 hour test, each motherboard needs to pass rigorous full system validation testing including Litecoin mining for 1 full week. GIGABYTE has built a custom testing facility at out Taiwan (Nanping) factory, capable of testing up to 3,000 motherboards at a time.
Black Edition owners can register online to join the GIGABYTE Black Edition Members Club to receive exclusive membership benefits including an extended warranty period for their motherboard.
A Certificate of Validation is included with every board, issued by the GIGABYTE factory and signed by the manufacturing VP & GM to indicate this board has passed our highest test standards.
Photos will be taken at regular time intervals during the 168 hours test, and users can view them from the GIGABYTE website to see how their board is holding up under testing. -
Placas-Mãe G1™ Gaming
-
-
GIGABYTE AMP-UP Audio™ TechnologyGIGABYTE G1™ Gaming motherboards are equipped with the GIGABYTE exclusive AMP-UP Audio Technology, which provides the industry’s highest level of onboard audio features and technologies. With GIGABYTE AMP-UP Audio, gamers and audiophiles are able to experience crisp, ultra realistic sound effects while gaming, and the richest possible sound experience when listening to their favorite music and movies.
How does GIGABYTE AMP-UP Audio™ Technology work?
-
GIGABYTE Direct Audio Route Design
• Shortest route, no wasted trace.
• Less crosstalk & less EMI.
• AMP positioned close to audio jack for lowest noise.
• Better signal quality and better audio quality.
The shortest route is always the best for audio signals.
The GIGABYTE 9 Series G1™ Gaming motherboards feature the shortest audio communication paths between each critical component, from chipset to audio jack. This reduces the crosstalk along the way, and the very close proximity of the AMP to the audio jack directly results in lower noise disturbance.
With this high quality audio design, GIGABYTE G1™ Gaming motherboards are able to bring users better signal quality for the absolute best audio experience.
-
GIGABYTE Exclusive : Upgradable OP-AMP
Customizable
+ Users can choose audio quality based on individual listening preferences.
+ Wide availability of additional OP-AMPs.
Low Cost way to dramatically improve audio quality
+ Improve audio dynamics and overall sound-quality with little cost.
+ No need for expensive speakers or high-end audio equipment.Well Known Hi-Fi class OP-AMP : TI Burr Brown OPA2134Exclusive onboard 'Gain Boost' selector switches
+ Select either standard 2.5x or high-amplification 6x mode.
+ 6x mode is ideal for high impedance speakers and headphones -
Creative® Sound Core3D™ Quad-Core Audio Processor
Combining world’s first Quad-Core Creative Sound Core3D Audio Processor Plus Advanced Creative SBX PROSTUDIO Audio Suite.
+ Harnessing the power of a Dedicated Audio Processor to offload workload from CPU
+ Total solution from Creative (Hardware +Software)
+ Richer overall audio experience -
Creative SBX Pro Studio Audio Suite
SBX Pro Studio™ suite of audio playback technologies deliver a new level of audio immersion. Realistic surround sound, the ability to clearly hear specific sounds in a gaming environment are just a few elements of SBX Pro Studio that enhances the overall experience, be it movies, games or music. -
High End Audio Capacitors
GIGABYTE G1™ Gaming motherboards use high end, Japanese branded Nichicon audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers. -
Gold Plated Audio Hardware
GIGABYTE G1™ Gaming motherboards pack top quality gold plated audio and HDMI connectors for improved connectivity and long lasting durability. Gold has superb signal conductivity and will not tarnish over extended periods of use. The Creative Sound Core3D™ processor is also shielded by a gold plated cover which eliminates electrostatic interference. -
Dual DAC-UP USB Ports
Featuring dual USB 2.0 ports, GIGABYTE USB DAC-UP provides clean, noise-free power delivery to your Digital-to-Analog Converter. DACs can be sensitive to fluctuations in power from the other USB ports, which is why GIGABYTE USB DAC-UP takes advantage of an isolated power source that minimizes potential fluctuations and ensures the best audio experience possible. -
Zona de Hardware Áudio dedicada+ A separação da camada da PCB protege os componentes de áudio analógicos sensíveis das placas.
+ Separa aterramento analógico e digital para proteção contra interferência eletromagnética (EMI).
+ Iluminação LED ilumina caminho de rastreamento para mostrar a separação das camadas de PCB.
-
Localiza o canal de áudio esquerdo e direito em camadas separadas PCB, as placas-mãe GIGABYTE G1 Gaming Series 9 são capazes de eliminar os ruídos do canal, mantendo a melhor qualidade de áudio.span> Canal esquerdo de áudio
na camada da PCBCanal direito de áudio
na camada da PCB
-
-
Killer™ E2200 Gaming NetworkNO LAG, JUST FRAG!
GIGABYTE G1™ Gaming motherboards feature the Killer™ E2200 from Qualcomm Atheros, a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and online media performance compared to standard solutions.
-
Intel® Gigabit LANIntel® Gigabit LAN networking, a popular choice with gamers, delivers several performance-enhancing features such as advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra large data packets.
-
Integrated 2T2R Dual Band IEEE802.11ac WiFi + BT 4.0This motherboard comes with an exclusive IEEE802.11ac WiFi module that supports up to 867Mbps wireless networks and Bluetooth 4.0. IEEE802.11ac WiFi runs at up to 867Mbit/s and the bundled 2.4GHz/5GHz dual-band, 2T2R antenna gives you wide coverage.
-
-
Extreme Multi-GPU Support
Flexible graphics capabilities supported for either 4-Way CrossFire™ or 4-Way SLI™ action, delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution. -
Conector SATA ExpressGIGABYTE motherboards feature an onboard SATA Express connector which provides performance far superior to that of current SATA technologies. SATA Express features data transfer rates of up to 10Gb/s, considerably higher than SATA Revision 3 (6Gb/s), which won’t bottleneck faster NAND flash technologies in cutting edge SSDs. SATA Express combines the benefits of PCI-Express and SATA to provide much higher bandwidth, allowing SATA Express based drives to perform at similar speeds as PCI-Express based drives.
-
GIGABYTE App Center Incluindo EasyTune™ e Cloud Station™ UtilitiesGIGABYTE APP Center gives you easy access to wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE apps installed on your system.
GIGABYTE EasyTune ™ App GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment.
With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.GIGABYTE Cloud Station™ APP GIGABYTE Cloud Station™ is composed of several GIGABYTE's unique apps that allow your smart phones/tablet device to communicate, share resources, and control desktop PCs via wireless connection. -
-
All New Heat Sink Design
-
Suporte 4K Ultra HD4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.
-
HDMI™-The Next Generation Multimedia InterfaceA HDMI é a mais recente interface multimídia de alta definição capaz de transmitir banda de 5Gb/s e áudio de alta qualidade em 8 canais. Além de capacidade de transmissão superior, vídeo e áudio digital descompactados, tudo isso em um único cabo. A HDMI garante a mais nítida renderização de conteúdo digital de até 1080p sem perdas de qualidade associada à interface analógica em suas conversões digitais-analógicas. Compatível também com HDCP (High-bandwidth Digital Content Protection), permite a reprodução de Blu-ray/HD DVD e outros conteúdos de mídia protegidos.
-
GIGABYTE OPT Fan SupportMany of today’s 3rd party water cooling systems require CPU fan power support for both the cooling fan and the water pump. GIGABYTE 9 Series motherboards feature OPT fan support, an additional CPU fan pin header that can be used to connect a water pump and configured for continuous full speed operation. The OPT Fan is also useful for high performance coolers employing two fans.
-
10K Durable Black™ Solid CapsGIGABYTE 9 series motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for a guaranteed minimum of 10K hours. Not only do they provide ultra-low ESR no matter how high the CPU loading, they also come in customized jet black from Nippon Chemi-Con and Nichicon.
-
Soquete de CPU banhado à ouro (15μ)GIGABYTE 9 Series motherboards come equipped with a gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins and bad contacts.
-
Game Controller
GIGABYTE Game Controller allows you to define your own hotkeys and change the mouse sensitivity, helping you make the most out of your keyboard and mouse in games. Hot Key:
Create macro commands and define your own hotkeys to quickly perform the function your want.*Create the hotkeys by yourself on normal keyboard.
Speed:
Using the Sniper key you can switch the mouse sensitivity when you are in sniper mode for better sniper accuracy.With Speed ControlWithout Speed ControlEnable mouse Sniper Mode to make your shot quick and stable.High DPI Mouse in sniper mode : Hard to focus
![](/FileUpload/global/Other/11/Photo/hdmi_logo.png)
* Os termos e expressões “HDMI”, “HDMI High-Definition Multimedia Interface” e “Trade dress da HDMI”, e os Logotipos da HDMI são marcas comerciais ou marcas registradas da HDMI Licensing Administrator, Inc.
* Todos os materiais disponíveis são para simples referência. A GIGABYTE reserva o direito de modificar ou revisar o conteúdo a qualquer momento sem aviso prévio.
* Todas as marcas e logotipos são de propriedade de suas respectivas proprietárias.
* Devido a arquitetura padrão PC, uma quantia de memória é reservada para uso do sistema, portanto o tamanho da memória é menor do que a quantia exibida.
