GA-Z97MX-Gaming 5 (rev. 1.0)
Intel® Z97 Chipset
![](/FileUpload/Global/Other/2/Photo/3826.png)
- Supports 4th and 5th Generation Intel® Core™ processors
- Creative SoundBlaster X-Fi MB3 gaming audio suite
- AMP-UP Audio technology with exclusive Upgradable OP-AMP
- Audio Noise Guard with LED path lighting
- Quad DAC-UP USB ports
- Gold plated display and audio ports
- High end Nichicon audio capacitors
- Realtek ALC1150 115dB SNR HD Audio with Built-in rear audio amplifier
- Killer™ E2200 gaming networking
- Extreme multi graphics support
- SATA Express support for 10 Gb/s data transfer
- M.2 for SSDs drives with up to 10 Gb/s data transfer
- Long lifespan Durable Solid caps
- APP Center including EasyTune™ and Cloud Station™ utilities
- GIGABYTE UEFI DualBIOS™
-
G1™ Gaming Motherboards
-
-
GIGABYTE AMP-UP Audio™ TechnologyGIGABYTE G1™ Gaming motherboards are equipped with the GIGABYTE exclusive AMP-UP Audio Technology, which provides the industry’s highest level of onboard audio features and technologies. With GIGABYTE AMP-UP Audio, gamers and audiophiles are able to experience crisp, ultra realistic sound effects while gaming, and the richest possible sound experience when listening to their favorite music and movies.
-
GIGABYTE Exclusive : Upgradable OP-AMP
Customizable
+ Users can choose audio quality based on individual listening preferences.
+ Wide availability of additional OP-AMPs.
Low Cost way to dramatically improve audio quality
+ Improve audio dynamics and overall sound-quality with little cost.
+ No need for expensive speakers or high-end audio equipment.Well Known Hi-Fi class OP-AMP : TI Burr Brown OPA2134Exclusive onboard 'Gain Boost' selector switches
+ Select either standard 2.5x or high-amplification 6x mode.
+ 6x mode is ideal for high impedance speakers and headphones -
High End Audio Capacitors
GIGABYTE G1™ Gaming motherboards use high end, Japanese branded Nichicon audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers. -
Realtek ALC1150 115dB SNR HD AudioThe ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.
The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality. -
Additional Sound Blaster X-Fi MB3GIGABYTE G1™ Gaming motherboards also include Sound Blaster X-Fi MB3 software suite. Sound Blaster X-Fi MB3 software suite is a powerful audio platform offering premium audio quality, effects and features for gamers. It features SBX Pro Studio™ suite of technologies, which is designed to give you the fullest audio experience.
-
Dedicated Audio Hardware Zone+ Separation on the PCB layer protects the board's sensitive analog audio components.
+ Separate analog and digital ground to protect against Electromagnetic Interference (EMI).

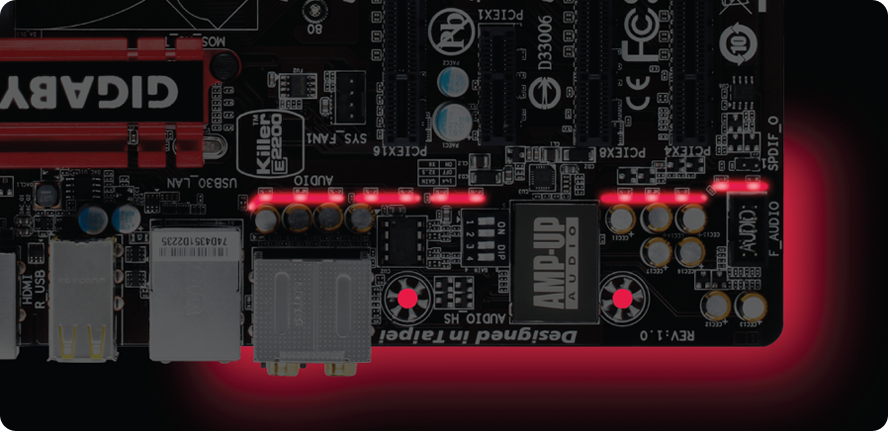

+ LED trace path lighting illuminates to show the separation of the PCB layers.
-
Locating the right and left audio channels on separate PCB layers, GIGABYTE 9 Series G1™ gaming motherboards are able to eliminate channel crosstalk and maintain the best audio quality. Left Audio Channel
PCB layerRight Audio Channel
PCB layer
-
Quad USB DAC-UPFeaturing Quad USB 2.0 ports, GIGABYTE USB DAC-UP provides clean, noise-free power delivery to your Digital-to-Analog Converter. DACs can be sensitive to fluctuations in power from the other USB ports, which is why GIGABYTE USB DAC-UP takes advantage of an isolated power source that minimizes potential fluctuations and ensures the best audio experience possible.
-
Gold Plated Audio Hardware
GIGABYTE motherboards pack top quality gold plated audio and HDMI connectors for improved connectivity and long lasting durability. Gold has superb signal conductivity and will not tarnish over extended periods of use. The Audio controller is also shielded by a gold plated cover which eliminates electrostatic interference. -
-
Killer™ E2200 Gaming NetworkNO LAG, JUST FRAG!
GIGABYTE G1™ Gaming motherboards feature the Killer™ E2200 from Qualcomm Atheros, a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and online media performance compared to standard solutions.
-
-
Extreme Multi-GPU Support
Flexible graphics capabilities supported for either CrossFire™ or SLI™ action, delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
-
SATA Express ConnectorGIGABYTE motherboards feature an onboard SATA Express connector which provides performance far superior to that of current SATA technologies. SATA Express features data transfer rates of up to 10Gb/s, considerably higher than SATA Revision 3 (6Gb/s), which won’t bottleneck faster NAND flash technologies in cutting edge SSDs. SATA Express combines the benefits of PCI-Express and SATA to provide much higher bandwidth, allowing SATA Express based drives to perform at similar speeds as PCI-Express based drives.
-
M.2 Onboard ConnectorGIGABYTE G1™ Gaming motherboards come equipped with an onboard M.2 slot, providing users PCI-Express connectivity for SSD devices. Delivering up to 10 Gb/s data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA and even SATA Revision 3 (6Gb/s) storage devices.
-
GIGABYTE App Center Including EasyTune™ and Cloud Station™ UtilitiesGIGABYTE APP Center gives you easy access to wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE apps installed on your system.
GIGABYTE EasyTune ™ App GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment.
With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.GIGABYTE Cloud Station™ APP GIGABYTE Cloud Station™ is composed of several GIGABYTE's unique apps that allow your smart phones/tablet device to communicate, share resources, and control desktop PCs via wireless connection. -
-

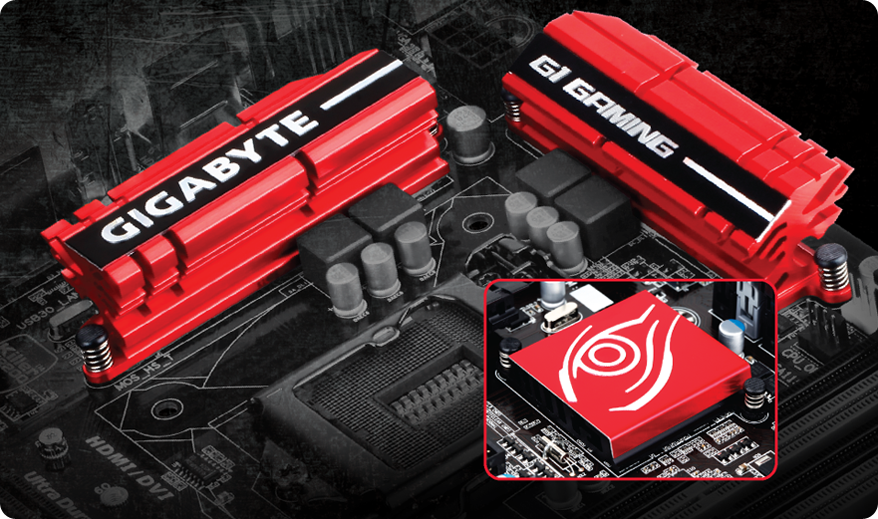

All New Heat Sink Design
-
4K Ultra HD Support4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.
-
HDMI™-The Next Generation Multimedia InterfaceA HDMI é a mais recente interface multimídia de alta definição capaz de transmitir banda de 5Gb/s e áudio de alta qualidade em 8 canais. Além de capacidade de transmissão superior, vídeo e áudio digital descompactados, tudo isso em um único cabo. A HDMI garante a mais nítida renderização de conteúdo digital de até 1080p sem perdas de qualidade associada à interface analógica em suas conversões digitais-analógicas. Compatível também com HDCP (High-bandwidth Digital Content Protection), permite a reprodução de Blu-ray/HD DVD e outros conteúdos de mídia protegidos.
-
5x (15μ) Gold Plated CPU Socket DesignGIGABYTE 9 Series motherboards come equipped with a gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins and bad contacts.
-
