GA-Z87X-OC Force Specifications
CPU Support
4th Generation Intel® Core™ processors
CPU Socket
LGA 1150
Chipset
Intel Z87 Chipset
Graphics Interface
2*PCIE 3.0 x16 + 2*PCIE 3.0 x8 (2x16 or 4x8) + 1*PCIE 3.0 x16
Display Interface
2*HDMI, DisplayPort
Memory Type
2 Channel DDR3
Memory DIMM
4*DDR3
Expansion Slots
2*PCI-E x1
SATA connectors
10*SATA3
SATA RAID
RAID 0,1,5,10
USB
10*USB 3.0 + 6*USB 2.0
Audio / LAN
8-channel HD / 2*GbE LAN
Form Factor (mm)
EATX (305x264)

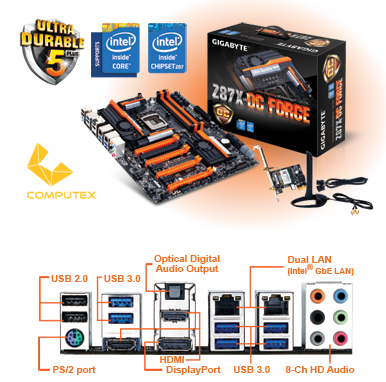

GA-Z87X-OC Force



GA-Z87X-OC Specifications
CPU Support
4th Generation Intel® Core™ processors
CPU Socket
LGA 1150
Chipset
Intel Z87 chipset
Graphics Interface

1*PCIE 3.0 x16+1*PCIE 3.0 x8
(1x16/2x8 Bandwidth)

Display Interface
2*HDMI, DisplayPort
Memory Type
2 Channel DDR3
Memory DIMM
4*DDR3
Expansion Slots
2*PCIE x4+1*PCIE x1+2*PCI
SATA connectors
6*SATA3
SATA RAID
RAID 0,1,5,10
USB
10*USB 3.0+8*USB 2.0
Audio / LAN
8-channel HD / GbE LAN
Form Factor (mm)
ATX (305x244)
GA-Z87X-OC

• Photos are for reference only. Motherboard specifications may vary by model. • Specifications and images are subject to change without notice.
• Motherboard models may vary based on local distribution.

• Memory support is dependent on memory module compatibility and system OS. • Please refer to GIGABYTE website for CPU support information.
• All other brands, logos and names are property of their respective owners.
