R281-Z94

Discontinued

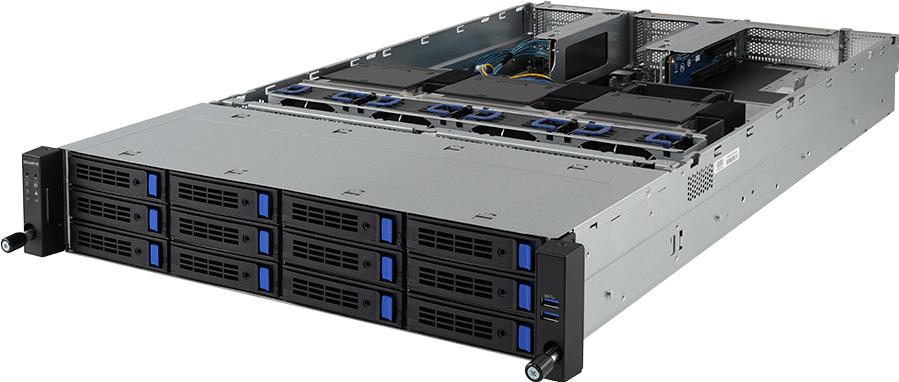

AMD EPYC™ DP Server System - 2U 12-Bay
  • Supports up to 3 x double slot GPU cards
  • Dual AMD EPYC™ 7001 series processor family
  • 8-Channel RDIMM/LRDIMM DDR4, 32 x DIMMs
  • 2 x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
  • 1 x Dedicated management port
  • 12 x 3.5"/ 2.5" SATAIII hot-swappable HDD/SSD bays
  • Ultra-Fast M.2 with PCIe Gen3 x4 interface
  • 8 x PCIe Gen3 expansion slots
  • Aspeed® AST2500 remote management controller
  • 2000W 80 PLUS Platinum redundant PSU
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)
2U
438 x 87 x 710
Motherboard
MZ91-FS0
CPU
AMD EPYC™ 7001 series processor family
Dual processors, 14nm, Socket SP3
Up to 32-core, 64 threads per processor
TDP up to 200W

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Chipset
System on Chip
Memory
32 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Memory speed: 2666(1DPC)/2400/2133* MHz

- Note:
Memory speed run at 2133MHz when 1R/2R memory modules are fully populated
LAN
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
N/A
Storage
12 x 3.5"/2.5" SATA/SAS hot-swappable HDD/SSD bays
Default configuration supports:
4 x SATA drives available, 8 x SAS/SATA drives via optional SAS card

SAS card is required to enable the drive bays

Recommended SAS card:
CRA4448
CRA3338
RAID
Depends on RAID card
Peripheral Drives
N/A
Expansion Slots
Riser Card CRS2133:
- 1 x PCIe x16 slot (Gen3 x16 or x8), Full height full-length
- 1 x PCIe x8 slot (Gen3 x0 or x8), Full height full-length
- 1 x PCIe x8 slot (Gen3 x8), Full height half-length

Riser Card CRS2134:
- 1 x PCIe x16 slot (Gen3 x16 or x8), Full height full-length
- 1 x PCIe x8 slot (Gen3 x0 or x8), Full height full-length
- 1 x PCIe x8 slot (Gen3 x8), Full height half-length

Riser Card CRS2123:
- 1 x PCIe x8 slot (Gen3 x0 or x8), Full height full-length
- 1 x PCIe x16 slot (Gen3 x16 or x8), Full height full-length

2 x OCP mezzanine slots
- PCIe Gen3 x16
- Type1, P1, P2, P3, P4, K2, K3

1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280 cards

NOTE
- System is validated for population with a uniform GPU model
-Support is not provided for mixed GPU populations
- For the latest QVL, please contact your GIGABYTE representative
Internal I/O
6 x SlimSAS connectors
1 x M.2 slot
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
7 x PCIe expansion slots
2 x OCP mezzanine slots
2 x Power supply connectors
1 x Front panel header
1 x Back plane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
Rear I/O
2 x USB 3.0
1 x VGA
1 x COM (RJ45 type)
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
9CBP20C4NR-00: 12 x SATA/SAS ports
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
TPM
1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000
Power Supply
2 x 2000W redundant PSUs
80 PLUS Platinum

AC Input:
- 100-120V~/ 12A, 50-60Hz
- 180-240V~/ 10A, 50-60Hz

DC Input:
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-120V~
+ 12V/ 81.5A
+ 12Vsb/ 2.5A
- Max 1600W/ 180-199V~
+ 12.2V/ 131A
+ 12Vsb/ 2.5A
- Max 1800W/ 200-220V~
+ 12.2V/ 147.5A
+ 12Vsb/ 2.5A
- Max 2000W/ 221-240V~
+ 12V/ 163.5A
+ 12Vsb/ 2.5A
System Management
Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:

  • Network settings
  • Network security settings
  • Hardware information
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Fan profiles
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (HTML5)
OS Compatibility
Windows Server 2012 R2 with Update
Windows Server 2016

Red Hat Enterprise Linux 7.4 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 11 SP4 (x64) or later
SUSE Linux Enterprise Server 12 SP3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later

Ubuntu 16.04 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.5 Update1 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later

Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later
System Fans
4 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

NOTE: Please contact Technical Support for more information about optimized GPU system operating temperature
Weight
22 kg
Packaging Dimensions
982 x 588 x 268 mm
Packaging Content
1 x R281-Z94
2 x CPU heatsinks
1 x Rail kit
Part Numbers
- Barebone package: 6NR281Z94MR-00-1*
- Motherboard: 9MZ91FS0NR-00-1*
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-153104-A8R
- Back plane board_12-port: 9CBP20C4NR-00
- Front panel board: 9CFP2001NR-00
- Fan module: 25ST2-883829-D0R
- Power supply: 25EP0-220009-L0S
- RJ45 type COM cable: 25CR0-200400-Y4R (optional)
- Riser card - CRS2133: 9CRS2133NR-00
- Riser card - CRS2134: 9CRS2134NR-00
- Riser card - CRS2123: 9CRS2123NR-00
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
