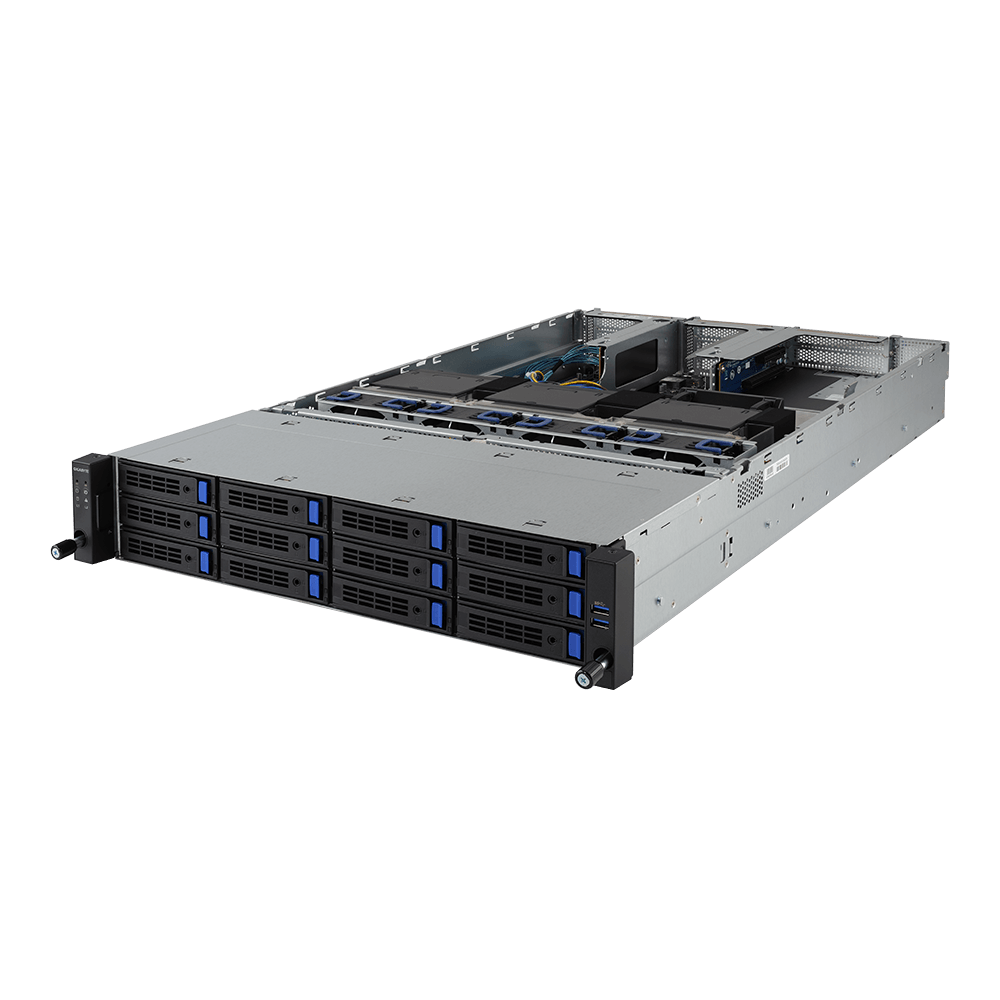

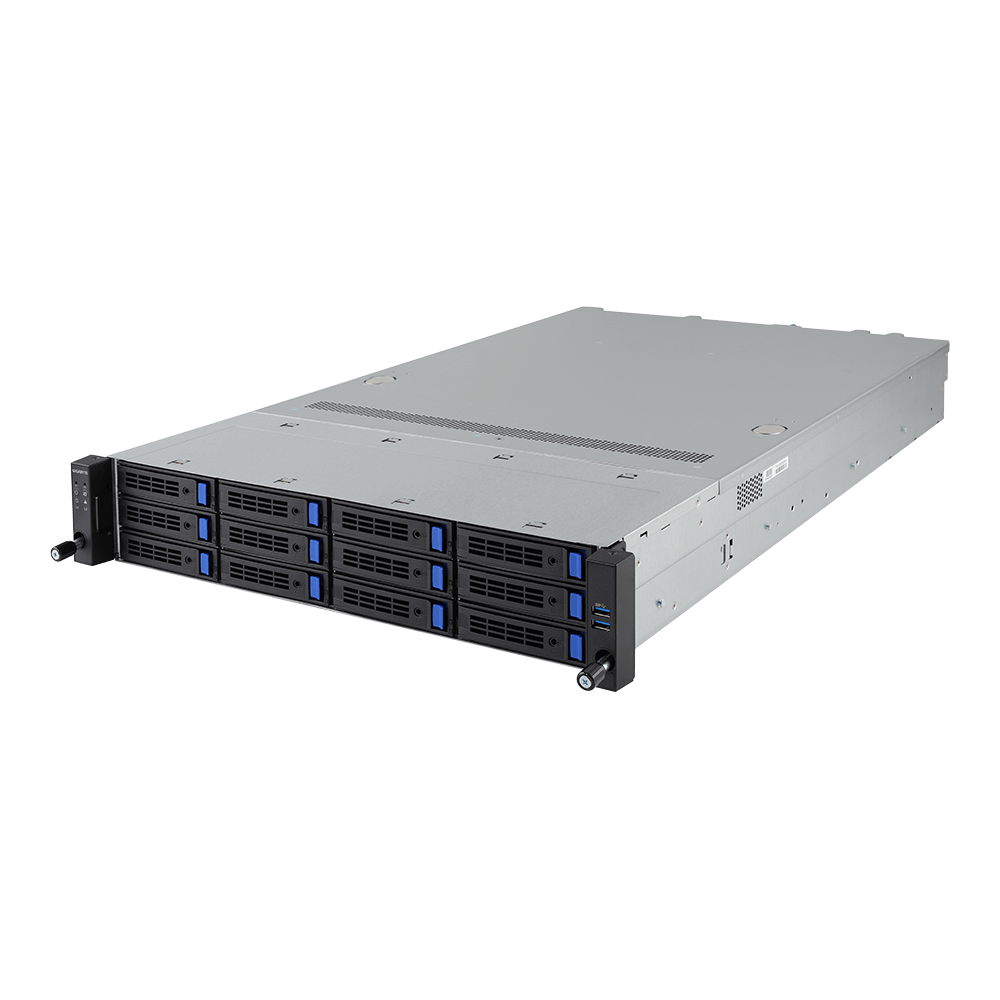

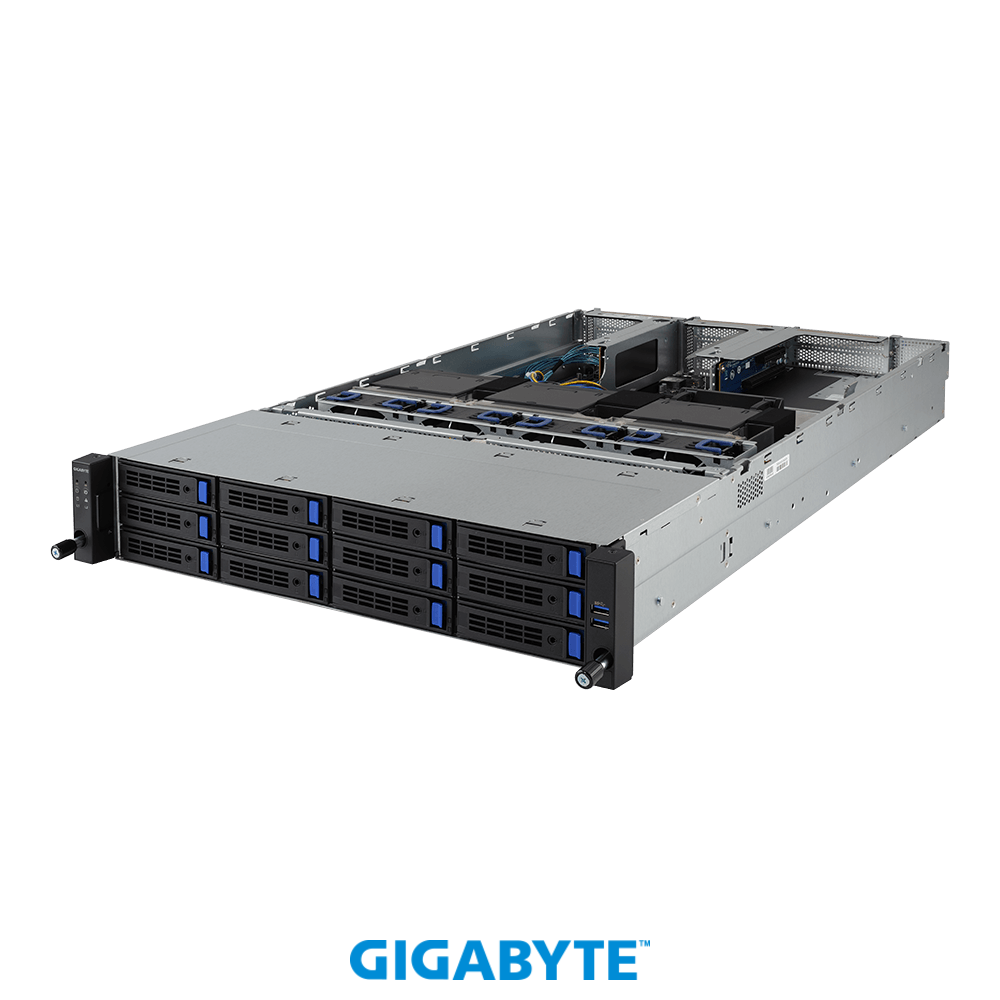

Rack Server - AMD EPYC™ 7003/7002 - 2U DP 3 x PCIe Gen3 GPUs
  • Supports up to 3 x Dual slot Gen3 GPUs
  • Dual AMD EPYC™ 7003/7002 Series Processors
  • 8-Channel DDR4 RDIMM/LRDIMM, 32 x DIMMs
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 12 x 3.5"/2.5" SATA/SAS hot-swappable bays
  • 1 x M.2 slot with PCIe Gen3 x4 interface
  • 6 x FHFL PCIe Gen3 x16 and x8 slots
  • 2 x FHHL PCIe Gen3 x8 slots
  • 2 x OCP Gen3 x16 mezzanine slots
  • Dual 2000W 80 PLUS Platinum redundant power supply
Get a Quote
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)
2U
438 x 87 x 710
Motherboard
MZ91-FS0 Rev. 3.0
CPU
AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
TDP up to 225W, cTDP up to 240W

Conditional support 280W

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 4094
Socket SP3
Chipset
System on Chip
Memory
32 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s

*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
LAN
Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
- 1 x VGA port
Storage
Front side:
12 x 3.5"/2.5" SATA/SAS hot-swappable bays

Default configuration supports:
4 x SATA drives available
8 x SAS/SATA drives via optional SAS card

SAS card is required to enable the drive bays

Recommended SAS card:
CRA4448
CRA3338
SAS
Supported via SAS add-in cards
RAID
Depends on SAS add-in cards
Expansion Slots
Riser Card CRS2133:
- 1 x PCIe x16 (Gen3 x16 or x8) FHFL slot, from CPU_0, for GPUs
- 1 x PCIe x8 (Gen3 x0 or x8) FHFL slot, from CPU_0
- 1 x PCIe x8 (Gen3 x8) FHHL slot, from CPU_0

Riser Card CRS2134:
- 1 x PCIe x16 (Gen3 x16 or x8) FHFL slot, from CPU_1, for GPUs
- 1 x PCIe x8 (Gen3 x0 or x8) FHFL slot, from CPU_1
- 1 x PCIe x8 (Gen3 x8) FHHL slot, from CPU_1

Riser Card CRS2123:
- 1 x PCIe x16 (Gen3 x16 or x8) FHFL slot, from CPU_1, for GPUs
- 1 x PCIe x8 (Gen3 x0 or x8) FHFL slot, from CPU_1

1 x OCP mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4, K2, K3), from CPU_0
1 x OCP mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4, K2, K3), from CPU_1

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2242/2260/2280 cards
- CPU TDP is limited to 180W if using M.2 device

Note:
- System is validated for population with a uniform GPU model.
- Support is not provided for mixed GPU populations.
- For the latest QVL, please contact your GIGABYTE representative.

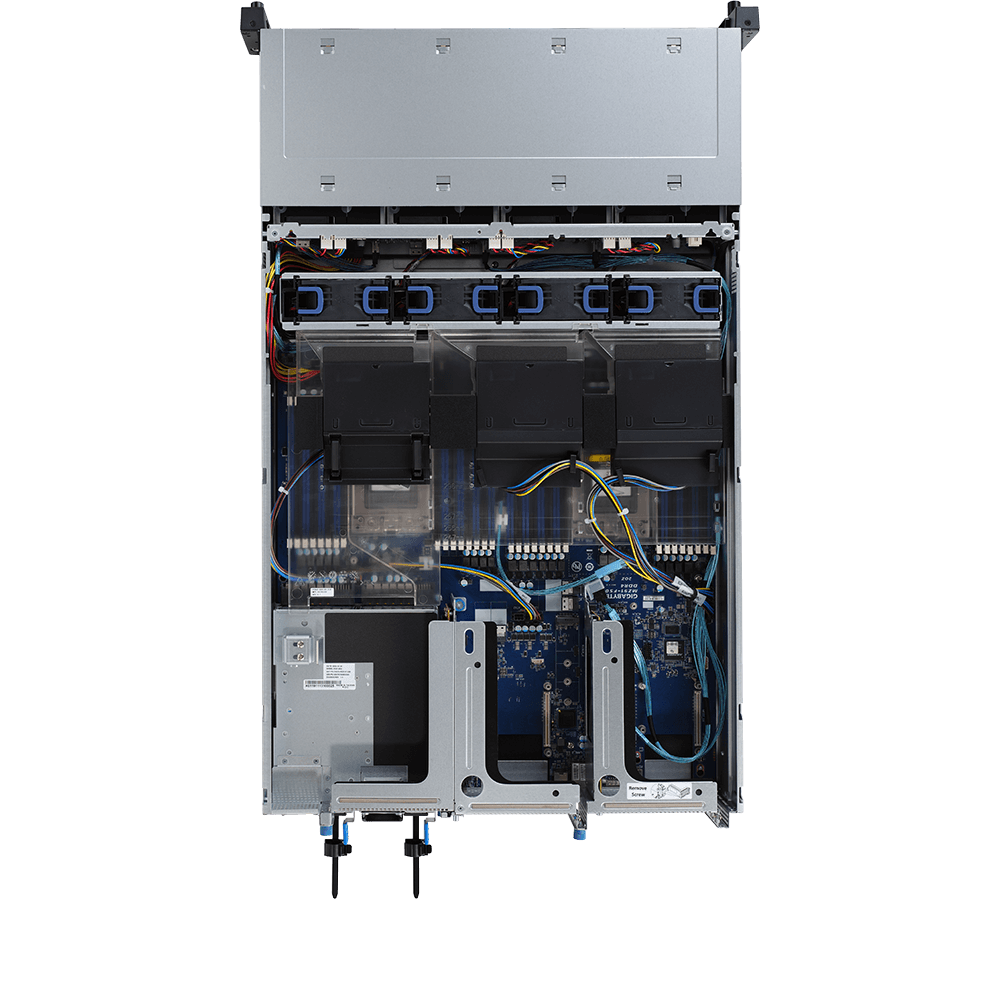

Internal I/O
6 x SlimSAS connectors
1 x M.2 slot
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
7 x PCIe expansion slots
2 x OCP mezzanine slots
2 x Power supply connectors
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper

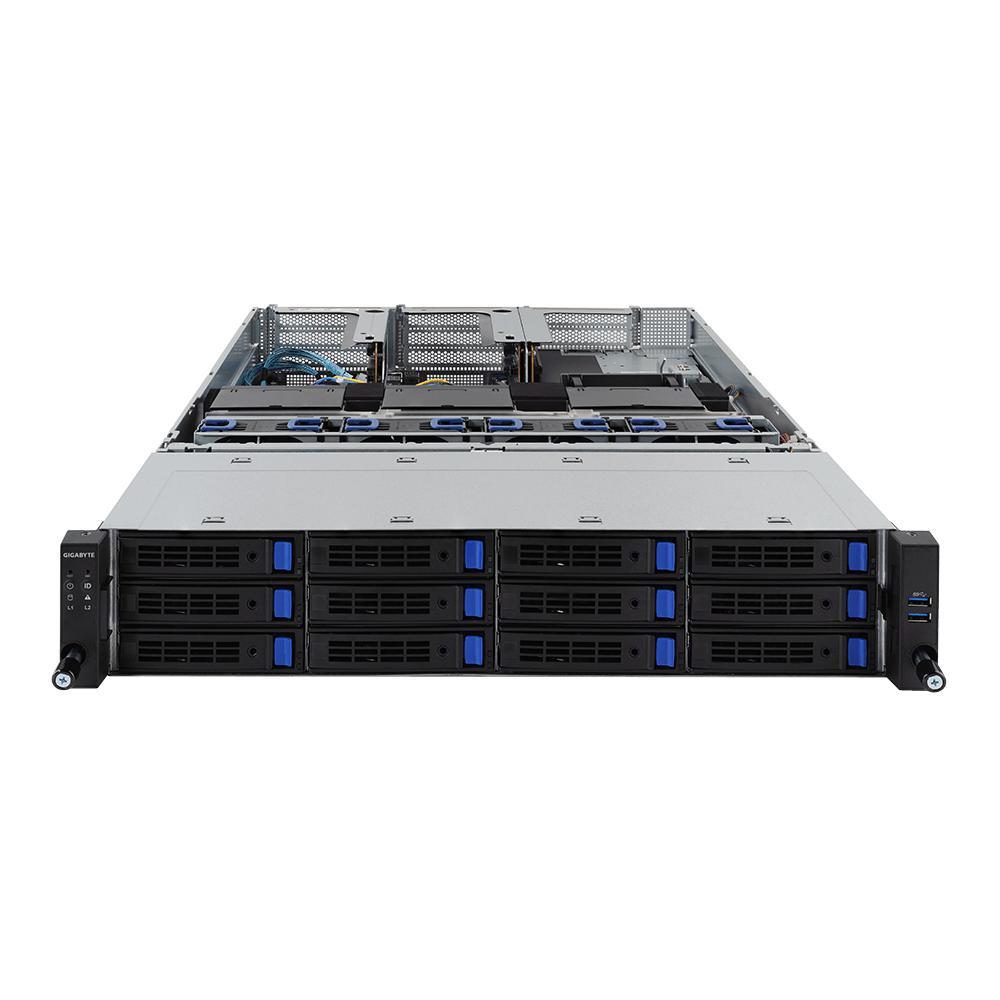

Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

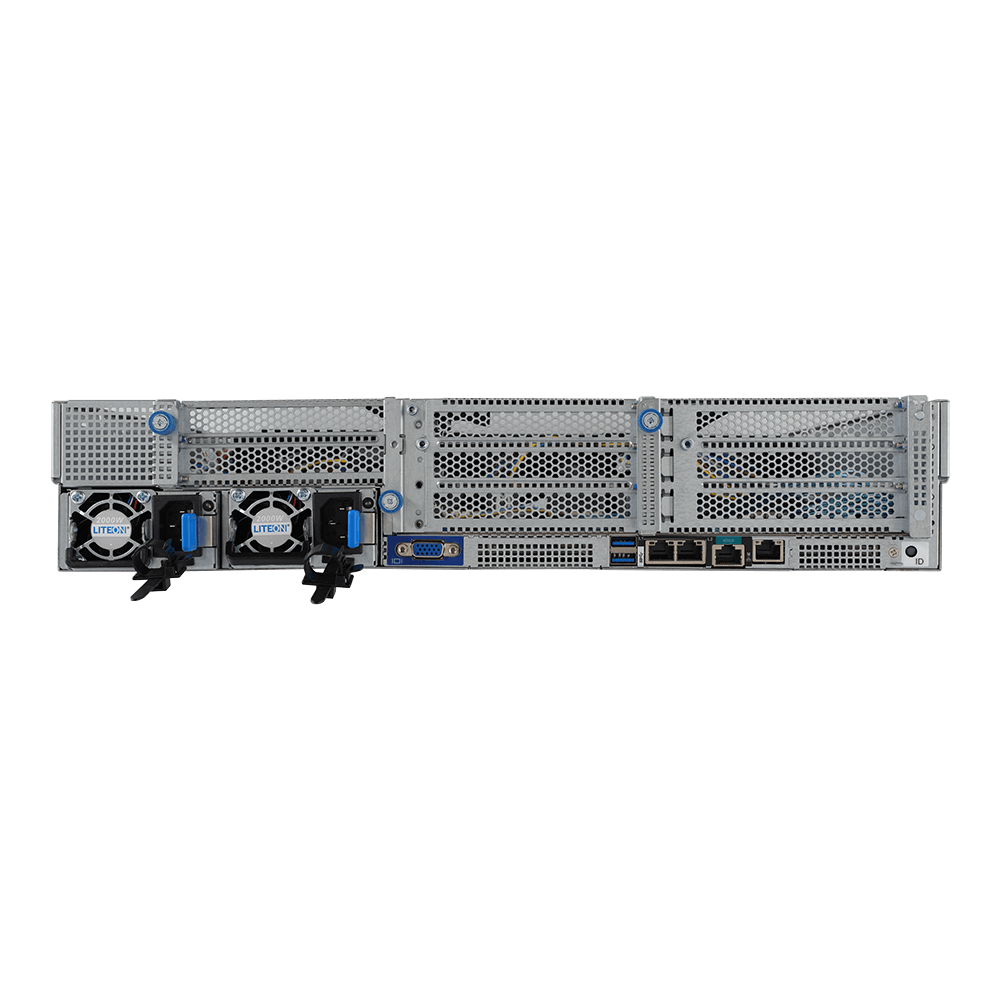

Rear I/O
2 x USB 3.0
1 x VGA
1 x COM (RJ45)
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with LPC interface
- Optional TPM2.0 kit: CTM000
Power Supply
Dual 2000W 80 PLUS Platinum redundant power supply

AC Input:
- 100-120V~/ 12A, 50/60Hz
- 180-240V~/ 10A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-120V~
+12.2V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 180-199V~
+12.2V/ 131A
+12Vsb/ 2.5A
- Max 1800W/ 200-220V
+12.2V/ 147.5A
+12Vsb/ 2.5A
- Max 2000W/ 221-240V~ or 240Vdc Input
+12.2V/ 163.5A
+12Vsb/ 2.5A
System Management
Aspeed® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface

  • Dashboard
  • JAVA Based Serial Over LAN
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility
Citrix Hypervisor 8.2.0 or later

Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later

SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later

Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
System Fans
4 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Note:
1) Ambient temperature limited to 30°C if using 280W CPU.
2) Please contact Technical Support for more information about optimized GPU system operating temperature.
Packaging Dimensions
982 x 588 x 268 mm
Packaging Content
1 x R281-Z94
2 x CPU heatsinks
1 x Rail kit
Part Numbers
- Barebone package: 6NR281Z94MR-00-B*
- Motherboard: 9MZ91FS0NR-00-3*
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-44320G-A0R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20C4: 9CBP20C4NR-00
- Fan module: 25ST2-883829-D0R
- Riser card - CRS2133: 9CRS2133NR-00
- Riser card - CRS2134: 9CRS2134NR-00
- Riser card - CRS2123: 9CRS2123NR-00
- Power supply: 25EP0-22000A-L0S

Optional parts:

- RJ45 type COM cable: 25CR0-200400-Y4R
