• Hỗ trợ vi xử lý Intel thế hệ thứ 4 và thứ 5
  • Bộ phần mềm Sound Blaster X-Fi MB3
  • Công nghệ âm thanh độc đáo AMP-UP Audio có khả năng thay đổi OP-AMP
  • Hàng rào chống nhiễu âm với đường dẫn phát sáng
  • Bốn cổng USB DAC-UP
  • Các cổng âm thanh được mạ vàng
  • Các tụ điện âm thanh chuyên nghiệp Nichicon
  • Chip âm thanh Realtek ALC1150 115dB SNR HD với bộ khuếch đại âm
  • Card mạng dành cho game Killer™ E2200
  • Hỗ trợ cấu hình nhiều card đồ họa
  • SATA Express có tốc độ truyền dữ liệu đến 10Gb/s
  • Khe M.2 có tốc độ truyền dữ liệu lên đến 10Gb/s dành cho các ổ SSD
  • Tụ điện rắn bền bỉ, tuổi thọ cao
  • Tiện ích App Center bao gồm EasyTune™ và Cloud Station™
  • Công nghệ GIGABYTE DualBIOS
  • Dòng bo mạch chủ GIGABYTE G1 Gaming
  • Công nghệ GIGABYTE AMP-UP
    GIGABYTE G1™ Gaming motherboards are equipped with the GIGABYTE exclusive AMP-UP Audio Technology, which provides the industry’s highest level of onboard audio features and technologies. With GIGABYTE AMP-UP Audio, gamers and audiophiles are able to experience crisp, ultra realistic sound effects while gaming, and the richest possible sound experience when listening to their favorite music and movies.
  • Độc quyền của GIGABYTE: OP-AMP thay đổi được

      Customizable
    + Users can choose audio quality based on individual listening preferences.
    + Wide availability of additional OP-AMPs.

    Low Cost way to dramatically improve audio quality
    + Improve audio dynamics and overall sound-quality with little cost.
    + No need for expensive speakers or high-end audio equipment.


    Well Known Hi-Fi class OP-AMP : TI Burr Brown OPA2134
      Exclusive onboard 'Gain Boost' selector switches
    + Select either standard 2.5x or high-amplification 6x mode.
    + 6x mode is ideal for high impedance speakers and headphones


  • Các tụ điện âm thanh cao cấp


    GIGABYTE G1™ Gaming motherboards use high end, Japanese branded Nichicon audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

  • Realtek ALC1150 115dB SNR HD Audio
    The ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

    The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality.
  • Bộ phần mềm Sound Blaster X-Fi MB3
    GIGABYTE G1™ Gaming motherboards also include Sound Blaster X-Fi MB3 software suite. Sound Blaster X-Fi MB3 software suite is a powerful audio platform offering premium audio quality, effects and features for gamers. It features SBX Pro Studio™ suite of technologies, which is designed to give you the fullest audio experience.

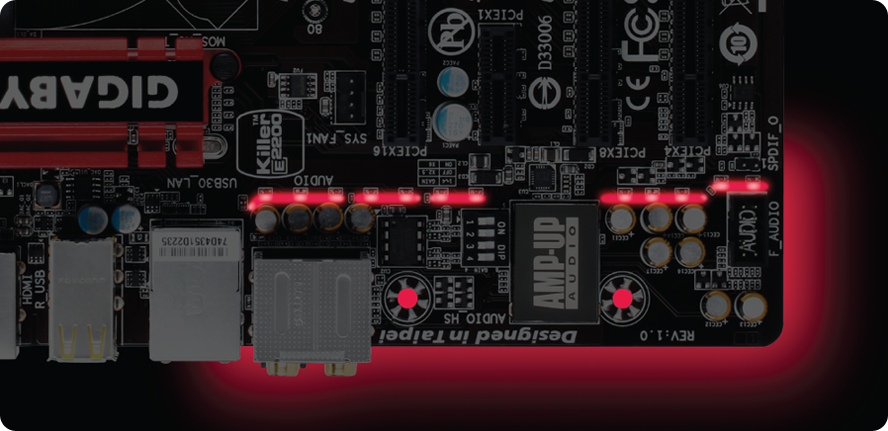

  • Khu vực âm thanh chuyên thanh chuyên dụng
    + Giúp bảo vệ và cách ly các linh kiện âm thanh nhạy cảm trên bo
    + Giúp bảo vệ và cách ly các mạch khuếch đại khỏi tình trạng nhiễu điện từ (EMI)
    + Để giúp nhận biết được sự ngăn cách này, một đường dẫn phân cách phát sáng đã được sử dụng

  •
    Các ngõ ra kênh âm thanh Trái và Phải của GIGABYTE G1 Gaming được đặt ở từng lớp PCB khác nhau để loại trừ trường hợp “chồng kênh” và duy trì chất lượng âm thanh tốt nhất.
    Lớp PCB chứa kênh Trái
    		  Lớp PCB chứa kênh Phải


  • Bốn cổng USB DAC-UP
    Featuring Quad USB 2.0 ports, GIGABYTE USB DAC-UP provides clean, noise-free power delivery to your Digital-to-Analog Converter. DACs can be sensitive to fluctuations in power from the other USB ports, which is why GIGABYTE USB DAC-UP takes advantage of an isolated power source that minimizes potential fluctuations and ensures the best audio experience possible.

  • Các cổng âm thanh được mạ vàng

    GIGABYTE motherboards pack top quality gold plated audio and HDMI connectors for improved connectivity and long lasting durability. Gold has superb signal conductivity and will not tarnish over extended periods of use. The Audio controller is also shielded by a gold plated cover which eliminates electrostatic interference.
  • Card mạng dành cho game Killer™ E2200
    NO LAG, JUST FRAG!
    GIGABYTE G1™ Gaming motherboards feature the Killer™ E2200 from Qualcomm Atheros, a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and online media performance compared to standard solutions.

  • Extreme Multi-GPU Support
    Flexible graphics capabilities supported for either CrossFire™ or SLI™ action, delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
  • Cổng SATA Expess
    GIGABYTE motherboards feature an onboard SATA Express connector which provides performance far superior to that of current SATA technologies. SATA Express features data transfer rates of up to 10Gb/s, considerably higher than SATA Revision 3 (6Gb/s), which won’t bottleneck faster NAND flash technologies in cutting edge SSDs. SATA Express combines the benefits of PCI-Express and SATA to provide much higher bandwidth, allowing SATA Express based drives to perform at similar speeds as PCI-Express based drives.

  • Tích hợp khe M.2
    GIGABYTE G1™ Gaming motherboards come equipped with an onboard M.2 slot, providing users PCI-Express connectivity for SSD devices. Delivering up to 10 Gb/s data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA and even SATA Revision 3 (6Gb/s) storage devices.

  • GIGABYTE App Center gồm tiện ích EasyTune và Cloud Station
    GIGABYTE APP Center gives you easy access to wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE apps installed on your system.

      GIGABYTE EasyTune ™ App
    GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment.
    With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.



      GIGABYTE  Cloud Station™  APP
    GIGABYTE Cloud Station™ is composed of several GIGABYTE's unique apps that allow your smart phones/tablet device to communicate, share resources, and control desktop PCs via wireless connection.

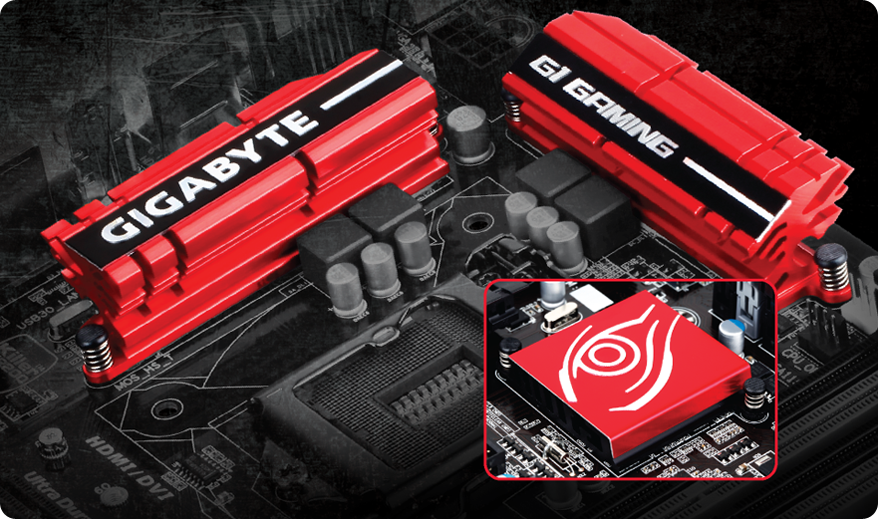

  • Thiết kế tản nhiệt hoàn toàn mới
  • 4K Ultra HD Support
    4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.
  • HDMI™-The Next Generation Multimedia Interface
    HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
  • 5x (15μ) Gold Plated CPU Socket Design
    GIGABYTE 9 Series motherboards come equipped with a gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins and bad contacts.

  • Game Controller

    GIGABYTE Game Controller allows you to define your own hotkeys and change the mouse sensitivity, helping you make the most out of your keyboard and mouse in games.

      Hot Key:
    Create macro commands and define your own hotkeys to quickly perform the function your want.
    *Create the hotkeys by yourself on normal keyboard.

      Speed:
    Using the Sniper key you can switch the mouse sensitivity when you are in sniper mode for better sniper accuracy.

    With Speed Control
    Without Speed Control
    Enable mouse Sniper Mode to make your shot quick and stable.
    High DPI Mouse in sniper mode : Hard to focus
