• Supports 3rd Gen. Intel® 22nm CPUs and 2nd Gen. Intel® Core™ CPUs (LGA1155 socket)
  • GIGABYTE All Digital Power with GIGABYTE 3D Power
  • GIGABYTE 3D BIOS (Dual UEFI)
  • GIGABYTE Ultra Durable™5 technology
  • Innovative 32+3+2 Phase VRM Design
  • GIGABYTE Bluetooth 4.0 and Wi-Fi Card
  • Onboard mSATA slot for mSATA SSDs
  • PCI Express Gen 3.0 support
  • 4-way SLI™ and 4-way CrossFireX™ multi-GPU support
  • Lucid Virtu™ Universal® MVP GPU virtualization support
  • Dual LAN (Intel® Gigabit + Atheros Gigabit Ethernet controllers)
  • Realtek ALC898 with High Quality 110dB SNR HD audio
  • GIGABYTE On/Off Charge with 3X USB Power
  • Giới thiệu
    GIGABYTE đã hé lộ bo mạch chủ quan trọng, mới nhất Z77X-UP7. Thiết kế dành riêng cho ép xung chuyên nghiệp, GIGABYTE Z77X-UP7 là bo mạch chủ mà các tay ép xung thiện chiến đang tìm cách để hạ bệ kỷ lục thế giới của nó. Hiện nay mức xung kỷ lục được thực hiện trên bo mạch chủ Z77X-UP7 kết hợp với CPU Intel® Core™ i7 là 7.102Ghz.
  • Thiết kế nguồn CPU 32+3+2 phase dẫn đầu ngành công nghiệp



    		 The GIGABYTE Z77X-UP7 motherboard delivers some serious amount of power through its 32+3+2 power phase design (32 CPU phases, 3 Intel<sup>&reg;</sup> HD Graphics, 2 VTT phases). Featuring the new GIGABYTE Ultra Durable™ 5 technology with high current capable components including 60A rated PowIRstages® from IR, the Z77X-UP7 is able to deliver an astonishing 2,000W of power delivery.

  • Thiết kế toàn bộ nguồn kỹ thuật số

    The GIGABYTE Z77X-UP7 motherboard takes advantage of an exclusive All Digital Engine to deliver maximum power to 3rd generation Intel® Core™ processors. Using entirely digital controllers means that more precise power delivery to the motherboard’s most power hungry and energy sensitive components is possible.


  • GIGABYTE 3D Power

    Users can enjoy a fully interactive 3D utility that facilitates adjustment of the 3 dimensions that control the power delivery to your CPU and Memory: Voltage, Phase and Frequency. These parameters are crucial to how the digital PWM supplies power to critical areas of the motherboard and can help users quickly obtain the highest, most stable overclock.

    3D Power: Voltage Control
    Voltage parameters can be modified within 3D Power, including load line calibration of the CPU. By adjusting load line calibration, Vdroop can be avoided, maintaining optimal voltages levels despite increasing current levels. OVP (over voltage protection) can also be adjusted to change default protection range of the CPU, IGP, VTT and system memory.

    3D Power: Phase Control
    Users can calibrate OCP (Over Current Protection) for the CPU, integrated memory controller and system memory power levels. This allows the Phase control to deliver even more power to the system when needed.

    3D Power: Frequency Control
    GIGABYTE's all digital PWM allows for adjustable frequency control via the International Rectifier PWM controller. 3D Power frequency control allows users to change the PWM controller frequency so that the CPU VRM can adjust power delivery speeds more quickly. Users can also adjust the PWM spectrum or maximum and minimum overall frequencies.
  • GIGABYTE Ultra Durable™ 5
    High Current, Low Heat CPU Power Zone Design Features IR Digital Power Controller and IR3550 PowIRstage® Ics
    Ultra Durable 5

    The GIGABYTE motherboard employ award winning GIGABYTE Ultra Durable™ 5 technology that includes high current capable components for the CPU power zone including IR3550 PowIRstage® ICs from International Rectifier, 2X Copper PCB and high current Ferrite Core Chokes rated up to 60A, which together are able to deliver up to 60°C* cooler temperatures than traditional motherboards. Featured on a range of new motherboards based the Intel®X79 and Z77 Express Chipsets, GIGABYTE Ultra Durable™ 5 technology is the next evolution in quality motherboard design...more
  • Hỗ trợ cấu hình đồ họa 4-Ways
    The GIGABYTE Z77X-UP7 delivers the industry's most scalable graphics platform, with support for both 4-way ATI CrossfireX™ and Nvidia SLI™. Providing 4 PCI Express 3.0 x8 connectivity, the Z77X-UP7 delivers ultra smooth 3D rendering, blazing-fast frame rates and enhanced graphics capabilities for users wanting to get the highest level of graphics performance from their system.

    4-Way Graphics
    Native PCIe Gen. 3 x16 Direct Link to CPU
    Single black PCIe x16 slot provides a direct link to the CPU, enabling it to bypass the PLX chip. This provides the fastest possible connection for single graphics card benching.

  • GIGABYTE 3D BIOS

    GIGABYTE has completely re-drawn the traditional BIOS experience, providing mainstream and enthusiast users with an exclusive in-house designed UEFI BIOS technology. Featuring a superior graphical interface capable of 32-bit color imaging and fluid user-friendly mouse navigation, GIGABYTE 3D mode allows novice or casual users to more clearly understand the areas of the motherboard that are being affected through the BIOS settings, gaining a clearer understanding of the BIOS functionality. Advanced Mode provides a more comprehensive UEFI BIOS environment that is designed specifically for overclockers and power users who want maximum control over their PC’s hardware.

    Dual UEFI BIOS™
    At the heart of this exciting 3D BIOS™ technology is a pair of physical BIOS ROMs containing GIGABYTE's exclusive in-house designed Dual UEFI BIOS™ technology, featuring the patented GIGABYTE DualBIOS™ technology that automatically recovers BIOS data when main BIOS has crashed or failed.

    BIOS Switcher
    With onboard BIOS Switcher, users can manually select which BIOS chip to use (Main BIOS or Backup BIOS), allowing them to select one BIOS for normal use, and the other specifically for overclocking. Users can also easily compare two different BIOS versions, a very useful feature when users want to update to a new BIOS, but don’t want to lose their original settings.

    DualBIOS™ Disable Switch
    With onboard BIOS Switcher, users can manually select which BIOS chip to use (Main BIOS or Backup BIOS), allowing them to select one BIOS for normal use, and the other specifically for overclocking. Users can also easily compare two different BIOS versions, a very useful feature when users want to update to a new BIOS, but don’t want to lose their original settings.
  • OC-Touch
    OC-Touch enables overclockers to quickly and easily get the best performance from their system. Onboard OC-Touch buttons allow overclockers to manually adjust the CPU ratio, BCLK settings as well as adjustments to the BCLK stepping ratio, to either 1MHz or 0.1MHz increments. These changes can be made in real-time, whether in BIOS, DOS, or Windows® without the need for rebooting, so that users can quickly fine-tune their system and find their CPU’s maximum frequency. Onboard voltage measurement modules are also included to help users to conveniently monitor individual component voltages and onboard LN2 Mode switch allows users to quickly drop CPU frequency to x16 multiplier during extreme overclocking so that opening benching applications such as CPU-Z will not cause the overclock to fail.

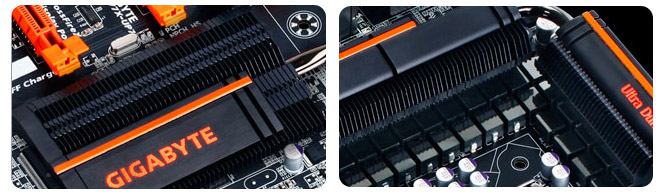

  • Thiết kế làm mát bằng lá tản nhiệt mỏng
    GIGABYTE đã tạo ra một thiết kế tản nhiệt mới “Thin Fin” với dấu hiệu màu cam nổi bật - GIGABYTE OC. Trang bị các lá kim loại cực mỏng, bộ tản nhiệt cung cấp khu vực bề mặt tiếp xúc lớn hơn vì vậy quá trình trao đổi nhiệt xảy ra nhanh hơn.

  • Công nghệ tăng tốc GIGABYTE 333

    GIGABYTE 7 series motherboards feature GIGABYTE 333 Onboard Acceleration , a range of the latest technologies that are designed help speed up data transfer, including SuperSpeed USB 3.0 technology, SATA Revision 3.0 (6Gbps) technology and an unprecedented 3x USB power boost on all USB ports for more power hungry USB devices.
  • Hỗ trợ tính năng On/Off Charge
    GIGABYTE 7 series motherboards feature ON/OFF Charge, a unique GIGAYTE technology which allows you not only to charge your iPhone, iPad or iPod Touch, but also allows you to Quick Charge it. As an added bonus, it can even be charged when your PC is turned off, so even if you forget to plug it into your charger after you've synced up your music, it will be fully charged when you need it.

    * Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non ON/OFF Charge USB ports.
    Charging results may vary by model.
  • Hỗ trợ mSATA
    GIGABYTE 7 series motherboards feature an onboard mSATA slot allowing users to easily take advantage of advanced SSD-based technologies like Intel® Smart Response and Intel® Rapid Start. Mounting an affordable, low capacity mSATA SSD directly onto your motherboard can enhance your PC's performance with better overall desktop responsiveness, faster boot times and faster system resume from 'Suspend to Disk' and 'Standby' modes.
  • An onboard Debug LED (Embedded post code LED display) simplifies motherboard signals and indicates system status.
  • Card mở rộng độc quyền Bluetooth 4.0/Wifi

    Đi kèm với bo mạch là card mở rộng Bluetooth 4.0/Wifi độc quyền hỗ trợ kết nối Bluetooth 4.0 và IEEE 802.11 a/b/g/n Wi-Fi mới nhất. Chuẩn Bluetooth 4.0 bao gồm công nghệ Smart Ready được giới thiệu trên các thiết bị di động như the Apple® iPhone® 4s. Điều này giúp cho việc truyền nội dung quan trọng từ smartphone của bạn hoặc máy tính bảng dễ dàng và nhanh hơn trước đây...more
    Download : GC-WB300D Safety approval list
  • Hỗ trợ công nghệ Lucid Universal MVP
    GIGABYTE 7 series motherboards support Lucid Virtu GPU virtualization technologies - optimized virtualization software that improves your PC's visuals, with faster response times, improved video processing and smoother media playback, all within a low power environment.
    Lucid Universal MVP also features Hyperformance, which eliminates redundant rendering tasks and predicts potential synchronization issues in the graphics delivery pipeline, producing faster frame rates, sharper visuals and reduced tearing.
  • HDMI™-The Next Generation Multimedia Interface
    HDMI giao diện mới nhất High-Definition Multimedia có thể cung cấp băng thông lên đến 5Gb/s truyền tải video chất lượng audio 8-kênh audio chất lượng cao. Khả năng truyền tải cao, không nén video kỹ thuật số và âm thanh, HDMI đảm bảo khả năng cao nhất cho trải nghiệm video lên đến 1080p mà không có sự tổn thất chất lượng với giao diện analog và giao diện digital-to-analog. Ngoài ra, HDMI tương thích với HDCP (High-bandwidth Digital Content Protection), cho phép phát Blu-ray/HD DVD và nội dung trên các phương tiện truyền thông khác.

* Các thuật ngữ HDMI, HDMI High-Definition Multimedia Interface, Nhận diện thương mại HDMI và Logo HDMI là các nhãn hiệu thương mại hoặc nhãn hiệu thương mại đã đăng ký của HDMI Licensing Administrator, Inc.
