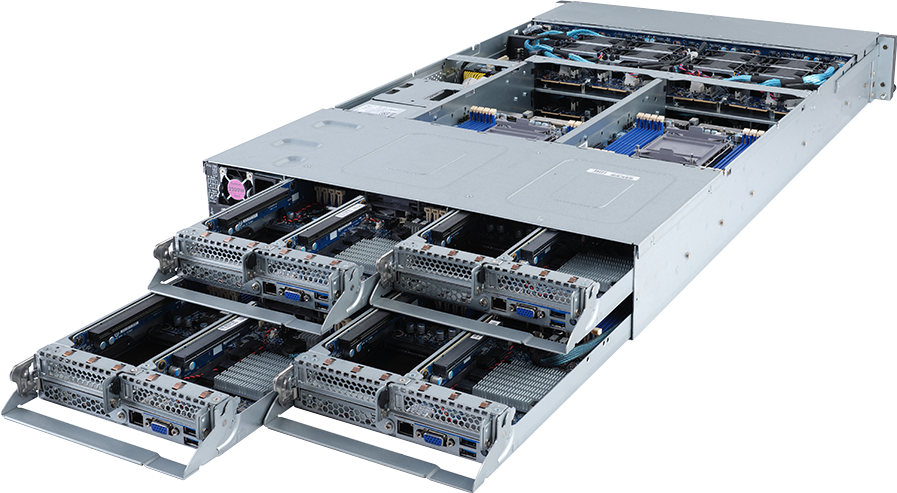

H262-NO1
High Density Server - 3rd Gen Intel® Xeon® Scalable - 2U 4-Node DP 24-Bay Gen4 NVMe/SATA/SAS
- 2U 4-node rear access server system
- Dual 3rd Gen Intel® Xeon® Scalable Processors per node
- 8-Channel DDR4 RDIMM/LRDIMM, 64 x DIMMs
- Supports Intel® Optane™ Persistent Memory 200 series
- Dual ROM Architecture
- 1 x CMC port
- 24 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- 8 x LP PCIe Gen4 x16 slots
- 4 x OCP 3.0 Gen4 x16 slots
- Dual 2200W 80 PLUS Platinum redundant power supply
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U 4-Node - Rear access
440 x 87.5 x 840
440 x 87.5 x 840
Motherboard
MH62-HD2
CPU
3rd Generation Intel® Xeon® Scalable Processors
Dual processor per node, 10nm technology
CPU TDP up to 270W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Dual processor per node, 10nm technology
CPU TDP up to 270W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
Per Node:
2 x LGA 4189
Total:
8 x LGA 4189
Socket P+
2 x LGA 4189
Total:
8 x LGA 4189
Socket P+
Chipset
Intel® C621A
Memory
Per node:
16 x DIMM slots
Total:
64 x DIMM slots
DDR4 memory supported only
8-channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
1.2V modules: 3200/2933/2666 MT/s
16 x DIMM slots
Total:
64 x DIMM slots
DDR4 memory supported only
8-channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
1.2V modules: 3200/2933/2666 MT/s
LAN
Per node:
1 x 10/100/1000 Mbps Management LAN
Total:
4 x 10/100/1000 Mbps Management LAN
1 x CMC port
1 x 10/100/1000 Mbps Management LAN
Total:
4 x 10/100/1000 Mbps Management LAN
1 x CMC port
Video
Integrated in Aspeed® AST2600 x 4
- 4 x VGA ports
- 4 x VGA ports
Storage
Per node:
6 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays, NVMe from CPU_1
Total:
24 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays, NVMe from CPU_1
SAS card is required for SAS devices support
6 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays, NVMe from CPU_1
Total:
24 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays, NVMe from CPU_1
SAS card is required for SAS devices support
SAS
Depends on SAS add-in cards
RAID
Intel® SATA RAID 0/1/5/10
Expansion Slots
Per node:
Riser Card CRSH01H:
- 1 x PCIe x16 (Gen4 x16) low-profile slot
Riser Card CRSH01E:
- 1 x PCIe x16 (Gen4 x16) low-profile slot
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth
Total:
Riser Card CRSH01H x 4:
- 4 x PCIe x16 (Gen4 x16) low-profile slots
Riser Card CRSH01E x 4:
- 4 x PCIe x16 (Gen4 x16) low-profile slots
4 x OCP 3.0 slots with PCIe Gen4 x16 bandwidth
Riser Card CRSH01H:
- 1 x PCIe x16 (Gen4 x16) low-profile slot
Riser Card CRSH01E:
- 1 x PCIe x16 (Gen4 x16) low-profile slot
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth
Total:
Riser Card CRSH01H x 4:
- 4 x PCIe x16 (Gen4 x16) low-profile slots
Riser Card CRSH01E x 4:
- 4 x PCIe x16 (Gen4 x16) low-profile slots
4 x OCP 3.0 slots with PCIe Gen4 x16 bandwidth
Internal I/O
Per node:
1 x TPM header
1 x VROC connector
1 x TPM header
1 x VROC connector
Front I/O
Per node:
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
Total:
4 x Power buttons with LED
4 x ID buttons with LED
4 x Reset buttons
4 x System status LEDs
*1 x CMC status LED
*1 x CMC reset button
*Only one CMC status LED and reset button per system.
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
Total:
4 x Power buttons with LED
4 x ID buttons with LED
4 x Reset buttons
4 x System status LEDs
*1 x CMC status LED
*1 x CMC reset button
*Only one CMC status LED and reset button per system.
Rear I/O
Per node:
2 x USB 3.0
1 x VGA
1 x MLAN
1 x ID LED
Total:
8 x USB 3.0
4 x VGA
4 x MLAN
4 x ID LEDs
*1 x CMC port
*Only one CMC port per system.
2 x USB 3.0
1 x VGA
1 x MLAN
1 x ID LED
Total:
8 x USB 3.0
4 x VGA
4 x MLAN
4 x ID LEDs
*1 x CMC port
*Only one CMC port per system.
Backplane Board
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
Dual 2200W 80 PLUS Platinum redundant power supply
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 12.6A
DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V~ or 240Vdc Input
+12.12V/ 178.1A
+12Vsb/ 3.5A
Note: The system power supply requires C19 power cord.
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 12.6A
DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V~ or 240Vdc Input
+12.12V/ 178.1A
+12Vsb/ 3.5A
Note: The system power supply requires C19 power cord.
System Management
Aspeed® AST2600 Baseboard Management Controller
Aspeed® AST2520A2-GP Chassis Management Controller
GIGABYTE Management Console web interface
Aspeed® AST2520A2-GP Chassis Management Controller
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 7.9 or later
Red Hat Enterprise Linux 8.2 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later
Windows Server 2016
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 7.9 or later
Red Hat Enterprise Linux 8.2 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later
Windows Server 2016
Windows Server 2019
Windows Server 2022
System Fans
8 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 30°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Please leave one PCIe slot empty if using processor with 270W TDP.
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Please leave one PCIe slot empty if using processor with 270W TDP.
Weight
Net Weight: 27.8 kg
Packaging Dimensions
1180 x 779 x 300 mm
Packaging Content
1 x H262-NO1
8 x CPU heatsinks
1 x 3-Section Rail kit
8 x CPU heatsinks
1 x 3-Section Rail kit
Part Numbers
- Barebone package: 6NH262NO1MR-00-1*
- Motherboard: 9MH62HD2NR-00
- 3-Section Rail kit: 25HB2-A66122-K0R
- CPU heatsink: 25ST1-44320S-M1R/25ST1-44320T-M1R
- Backplane board - CBPH7O0: 9CBPH7O0NR-00
- Fan module: 25ST2-883828-D0R/25ST2-88382A-D0R
- Power supply: 25EP0-222003-D0S
Optional parts:
- VROC module: 25FD0-R181N0-10R (Supported for Intel SSD only)
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- M.2 expansion card - CMTP160: 9CMTP160NR-00
- Ring topology kit: 6NH262Z65SR-00-100
- RMA packaging: 6NH262NO1SR-RMA-A100
- Motherboard: 9MH62HD2NR-00
- 3-Section Rail kit: 25HB2-A66122-K0R
- CPU heatsink: 25ST1-44320S-M1R/25ST1-44320T-M1R
- Backplane board - CBPH7O0: 9CBPH7O0NR-00
- Fan module: 25ST2-883828-D0R/25ST2-88382A-D0R
- Power supply: 25EP0-222003-D0S
Optional parts:
- VROC module: 25FD0-R181N0-10R (Supported for Intel SSD only)
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- M.2 expansion card - CMTP160: 9CMTP160NR-00
- Ring topology kit: 6NH262Z65SR-00-100
- RMA packaging: 6NH262NO1SR-RMA-A100
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Tiện ích
Firmware
QVL
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 64bit
- Linux
Chipset
LAN
LAN
Phiên bản
Kích cở
Ngày
SATA RAID
SATA RAID
Phiên bản
Kích cở
Ngày
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 7.5.0.1991
4.17 MB
Sep 08, 2021
OS: Windows Server 2016 64bit,Windows Server 2019
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 7.5.0.1991
23.93 MB
Sep 08, 2021
OS: Windows Server 2016 64bit,Windows Server 2019
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 7.7.0.1273
7.07 MB
Apr 25, 2022
OS: Windows Server 2022
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 7.7.0.1273
23.58 MB
Apr 25, 2022
OS: Windows Server 2022
BIOS
Mô tả
Phiên bản
Kích cở
Ngày
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Cảnh báo:
Do việc flash BIOS chứa đựng rủi ro, nếu bạn không gặp vấn dề với BIOS cũ, bạn không nên flash BIOS. Để flash BIOS, hãy cẩn thận. Quá trình flash BIOS có thể dẫn đến trục trặc hệ thống.
Thế nào là BETA?
BETA là mô tả phiên bản mới đáng tin cậy, nhưng vẫn chưa đầy đủ các tính năng cuối cùng. Trong giai đoạn này chúng tôi xem trước các tính năng mới và thu thập ý kiến của khác hàng để đảm bảo sàn phẩm của chúng tôi, cung cấp những kinh nghiệm tốt nhất có thể.
Do việc flash BIOS chứa đựng rủi ro, nếu bạn không gặp vấn dề với BIOS cũ, bạn không nên flash BIOS. Để flash BIOS, hãy cẩn thận. Quá trình flash BIOS có thể dẫn đến trục trặc hệ thống.
Thế nào là BETA?
BETA là mô tả phiên bản mới đáng tin cậy, nhưng vẫn chưa đầy đủ các tính năng cuối cùng. Trong giai đoạn này chúng tôi xem trước các tính năng mới và thu thập ý kiến của khác hàng để đảm bảo sàn phẩm của chúng tôi, cung cấp những kinh nghiệm tốt nhất có thể.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
Tiện ích
Mô tả
Phiên bản
Kích cở
Ngày
GSM CLI
Version : 2.1.77
147.89 MB
Sep 27, 2024
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
Firmware
Mô tả
Phiên bản
Kích cở
Ngày
BMC firmware with embedded GIGABYTE Management Console (AST2600)
Version : 13.06.09
123.77 MB
Sep 05, 2024
Tiếng Anh
GIGABYTE Management Console Web GUI Tool
GCT Diagnostic Analyzer
GCT Diagnostic Analyzer
Version : 1.0
2519.27 MB
Aug 15, 2024
Tiếng Anh
CMC Firmware (AST2520)
Note: Please make sure the system CMC firmware version is 12.40.19 or later before updating BMC firmware
Note: Please make sure the system CMC firmware version is 12.40.19 or later before updating BMC firmware
Version : 12.41.36
83.16 MB
Nov 02, 2023
Tiếng Anh
Hướng dẫn
Mô tả
Phiên bản
Kích cở
Ngày
User Guide - GIGABYTE Management Console (AMI AST2600)
Version : 1.0
11.72 MB
Aug 12, 2024
Tiếng Anh
Mô tả
Phiên bản
Kích cở
Ngày
RESOURCES
Success Case
Articles
Success Case | May 25, 2023
Máy chủ ARM của GIGABYTE thúc đẩy phát triển giải pháp giao thông thông minh lên 200%
Một nhóm các nhà khoa học tại NTU đã sử dụng máy chủ G242-P32 của GIGABYTE và Bộ công cụ dành cho nhà phát triển Arm-HPC để tạo ra “mô hình luồng giao thông chính xác cao” - một giải pháp giao thông thông minh có thể được sử dụng để kiểm tra các phương tiện tự hành và xác định các đoạn đường dễ xảy ra tai nạn để khắc phục ngay lập tức.
Tech Guide | October 27, 2022
Data Center Cooling: The Key to Green Computing and a Low-Carbon Transition
Tech Guide | May 31, 2022
What is Private Cloud, and is it Right for You?
In the era of cloud computing, just about everyone has heard of the terms “private cloud” and “public cloud”. Chances are, you are using one or both of them in your everyday life—but how much do you really know about them? If you had the chance, could you build a private cloud for yourself or your organization? GIGABYTE Technology, an industry leader in server solutions used by global cloud service providers, is pleased to present our latest Tech Guide. We will examine the difference between private and public clouds, introduce the private cloud’s advantages and limitations, and then introduce GIGABYTE products that may help you build and operate a private cloud of your own.
Tech Guide | March 16, 2022
What is Big Data, and How Can You Benefit from It?
You may be familiar with the term, “big data”, but how firm is your grasp of the concept? Have you heard of the “5 V’s” of big data? Can you recite the “Three Fundamental Steps” of how to use big data? Most importantly, do you know how to reap the benefits through the use of the right tools? GIGABYTE Technology, an industry leader in high-performance server solutions, is pleased to present our latest Tech Guide. We will walk you through the basics of big data, explain why it boasts unlimited potential, and finally delve into the GIGABYTE products that will help you ride high on the most exciting wave to sweep over the IT sector.
Tech Guide | February 11, 2022
The Advantages of ARM: From Smartphones to Supercomputers and Beyond
Processors based on the ARM architecture, an alternative to the mainstream x86 architecture, is gradually making the leap from mobile devices to servers and data centers. In this Tech Guide, GIGABYTE Technology, an industry leader in high-performance server solutions, recounts how ARM was developed. We also explain the various benefits of ARM processors and recommend ARM servers for different sectors and applications.
Tech Guide | January 11, 2022
Cluster Computing: An Advanced Form of Distributed Computing
Cluster computing is a form of distributed computing that is similar to parallel or grid computing, but categorized in a class of its own because of its many advantages, such as high availability, load balancing, and HPC. GIGABYTE Technology, an industry leader in high-performance servers, presents this tech guide to help you learn about cluster computing. We also recommend GIGABYTE servers that can help you benefit from cluster computing.
Tech Guide | January 10, 2022
Phân tích khái niệm: HPC là gì? Hướng dẫn kỹ thuật của GIGABYTE
Thuật ngữ HPC, viết tắt của máy tính hiệu suất cao, được sử dụng rất nhiều ngày nay, khi các giải pháp máy chủ ngày càng trở nên phổ biến hơn. Nó đang dần trở thành một cụm từ thông dụng: bất cứ thứ gì là “HPC” đều phải là lựa chọn phù hợp cho nhu cầu máy tính của bạn. Bạn có thể tự hỏi: chính xác thì lợi ích của HPC là gì và HPC có phù hợp với bạn không? GIGABYTE Technology, công ty hàng đầu trong ngành về máy chủ hiệu suất cao, trình bày hướng dẫn công nghệ này để giúp bạn hiểu ý nghĩa của HPC trên cả cấp độ lý thuyết và thực tế. Khi làm như vậy, chúng tôi hy vọng sẽ giúp bạn đánh giá xem HPC có phù hợp với bạn hay không, đồng thời chứng minh những gì GIGABYTE cung cấp trong lĩnh vực HPC.
News
News | May 30, 2022
GIGABYTE Joins ISC High Performance 2022 to Promote Emerging Enterprise Technologies, Including Accelerated Computing
Others
Back to H262-NO1
