• Supports newest AMD AM3+ FX/AM3 Phenom™ II series processors
  • Advanced 8+2 phase CPU VRM power design for AMD high-TDP CPU support
  • 5 PCI-E 2.0 interfaces for 3way AMD CrossFireX and SLI multi-graphics support
  • AMD SB950 provides 6 native SATA3 ports with superfast 6Gbps link speed and RAID 0, 1, 5, 10 support
  • Supports USB 3.0 with superfast transfer rates of up to 5 Gbps
  • GIGABYTE 3x USB Power with On/Off Charge USB ports
  • Ultra Durable 3 Technology with copper cooled quality for lower working temperature
  • Turbo XHD technology accelerating hard drive performance with ease
  • Revolution energy saving design with Easy Energy Saver technology
  • Hi-def 108dB Signal-to-noise ratio Blu-ray DVD audio playback
  • Patented DualBIOS with Hybrid EFI technology for 3TB HDD support
  • Supports Dolby Home Theater audio
  • To enable AM3+ AMD FX-Series CPU support, please update your motherboard with the most current BIOS found in your motherboard’s download section.
  • Introduction

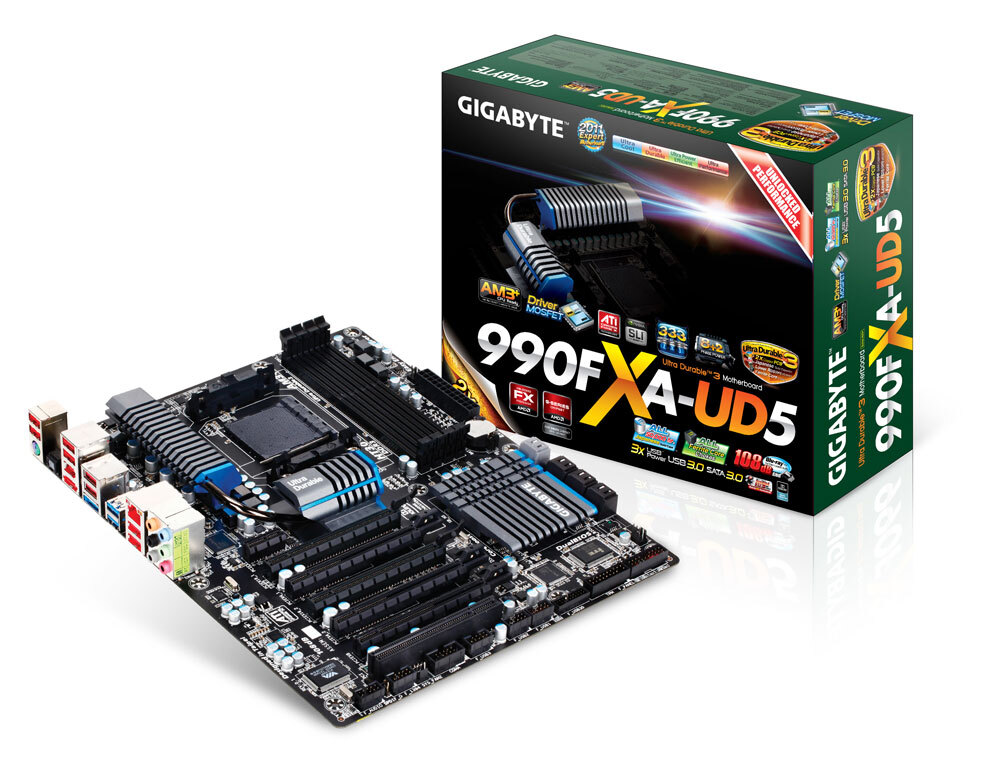

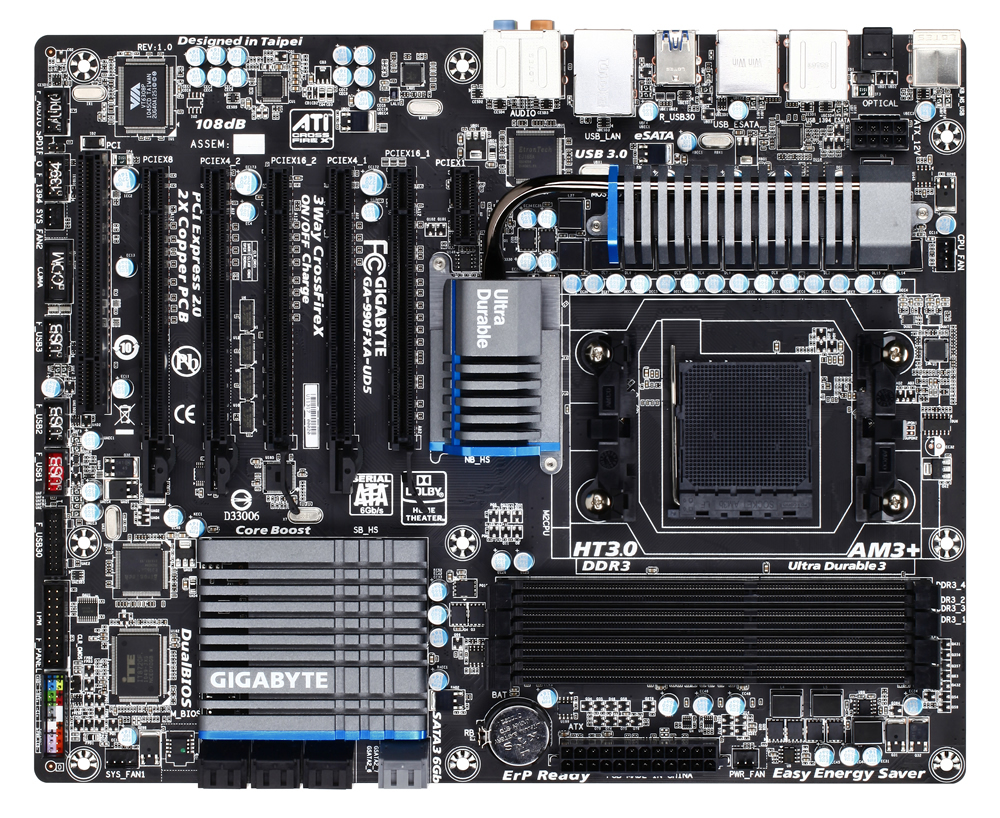

    The 990FXA-UD5 motherboard is designed to offer a stable, high-speed platform for delivering amazingly fast data transfer via the GIGABYTE 333 onboard acceleration technologies. Featuring the USB3.0 controller, AMD 900 series motherboards allow users to take advantage of super fast USB transfer rates of up to 5Gbps, delivering 10x faster data transfer compared to USB 2.0. Utilizing the industry's first Serial ATA Revision 3.0 solution via AMD SB950 chipset, GIGABYTE AMD 900 series motherboards offer native 6 ports of next generation high speed data storage devices support with data transfer speeds of up to 6 Gbps with RAID 0, 1, 5, 10. The AMD 900 series motherboards introduce a unique hardware design with lower resistance fuses for ensuring lower voltage drops and providing more stable and plentiful power delivery. All USB ports also benefit from a 3x power boost for better power delivery to power hungry USB devices.
  • On/Off Charge Technology
    GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger...more
    *Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
    *Whether to support 3X USB power design, it may vary by models.
    On/Off Charge Driver download
  • Get Ready for New Generation of 32nm AMD AM3+ CPU
    GIGABYTE's AMD motherboards are ready to support new generation of 32nm AMD AM3+ multi-core processors, delivering the very best platform for multitasking, multimedia and high performance gaming.
  • Supports next generation of 45nm AMD AM3 CPU
    This motherboard designs with Split Power Plane, 8+2 phase VRM to support AMD the latest 45nm AM3 Phenom™II series processors, delivering the great performance enchantment to system and ultimate scalability hardware expending.
  • Driver MOSFETs - Integration of VRM Components

    A traditional Voltage Regulator Module (VRM) consists of a Choke, Capacitors, MOSFETs and a Driver IC. By incorporating the MOSFETs and driver IC in accordance with the Driver-MOSFET specification, we can achieve higher power transfer and increased efficiency at higher switching frequencies to satisfy the growing power requirements of today's processors. Driver-MOSFETs also help to reduce VRM real estate requirements in the CPU zone.
  • SATA 6 Gbps Support
    Yet another onboard feature of GIGABYTE AMD 900 series motherboards are integrated the latest AMD SB950 chip for high-speed SATA Revision 3.0 compatibility, delivering 6 ports native superfast 6Gbps link speeds for twice the data transfer rates of SATA Revision 2.0 (3 Gbps) and RAID 0, 1, 5, 10 support. When used in RAID 0 (Stripe) mode, GIGABYTE AMD 900 series motherboards offer even faster data transfer rates of up to 4x the speed of current SATA interfaces.

    * SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.
  • USB 3.0 Support
    The GIGABYTE motherboards support the latest generation SuperSpeed USB 3.0 technology made possible through an onboard USB3.0 host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. The onboard SuperSpeed USB 3.0 technology also provides new power management features that include increased maximum bus power and device current draw to better accommodate power-hungry devices.

    * USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration.
  • 3x USB Power Boost
    GIGABYTE motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE’s unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery.
  • Multi-display Support with 3-way SLI™ and 3-way CrossFire™
    Flexible graphics capabilities - Up to 3 VGA cards are supported for either 3 way CrossFire™ or 3-way SLI™ action (running at two x16 or three x8 bandwidth), delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
    Note: Please update the latest version of BIOS from GIGABYTE website and VGA driver from vender’s website.
  • AMD OverDrive Support
    The AMD OverDrive™ utility is provided by AMD, offering high-end users the ability to maximize the capability, flexibility, and adjustability of the platforms utilizing AMD processors, sockets, and chipsets.
    * For download site of AMD OverDrive™, please visit AMD official website for details: http://game.amd.com/us-en/drivers_overdrive.aspx
    ** The support condition of this utility may vary by models(chipsets).
  • Dual Channel DDR3 2000+ MHz
    Delivering native support for DDR3 memory up to 2000MHz, GIGABYTE Ultra Durable 3 series motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease.
  • 108dB Signal-to-Noise ratio playback
    GIGABYTE strongly believes that in 2011, HD audio playback is a standard specification, and as such, we have made Blu-ray audio playback a standard for all of our motherboards.
    All of GIGABYTE's 2011 motherboards feature higher capability audio solution with 108dB Signal-to-Noise ratio (SNR) playback quality to deliver high-performance, multi-channel HD audio. SNR is a comparison of the amount of signal to the amount of noise such as hiss present in the signal (expressed in Decibels). A higher SNR equals a better audio experience. For example, 108dB, is a high audio specification, as this means the audio signal is 108dB higher than the level of the noise.
  • DualBIOS™ 3TB+ HDD Support (Hybrid EFI Technology)
    Hybrid EFI Technology combines the benefits of GIGABYTE's mature BIOS platform including stability and compatibility with 3rd party products with 3TB+ HDD support from EFI technology, allowing GIGABYTE to offer the best of both worlds through a quick and easy BIOS update using GIGABYTE's @BIOS utility that is freely available from the GIGABYTE website.
    GIGABYTE DualBIOS™ is a patented technology that automatically recovers BIOS data when the main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating. In addition, GIGABYTE DualBIOS™ now supports 3TB+ (terabyte) hard drive booting without the need for partitioning, and enables more data storage on a single hard drive.
  • GIGABYTE Touch BIOS™ (Patent Pending)
    An Innovative New Way to Modify BIOS Settings
    Navigating through the BIOS to change system settings can be a daunting task for users not familiar with control “F”functions and mouse-less navigation. While some EFI BIOS try to address this with a mouse friendly environment, many implementations still lack a certain ease-of-use necessary for most people. With GIGABYTE Touch BIOS™, GIGABYTE engineers have completely re-imagined how users can interact with their BIOS, allowing for a more intuitive user experience. In fact, with a touch screen monitor, GIGABYTE Touch BIOS™ is as easy to use as most apps on your iPhone.
  • Turbo XHD- Full Automatic RAID 0/Stripe
    GIGABYTE Turbo XHD provides a quick and easy way to boost your hard drive performance. Just via the latest BIOS update, Turbo XHD will automatically enabled when the system detecting 2 new SATA3 HDDs and providing users effortlessly to set up a RAID 0/Strip configuration.
    Note: Turbo XHD function only enabled for the SATA3 ports provided by AMD SB950/SB850 Chipset.
  • Ultra Durable 3

    GIGABYTE Ultra Durable 3 design, featuring 2 ounces of copper for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTE's Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2oz Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking...more
  • GIGABYTE innovative technology- Easy Energy Saver
    GIGABYTE innovative technology- Easy Energy Saver Featuring an advanced proprietary software design, GIGABYTE Easy Energy Saver is able to dynamically adjust CPU power depending on workload, delivering just the right amount of power needed for the task. Coupled with AMD’s highly efficient processors, the Easy Energy Saver is able to provide exceptional levels of power savings and enhanced power efficiency without sacrificing computing performance.
  • EasyTune6
    GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system.
  • eSATA Port
    Featuring with two external SATA (eSATA) ports on rear panel, it provides smart setup and hot-plug functionality allowing easier data backup and content manipulation on external storage devices.
  • Cloud OC
    GIGABYTE Cloud OC is a free overclocking application that facilitates PC overclocking through any web browsing capable device such as a smart phone, iPad, iPhone, Netbooks or notebook PC. Being browser based, it connects via wireless Internet, Bluetooth or through an Ethernet cable, and its many functions are categorized into three tabs: Tuner, System Info and Control...more
    Cloud OC download
  • AutoGreen- Greening your PC via Bluetooth cellphone
    AutoGreen technology can automatically save power by simply putting your PC in a state of sleep when your Bluetooth® cell phone is out of range of your computer.
    Note: GIGABYTE motherboards do not include a Bluetooth® receiver; the addition of a 3rd party Bluetooth receiver is required.
  • Dolby Home Theater Support
    Delivers vivid surround sound for music, movies, and games, using two to eight speakers or any set of headphones.
  • Norton™ Internet Security
    Fast, comprehensive, and up-to-the-minute protection against online threats. It safeguards your computer, identity, and home network without slowing you down. It sets a new standard for speed and makes online shopping, banking, and browsing safer and more convenient than ever.
  • Qualified for Windows® 7
    The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
  • ErP Lot 6 support
    The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.

* Терміни HDMI, HDMI High-Definition Multimedia Interface, фірмовий стиль HDMI та логотипи HDMI є торговельними марками або зареєстрованими торговельними марками компанії HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
