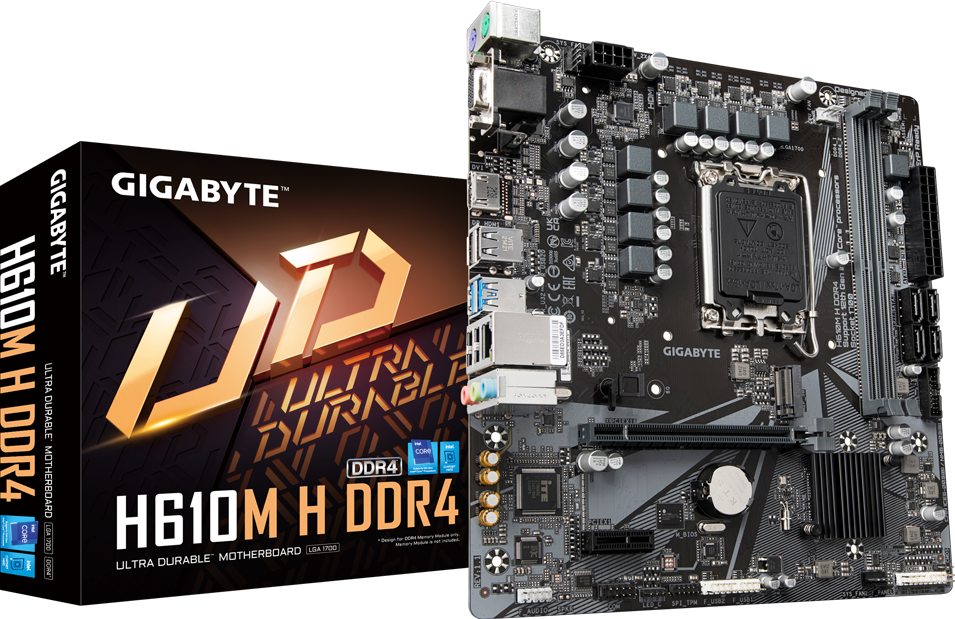

Intel® H610 Motherboard with 6+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Realtek Gaming LAN, Anti-Sulfur Resistor, Smart Fan 6

  • Supports 12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs​​
  • 6+1+1 Hybrid Digital VRM Design
  • GIGABYTE Gaming LAN with Bandwidth Management​
  • NVMe PCIe 3.0 x4 M.2
  • High Quality Audio Capacitors and Audio Noise Guard​
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Kükürt Direnç Tasarımı

* Gerçek destek CPU tarafından değişiklik gösterebilir.
OVERVIEW
POWER
PERFORMANCE
CONNECTIVITY
ULTRA DURABLE
SOFTWARE
OVERVIEW
POWER
PERFORMANCE
CONNECTIVITY
ULTRA DURABLE
SOFTWARE
1
Solid Pin Power Connector
  1. 8 pin CPU Power Connector
2
D-Sub
3
HDMI
4
USB 3.2 Gen1
5
Gaming GbE LAN
6
M.2 Connector
  1. 1 x PCIe 3.0 x4 M.2
7
Audio Solutions
  1. 8-ch HD Audio
  2. Audio Noise Guard
  3. High-End Audio Capacitors
8
6+1+1 Phases Hybrid Power Design
  1. 50A Low RDS(on) MOSFETs
  2. PCIe 4.0 Ready PCB
9
Supports 12th Gen. Intel Core™ Processors
10
4 x SATA 6Gb/s
11
Dual Channel DDR4, 2 DIMMs
12
PCIe 4.0 Design
  1. 1 x PCIe 4.0 x16 slot
POWER
6+1+1 Phases Hybrid Power Design
6+1+1 Phases Hybrid Power Design
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
  • 6+1+1 Phases Low RDS(on) MOSFETs
  • Solid capacitors to improve transient response and minimize oscillation.
  • 8-pin Solid Pin CPU Power Connector.
PERFORMANCE
PCIe 4.0 Design
Single 32GB Support
Smart Fan 6
HYBRID CORE OPTIMIZATION​
11 x PCIe 4.0 Slot
Reinforced PCIe 4.0 x 16.
2PCIe 4.0 Ready PCB
Low signal Loss PCB.
Single 32GB Support
The maximum memory capacity on the H610 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 64GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.
Hybrid Cores Optimization
With new Intel Hybrid technology, GIGABYTE exclusively creates two new "CPU Upgrade" in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.
GAMING
  • • Deactivate all E-Core
  • • Zero compromise on gaming performance
  • • Up to 20% lower CPU package power
  • • Up to 5°C lower CPU temperature
Max Performance
  • • Activate all P-Core and E-Core
  • • Maximize full multi-cores performance
CONNECTIVITY
Gaming GbE LAN
PCIe 3.0 M.2 Slot​
Hi-Fi Audio
Exclusive Realtek 8118 Gaming LAN
High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.
NVMe PCIe Gen3 x4 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
* Photo for reference only.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
ULTRA DURABLE
Solid Pin
Anti-Sulfur
Solid Pin Power Connectors
H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
  1. Larger contact area for electricity
  2. More metal quantity to sustain higher power and generated heat
  3. Ultra durable and longer lifespan
* Photo for reference only.
START SULFURIZATION PROTECTION

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

SOFTWARE
BIOS
APP Center
Easy Tune
System Information Viewer
BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
* Photos are for reference only. Product features may vary by model.
APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.
EasyTune™
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
