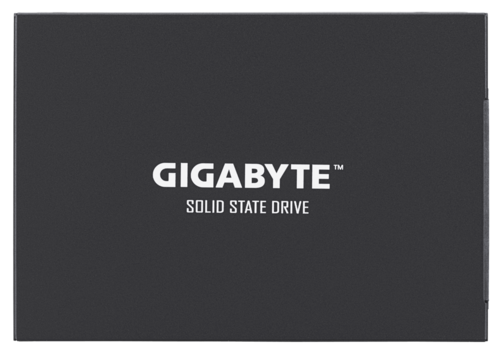

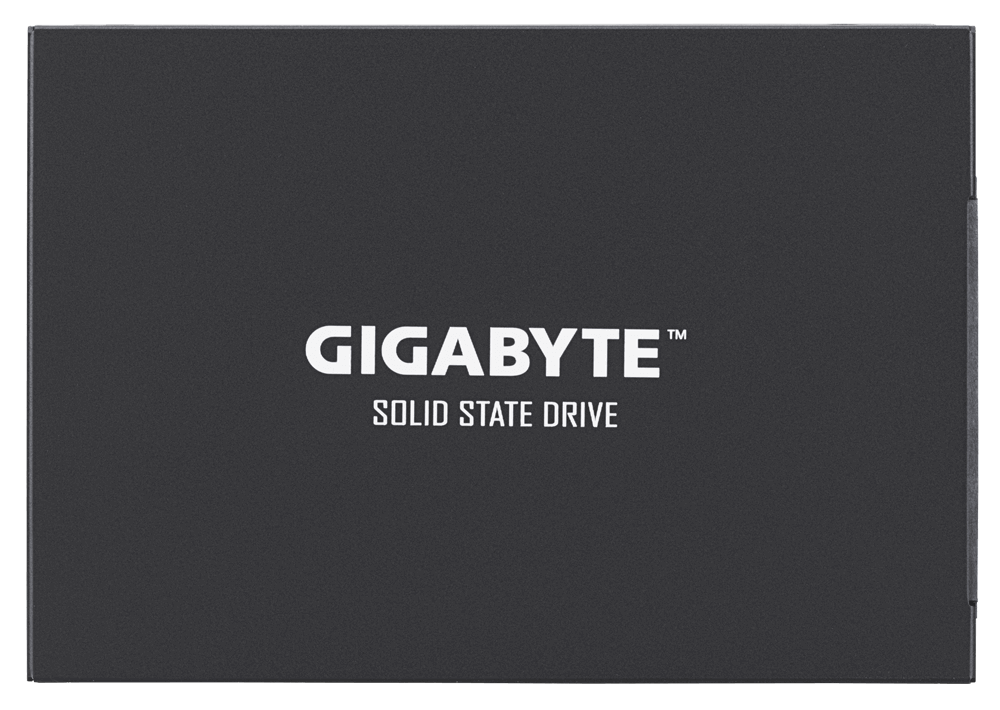

GIGABYTE UD PRO SSD 1TB
GP-UDPRO1T
- Form Factor: 2.5-inch internal SSD
- Interface: SATA 6.0Gb/s
- Total Capacity: 1TB*
- Warranty: Limited 5-year
- Sequential Read speed : 550 MB/s**
- Sequential Write speed : 530 MB/s**
- 3D TLC NAND Flash offers blazing speed, high capacity & enhanced reliability.
- External DRAM Cache for Better Sustain Speed
- TRIM & S.M.A.R.T supported
* Note: 1GB = 1 billion bytes. Actual useable capacity may vary.
** Speeds based on internal testing. Actual performance may vary.
Performance . Stability
GIGABYTE Solid State Drive
Industry Leading 3D NAND Flash
GIGABYTE UD PRO series SSDs adopt 3D TLC NAND flash, which has higher bit capacity, R/W speed performance, endurance and reliability compared to 2D TLC flash. Moreover, with an optimized controller and firmware, GIGABYTE UD PRO series SSDs provide excellent performance for a smooth PC experience.
Benefits of 3D NAND FLASH?
- Higher Density and Capacity
- Faster Programming
- More Reliable
- Uses Less Power
![](/FileUpload/Global/KeyFeature/1501/innergigabyteimages/nand.jpg)
Solid State Drive VS. Traditional Hard Drive
SSD 2.5"
Shock resistant up to 1500g/0.5ms
![](/FileUpload/Global/KeyFeature/1501/innergigabyteimages/spec-small01.jpg)
1
Cache2
Controller3
NAND Flash MemoryHDD 3.5"
Shock resistant up to 350g/2ms
![](/FileUpload/Global/KeyFeature/1501/innergigabyteimages/spec-small02.jpg)
1
Platters2
Spindle3
R/W Head4
Actuator Arm5
Actuator Axis6
Actuator![](/FileUpload/Global/KeyFeature/1501/innergigabyteimages/ssdtable.jpg)
External SDRAM Cache
The UD PRO SSD is equipped with high speed SDRAM cache and does not need to reserve over-provisioning space, thus improving the random Read/Write performance. This means the users can use the full capacity of the drive. Moreover, external DRAM can be a buffer between controller and NAND flash for sustained performance when capacity is occupied by more and more data.
SSD Tool Box
The newly updated SSD Tool Box is an application that helps users monitor SSD Status,
provides general information
such as model name, FW version, health condition, drive optimization and also detects sensor
temperature. Moreover,
users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from
the Support.
![](/FileUpload/Global/KeyFeature/1501/innergigabyteimages/toolbox_SATA-3.png)
![](/FileUpload/Global/KeyFeature/1501/innergigabyteimages/toolbox_SATA-4.png)
![](/FileUpload/Global/KeyFeature/1501/innergigabyteimages/toolbox_SATA-1.png)
![](/FileUpload/Global/KeyFeature/1501/innergigabyteimages/toolbox_SATA-3.png)
![](/FileUpload/Global/KeyFeature/1501/innergigabyteimages/toolbox_SATA-2.png)
SSD tool box function may vary by model
![](/FileUpload/Global/KeyFeature/1501/innergigabyteimages/toolbox_SATA-1.png)
![](/FileUpload/Global/KeyFeature/1501/innergigabyteimages/toolbox_SATA-2.png)
![](/FileUpload/Global/KeyFeature/1501/innergigabyteimages/toolbox_SATA-3.png)
![](/FileUpload/Global/KeyFeature/1501/innergigabyteimages/toolbox_SATA-4.png)
Reliability You Can Trust - 5 Years Limited Warranty
GIGABYTE UD PRO series SSDs possess both high data transferring speed and enhanced endurance, providing durable MTBF* of 1.6 million hours and 5 years or 750TBW** limited warranty***.
* MTBF (Mean Time Between Failure): Measure of how reliable a hardware product or component is.
** TBW (Terabyte Written): the total amount of data that can be written into an SSD before it is likely to fail.
*** 5 years or 750TBW, whichever comes first.
**** TBW is evaluated by JEDEC workload standard.
** TBW (Terabyte Written): the total amount of data that can be written into an SSD before it is likely to fail.
*** 5 years or 750TBW, whichever comes first.
**** TBW is evaluated by JEDEC workload standard.
GIGABYTE UD PRO Series SSD
Capacity* | Model | Sequential Read MB/s** | Sequential Write MB/s** |
---|---|---|---|
256GB | GP-UDPRO256G | 550 | 530 |
512GB | GP-UDPRO512G | 550 | 530 |
1TB | GP-UDPRO1T | 550 | 530 |
*Note: 1GB = 1 billion bytes. Real useable capacity may vary by models.
**Speeds based on internal testing. Real performance may vary by models.
**Speeds based on internal testing. Real performance may vary by models.
