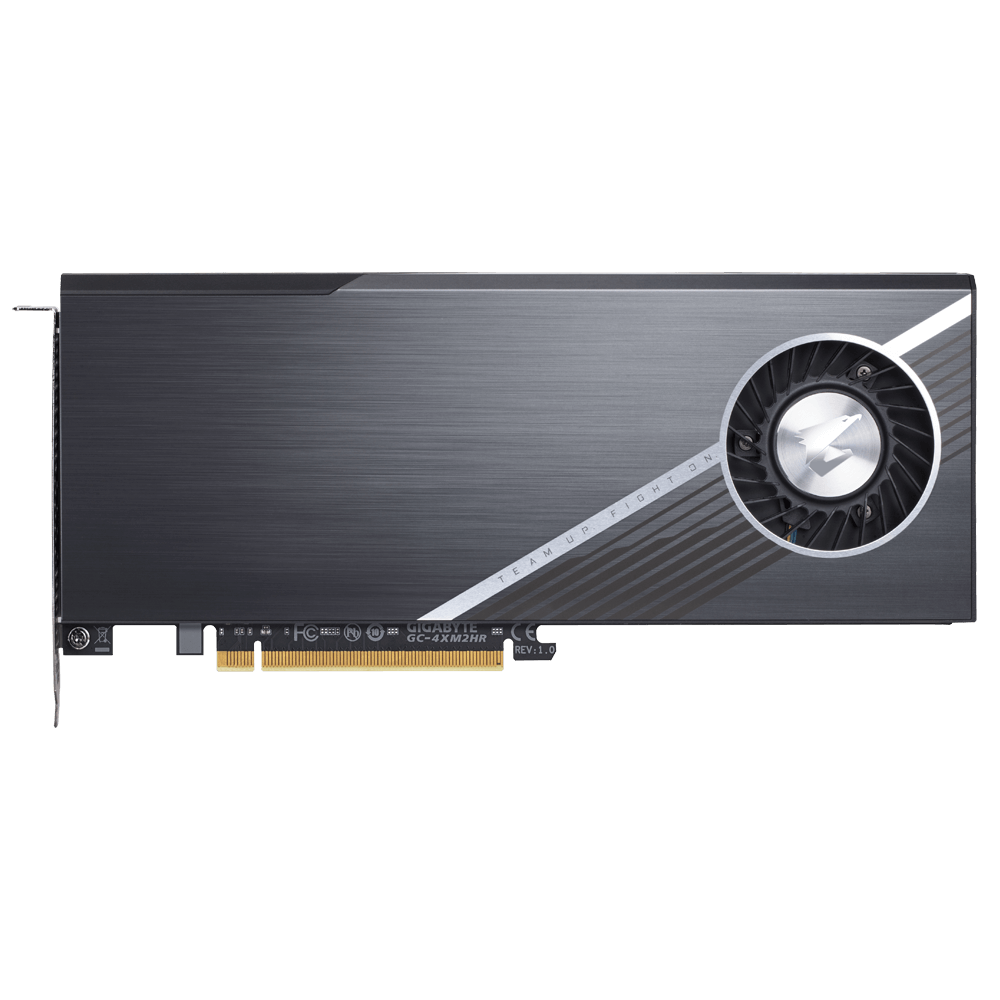

AORUS RAID ADAPTOR built in with 4 x PCIe 3.0 512GB NVMe SSD, Equipped with enterprise class NVMe RAID controller, Advanced Thermal Solution, Dedicated AORUS Storage Manager

  • Form Factor : PCl Express Card
  • Interface : NVMe 1.3, PCIe 3.0 x8
  • Capacity : 2TB*
  • Seq. Read speed : up to 6,300 MB/s (QD32T1)**
  • Seq. Write speed : up to 6,000 MB/s (QD32T1)**
  • Controller : Phison E12
  • NAND Flash : 3D TLC
  • Warranty: Limited 5-years

*Note: 1GB = 1 billion bytes. Actual useable capacity may vary.
**Speeds based on internal testing. Actual performance may vary.
Best Upgrade Solution for
PCIe 3.0 Platform
AORUS RAID SSD 2TB equipped with four high speed 512GB SSD and server class RAID controller, RDs optimized the design to push performance to the boundary to blazing fast speed up to 6300 MBs for sequential read speed and 6000 MBs for sequential write speed. It's almost two to three times faster than PCIe 3.0 SSD. No doubt it's the best upgrade solution for users who have a PCIe 3.0 platform such as Z390 but would like to experience PCIe 4.0 Ultra fast transfer rate in advance. It surely brings high efficiency to your work, shorten the time of waiting. It’s the perfect solution for people like video editors, 3D file creators and engineers who make giant files daily. Further more, you can easily to configure RAID array to meet your needs under BIOS setting.
Sequential Read Speed
AORUS RAID SSD 2TB
Regular PCIe 3.0
Performance (MB/s)
6300
3500
Sequential Write Speed
AORUS RAID SSD 2TB
Regular PCIe 3.0
Performance (MB/s)
6000
3200
* Performance is based on internal testing results. It may vary with different configurations.
Embedded with the Enterprise Level NVMe RAID Controller
The enterprise grade RAID Controller ensures server class performance reliability to unleash the full potential of normal consumer PCIe 3.0 SSD.
The benefit of switch is low latency due to it does not do any hard work on NAND Flash management.
The Marvell Intelligent NVMe Switch has x8 interface and connected up to four NVMe SSD behind switch and can be presented individually to the host system. In addition, user are free to configure RAID array as need, RAID1 for Data redundancy and RAID 0 for performance or both(RAID10). For more detail, please check here for more information.
Click here for more BIOS setting detail

Marvell NVMe Configuration
Follow instructions to configure RAID 0/1/10
Delete RAID Configuration*
*Before Delete RAID Array, please make sure all your data had been securely migrate to other SSD.
Advance Thermal Solution for Extreme Performance
The thermal design is exclusively for high end SSDs with its smart active and passive cooling. It prevents SSDs from thermal throttling and ensures stable operation. The working temperature is 30%* lower with the armor, dense heatsink and reactive fan.
Advance Thermal Solution for Extreme Performance
Armor with Conducted Airflow and Active Fan
A multi-cuts heatsink touches the SSD's hottest area. The blower fan helps to draw heat away more quickly, preventing thermal throttling on the SSD to maintain amazing speeds at all times.
Temperature Sensor and Fan Profile
Built in with 9 temperature sensors to real time monitor SSD and RAID controller working temperature.
The dedicated AORUS Storage Manager*, it provides three fan operating modes for user to choose base on hardware configuration and workload. In the meantime, minimize fan noise and extend the fan's longevity. Silent, the quiet one, Balanced and full speed Performance mode.
* Compatibility may vary among different platform, please refer to QVL list.
Why is keeping an SSDs at lower temperatures so important?
* Higher working temperature may cause data loss. The degradation factor of data loss could be a hundred times higher.
* With advance thermal solution, the AORUS RAID SSD can operate at lower working temperatures to improve data storage reliability.
Furthermore, SSDs can deliver extreme performance for longer periods.
Composition
AORUS Storage Manager
AORUS Storage Manager is a dedicated software to detect and monitor multiple SSD status such as how many SSD is detected, select different fan mode base on different hardware configurations.

Shows information on adaptors and SSDs are successfully detected.

Check adaptor and SSD working temperature, change fan profile as needed.


* The picture are for reference only.
* Functions may vary by different platform.
* AORUS Storage Manager doesn't support un-RAID with one click, it has to be manually set up at BIOS.
Dimension
