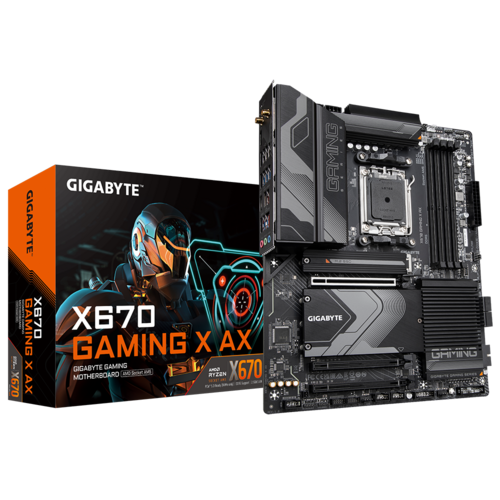

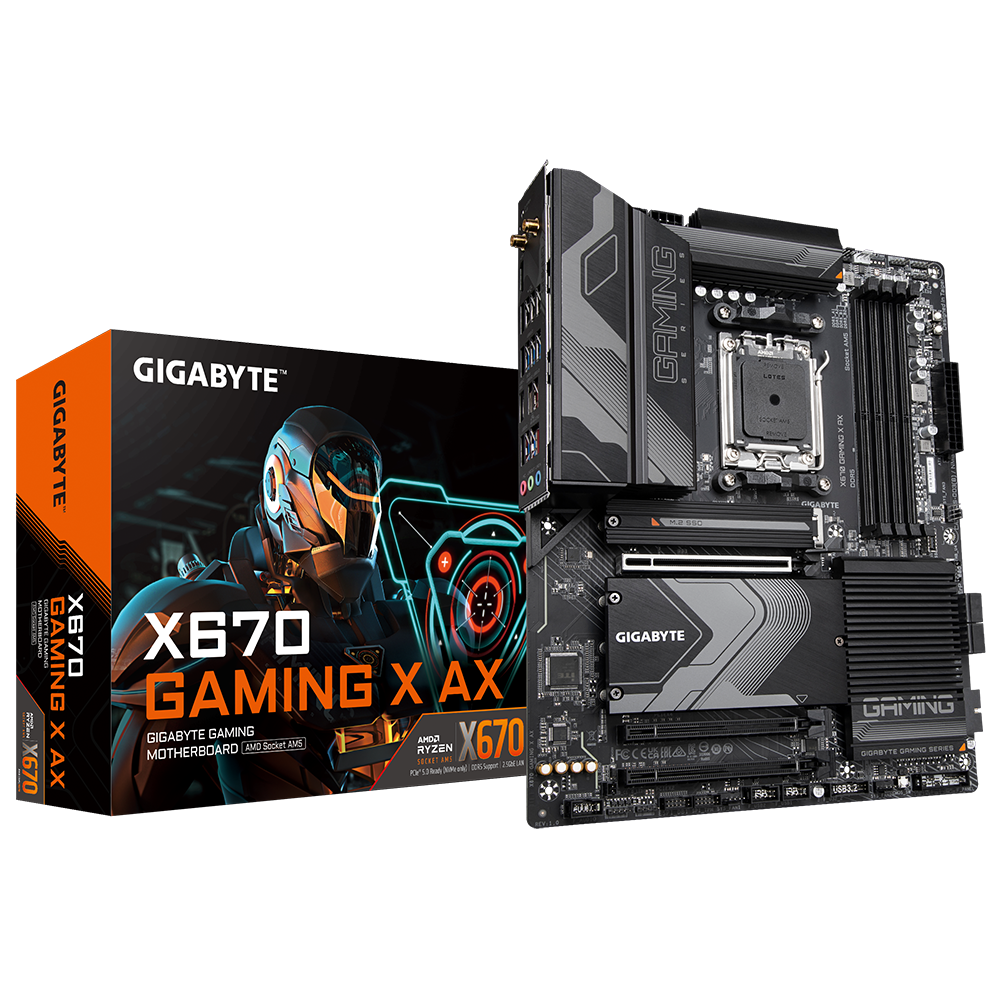

X670 GAMING X AX (rev. 1.0)
AMD X670 Chipset
1/6
- AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
- Unparalleled Performance：Twin 16*+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- Next Generation Storage：1*PCIe 5.0 x4 and 3*PCIe 4.0 x4 M.2 Connectors
- Mega-Heatpipe & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
- EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity：HDMI, Dual USB-C® 20Gbps and Upcoming GIGABYTE USB4 AIC Support
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
* 8+8 phases parallel power design
OVERVIEW
PERFORMANCE
THERMAL
CONNECTIVITY
PERSONALIZATION
ULTRA DURABLE
Performance
Connectivity
1
8+8 Solid Pin CPU Power Connector
2
Twin 16+2+2 Digital VRM Design
- 70A Smart Power Stage*
- 6-Layer 2X Copper PCB
- PCIe 5.0 Ready Mid-Loss PCB
3
Advanced Thermal Design
- Fully Covered MOSFET Heatsinks
- 8 mm Mega-Heatpipe
- 7 W/mk Thermal Conductivity Pad
- Aluminum I/O Cover
4
Design Ready for PCI Express 5.0
- 1* PCIe 5.0 x4 M.2 & 3* PCIe 4.0 x4 M.2 with M.2 Thermal Guard
- 1*PCIe 4.0 x16 with Ultra Durable™ Armor
- 1*PCIe 4.0 x4 & 1*PCIe 3.0 x2
5
M.2 EZ-Latch
6
Multi-key
- Multiple function set by BIOS
- Reset/RGB Switch/Direct to BIOS/Safe Mode
7
Dual Channel SMD DDR5 Memory
8
24 Pin ATX Power Connector
9
Socket AM5 Supports AMD Ryzen™ Series Processors
10
GIGABYTE Add-in Card Connector
11
PCIe EZ-Latch
12
Smart Fan 6
- 5*PWM/DC Fan Headers
- Dual Fan Curve Mode
1
Q-FLASH PLUS Button
2
AMD Wi-Fi 6E 802.11ax 2T2R & BT 5.2 with Gaming Antenna
3
1*HDMI
4
4*USB 2.0
5
6*USB 3.2 Gen1 Type-A
6
1*USB 3.2 Gen 2x2 Type-C®
7
2*USB 3.2 Gen2 Type-A
8
2.5GbE LAN
9
Front USB 3.2 Gen 2x2 Type-C®
10
4*SATA 6Gb/s
11
Hi-Fi Audio
- 8-Ch HD Audio
- Audio Noise Guard
- High-End Audio Capacitor
12
RGB FUSION
- 2*Addressable LED Header
- 3*RGB LED Header
Twin Hybrid VRM Design
PCIe 5.0 Design
EXPO & XMP Support
OC GUIDE
UNPARALLELED PERFORMANCE
With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIAGBYTE Gaming Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.
To ensure maximum Turbo Boost and overclocking performance of AMD's new generation CPU, GIGABYTE Gaming series motherboard equip the best VRM design ever built with the highest quality components.
To unleash full potential of multi-cores CPU performance
For CPU integrated GPU performance and memory control
Provide stable power for CPU-connected PCIe lanes
* 8+8 phases parallel power design
Ultra Durable™ SMD PCIe 5.0 x4 M.2 Connector
The first PCIe 5.0 x4 M.2 Slot supports the latest M.2 25110 form factor. Reinforced PCIe 5.0 M.2 connectors with metal shielding to provide higher strength.
DDR5 EXPO & XMP Overclocking Up to 8000 and Beyond*
AORUS is offering a tested and proven platform that the memory overclocking capability is able up to 8000 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their AORUS motherboard.
How to Boost EXPO DDR5 Performance on AM5 Platform?
* EXPO / XMP profiles support may vary depending on memory modules.
Please refer the completed validated memory support list.
Product features may vary by model.
Unlock DDR5 Voltage
DDR4
DDR4 voltage is managed by MB with wide range
Native DDR5
Secure Mode
MB provides fixed 5V to Native DDR5 memory and built-in PMIC outputs locked 1.1v to memory
IC.
GIGABYTE Exclusive DDR5 Circuit Design
Programmable Mode
GIGABYTE’s exclusive design unlocks Native DDR5 PMIC secure mode into programmable mode and
control
Native DDR5 voltage with wide range.
- • GIGABYTE exclusive circuit design unlocks Native DDR5 voltage control
- • Transforms Native DDR5 memory module to Overclocked DDR5 memory
- • Increases DDR5 memory overclocking performance and capability
- • Supports all PMIC vendors for maximum compatibility
* Memory overclocking capabiblity will vary based on users' hardware configuration
Shielded Memory Routing
All memory routing is under the PCB inner layer shielded by a large ground layer to protect
from
external interference.
Non-shielded
Note: The picture is for reference and may vary by model.
EXPO and XMP Dual Support
GIGABYTE AM5 MB supports both AMD EXPO™ and Intel® XMP overclocking memory modules for maximal compatibility. MB will automatically detect both profiles format in SPD, users can choose to enable one of profiles from BIOS menu and easily reach overclocked memory performance.
DDR5 Auto Booster
Automatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click.
AMD EXPO™ and Intel® XMP 3.0 User Profile
Define and create your own SPD profile into Native, AMD EXPO™ and Intel® XMP 3.0 memory modules. One user-defined profile can be saved, loaded either locally or from/to an external storage device.
• One empty SPD profile can be defined by users and carry to next computer
• Quick memory performance simulation based on user input clock and timing parameters
• Profile save and load function to share your memory parameters online
• One empty SPD profile can be defined by users and carry to next computer
• Quick memory performance simulation based on user input clock and timing parameters
• Profile save and load function to share your memory parameters online
SPD Re-defined or
retrieve from database
retrieve from database
Performance
Simulation
Simulation
Save/Load Profile
Overclocked
Performance
Performance
Profile Clearance
Thermal Design
M.2 Thermal Guard
2X Copper PCB
Smart Fan 6
Outstanding Thermal Design
GIGABYTE motherboards' un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
1. Fully Covered MOSFET Heatsink
• Real One-piece Build
TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors’ multi-piece design.
• 3X Large Surface
Increased surface area up to 3X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.
• Multi-Cut Design
Both TMOS & RMOS heatsinks with multiple channels and inlets featured which lead the air flow going through more efficiently and cause a great improvement of heat transfer performance.
TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors’ multi-piece design.
• 3X Large Surface
Increased surface area up to 3X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.
• Multi-Cut Design
Both TMOS & RMOS heatsinks with multiple channels and inlets featured which lead the air flow going through more efficiently and cause a great improvement of heat transfer performance.
2. M.2 Thermal Guard
Built-in M.2 heatsinks prevent high-speed, large capacity PCIe SSDs from throttling due to overheating.
3. 8mm Mega-Heatpipe
8mm Mega-Heatpipe has 30% wider diameter than traditional 6mm heatpipe and is able to transfer more heat under same time period.
4. 7 W/mK Thermal Pad
5. 6-Layer & 2X Copper PCB
2X COPPER PCBs design effectively lower the component temperature by its high thermal conductivity and low impedance.
1. AORUS M.2 Thermal Guard
GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Thermal Throttling As Temperature Rises
3% Cooler by implementing
2X copper PCB Design
2X copper PCB Design
By adopting 2X copper on PCB inner layer, it lowers the components' temperature at least 3%
by
turning the PCB into a super thin PCB size copper heatsink to dissipate the heat from the
components effectively, due to it’s high thermal conductivity and lower impedance.
SMART FAN 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Cooling Features
- High Current Support
- Precision Control
- Dual Curve Mode
- Fan Stop
Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
Multiple temperature/fan speed control points for precise fan curve
Slope/Stair dual mode for different user scenario
Fan can stop completely below users' specified temperature point
PWM/DC Fan Headers
Internal Temperature Sensors
Smart Fan 6 BIOS UI
1
Improve fan curve UI
We increase control points from 5 to 7 and larger fan speed graph for
precise
and easier fan curve
control.
2
Slope/Stair dual graph mode
Fan curve can be quickly switch with Slope and Stair modes for different
user
scenario. Slope is
traditional and
intuitive linear fan speed curve. With newly added Stair non-linear
mode, fan
keeps at same speed
between specified
temperature interval.
3
Manual Input
For advanced users, we provide fan speed manual input for more precise
control.
4
EZ Tuning
Use can place 4 EZ Tuning points at rough temperature/fan speed, and
Smart Fan 6
can quickly generate a
fan curve.
5
Fan curve profile
Fan curve profile can be saved in BIOS ROM, profile will be kept after
updating
BIOS.
Note: The picture is for reference and may vary by model.
802.11ax Wi-Fi 6E
2.5GbE LAN
Rear and Front USB-C®
20Gb/s
20Gb/s
Hi-Fi Audio
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and WIFI connectivity.
802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
Wi-Fi 6E bring you the Ultimate VR experience!
Wi-Fi 6E brings faster Wi-Fi speeds, lower latency, and better battery life for VR devices, which means streaming VR games wirelessly from your PC to your VR device offers a lot smoother and has higher quality video.
Wi-Fi 6E compared to Wi-Fi 5 provide…
40% faster speed for smoother gaming/streaming experience
50% higher resolution for video game related content
Better battery life for VR devices
Wi-Fi 6E compared to Wi-Fi 5 provide…
40% faster speed for smoother gaming/streaming experience
50% higher resolution for video game related content
Better battery life for VR devices
Wi-Fi 6E Advantage
Spectrum congestion is huge problem in current Wi-Fi environment nowadays
because too
many
devices all use
existing 2.4GHz and 5GHz spectrum, and it cause unreliable connection
and slower
speed.
Wi-Fi 6E is extended standard to Wi-Fi 6, and it use dedicated 6GHz band
that it
provides not only
brand new frequency to
transfer data,
but also spacious spectrum for future more devices. With Wi-Fi 6E, users
can enjoy
faster
connection and stronger signal
than before.
First adopter on 2.5GbE LAN onboard
2X Faster than ever
Connecting the Future - USB 3.2 Gen 2x2 Type-C®
Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C® connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
UEFI BIOS
GIGABYTE Control Center
Multi-Key
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
Friendly User Interface
The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2
interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall
settings
modification.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularized control components only for installed hardware
- Auto update function to keep system up to date and support future products
Multi-key
A multi-function reset button that can be reconfigured to other function in BIOS for
different user
scenarios.
-
RGB SwitchTurn off all lighting effect on motherboard.
-
Direct-To-BIOSBoot into BIOS menu directly without pressing any keyboard button.
-
Safe ModeBoot into BIOS safe mode to change specific option without losing other BIOS settings.
DIY Friendly
Q-Flash Plus
GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
EZ-Latch
With GIGABYTE EZ-Latch, you can DIY your PC in no time, quick and easy.
PCIe EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
M.2 EZ-Latch
Attach and remove your M.2 module with ease.
* Photo for reference only.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
STEP 1.
Plug 24pin & 8pin power supply cable on motherboard
STEP 2.
Download motherboard BIOS file and rename to "gigabyte.bin", save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
STEP 3.
Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.
* คำว่ำ HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress และโลโก้ HDMI เป็ นเคร ื่องหมำยกำรค้ำหรือเครื่องหมำยกำรค้ำจดทะเบียนของ HDMI Licensing Administrator, Inc.
*รายละเอียดสเปค และคุณลักษณะต่างๆ ของผลิตภัณฑ์อาจแตกต่างกันไปแต่ละประเทศ เราจึงขอแนะนำให้ท่านตรวจสอบรายละเอียดเหล่านี้กับตัวแทนจำหน่ายในประเทศของท่าน สีของผลิตภัณฑ์อาจแตกต่างจากที่ท่านเห็น อันเนื่องมาจากหลายสาเหตุ เช่น การตั้งค่าจอมอนิเตอร์ที่แตกต่างกันไป ถึงแม้ว่าเราจะพยายามนำเสนอข้อมูลที่ครอบคลุมและแม่นยำที่สุดก็ตาม ดังนั้นเราจึงขอสงวนสิทธิ์ในการปรับเปลี่ยนหรือแก้ไขโดยไม่ต้องแจ้งให้ทราบล่วงหน้า
