• 24 pin ATX Power Connector
• 8+8 pin CPU Power Connector
• 6 pin PCIe Power Connector
11
DualBIOS™ with Socketed BIOS
• Q-Flash Plus
• DualBIOS Switch
12
Front USB 3.2 Gen2 Type-C™
13
PCIe 4.0 Turbo B-Clock IC
14
PCIe 4.0 x16/x8/x4 Slot
• 3x Ultra Durable PCIe Armor
15
USB TurboCharger
16
Thunderbolt™ Add-in Card Connector
GET READY FOR AMD RYZEN™ 5000 SERIES
GIGABYTE X570 motherboards based on the AMD X570 Chipset provide full support for latest AMD Ryzen™ 5000 Series Processors. The all-new design is a testament to GIGABYTE dedication to design quality. GIGABYTE X570 motherboards offer a rich list of features such as support for PCIe 4.0, USB Type-C™ interfaces on select boards, refined audio, high speed of Ethernet and latest standard of WIFI design, to fulfill users' performance, audio, and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance on AMD Ryzen™ 5000 Series Processors, making the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system.
AMD Ryzen™ 5000, 4000, 3000, 2000 Series Compatible
AMD StoreMI Technology
GIGABYTE X570 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI
accelerates traditional
storage devices to reduce boot times and enhance the overall user experience. This easy-to-use
utility combines the
speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of
the device to match
that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a
performance driven
system.
The benefits of AMD StoreMI:
• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users' computing behaviors
To unleash the full potential of the 3rd Generation of AMD Ryzen™ CPU, the motherboard requires the best CPU power design. With the
best quality components and GIGABYTE R&D design capability, X570 AORUS XTREME is a true beast among motherboards.
Extreme Power Design
16 Direct Digital Power Design
Power Architecture
2X Copper PCB
Direct 16 Phase Power Design
Direct 16 Phases Infineon Digital VRM Solution
New Direct Multiphase Power Design
No Doubler / Not Parallel
Next-Gen Infineon PWM Controller
70A Power Stage
The Lowest Voltage Ripple
The Highest Efficiency
8+8 Pin Metal Shielding Connector

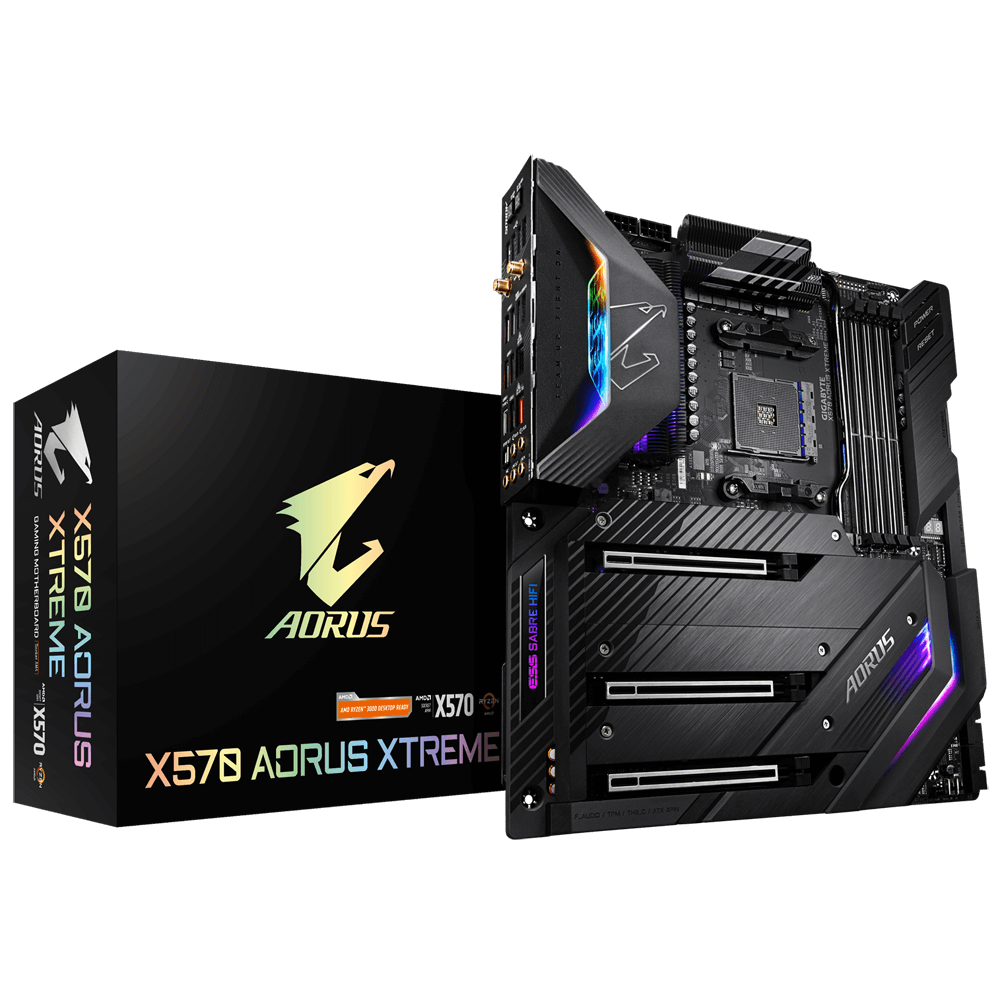

X570 AORUS XTREME motherboard uses latest new generation Infineon multiphase PWM controller, and a total 16 phase for
vCore and SOC, all with Infineon TDA21472 Power Stage MOSFET which is capable of providing at least 70A of power from
each phase, for a total of amazing 1120A. Power design is no longer a bottleneck for this motherboard.
Power Efficiency & Voltage Ripple Graph
GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than
normal power loads and to remove heat from the critical CPU power delivery area. This is
essential to ensure the motherboard is able to handle the increased power loading that is
necessary when overclocking.
THERMAL REACTIVE ARMOR
X570 AORUS XTREME uses some unprecedented and innovative thermal design to ensure CPU, Chipset, SSD stability and low
temperature under full loading application and gaming.
THERMAL REACTIVE ARMOR
Thermal Design
Right-Angled Connector
NanoCarbon Baseplate
Noise Detection
16X Hybrid Fan Header
1. Fins-Array
Fins-Array increases the heat dissipation surface by 300% compared to traditional heatsinks
of the same size.
2. Direct-Touch Heatpipe
Heatpipes directly contact PowlRstage and X570 chipset, this help transfer heat on both
Fins-Array heatsink and X570
chipset heatsink.
3. Aluminum Cover
IO Cover made from aluminum to keep aesthetics style and not block heat dissipation.
4. 3X PCIe 4.0 M.2 Heatsink
Enlarged M.2 heatsink prevents new generation PCIe 4.0 SSD from throttled performance under
overheat condition.
5. LAIRD Thermal Pad
By using 1.5mm thicker 5 W/mK thermal conductivity pad, it can transfer 2.7x more heat than
usual thermal pad in the
same time
6. NanoCarbon Baseplate
A thin layer of NanoCarbon is coated on the baseplate through electrostatic adhesion to
enhance thermal radiation
capability.
7. Right Angled Connectors
Over 90% of connectors on X570 AORUS XTREME is specifically designed to be right angled for
easy cable management and
clean airflow in chassis.
8. X570 Chipset Heatsink
Made by several layers of heatsink and heatpipe connects the Fins-Arrays. This complicated
heatsink ensure X570 chipset
run cool and quiet.
Thermal Performance
Right-Angled Connectors
X570 AORUS XTREME uses revolutionary Right-Angled Connectors design, 90% of pin headers and connectors on motherboard
are right-angled and relocated to one side of PCB. The never-seen-before design help easier cable management and better
in-chassis air-flow when installing great amount of devices.
Base plate made of aluminum instead of traditional iron ensures 3X thermal conductivity.
A thin layer of NanoCarbon is coated on the base plate through electrostatic adhesion to
enhance thermal radiation capability.
Transfer heat from the back side PCB to the base plate so the NanoCarbon base plate can
dissipate heat passively.
Effectively lowers backside PWM component temperature by 10%.
NanoCarbon Coating
This specialized nanostructure of carbon molecules has extraordinary thermal conductivity.
Noise Detection
With the new Noise Detection function, you can monitor noise level of all devices including fans,
CPU coolers, graphics
card, etc. in real time, and you can determine how fast your fan speed needs to be. Our bundled
Noise Detection cable
doesn’t include any sound recording function, it simply detects sound pressure while protecting your
privacy.
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying
cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal
sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid
fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard
more liquid cooling friendly.
Fan / Water Pump Connectors
Internal Temperature Sensors
External Temperature Sensors
Noise Detection Cable
Temperature Sensors
Hybrid Fan Headers
Temperature Sensor Cable x 2
Noise Detect Cable x 1
■ 8 Fan / Water Pump Connectors
■ 7 Temperature Sensors
■ 2 External Temperature Sensors
■ 1 Noise Detection Cable
■ All Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Supports High Current Fans up to 24W(2AX12V) with Over-Current Protection
■ Intuitive UI for Fan Control
Bundled RGB FAN COMMANDER provide additional 8 hybrid fan headers
* Different models have a different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures
drop below a specified threshold. Which fan stops, based on readings from which sensor, and at
what temperature—all of it can be customized to your liking.
Intelligent Fan Control Design
Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information
on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving
you absolute mastery over your PC.
• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan
or pump with different PWM or Voltage mode.
New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage preferences.
For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding
fan speeds.
Unparalleled Performance
Hungry for better performance? X570 AORUS XTREME has full PCIe 4.0 design, supports high frequency memory, and full SSD
thermal guard to make sure you get the maximum full system performance.
Unparalleled Performance
XMP 5400+
PCIe 4.0 Design
3X M.2 PCIe 4.0 x4
3X M.2 Thermal Guards
Support for DDR4 XMP Up to 5400MHz and
Beyond*
AORUS is offering a tested and proven platform that ensures proper
compatibility with profiles up to 5400MHz and beyond. All users need
to do to attain this performance boost is to ensure that their memory module is XMP
capable
and that the XMP
function is activated and enabled on their AORUS motherboard.
* XMP Profile support may vary depending on memory module.
Please see the complete validated memory support list.
Product features may vary by model.
Shielded Memory Routing
All memory routing is under the PCB inner layer shielded by a large ground layer to protect from
external interference.
Memory Layout - Daisy Chain Design
With the optimized daisy-chain routing, X570 AORUS motherboard provides a
proven speed of up to DDR4-5400+ MHz with high
density memory modules*. Optimized daisy-chained routing eliminates the stub effect,
pushes the one DIMM per channel in
dual channel interleaving mode to hit higher memory frequencies, providing professional
gamers a denser and faster
system memory experience.
* Performance may vary in circumstances. Please refer to the QVL list
for detail support information.
Photos are for reference only.
Single 32GB Support
With populated 2 DIMMs per channel on GIGABYTE X570 motherboards, the
maximum memory capacity support is 128GB. For users who always run out of memory
capacity, they are able to enjoy more bandwidth now for memory-intensive application
such as rendering and video editing.
X570 AORUS XTREME equips several new components to ensure the best PCIe 4.0 signal quality, including PCB, PCIe Slots,
M.2 Slots, re-drivers, switches that are specifically designed for PCIe 4.0. There will be no compromised on PCIe 4.0
performance.
2X Theoretic Bandwidth vs. PCIe 3.0
PCIe 4.0 Switch and Re-driver IC
New Low Impedance PCIe and M.2 Slot
PCIe 4.0 Ready 2X Copper Low Loss PCB
The Best PCIe 4.0 Signal Quality
3X PCIe 4.0 Slot (x16/x8/4)
3X PCIe 4.0 M.2 Slots (Type 22110)
1. PCIe 4.0 Switch
Switch PCIe 4.0 x16 into PCIe 4.0 x8/x8
2. 3X PCIe 4.0 Slot
Reinforced PCIe 4.0 x16/x8/x6 with lower impedance
3. 3X M.2 PCIe 4.0 Slot
M.2 PCIe 4.0 x4 slot with lower impedance
4. PCIe 4.0 Re-driver
Boost & strengthen PCIe 4.0 signal to longer length
PCIe Bandwidth*
PCIe 4.0 x16
PCIe 3.0 x16
Transfer speed
* Theoretical bandwidth based on PCI Express specification
Up to 31.5GB/s*
Up to 15.8GB/s*
Slot Signal Stability*
PCIe 4.0 Slot
PCIe 3.0 Slot
Differential impedance
* Based on PCIe 4.0 differential impedance specification
Low Signal Loss PCB
PCIe 4.0 Low-Loss PCB
Regular PCB
Dissipation Factor
Triple PCIe 4.0 x4 M.2
AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
Triple NVMe M.2 PCIe SSDs in RAID 0 Support
Extreme Performance with PCIe 4.0 x4 NVMe PCIe SSDs
AORUS X570 motherboards offer the industry’s best compatibility in terms of NVMe storage for users
who demand high capacity and seek the best performance. AORUS' unique design can be configured
in RAID for record speeds of up to 9840 MB/s (Sequential Read), making AORUS the obvious choice
for the ultimate PC.
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling
and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Thermal Throttling As Temperature Rises
Next Generation Connectivity
A Flagship product needs to be future-proof so your system stays up-to-date with the latest technology. X570 AORUS
XTREME provides all next generation network, storage, and WIFI connectivity to keep you up to speed.
Next Generation Connectivity
10 GbE Base-T LAN
WIFI 6 802.11ax
AORUS Antenna
USB TurboCharger
AQUANTIA® 10GbE BASE-T Networking
Next Generation Multi-Gig Gaming
The AQUANTIA
® AQC107 is a high-performance, backward compatible with 10GBASE-T/ 5GBASE-T/ 2.5GBASE-T/
1000BASE-T/ 100BASE-TX Ethernet Controller which is able to provide up to 10 GbE network connectivity,
with 10 times faster transfer speeds compared to general 1GbE networking and is perfectly designed for
media centers, workstations and gamers.
Multi-Gigabit Support
• Ultimate online gaming experience with faster connection speed
• Backward compatible with 5/2.5/1Gbps network
• No re-wiring needed
New Introduce Intel® WiFi 6 802.11ax + BT 5 Module
Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides
smooth video streaming, better
gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5
provides 4X range over BT
4.2 and with faster transmission.
Benefit of WiFi 6:
5.5X throughput than 802.11ac 1x1*
4X better network capacity, no traffic jams especially in those dense area with lots
of devices
Network efficiency increase for better user experience
2400
1734
867
433
Transmission speed (Mbps)
* Based on WIFI theoretical bandwidth
All new antenna supported 802.11ac 2.4GHz & 5GHz, 4dBi signal gain
2x signal strength compared to traditional antenna design
Two antenna with smart antenna function for the best WIFI signal transmitting
Multiple angle tilt and magnetic base for the best signal strength direction and location
USB TurboCharger
GIGABYTE patent pending USB TurboCharger technology allows users to recharge their mobile devices with stunning speed, up
to 50% in less than 30 minutes*. By connecting Front USB 3.2 Gen1 Type-A cable of chassis to our motherboard,
USB TurboCharger can recharge both Android devices with QC 3.0 and Apple devices with Apple Fast-Charge
function.
*Charge time varies with devices' hardware design, battery size, front USB 3.2 Gen1 cable quality of chassis and environmental factors, actual results will vary.
Definitive Aesthetics
GIGABYTE ID team designs X570 AORUS XTREME from the drawing board. After countless hours of conceptualizing ideas, fine
tuning details and engaging in discussion, GIGABYTE has produced a board that is equal parts beast and beauty.
Definitive Aesthetics
RGB FUSION 2.0
AORUS RGB FAN COMMANDER
Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB
support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround
the motherboard.
Note: Lighting effects depicted are for demonstration purposes only. Actual lighting effects may vary by model.
With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.
Sync with one click
Individual control as you wish
Exclusive bundled accessory for professional casemodders
8 Hybrid Fan Headers
8 RGB LED Headers
8 Addressable LED Headers
2 external temperature sensors
2 USB 2.0 header for additional USB RGB devices
All Hybrid Fan Headers and RGB/Addressable LED Headers have independently controlled speed and lighting patterns
Easy to install inside the chassis with its compact size and magnetic base
Perfectly control the devices connected to the AORUS RGB FAN COMMANDER via RGB FUSION 2.0 and Smart FAN software.
Manage 8x Fan speeds individually to your requirements. It can also ensure your system maintains its performance while staying cool.
Synchronize up to 16 lighting devices with RGB FUSION 2.0.
HIFI AUDIO SYSTEM
Hi-Fi Audio System- As a Built-in Sound Card
For Hi-Fi Audio Solution, can be grouped into 2 parts.
Audio Signal Process, not distorted digital signal go through ESS 9218 Sabre DAC for Digital/Analog
converter with 130dB SNR, 112dB THD+N and supports higher impedance up to 600 Ω headphone. Further,
audiophile grade capacitor
and gold plated audio jack ensures the non-compensated audio performance. Audio Signal Optimization,
TXC Oscillator provides precise time triggers to Digital-Analog Converters. WIMA Capacitors to
deliver crystal and balanced sound.
Audio Signal Process
Digital Audio
True Hi-Fidelity Music
Provides surround sound audio and enables DSD music playback
Digital / Analog Convert
ESS SABRE reference DAC 9218
Support QUAD DAC™
to deliver superb 124dB DNR and -112dB THD+N.
True 2vrms outputs are capable of driving professional high impedance headphones and
deliver professional line-level outputs.
Analog Volume Control
delivers 130dB SNR at low listening levels by reducing noise as the audio signal
decreases.
High-Res music
Supports up to 32bit 192KHz PCM
Audio Signal Amplification
Audiophile Grade Capacitors
Deliver true acoustic sound
Crystal Sound Output
Gold Plated Audio Jacks
High resistance to corrosion and oxidation
Audio Signal Optimization
Precise TXC Oscillator
Provides precise time triggers to Digital-Analog Converters.
Audiophile Grade Capacitors
Famous WIMA capacitors are used as feedback signal processing to deliver crystal and balanced
sound.
Ultra Durable
GIGABYTE is reputable for its durability and high quality manufacturing process. Needless to say,
we use the best
components we can find on the X570 AORUS XTREME and reinforce every slot to make each of them solid and durable.
Ultra Durable
3X PCIE Armor
4X Memory Armor
Solid Pin
Q-Flash Plus
Ultra Durable™ PCIe Armor
Industry Leading Ultra Durable™ PCIe Armor
The innovative one piece stainless steel shielding design from GIGABYTE
reinforces
the PCIe connectors to provide the extra
strength required to support heavy graphics cards.
Ultra Durable™ Memory Armor
AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting
and plate bending, in addition to preventing any possible ESD interference
Solid Pin Power Connectors
X570 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 8pin power connectors to offer a stable power supply
during CPU overloading.
Solid Pin Power connector advantages
Larger contact area for electricity
More metal quantity to sustain higher power and generated heat
Ultra durable and longer lifespan
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor
enter the BIOS menu to flash
the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash
drive, then press the
dedicated Q-Flash Plus button and you’re good to go!
GIGABYTE BIOS & APP CENTER
Good software goes hand in hand with perfect hardware. X570 AORUS XTREME bundled several useful and intuitive software to help users to control every aspect of motherboard.
GIGABYTE BIOS & APP CENTER
BIOS
APP CENTER
Easy Tune
System Information Viewer
BIOS
New User Interface
All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.
EasyTune™
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust
system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click
is all it takes to automatically overclock your system, giving an added performance boost when
you need it the most.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components
such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures
get too high or record your system's behavior; these are the possibilities of the System Information
Viewer.
XSplit Gamecaster + Broadcaster: Cast Your Game
Anytime, Anywhere
Now set up your stage and share the greatest gaming moments with XSplit
Gamecaster +
Broadcaster! Fully optimized social
media integration is ready for real-time chats—keeping you notified yet focused
in
the game. It takes
just one click to stream your gameplay to Twitch. Host your game like a pro!
* Free 1 year XSplit Gamecaster + Broadcaster Premium License.
AMD Ryzen™ 5000, 4000, 3000, 2000 Series Compatible
GIGABYTE X570 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI
accelerates traditional
storage devices to reduce boot times and enhance the overall user experience. This easy-to-use
utility combines the
speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of
the device to match
that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a
performance driven
system.
Fan / Water Pump Connectors
Internal Temperature Sensors
External Temperature Sensors
Noise Detection Cable
