• Socket LGA1200 for Intel core i9/i7/i5/i3 Pentium/Celeron(Comet lake -S)
  • Intel Gen9.5,Intel Graphics DX12, OGL4.5
  • Support Dual channel DDR4 2666/2933MHz, 2 x So-DIMM up to 32G System Memory
  • Socket LGA1200 for Intel core i9/i7/i5/i3 Pentium/Celeron(Comet lake -S 65W)
  • 1 x HDMI2.0, 1 x DP port ,1 x Dual channel 24-bits LVDS/eDP
  • 4 x USB3.0, 4 x USB2.0, 4 x SATA3
  • 1 x Mini PCIe/mSATA, 1 x PCIe x16, 1 x M.2 Wifi, 1 x 2242/80 SSD slot
  • Gigabit LAN : 2 x Intel LAN
  • 1 x TPM IC(Optional)
  • ATX Power Require
  • Op temp : 0~60 degree


    • * Datasheet Download

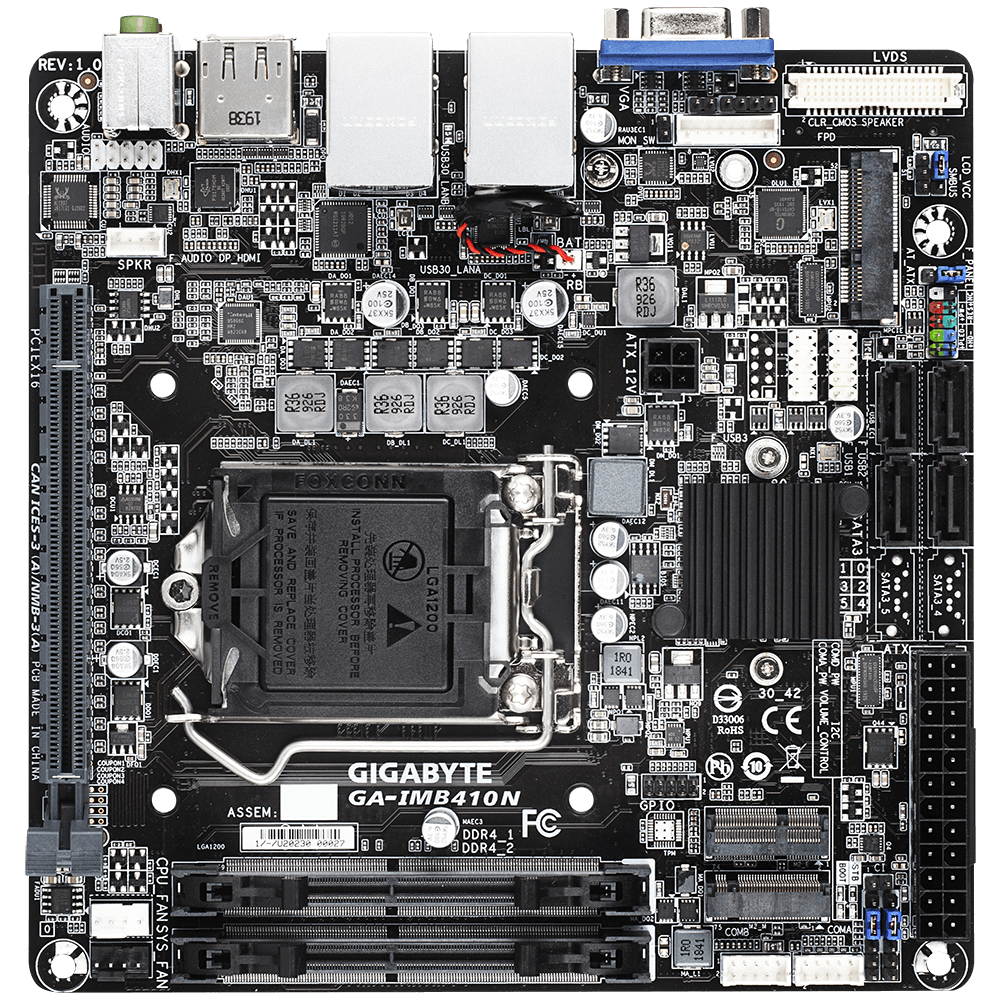

  • GIGABYTE Ultra Durable of Thin Mini ITX Motherboard
    GIGABYTE H410 Thin Mini-ITX motherboards support the latest 10th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build. GIGABYTE H410 Thin Mini-ITX motherboards are 43% thinner than traditional Thin Mini-ITX designs. Complying with the latest Thin Mini-ITX guidelines, GIGABYTE motherboards offer additional flexibility making them suited to broad range of innovative PC designs.
  • Dual Intel® GbE LAN with cFosSpeed
    The Dual Intel® Gigabit LAN with cFosSpeed features advanced technology to help deliver better network responsiveness in crowded LAN environments and allows optimization and improved network performance for specific applications, making it a popular choice amongst gamers.
    Dual Intel® GbE LAN with WOL and PXE Support

  • High Definition Digital Outputs
    Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.
     * Support for up to 2 displays at the same time.
    High Definition Digital Outputs
  • 4K Ultra HD Support
    4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.



  • HDMI™ 2.0-The Next Generation Multimedia Interface
    HDMI™ 2.0 is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ 2.0 ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ 2.0 is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
  • Display Port Support
    Selected GIGABYTE motherboards feature DisplayPort, a next generation graphics display interface that delivers up to 10.8 Gbps of bandwidth over standard cables, providing billions of colors with the fastest refresh rates and the greatest color depths.
  • USB 3.0 Ports Onboard
    With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users legacy USB 2.0 devices will still work.


    * USB 3.0 10x performance is a maximum theoretical value.
    Actual performance may vary by system configuration.
    USB 3.0 Ports Onboard
  • The Industry's Leading LAN Static-Electricity & Surge Protection
    GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.
  • Digital I/O
    Digital I/O is a flexible parallel interface that allows a variety of custom connections. Each digital I/O port can be individually configured through software as either an input or output. It allows users to monitor the level of signal input or set the output status to switch on/off a device.
    Digital I/O
  • Product Longevity
    Our embedded motherboards have a long product life cycle of 3~5 years.
    Long lifecycle meets industry needs.
    Product Longevity
