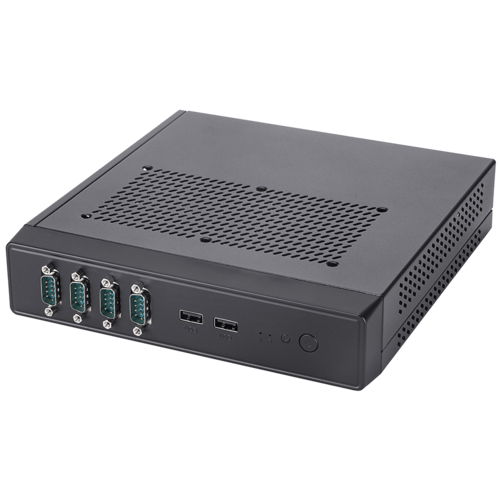

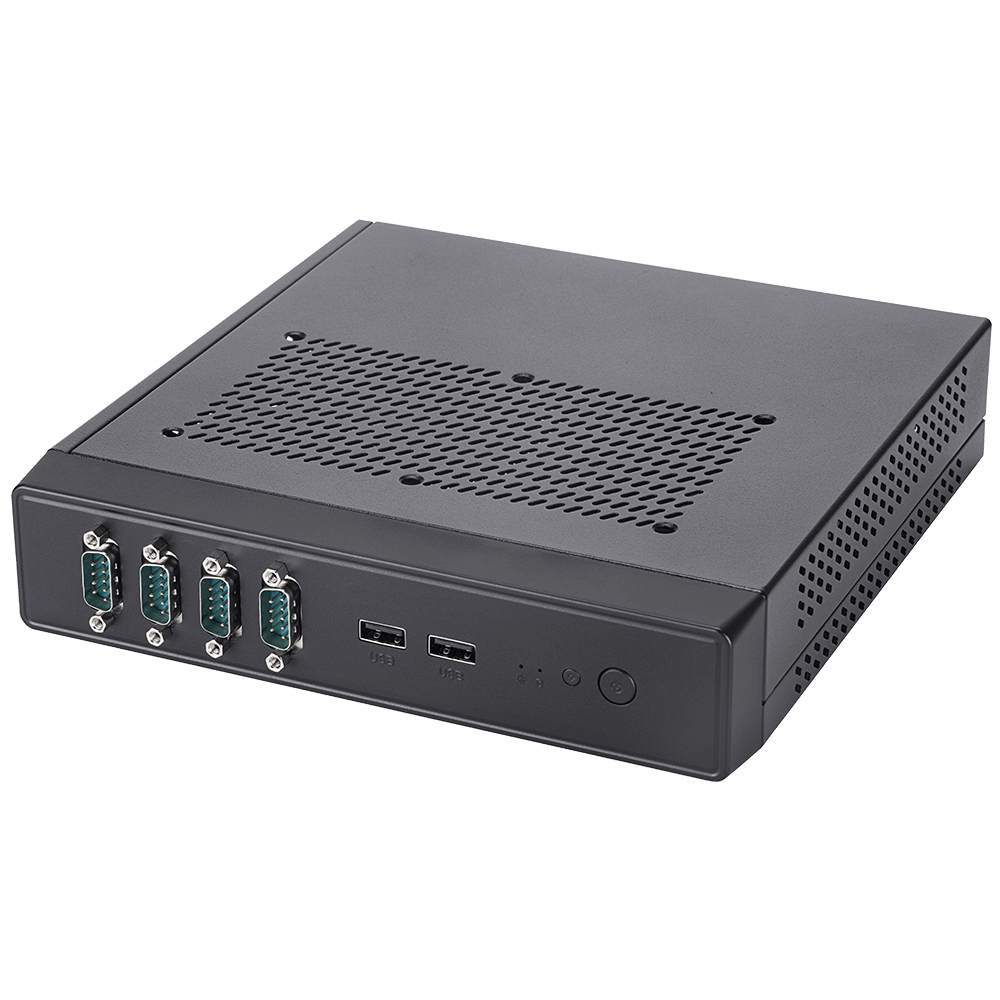

GA-IMB370TN-CM (Rev. 1.0)
Intel® Q370 Chipset
1/4
- Supports 9th and 8th Generation Intel® Core™ Processors up to 65W
- Dual Channel DDR4 SO-DIMM, 2 DIMMs
- 2 x RS232/422/485, 2 x RS232, Digital I/O 4-in/4-out
- M.2 Socket 1 for PCIe WIFI co-lay with CNVI Hybird E key WIFI
- M.2 Socket 2260/80 Storage support PCIe/SATA Mode
- Mini-PCIe Slot Full size Support mSATA/PCIe mode
- VGA Header for legacy Monitor
- LVDS Header for System Integrated Flat Panel Display Support
- Rear Panel DisplayPort, HDMI 2.0 Ports & D-sub Header for Multi-Display Connection
- Amplified Speaker Header Able to Drive Up to 3W System Integrated Speaker
- Dual Intel® GbE LAN for WOL and PXE Support
- 4 USB 3.0 and 4 USB 2.0 Ports, USB 3.0 support OTG function
- OP: 0~60 degree
- 205 mm(L) x 205 mm(W) x 45 mm(H) Chassis with 12/19~24V DC-In Power Design
* Self Assembly Required
