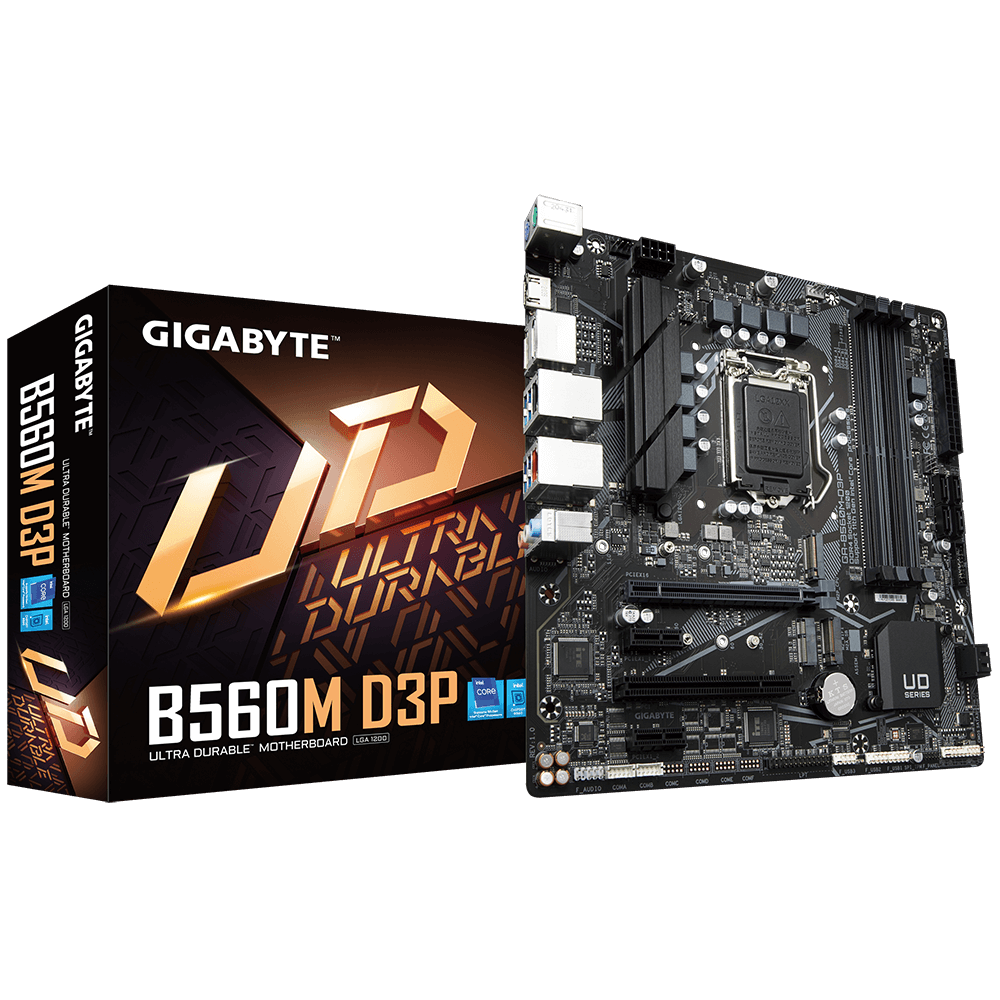

Intel® B560 Ultra Durable Motherboard with Direct 6+2 Phases Digital VRM, Full PCIe 4.0* Design, Dual PCIe x4 M.2, Dual Intel® GbE LAN with cFosSpeed, Anti-Sulfur Resistor

  • Supports 11th and 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
  • Dual Ultra-Fast NVMe PCIe 4.0* /3.0 x4 M.2
  • Dual Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • High Quality Audio Capacitors
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Anti-Sulfur Resistors Design

    • * Actual support may vary by CPU.
OVERVIEW
POWER
PERFORMANCE
CONNECTIVITY
ULTRA DURABLE
SOFTWARE
OVERVIEW
POWER
PERFORMANCE
CONNECTIVITY
ULTRA DURABLE
SOFTWARE
1
HDMI
2
Dual DisplayPort
3
USB 3.2 Gen1 Type-A
4
Dual Intel® GbE LAN
5
Full PCI Express 4.0 Design
  1. 1*PCIe 4.0 x16 slot
  2. 1*PCIe 4.0 x4 M.2
6
Solid Pin Power Connector
7
Direct 6+2 Phases Digital Power Design
  1. Low RDS(on) MOSFETs
  2. Premium Choke and Capacitor
  3. 4 Layer PCB
  4. PCIe 4.0 Ready Mid-Loss PCB
8
Supports 11th Gen. Intel® Core™ Processors
9
2* M.2 Connectors
  1. 1*PCIe 4.0 x4 M.2
  2. 1*PCIe 3.0 x4 M.2
POWER
6+2 Phases Digital Power Design
Power Architecture
Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
  • Digital PWM Controller to deliver appropriate voltage to the CPU.
  • Direct 6+2 Phases Low RDS(on) MOSFETs without PWM Doublers, each power phase connects directly to the CPU.
  • All-solid capacitors to improve transient response and minimize oscillation.
  • 8-pin Solid Pin CPU Power Connector.
PERFORMANCE
Smart Fan 6
XMP 4600+
PCIe 4.0 Hardware Design
Hi-End Audio
Full PCIe 4.0* Design
1. PCIe 4.0 M.2 Slot
M.2 PCIe 4.0 x4 slot with lower impedance.
2. PCIe 4.0 Ready PCB
Low signal Loss PCB.
3. 1 x PCIe 4.0 Slot
Reinforced PCIe 4.0 x 16.
* PCIe 4.0 support varies by processor installed, refer product spec for further details.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
CONNECTIVITY
2X PCIe 4.0/3.0 M.2 Slots
Dual Intel® GbE LAN
Dual PCIe 4.0/3.0 x4 M.2 Connectors
GIGABYTE Ultra Durable Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems’ potential.
* PCIe 4.0 support varies by processor installed, refer product spec for further details.
Dual Intel® GbE LAN with cFosSpeed Internet Accelerator Networking
Dual Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.


ULTRA DURABLE
Solid Pin
Q-Flash Plus
Anti-Sulfur
Solid Pin Power Connectors
B560 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
  1. Larger contact area for electricity
  2. More metal quantity to sustain higher power and generated heat
  3. Ultra durable and longer lifespan
START SULFURIZATION PROTECTION

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

SOFTWARE
BIOS
APP Center
Easy Tune
System Information Viewer
Refreshed BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system. * Photos are for reference only. Product features may vary by model.

APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.

EasyTune™
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment.

System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
