• Supports AMD AM3+/ AM3 series processors
  • 8+2 phase power design for AMD high-TDP CPU support
  • 3-way CrossFire/ 3-way SLI multi-graphics support
  • High quality Driver-MOSFETs design deliver high efficiency performance
  • GIGABYTE Ultra Durable™ technology
  • Audio Noise Guard with High Quality Audio Capacitors
  • Supports Dolby Home Theater audio
  • 8 SATA3 and 2 eSATA3 ports with up to 6Gbps link speed and RAID support
  • 4 USB 3.0 ports with transfer rates of up to 5Gbps
  • GIGABYTE On/Off Charge™ for USB devices
  • GIGABYTE UEFI DualBIOS™ technology
  • Extreme Multi-GPU Support
    Flexible graphics capabilities supported for either 3-Way CrossFire™ or 3-Way SLI™ action, delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
  • Driver Mosfets for Better Power Efficiency
    A traditional Voltage Regulator Module (VRM) consists of a Choke, Capacitors, MOSFETs and a Driver IC. By incorporating the MOSFETs and driver IC in accordance with the Driver-MOSFET specification, we can achieve higher power transfer and increased efficiency at higher switching frequencies to satisfy the growing power requirements of today's processors. Driver-MOSFETs also help to reduce VRM real estate requirements in the CPU zone.
  • Realtek ALC1150 115dB SNR HD Audio with Built-in Rear Audio Amplifier
    115dB SNR HD Audio
    The Realtek ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.
    The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality.
  • High Quality Audio Capacitors
    GIGABYTE Ultra Durable™ motherboards use high quality Nippon Chemicon ARE series audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for user experience.
  • Dedicated Audio Hardware Zone

    + Separation on the PCB layer protects the board's sensitive analog audio components.
    + Separate analog and digital ground to protect against Electromagnetic Interference (EMI).
  • eSATA Ports for easy data manipulation on external devices
    Featuring with two external SATA (eSATA) ports on rear panel, it provides smart setup and hot-plug functionality allowing easier data backup and content manipulation on external storage devices.
  • 2x Copper PCB Design (2 oz Copper PCB)
    คุณสมบัติ GIGABYTE's 2X Copper PCBs design มาพร้อมชั้นทองแดง เพื่อเพิ่มการให้พลังงานเพียงพอระหว่างส่วนประกอบในโหลด และการนำเอาความร้อนออกจากซีพียู นี่เป็นสิ่งที่สำคัญเพื่อให้มั่นใจว่าเมนบอร์ดจะสามารถทำงานได้อย่างเต็มประสิทธิภาพเมื่อโอเวอร์คล็อก.

  • Humidity Protection with New Glass Fabric PCB
    There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions.
    Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.
  • Long Lifespan Solid Capacitors
    GIGABYTE motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. This provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability.
  • GIGABYTE Patented DualBIOS™ (UEFI) Design
    GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC’s most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a ‘Main BIOS’ and a ‘Backup BIOS’, making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
  • ESD Protection for USB and LAN
    GIGABYTE motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port is paired with a dedicated protection filter that can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.
  • Power Failure Protection with Anti-Surge IC
    GIGABYTE Ultra Durable™ motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.
  • All New Heat Sink Design
    GIGABYTE motherboards feature new heat sink designs that offer uncompromisingly efficient cooling on key areas of the motherboard including the PWM area and chipset (PCH). GIGABYTE motherboards offer cooling support of the crucial PWM area so even the most aggressive and extreme configurations will be kept well within optimal thermal parameters.

  • Introduction

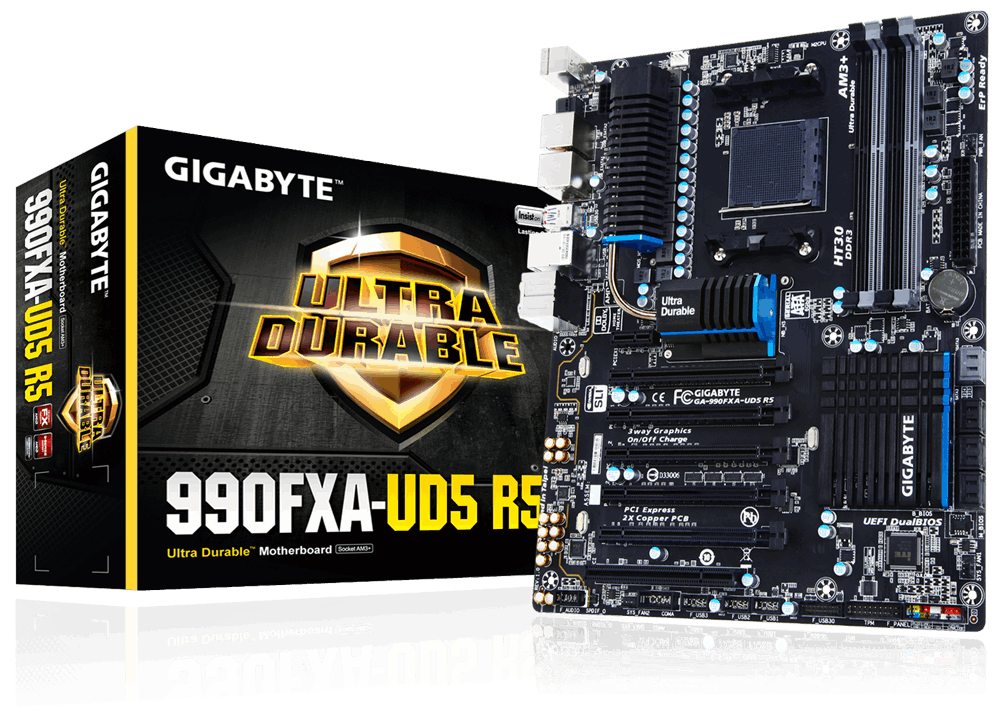

    The 990FXA-UD5 R5 motherboard is designed to offer a stable, high-speed platform for delivering amazingly fast data transfer via the GIGABYTE unique technologies. Featuring the USB3.0 controller, AMD 900 series motherboards allow users to take advantage of super fast USB transfer rates of up to 5Gbps, delivering 10x faster data transfer compared to USB 2.0. Utilizing the industry's first Serial ATA Revision 3.0 solution via AMD SB950 chipset, GIGABYTE AMD 900 series motherboards offer native 6 ports of next generation high speed data storage devices support with data transfer speeds of up to 6 Gbps with RAID 0, 1, 5, 10. The AMD 900 series motherboards introduce a unique hardware design with lower resistance fuses for ensuring lower voltage drops and providing more stable and plentiful power delivery.
  • Dolby Home Theater Support
    Delivers vivid surround sound for music, movies, and games, using two to eight speakers or any set of headphones.
  • On/Off Charge Technology
    GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger...more
    *Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
    *Whether to support 3X USB power design, it may vary by models.

    Download On/Off Charge for Free
