GA-8S661FXM-775 (rev. 2.0)
- Supports LGA775 Intel® Pentium® 4/ Pentium® D* processor FSB800 with HT technology
- Enhance system performance with DDR 400 memory
- Integrated MirageTM Graphics engine
- Integrated Serial-ATA interface with RAID 0,1 function
- Integrated 6-channel AC' 97 audio
- Integrated 10/100Mb Ethernet controller
- Provides 8 USB 2.0 ports for high-speed connectivity
(PS:"*"Supports Intel 805, 820,920 and lower frequency; Intel 805 only support FSB533)
-

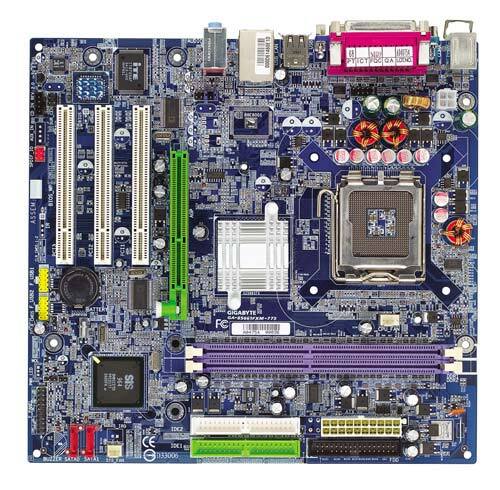

IntroductionGA-8S661FXM-775 (Rev 2.0) is a highly value-oriented P4 platform for the latest LGA775 Intel® Pentium® 4 / Pentium® D* processor with 800MHz FSB and Hyper-Threading Technology. Empowered by the latest SiS 661FX/964 chipsets, and Gigabyte's R&D expertise, GA-8S661FXM-775 (Rev 2.0) delivers a new architecture to uplift the system performance. The new framework supports DDR 400, AGP 8X and Intel® Pentium® 4 platform, especially for the latest LGA 775 65/90nm process Pentium® 4 / Pentium® D* processor with Hyper-Threading Technology, while Hyper Streaming Engine technologies enhances the platform performance to extreme. The integrated graphics, SiS® MirageTM Graphics engine, provides high quality graphics to ensure outstanding visual experience for multimedia equipments. GA-8S661FXM-775 (Rev 2.0) also provides a variety of features such as 8 USB 2.0 ports, 6-channel audio, 10/100Mbps network connection, and high speed ATA133 interface. GA-8S661FXM-775 (Rev 2.0) is designed to deliver the best all-in-one solution and fulfill the requirement for full range of applications now and future.
(PS:"*"Supports Intel 805, 820,920 and lower frequency; Intel 805 only support FSB 533) -
Ready for Intel 65/90nm process LGA 775 Pentium® 4 / Pentium® D processorThis platform is ready for the latest Pentium® 4 / Pentium® D processor, built on the new 65/90 nm technology for levels of performance, stability and productivity higher than ever before.
-
Supports Intel Hyper-Threading TechnologyExperiencing the extraordinary computing power of Pentium 4 processor with Hyper-Threading Technology. Enabling the system to multitask more efficiently than ever before when running the most demanding applications at the same time.
-
Integrated SiS® MirageTM 2D/3D Graphics AcceleratorThe SiS661FX chipset provides Ultra-AGPII Technology to deliver the highest bandwidth 3.2GB/s by 2 Pixel Rendering Pipelines and 4 Texture 3D Graphic Engine. It also has advanced HW acceleration for DVD playback and shared memory size up to 64MB.
-
Supports DDR 400/333/266 up to 2GB MemoryWith double the bandwidth of your system memory and hence boosts the system performance to out perform any memory existing solutions in the market. The GA-8I865G775-G-RH allows you to handle memory-intensive tasks with ease.
-
Integrated SiS HyperStreaming EngineThe HyperStreaming Engine, developed for users that have strong needs for bandwidth and speed, optimizes the performance of the entire computer system. It smartly manages the data streaming to flow effortlessly from the peripherals to the core logic chipsets, between the North and South bridge and to the front side bus, memory and graphic interface. This greatly improves the total performance of desktop platform.
-
Serial ATA with RAID 0, 1, JBOD functionSerial ATA is the next generation ATA specification that provides scalable performance for today and tomorrow. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA, while providing 100% software compatibility.
-
AGP 8X Graphics InterfaceFeaturing AGP 8x (AGP 3.0) the new generation VGA interface specification, this platform delivers enhanced graphics performance with high bandwidth up to 2.12GB/s. Allowing users to have a more realistic graphics experiences while gaming or movie watching.
-
Great Expandability of 8 USB 2.0 portsUSB 2.0 interface, with data transfer rate up to 480Mbps, 40 times faster than USB1.1, providing a faster interface for computer peripherals.
-
High quality 6-channel AC'97 audioมาพร้อม Realtek ALC662 audio CODEC chip, ชิพเสียงคุณภาพดีที่ให้ระบบเสียงในแบบ 6-channel audio สำหรับการรับชมภาพยนต์และเกมส์
-
Ethernet 10/100Mbps Network ConnectionThe onboard 10/100 Mbps Ethernet LAN connection offers a cost-saving and reliable solution for value-minded users requiring straightforward network connectivity.
-
EasyTune™5 (Hardware monitor only)A user-friendly windows based utility developed by Gigabyte provides a brand new experience of easily operation and enjoyment for over-clocking on your platform.
-
GIGABYTE Xpress3 Series SoftwareThe Xpress3 series software includes 3 unique software features, 1) Xpress Install for easier driver installation ,2) Xpress BIOS Rescue for restoring BIOS back to its original stage if the BIOS is crashed (This feature is currently not available), 3) Xpress Recovery 2 a revolutionary software feature that backup or restore system files thru GIGABYTE driver CD or BIOS function.
-
Norton Internet Security™ IncludedNorton Internet Security™ 2004 is the essential protection from viruses, hackers, and privacy threats. It protects user during the online activities such as e-mailing, shopping, banking, and game playing.
