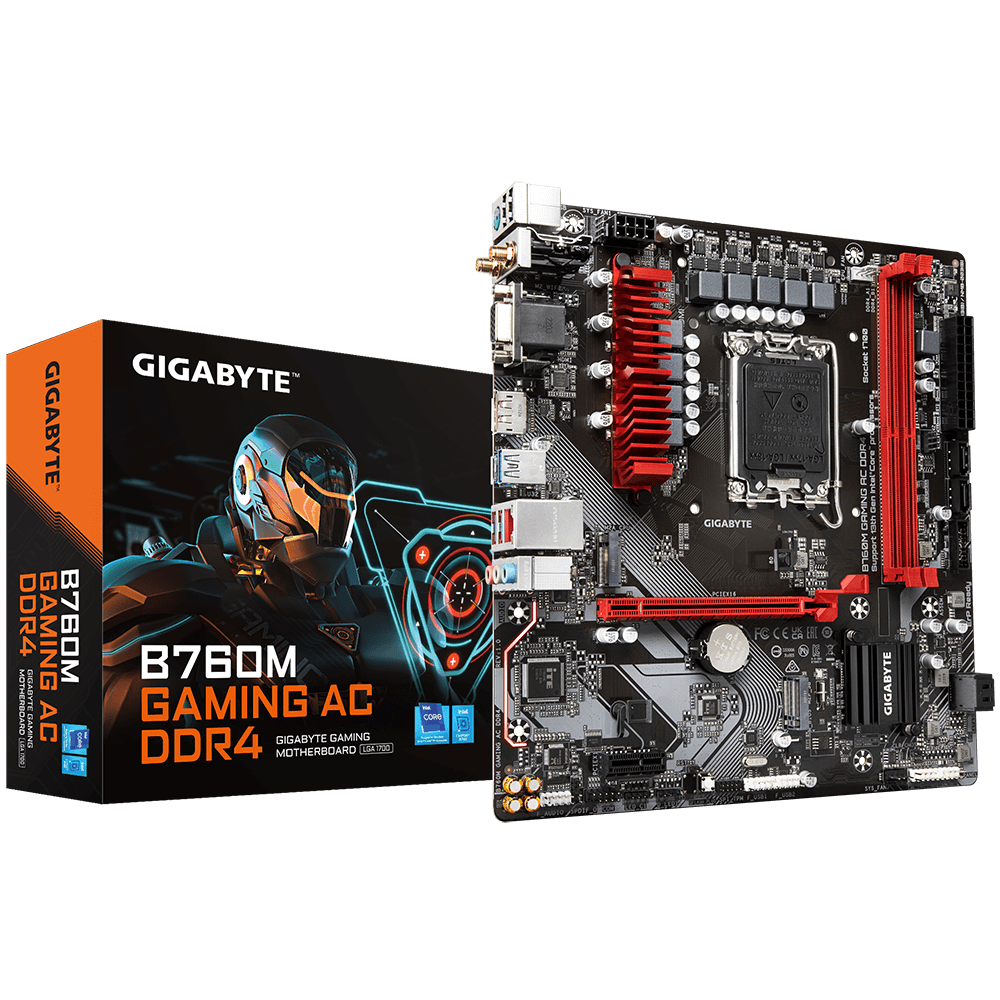

B760M GAMING AC DDR4 (rev. 1.x)
Intel® B760 Chipset
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance:Hybrid 6+2+1 Phases Digital VRM Solution
- Dual Channel DDR4:2*DIMMs XMP Memory Module Support
- Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
- EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks:2.5GbE LAN & Wi-Fi 802.11ac
- Extended Connectivity:Rear USB-C® 5Gb/s, DP, HDMI, D-Sub
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
OVERVIEW
PERFORMANCE
CONNECTIVITY
PERSONALIZATION
ULTRA DURABLE
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/specbg.jpg)
Performance
Connectivity
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/specsmall01.jpg)
1
8 Solid Pin CPU Power Connector
2
PCI Express 4.0 Design
- 1*PCIe 4.0 x16 Slot
- 2*PCIe 4.0 x4 M.2 Connectors
3
Audio Solution
- 8-ch HD Audio
- Audio Noise Guard
- High-End Audio Capacitors
4
6+2+1 Phases Hybrid Digital VRM Design
5
Dual Channel DDR4, 2 DIMMs
6
Support 13th and 12th Gen. Intel® Core™ Processors
8
Q-FLASH Plus Onboard Button
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/spec01.png)
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/specsmall02.jpg)
1
Wi-Fi 802.11ac & BT
2
HDMI
3
D-Sub
4
DisplayPort
5
USB 3.2 Gen 1 Type-C®
6
2.5GbE LAN
7
4*SATA 6Gb/s
8
RGB FUSION
- 1*Addressable LED Header
- 1*RGB LED Header
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/spec02.png)
Hybrid Digital VRM Design
PCIe 4.0 Design
DDR4 XMP
2 x PCIe 4.0x4 M.2
PerfDrive
Smart Fan 6
UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/Performance.jpg)
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/Performance-s.jpg)
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/vrm-design.jpg)
To ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU, GIGABYTE GAMING series motherboard equip the best VRM design ever built with the highest quality components.
6+2+1 Phases Hybrid Digital VRM Design
• 6+2+1 Phases Low RDS(on) MOSFETs
• Premium Choke and Capacitors to improve transient response and minimize oscillation
• Premium Choke and Capacitors to improve transient response and minimize oscillation
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/s-vrm-design.jpg)
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/pcie4slotdesign.jpg)
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/pcie4slotdesignsmall.jpg)
GIGABYTE B760 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience triple bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
1. PCIe 4.0 M.2 Slots
2. PCIe 4.0 x16 Slot
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/pcie4-chart.png)
Support for DDR4 XMP Up to 5333MHz and Beyond*
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE otherboard.
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/mb_xmp_1920.jpg)
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/mb_xmp.png)
* XMP Profile support may vary depending on memory module.
Please see the complete validated memory support list. Product features may vary by model.
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/xmpsmall.jpg)
Dual PCIe 4.0 x4 M.2
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/gen4.jpg)
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/gen4-table.jpg)
GIGABYTE PerfDrive
PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel® Core™ processors.
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/perfdriveui.png)
Max Turbo
Optimization
Spec Enhance
E-Core™ Disable
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/perfdriveconbg.png)
Max Turbo allows Intel® 13th Gen. Core™ CPU to run at Maximum Turbo Boost speed.
The Optimization mode enables Intel® 13th Gen. Core™ CPU to balance between high performance and low temperature.
The Spec Enhance mode enables Intel® 13th Gen. Core™ CPU to run at high performance under a lower temperature setting.
The E-Core™ Disable mode allocates CPU resources to P-core exclusively to boost its gaming performance, while diminishing the overall power consumption of processors.
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/perfdriveconbg_bottom.png)
* Features and function vary depending on Motherboard and CPU specifications, image is for reference only.
802.11ac Wi-Fi
2.5GbE LAN
Hi-Fi Audio
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/connectivity.jpg)
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/connectivity-s.jpg)
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/wifi6.jpg)
802.11ac Wi-Fi
The onboard 802.11ac Wi-Fi module supports Dual Band and up to 1.73Gbps, 5x faster Wi-Fi speed than 802.11n and also supports BLUETOOTH 4.2 and above.
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/wifi6small.jpg)
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/2.5gbe.jpg)
First adopter on 2.5GbE LAN onboard
2X Faster than ever
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/textline.png)
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/2.5gbe-icon.png)
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/2.5gbe_small.jpg)
UEFI BIOS
GIGABYTE Control Center
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/AESTHETICS.jpg)
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/AESTHETICS-s.jpg)
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/bios-icon.png)
Friendly User Interface
The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2
interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall
settings
modification.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/software_bios.png)
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/GIGABYTE-Control-Center.png)
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularized control components only for installed hardware
- Auto update function to keep system up to date and support future products
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/software_easytune.png)
DIY Friendly
Q-Flash Plus
GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/ULTRADURABLE.jpg)
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/ULTRADURABLE-s.jpg)
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/diy-pcie.jpg)
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/arrow-icon.png)
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/s-diy-pcie.jpg)
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/q-flash-plus.png)
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/qflashstep1.png)
STEP 1.
Plug 24pin & 8pin power supply cable on motherboard
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/qflashstep2.png)
STEP 2.
Download motherboard BIOS file and rename to "gigabyte.bin", save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
![](/FileUpload/Global/KeyFeature/2268/innergigabyteimages/qflashstep3.png)
STEP 3.
Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.
